lcd 27 inch 4k UHD lcd panel screen 4 lane edp interface 30 pins controller board 60HZ for outdoor advertising
- Category: >>>
- Supplier: Shenzhen Xinyi Technology Co. Limited
Share on (1600240752248):
Product Overview
Description
Product Description:

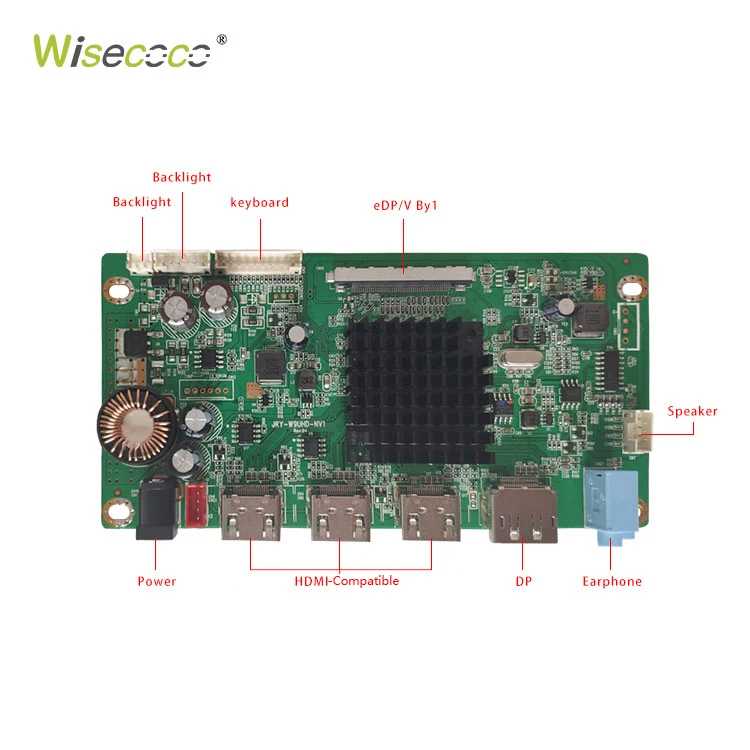

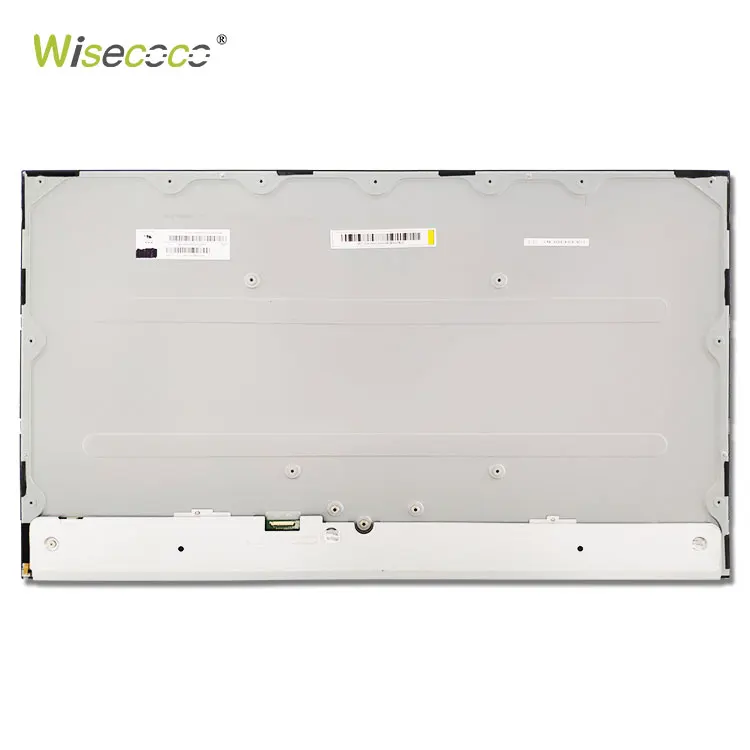

27 inch 4k UHD lcd panel screen with 4 lane edp interface 30 pins controller board 60HZ for outdoor advertising screen
General Features | |||
Diagonal Size | 27 inch | Type | LCM , a-Si TFT-LCD |
Number of pixel | 3840(H) × 2160 (V) | Configuration | RGB Vertical Stripe |
Active Area | 596.736(H) × 335.664(V) | Outline Dim. | 608.8(H) × 355.3 (V) × 13.4(Depth |
Bezel Area | - | Treatment | Antiglare,Hard coating (3H) |
Luminance | 350 (Typ.)(cd/m²) | Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black |
Support Color | 1.07B 100% (sRGB) | Light Source | WLED , 10K hours , With LED Driver |
Weight | - | Designed For | Desktop PC, Workstation |
Frame Rate | 60Hz | Touch Panel | Without |

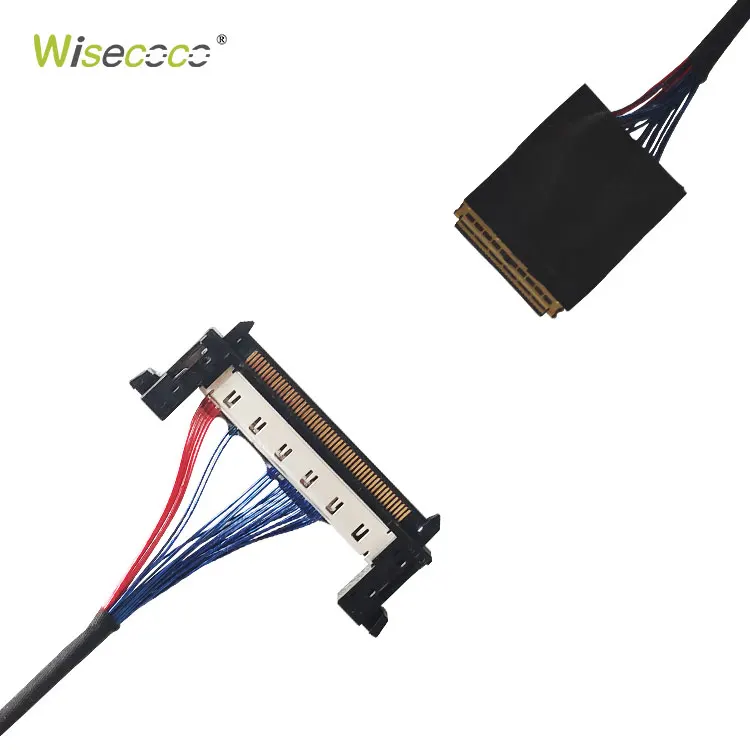

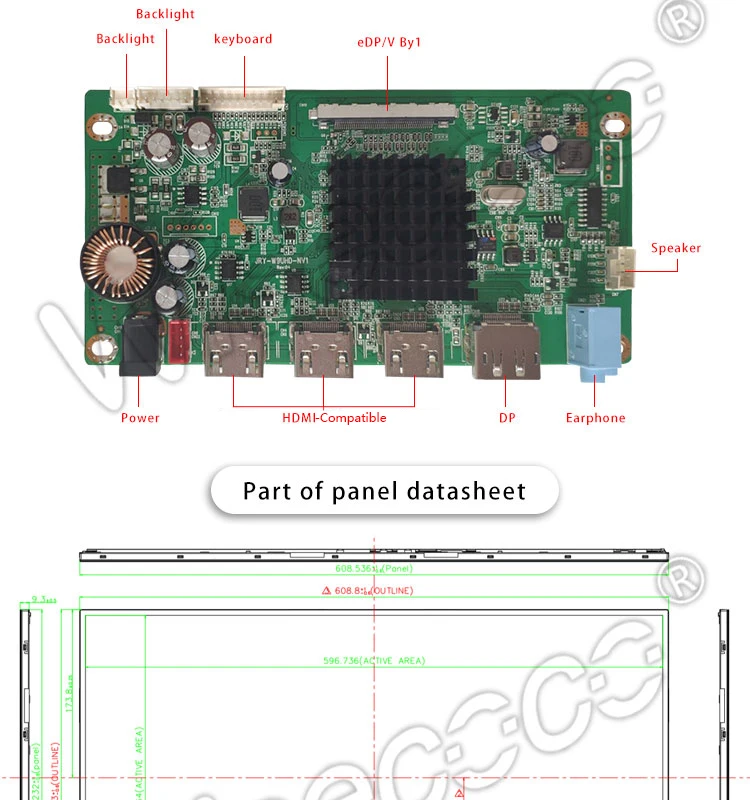

Interface Type | 30 pins eDP (4 Lanes) | ||
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
