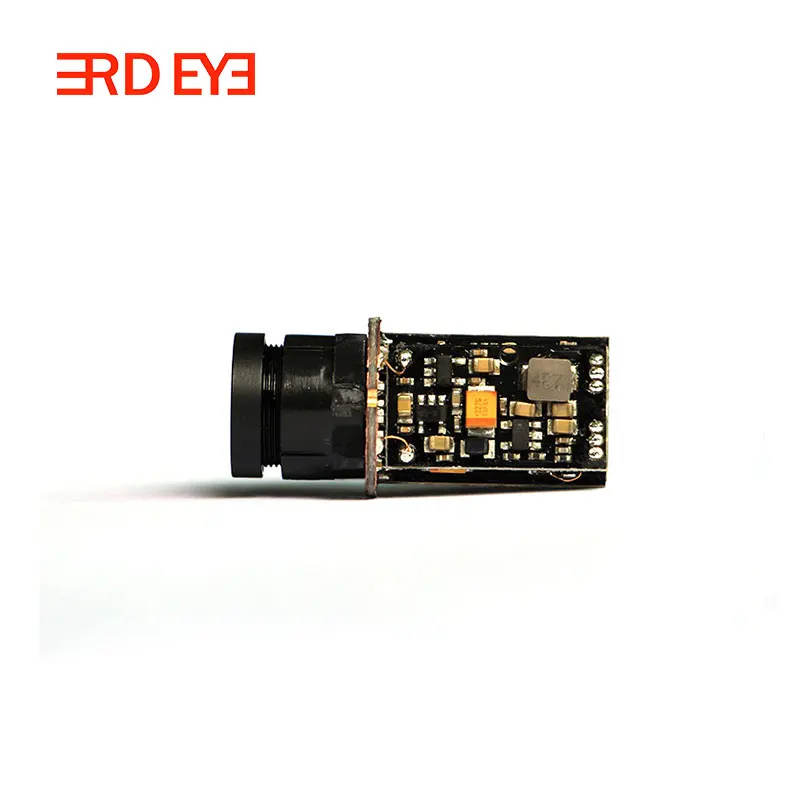

1080P HD industry camera CCTV Video Surveillance 291 Senor 17mm Mini small camera module

Product Overview

Description

1080P HD industry camera CCTV Video Surveillance 291 Senor 17mm Mini  small camera module



Model Number:  M2C2416GXB-M

Main features of the 1080P HD industry camera



Image Sensor 2MP SONY Image Sensor
Signal System: PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. Illumination Color 0.001Lux/F1.2
B/W 0.0001Lux / F1.2
Shutter Time: 1/25(1/30) s to 1/50,000 s
Angle of View: 160° deep focus no any distortion
Video Frame Rate: PAL: 1080p@25fps NTSC:1080p@30fps
HD Video Output:1080P HD-AHD Default
( HD-CVI,TVI , CVBS for option )
Video Output: 1.1Vp-p Composite Output(75Ω/BNC)
S/N Ratio 65dB
Support AGC,Auto White Balance, Auto D/N Mode
Power Supply: DC12V
Power Consumption: 1W MAX



1080P HD industry camera CCTV Video Surveillance 291 Senor 17mm Mini  small camera module



Specifications of  1080P HD industry camera module





Image Sensor	2MP SONY Image Sensor
Signal System	PAL/NTSC
Effective Pixels	1920(H)*1080(V)
Min. Illumination	0.0001Lux @ F1.2
Shutter Time	1/25(1/30) s to 1/50,000 s
View angle	M2C2416GXB(160°)
Video Frame Rate	PAL: 1080p/25fps	NTSC: 1080p/30fps
HD Video Output	HD-TVI, CVI, AHD, CVBS
CVBS Video Output	1.1Vp-p Composite Output(75Ω/BNC)
S/N Ratio	65dB
Gain Control	Auto
White Balance	Auto
Day/Night Mode	Auto
Operating Conditions	-20 °C - 60 °C
Power Supply	DC5-12V
Power Consumption	1W MAX

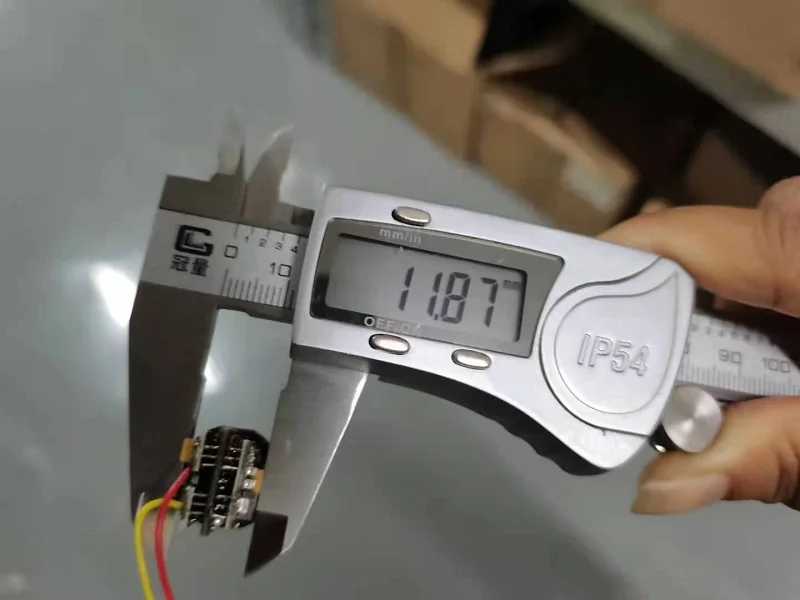

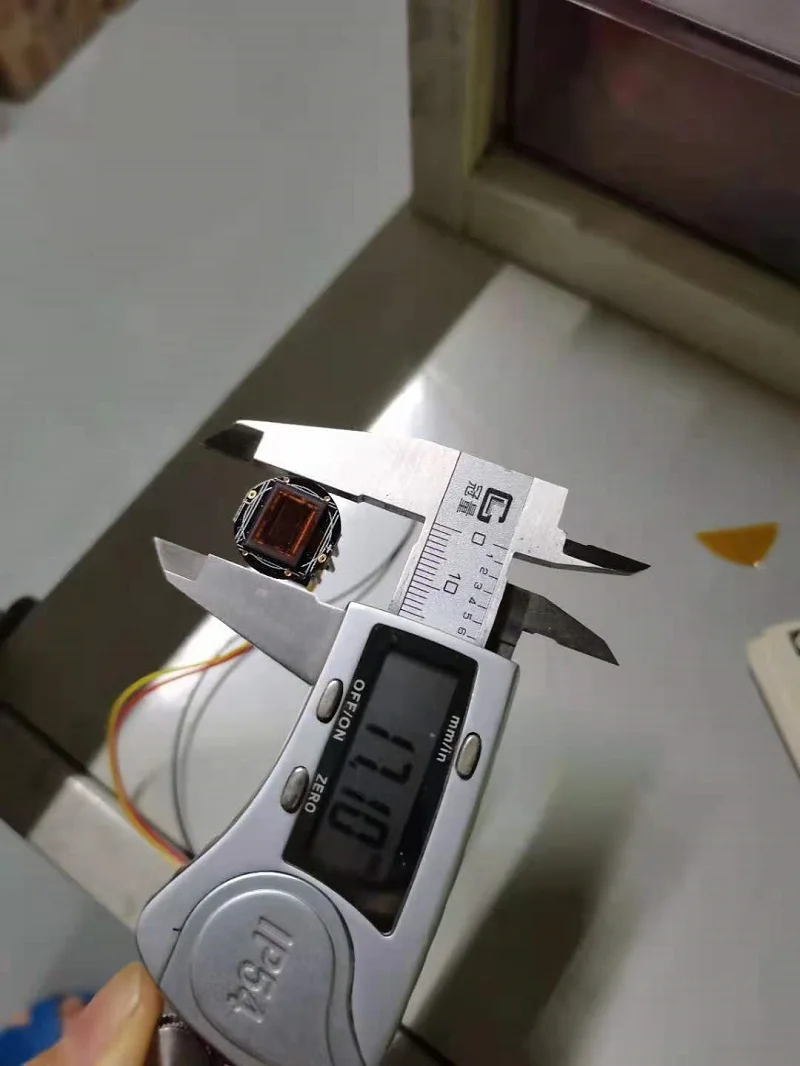

Dimension	17*35mm
Weight	7g
