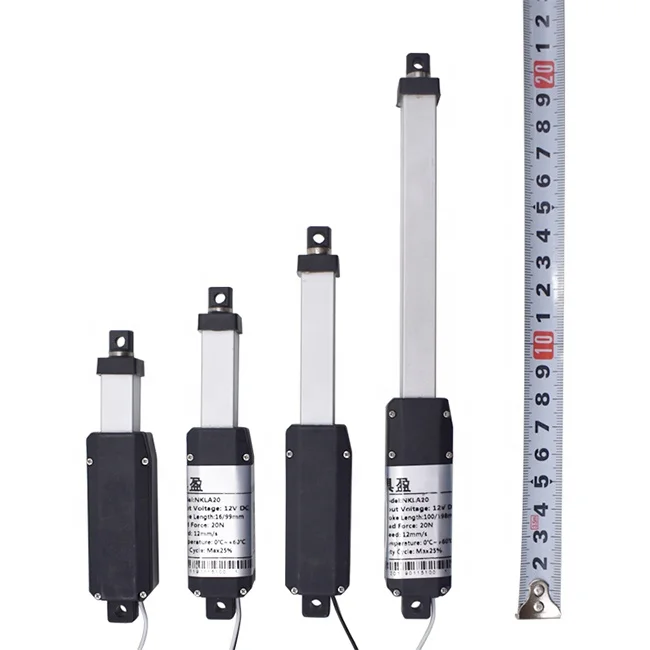

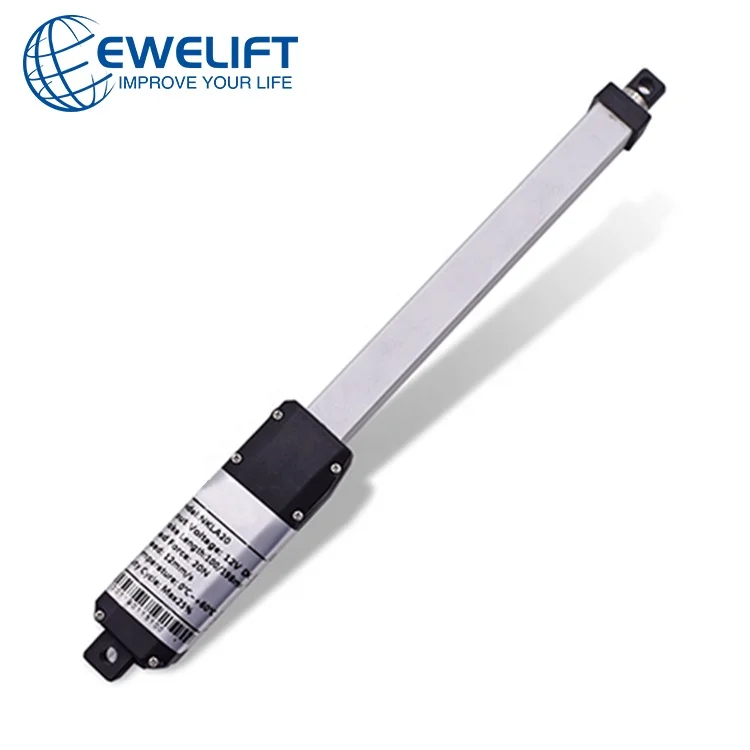

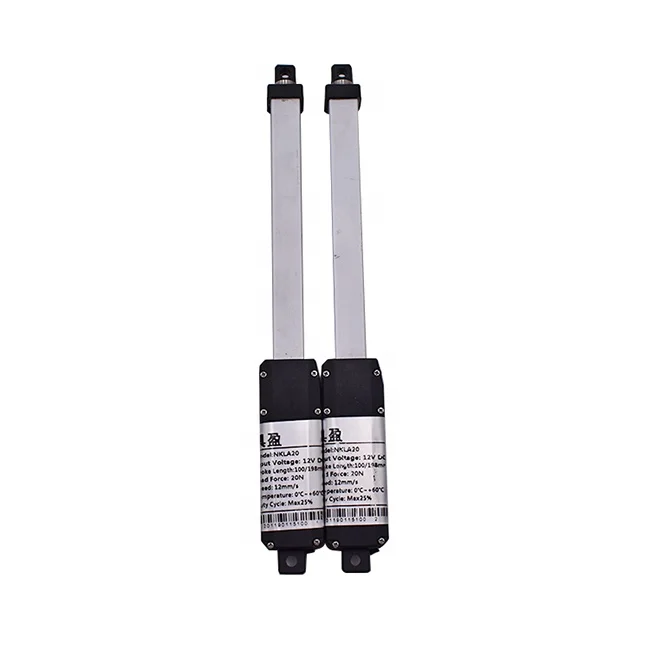

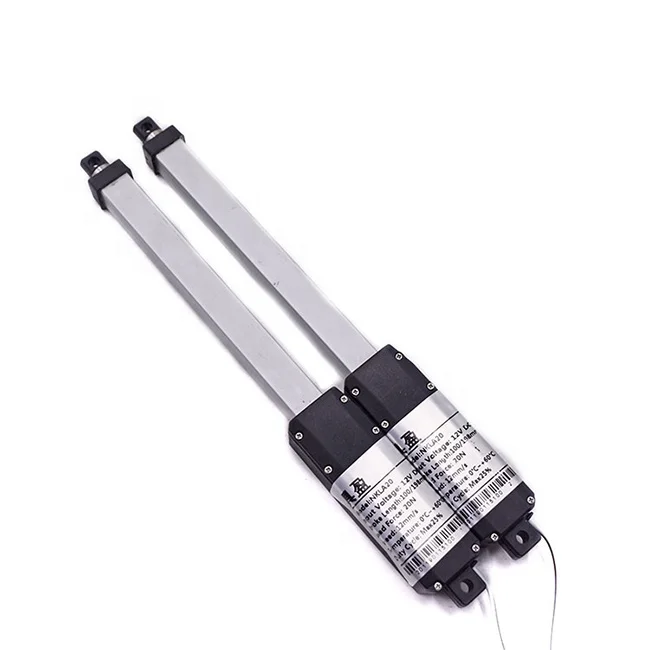

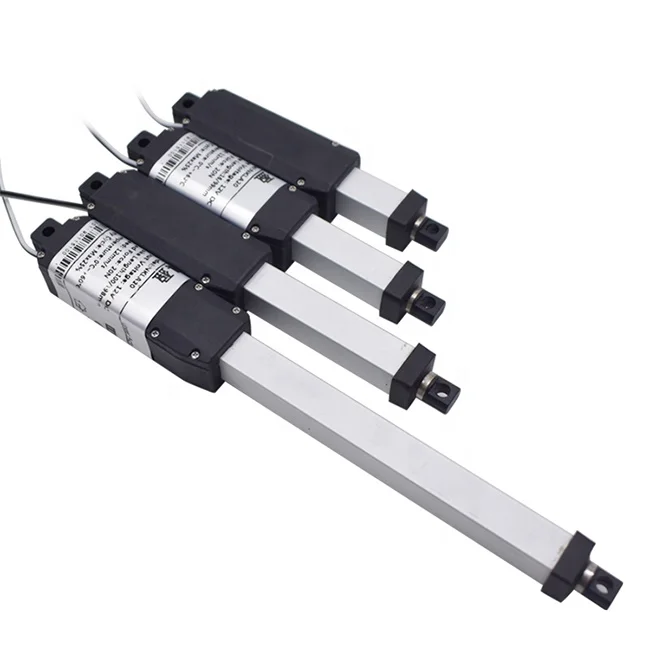

EWELIFT NKLA20 12vdc 20N mini linear actuator
- Category: >>>
- Supplier: Zhejiang Ewelift Intelligent Motion Technology Co. ltd.
Share on (1600240789264):
Product Overview
Description
Product Description
EWELIFT NKLA20 Linear actuator
NKLA20 small linear actuators are a superior alternative to designing with awkward gears, motors, servos, and linkages .
ewelift has gained a reputation for providing high-quality products and competitive prices in global medical, furniture, industrial, ports, construction, fire protection, military equipment, nuclear power plants, and environmentally friendly sewage treatment equipment.
ewelift has gained a reputation for providing high-quality products and competitive prices in global medical, furniture, industrial, ports, construction, fire protection, military equipment, nuclear power plants, and environmentally friendly sewage treatment equipment.
Feature
EWELIFT NKLA20
Features
1. 12V safety voltage
2. Thrust up to 20 N in push and up to 20 N in pull
3. Standard protection class: IP54/IP66
4. Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
5. The average noise level is lower than 60dB(ambient noise is less than 60dB).
6. Built-in electronic limit switches
7. High-strength front and back fixtures
1. 12V safety voltage
2. Thrust up to 20 N in push and up to 20 N in pull
3. Standard protection class: IP54/IP66
4. Aluminium-Alloy outer tube and inner tube, beautiful and corrosion resistant
5. The average noise level is lower than 60dB(ambient noise is less than 60dB).
6. Built-in electronic limit switches
7. High-strength front and back fixtures

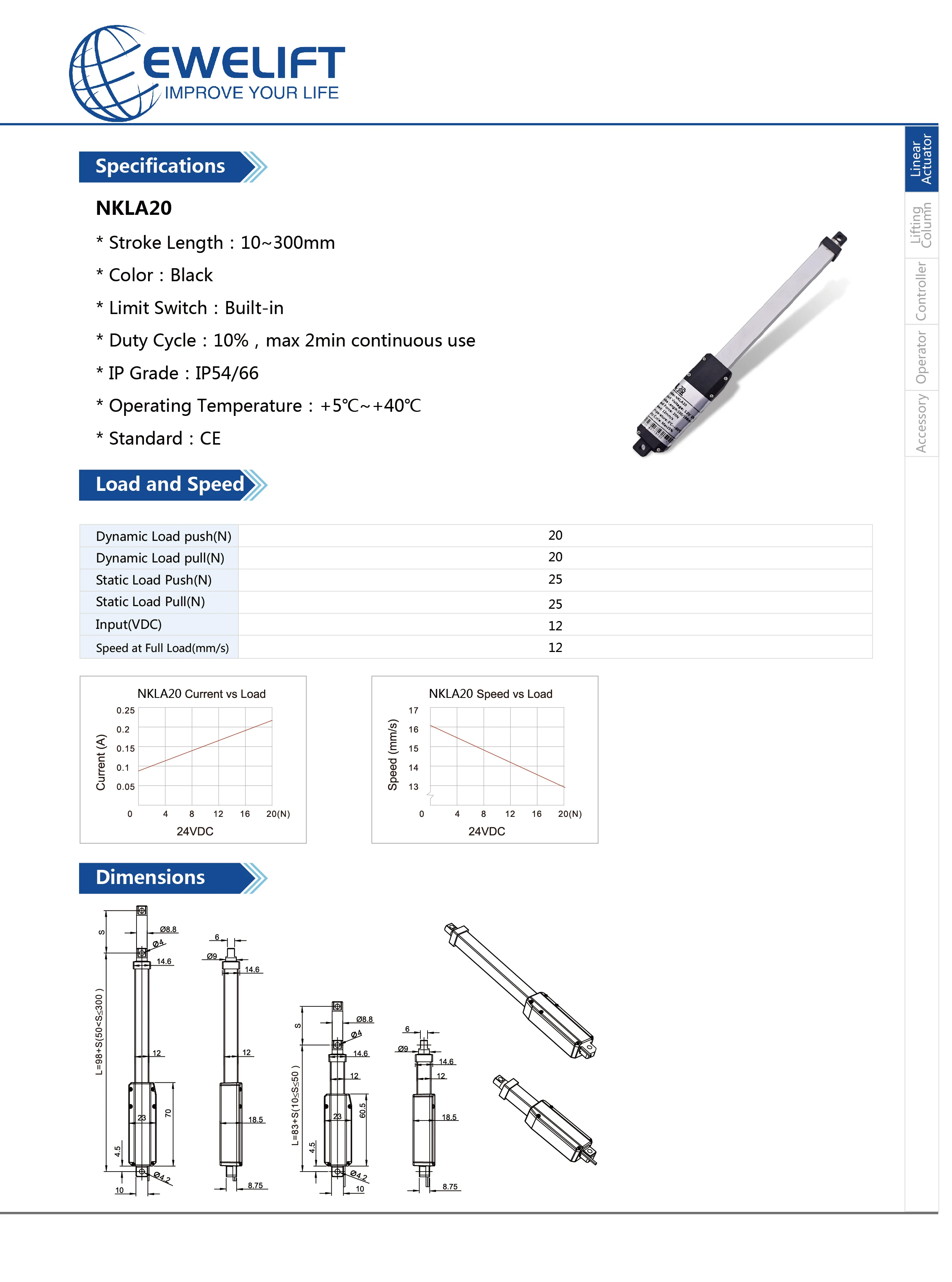

Product Name | EWELIFT NKLA20 Linear actuator |
Max. load push(N) | 20N |
Max. load pull(N) | 20N |
Static Load push*(N) | 25N |
Static Load pull*(N) | 25N |
Input(VDC) | 12V |
Speed at Full Load(mm/s) | 12mm/s |
Stroke Length(mm) | 10~300mm |
Color | Black |
Limit Switch | Built-in |
Duty cycle | 10%, max 2min. continuous use |
Operating Temperature | +5℃~+40℃ |
IP Grade | IP54/IP66 |
CEStandard | CE |
Application
EWELIFT Linear actuators are widely used in medical line ,industrial line , home care line , smart office line and many other applications

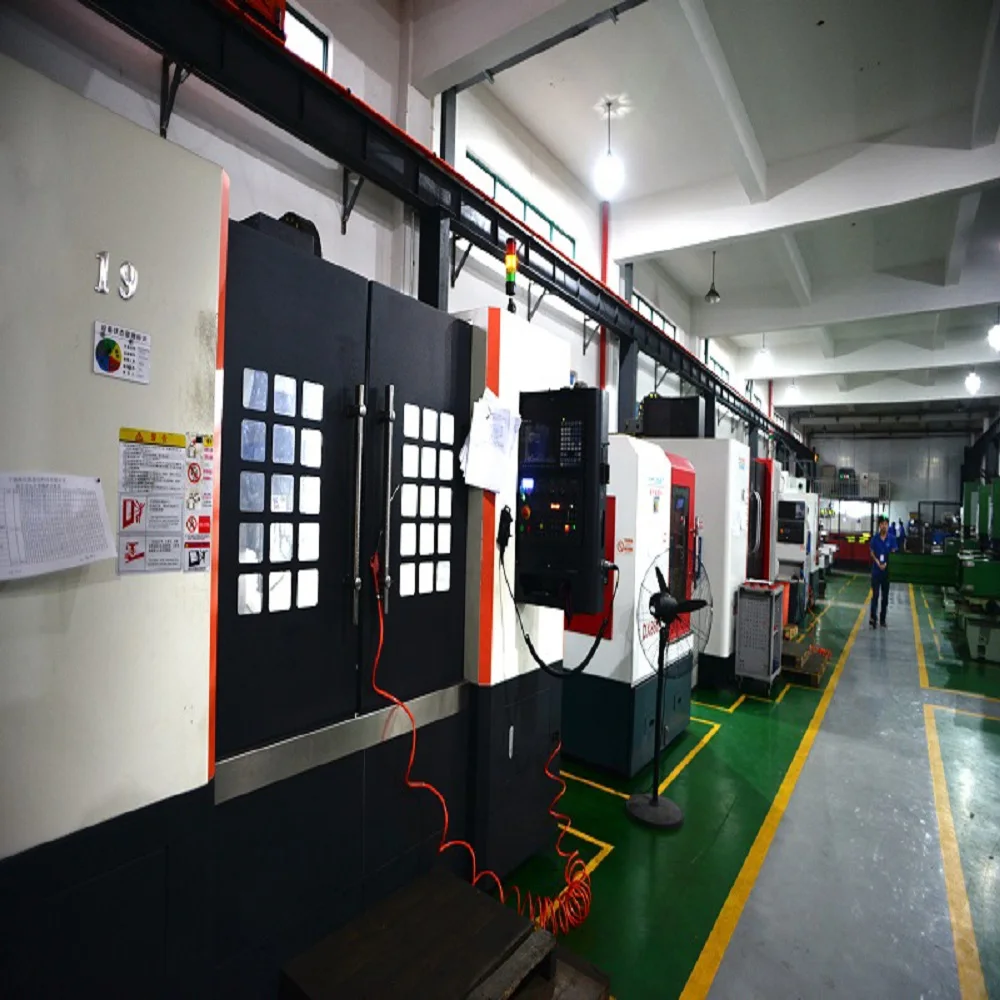

Production line
we have linear actuators , lifting columns , control box , wired handset and wireless remote controller production lines and other lines.
Certifications
Packing & Delivery
10pcs linear actuators packed in one carton , few cartons packed in pallet , shipping by sea , air and express.
and we also accept customized, please inform us in advance.

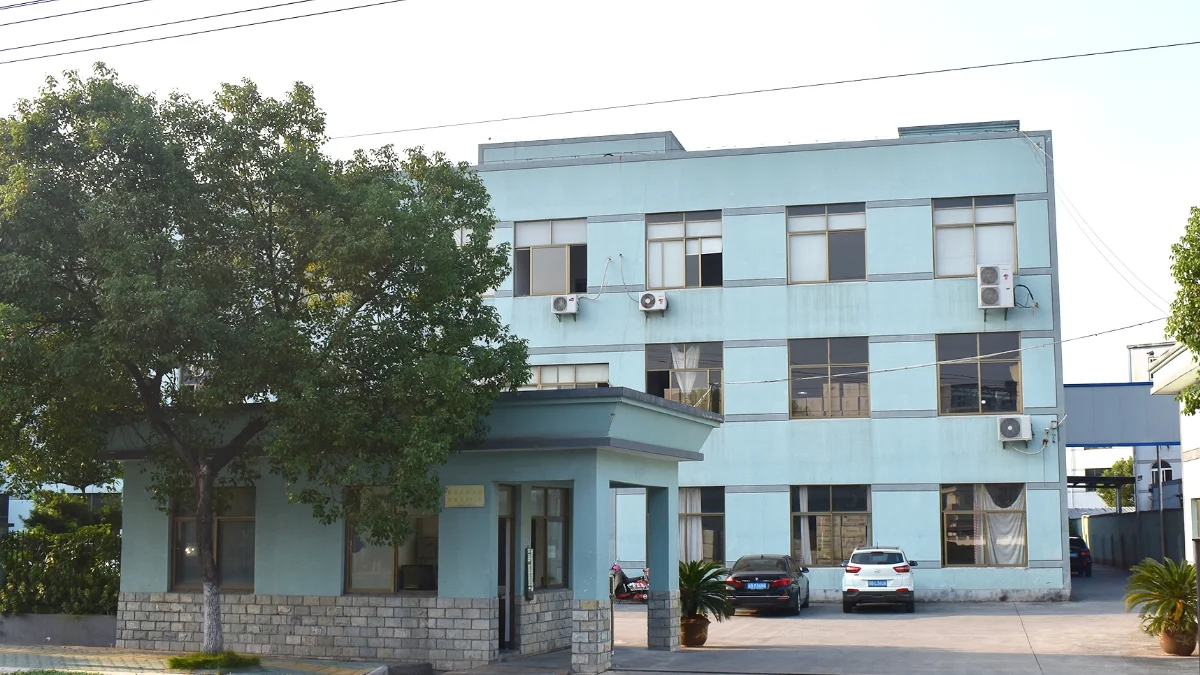

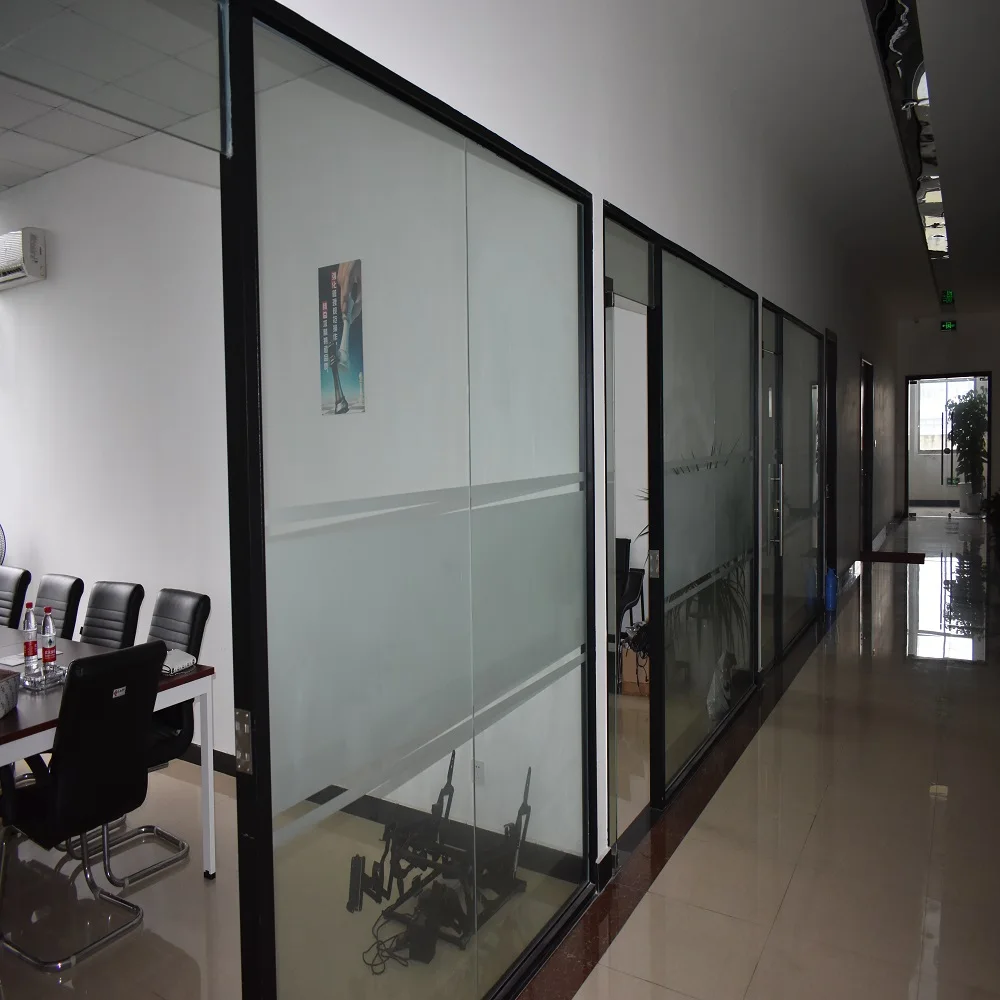

Company Profile
ZHEJIANG EWELIFT INTELLIGENT MOTION TECHNOLOCY CO.,LTD started since 1988 , specializing in R&D, production and sales of linear motion system. EWELIFT has linear actuator, lifting column, lifting frame and control box, which now have wide applications in fields like smart office, medical care, home care and intelligent industries. We have a strong R & D team and the most competitive manufacturing capacity, mechanical and electrical integration capacity and 30 years of export experience . we have complete production equipment including automatic cutter line, laser robots and spraying lines .
ewelift has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world .
EWELIFT aims to provide high quality, customizable products and good service for customers .
ewelift has passed system certification of ISO9001 ,and our products has been approved by UL, CE . Our products are sold to North America , Europe, Australia, Southeast Asia, and many other countries in the world .
EWELIFT aims to provide high quality, customizable products and good service for customers .
FAQ
1. How can I get the quotation?
You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Categories、Linear Actuators、Lifting Columns、Height Adjustable Desk Frames、Control Boxes、Wired Handsets、Wireless Remote Controllers、Foot Controls、Sunlight Management
4. What’s the lead time?
After the payment is received, normally it takes 7 to 10 days to deliver.
5. Could I take samples to test quality and market in advance?
Yes, welcome to take samples to test our quality and service.
You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Categories、Linear Actuators、Lifting Columns、Height Adjustable Desk Frames、Control Boxes、Wired Handsets、Wireless Remote Controllers、Foot Controls、Sunlight Management
4. What’s the lead time?
After the payment is received, normally it takes 7 to 10 days to deliver.
5. Could I take samples to test quality and market in advance?
Yes, welcome to take samples to test our quality and service.
6.What’s your MOQ of Linear Actuator System?
1pc. We could provide a good discount for a batch order.
7.Is it all right to make customer’s own brand name?
Yes, we can make customized brand.
8.Is OEM and ODM supported?
Yes, both are available.
