Hot Sale Concrete Waste and Glass Sand Powder Making Small Mini Mobile Stone Gold Ore Rock Hammer Crusher for Sale
- Category: Crusher >>>
- Supplier: Henan,Fuyuan,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Hot Sale Concrete Waste and Glass Sand Powder Making Small Mini Mobile Stone Gold Ore Rock Hammer Crusher for Sale
Product description

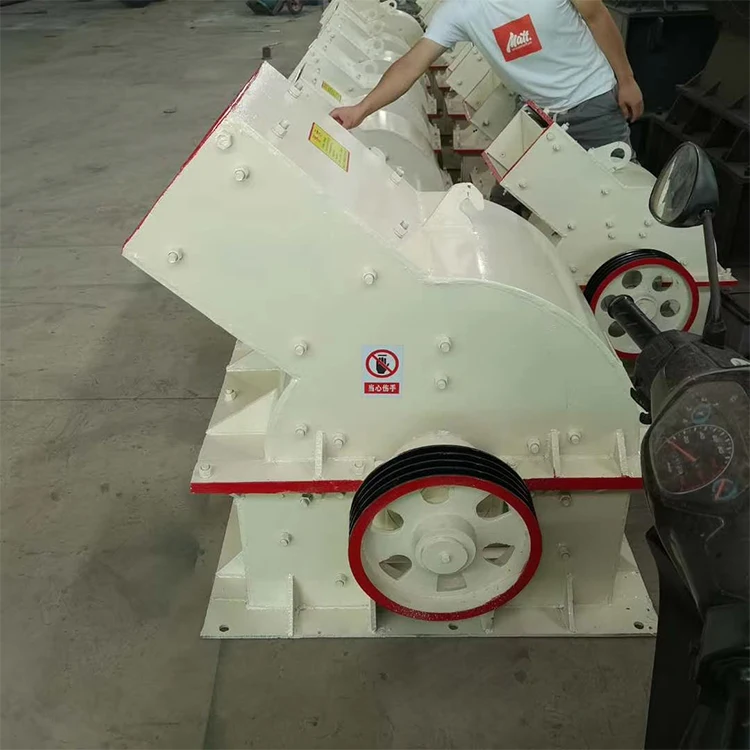

Hammer crusher machine
Types of hammer mill is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15%moisture,such as coal, cement,gypsum,alumen,brick,tile,limestone,etc.It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
Hammer crusher is the most common of stone crushing equipment. It is also called hammer mill. It has high production capacity, low energy consumption, simple structure, reliable quality, easy maintenance, etc.it is mainly used in the field of cement, mining,coal, electricity , and chemical industry , etc.
Product parameter
Model | PC400*300 | PC350*500 | PC600*400 | PC800*600 | PC800*1000 |
Number of hammers | 16 | 20 | 20 | 24 | 20 |
Feed size(mm) | <100 | <100 | <220 | <350 | <400 |
Size of outputting size(mm) | <15 | <15 | <15 | <15 | <15 |
Production capacity(t/h) | 5-10 | 8-15 | 10-25 | 20-50 | 20-75 |
Power(kw) | 4P-11 | 4P-18.5 | 4P-22 | 4P-55 | 4P-75 |
Weight(t) | 0.8 | 1.2 | 1.5 | 3.8 | 5.5 |
Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size. The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.
Product detail
Product Advantage
1. Hammer crusher simple structure, compact size, weight, the unit product smaller little power consumption
2. Hammer crusher productivity is higher, the big crushing ratio, products, a small and uniform particle size, excessive broken cubic phenomenon less.
3. A continuous and reliable hammer crusher work, maintenance and repair is convenient, vulnerability to check and replacement parts.
Application
