12/24V Double wardrobe cabinet Door IR Sensor Switch
- Category: >>>
- Supplier: Shenzhen Me Booming Innovate Technology Co. Ltd.
Share on (1600240899223):
Product Overview
Description
The Double 12/24V wardrobe cabinet Door IR Sensor Switch is double door activated and is suitable for work with DC12V/24V Led lighting.
the IR Door Sensor With Twin Head switch is available to be recess or surface mounted.
It is designed to work with a double cabinet or wardrobe door, by automatically switch a light on and off when either door is opened
Description:
Double door Infra Red activated switches is used in DC12v/24v Led furniture lighting, when it is installed well on positioning inside a double door cupboard,
the light is on automatic no matter which door is open, the light is off when both door are closed. the detect range is within 8cm,
Product type: Twin Door Sensor Switch
Mounted: Recess/surface mounted
01, Surface mounted: this is easily mounted using the 2 screws and is come with 1000mm of cable, it has to connect with Led driver.
02, Recess mounted: mounting in drilled hole, drill hole dia is 8mm.
Max Load Power: DC12V/24V, 60W
Voltage: Suitable for 12V or 24V DC power supplies.

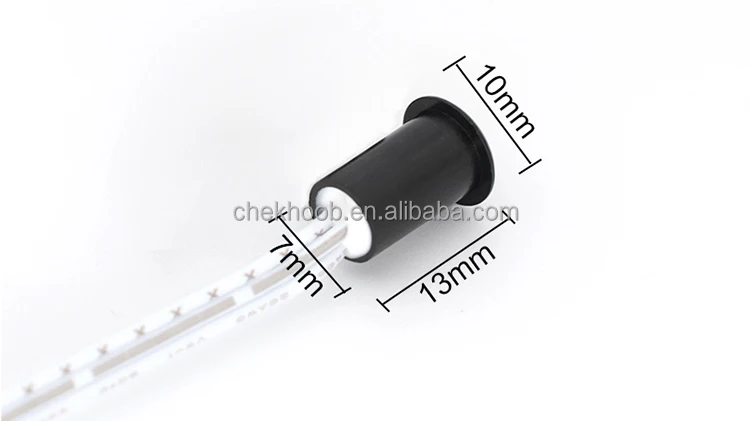

Dimensions: Dia 8mm x L13 mm
Material: Plastic
Cable Input: 1.0m (39")
Cable Output: 1.0m (39")
Color is white, and customized finish is available,but have MOQ,
Applications: Suitable for kitchen, cabinets, Wardrobles, any furniture with double doors,
Product Description
| Product name | Double door sensor light switch |
| Power | 60W, Max |
| Voltage | DC12V ,24V |
| Install | Surface /Recess mounted |
| Cable length | 1000mm |
| Material | Plastic |
| Recess mounted size | Drill Dia 8mm |
| Surface-mounted size | 13x10mm |
| Package | PE bag |
Features:
- Oval LED Recess/Surface Mount Controllers
- 60W Max Wattage
- Door Sensor, Motion Sensor, Proximity Sensor, & Touch Dimmer Controllers available
- Black or silver finishes
- Surface mount plate packaged with each controller
- Can mount inside cabinet or drill hole and have top sticking out for motion
Door Sensor:
- Door Open - Light On; Door Closed - Light Off
- Max wattage: 60W
- Sensor Range: 50mm (2")
- Cable Input: 1.0m (39")
- Cable Output: 1.0m (39")
Motion Sensor:
- Turns on when human motion is detected
- Max wattage: 60W
- Sensor Range: 0 - 3m (10')
- Viewing degree: 120°
- Time on: 30 seconds if no motion
- Cable Input: 1.0m (39")
- Cable Output: 1.0m (39")
Proximity Sensor:
- Swipe hand across to turn on/off
- Max wattage: 60W
- Sensor Range: 50mm (2")
- Cable Input: 1.0m (39")
- Cable Output: 1.0m (39")
Touch Dimmer:
- Touch on/off and 0-100% dimming control
- Hold finger down for dimming
- Max wattage: 60W
- Cable Input: 1.0m (39")
- Cable Output: 1.0m (39")
Description:
These 12V/24VDC 60W LED Recess/Surface Mount Controllers are available in nickel or black finishes. but have MOQ requirement,
The controllers are the perfect accessory for any LED light, ensuring you can control the lights in your room however you want to.
With Door Sensor, Motion Sensor, Proximity Sensor, & Touch Dimmer options, you are sure to find the best fit for your home.
Most Infra Red sensor switches have two selectable installation modes, one is recessedmounted, another one is surface mounted,
Simple Installation and mounting, small sensor dimensions, High durability,
This is the sensor only, which requires a 12v or 24v power supply to connect it with Led lights.
Installation Instructions:
Your questions that we answered:
Can this IR sensor switch be attached to any other in-cabinet lighting or is a sensor and light set?
- Yes, it could be used with other lighting products, but please confirm the details with us before buying. it has to pay attention on the light positive and negative poles.
Packaging & Shipping
PE bag for single,
50pcs per carton,
Normally shipped by FedEx, DHL and UPS, or as request
Delivery time one week for qty less than 1,000pcs
Our Services
From looking for premium materials suppliers to workshop process and final quality assurance, we have our own professional team to finished it based on company’s policy, and all the checking procedures have to be logged into our quality system.
R&R processing standards keep product repeatability and reproducibility every time.
Discontinued management for customers. As the industrial product, the worst matter is that the supplier stops producing a previous product without any corresponding follow-up service when you already cost much on advertisement and sale channel coverage.
Company Information
Mouzar is a supplier and manufacturer of furniture lighting, cabinet lighting, display lighting and sensor switches to trade, dealers and distributors worldwide serving in the furniture, kitchen, shop, decoration, hardware industrial and residential lighting markets,
Mouzar provides a total solution to customers from design, engineering, manufacturing helping to present customers a competitive advantage in the market.
FAQ
For any question, please contact me,
| Name | Martin tang |
| martin(a)mouzar.com | |
| Phone/WhatsApp/Wechat | 0086 13632630512 |
| Website | www.mouzar.com |
