12mm screw volumetric doser for masterbatch mixing dosing
- Category: >>>
- Supplier: Dongguan Dingyuan Industrial Co. Ltd.
Share on (1600240958705):
Product Overview
Description

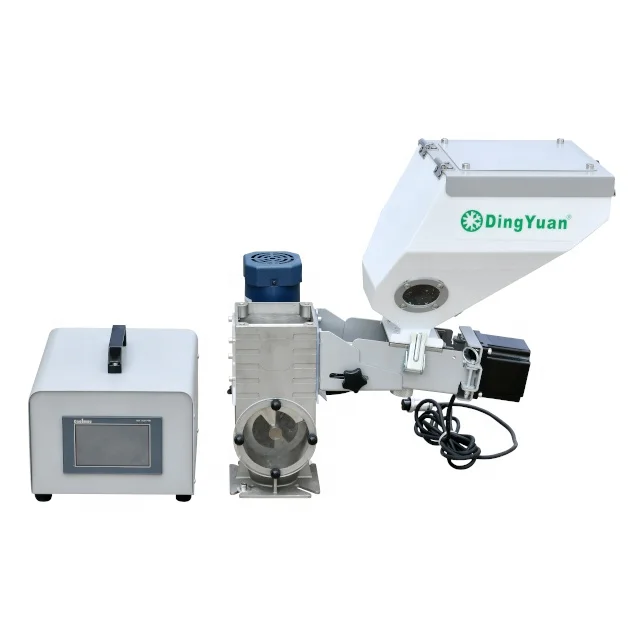

12mm screw volumetric doser for masterbatch mixing dosing
Products Description
Product Application
DY-CD series metering masterbatch mixers are adaptable to auto-proportion mixing of new materials, regrinds, masterbatch or additives, adaptable to injection, extrusion or blow molding field. This series of models use DC brushless motors, which are mixed according to the pre-selected proportions. The conditions set by the all-digital microcomputer control system are automatically converted into speeds to directly drive precision screw extrusion materials. The deviation is not higher than ± 1. %. The product's motor reduction ratio is divided into two types: 30: 1 and 100: 1, and the screw diameter is divided into four types of 12, 16, 20, and 24mm. It can evolve into models that provide different output of 0.1-50kg / hr for customers to choose .
Model | Single Color Unit | ||||||||||
DY-CD12 | DY-CD14 | DY-CD16 | DY-CD12*2 | DY-CD16*2 | |||||||
Motor power | W | 40 | 40 | 40 | 40*2 | 40*2 | |||||
Motor speed | RPM | 1.8~300 | 1.8~300 | 1.8~300 | 1.8~300 | 1.8~300 | |||||
Output power of mixer | W | 90 | 90 | 90 | 90 | 90 | |||||
Screw diameter | MM | 12 | 14 | 16 | ...... | ...... | |||||
Output capacity | KG/H | 0.05~20 | 0.1~40 | 0.5~64 | ...... | ...... | |||||
Storage hopper capacity | L | 12 | 12 | 12 | 12 | 12 | |||||
Gear ratio | 30 | 30 | 30 | 30 | 30 | ||||||
Dimension | L*W*H(MM) | 450*560*310 | 450*560*310 | 770*815*1225 | 450*980*310 | 520*1050*1050 | |||||
Weight | KG | 25 | 25 | 25 | 45 | 75 | |||||
Main Features
1.Color touch-screen controler.
2.Fiber materials rarely untwine.
3.Little residue remains, so cleaning is easy.
4.No damage of material by minute vibration feeding.
5.Feeding proceeds smoothly without any fluctuation.
6.Single-chip systems provide fast and accurate control.
7.All parts that contacting material are made of stainless steel.
8.Built-in A/D converter which realizes direct digital signal output.
9.By changing the door opening to regulation the thickness of material in chute to adapt different material and flow rate.
2.Fiber materials rarely untwine.
3.Little residue remains, so cleaning is easy.
4.No damage of material by minute vibration feeding.
5.Feeding proceeds smoothly without any fluctuation.
6.Single-chip systems provide fast and accurate control.
7.All parts that contacting material are made of stainless steel.
8.Built-in A/D converter which realizes direct digital signal output.
9.By changing the door opening to regulation the thickness of material in chute to adapt different material and flow rate.

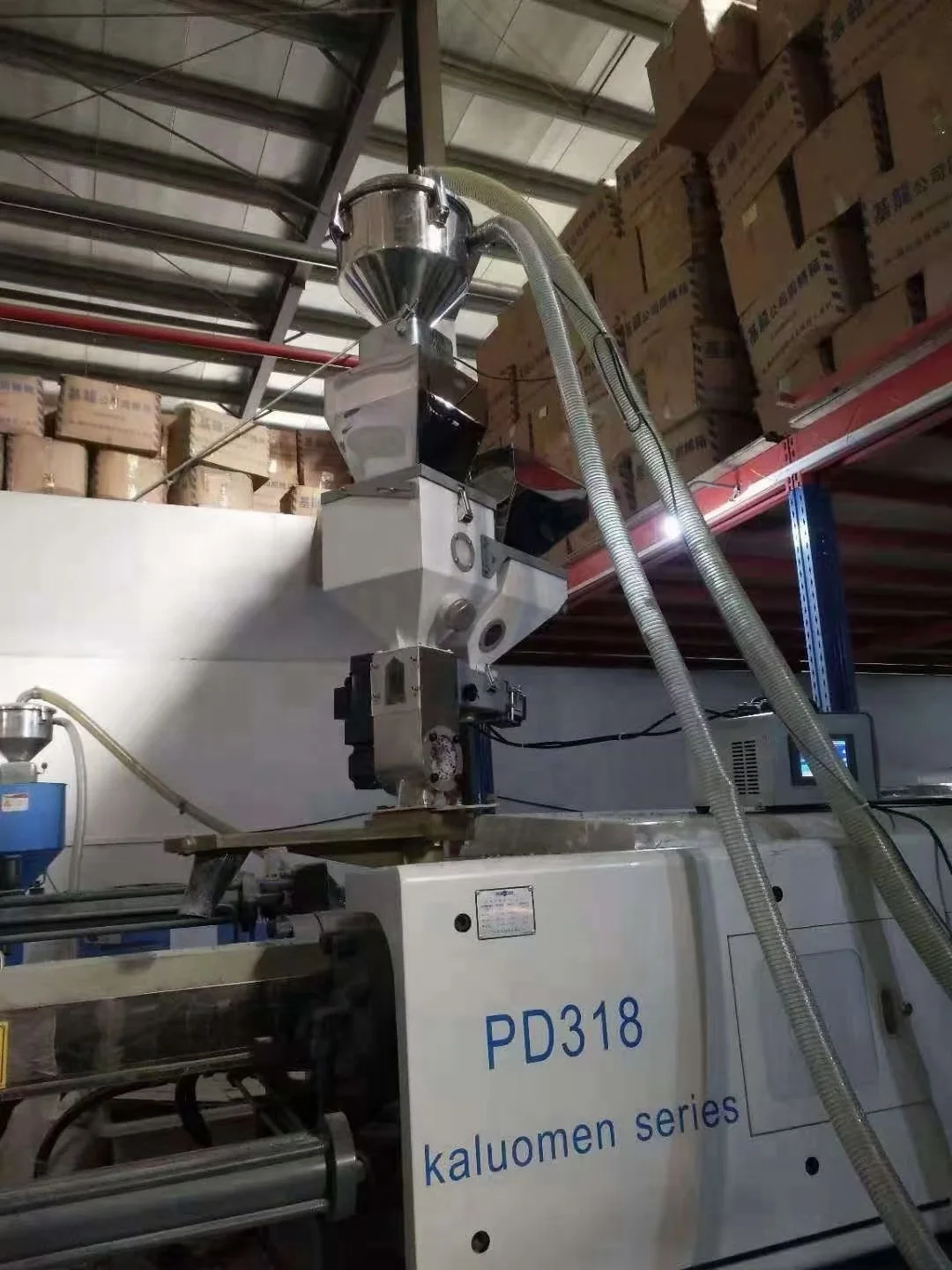

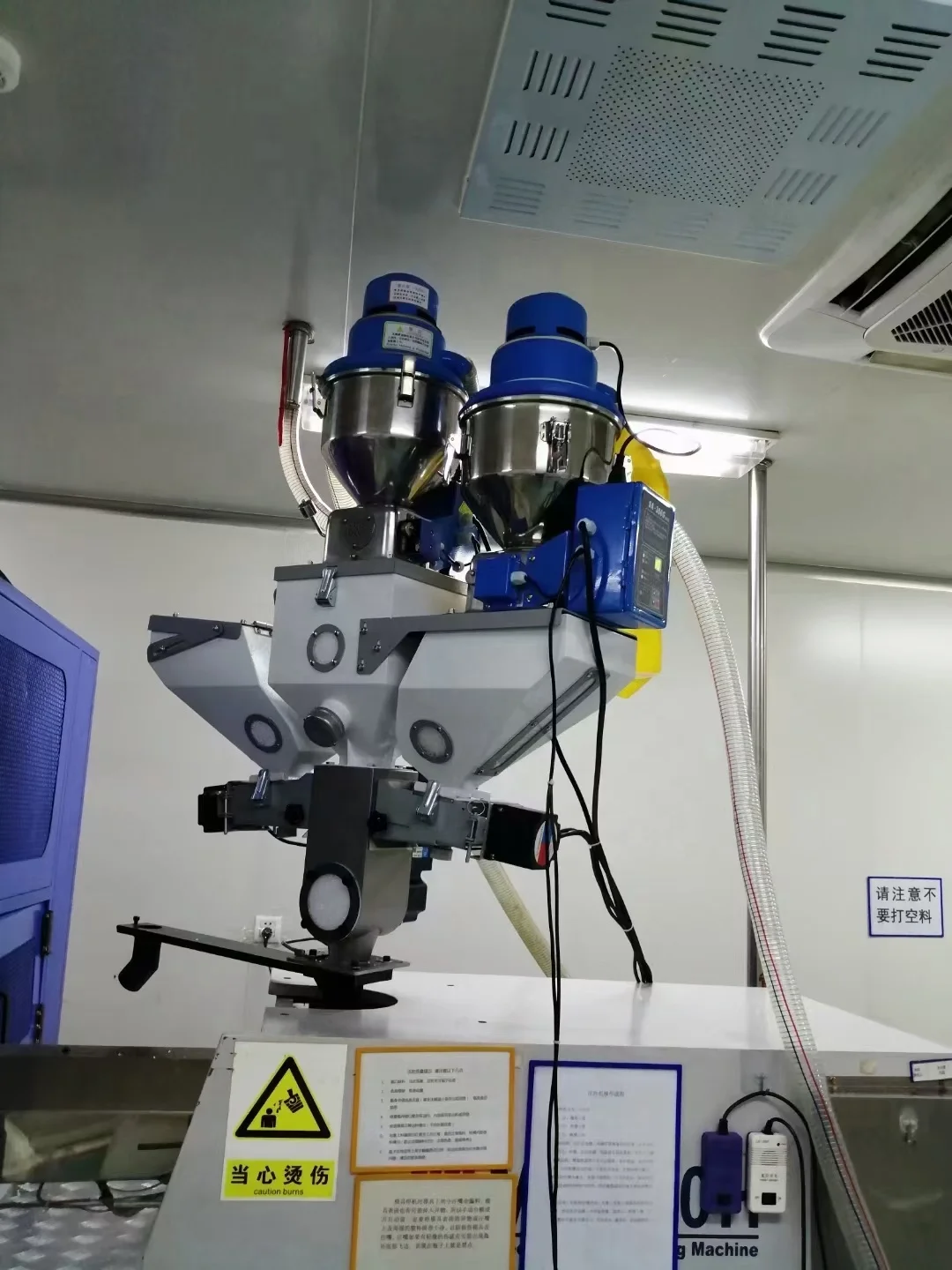

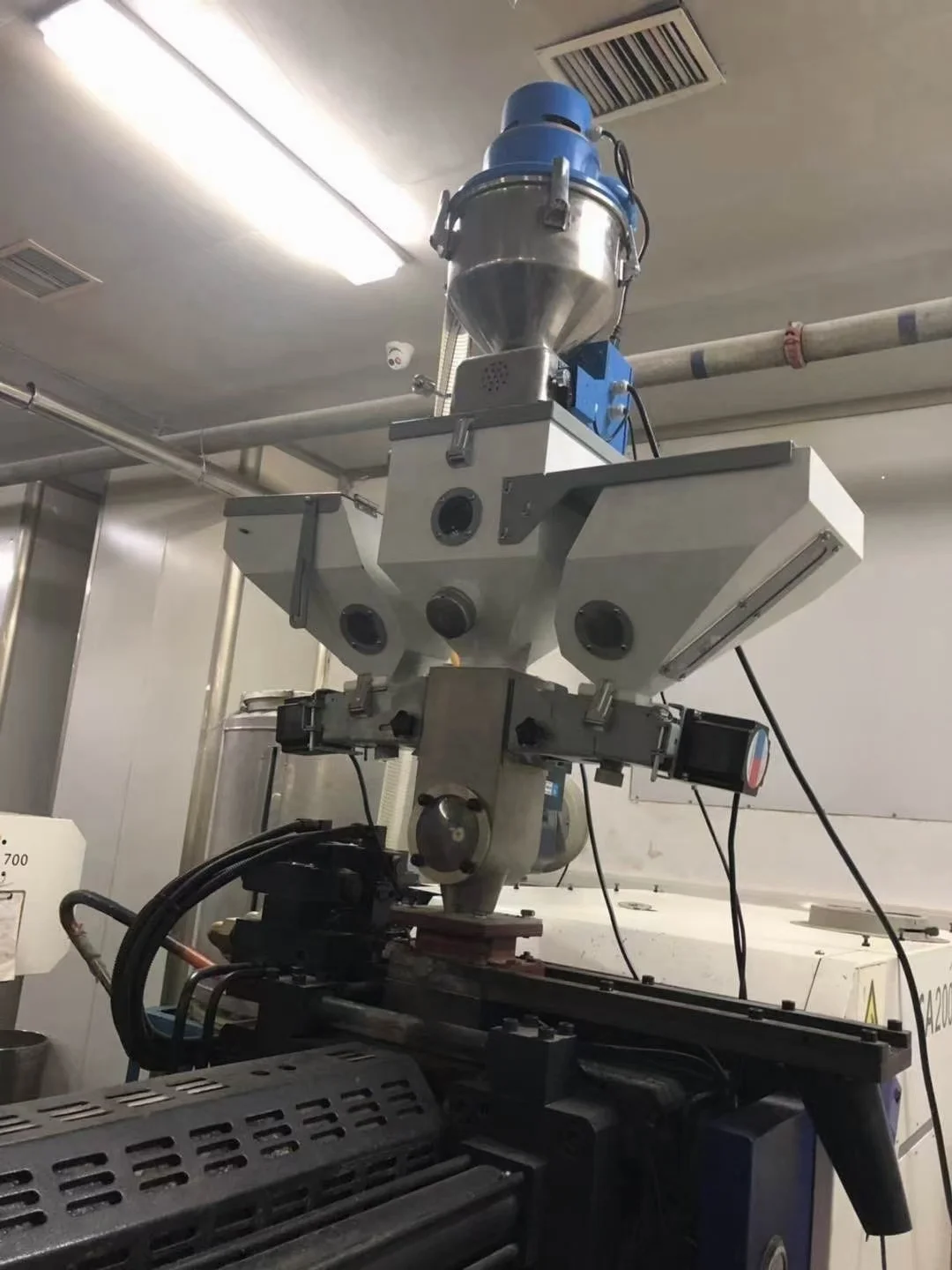

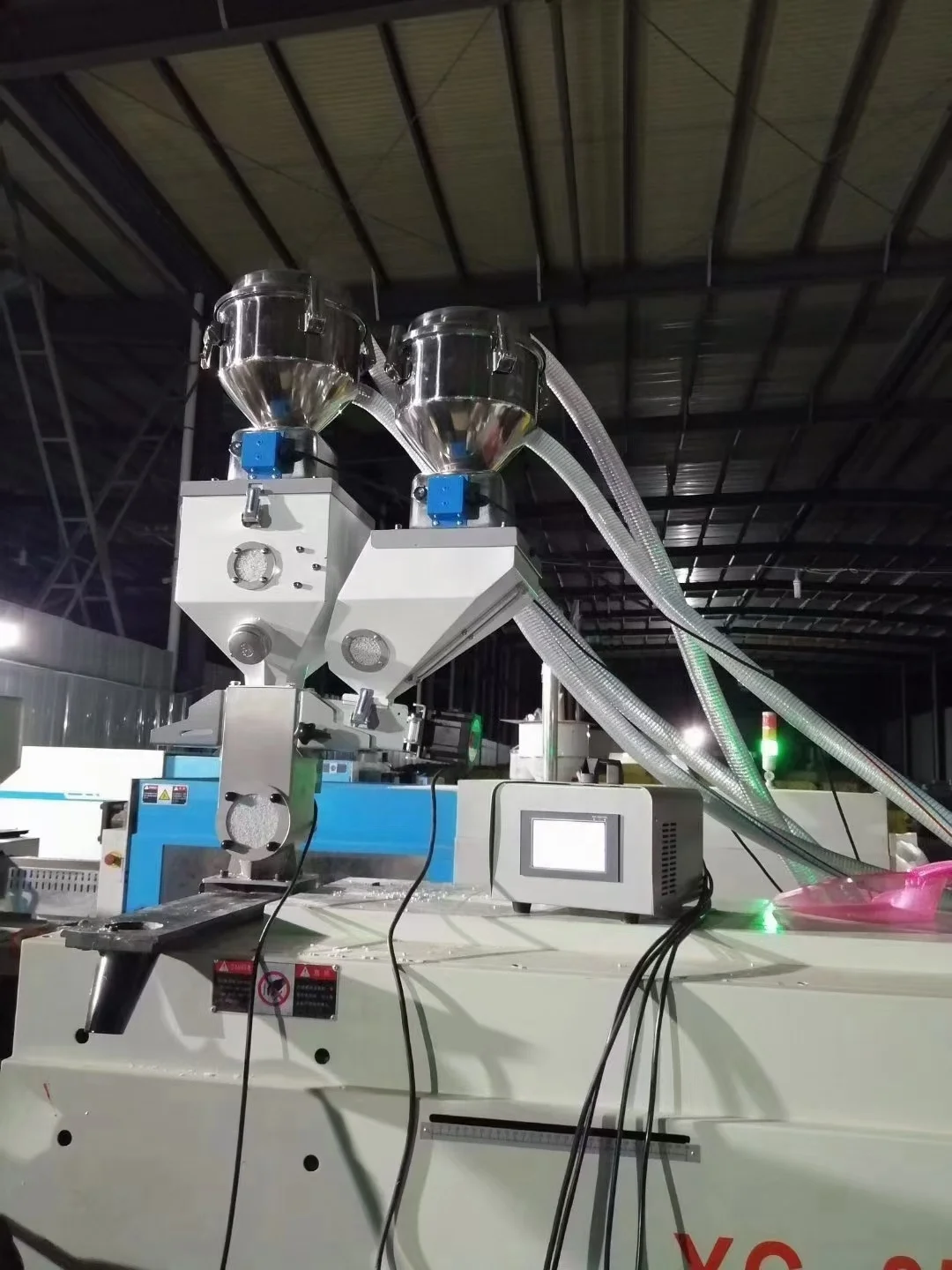

Product Shows
Factory Shows
Our Company
Dongguan Dingyuan Industrial Co.,Ltd is established in 1993, located in Dongguan Guangdang. It is a professional manufac-turer of produce chiller, dehumidifier and other auxiliary machines, show the world a high-technological enterprice combining construction budget, technical consultation, product design, manufacturing and debugging service. There are 9 series, over 130 kinds of products covering the whole cooling system series and many auxiliary series products. Widely serve the plastic, electroplating, laser, chemical, packaging, pharmaceutical and other industries.
Certificates
Package & Delivery
Package:
1. Multiple packing: proved by tests of the compression resistance, throwing. And highly secured.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
1. Multiple packing: proved by tests of the compression resistance, throwing. And highly secured.
2. Plywood case packing: High resistance of burst strength, ring crushing strength and tearing strength.
3. Wooden frame parking: Damp-proved and high resistance burst strength and ring crush strength.
