High Quality Hydraulic Chain Drum Cutter For Excavator (1600241115088)

Share on:


Price:$10,900.00
Price in USD:Details

Quantity:


Product Overview

Description





Products Description

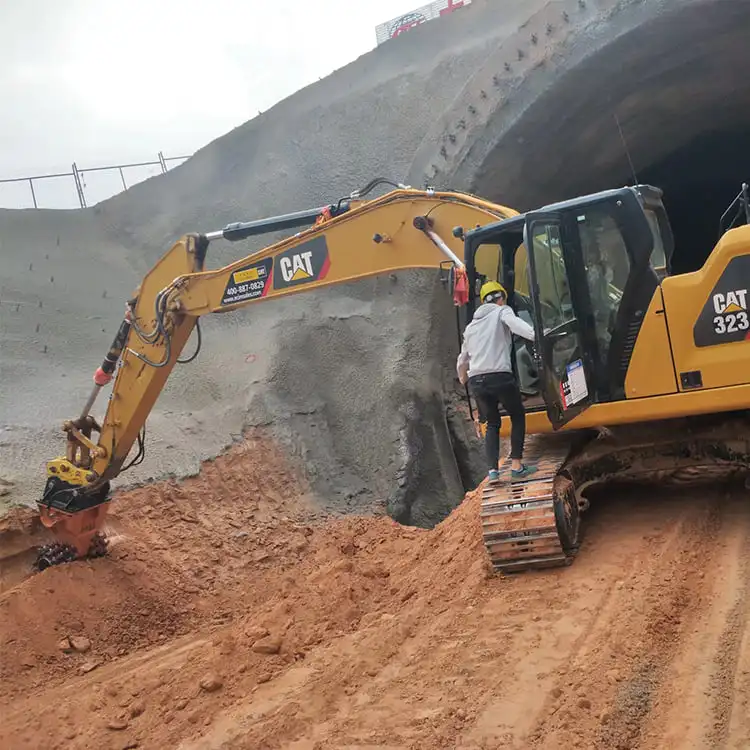

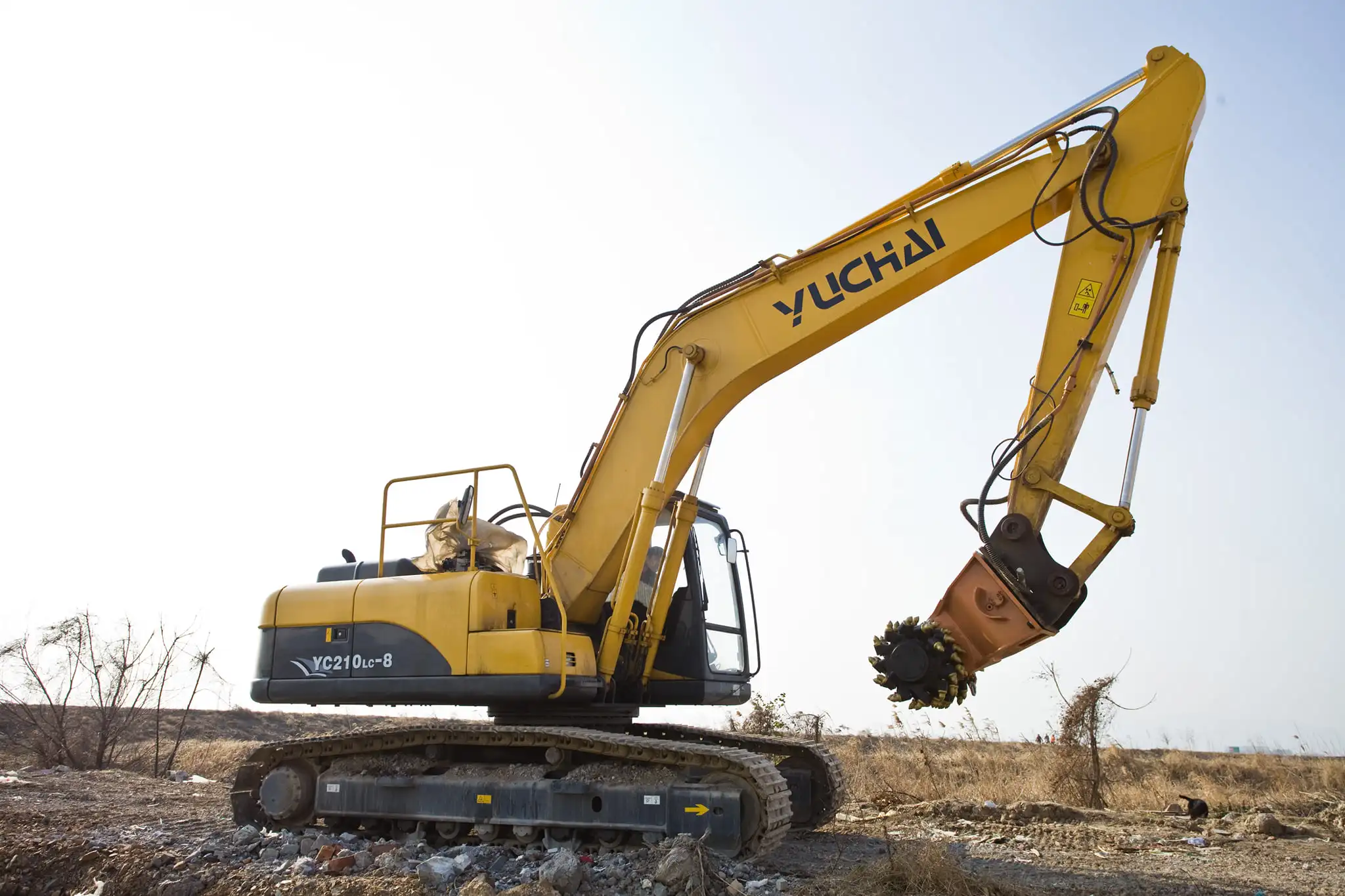

Application
1. Rock or concrete wall and surface analysis, trench digging, soft rock and frozen soil excavation and demolition.
2. Excavation of tunnels, ditches, municipal pipelines.
3. Road surface crushing, mining, rock and frozen soil excavation.
4. Opencast coal mine excavation, surface creation, steel industry, forestry and other construction fields.

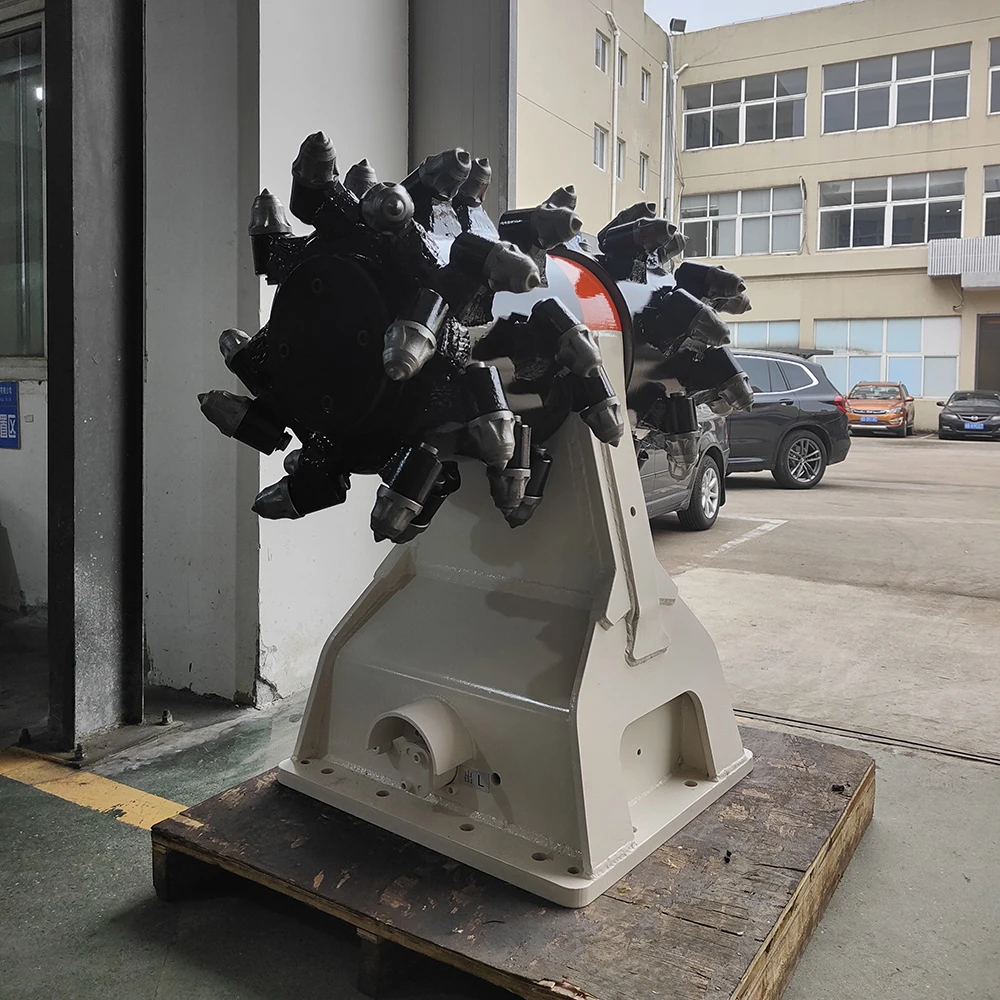

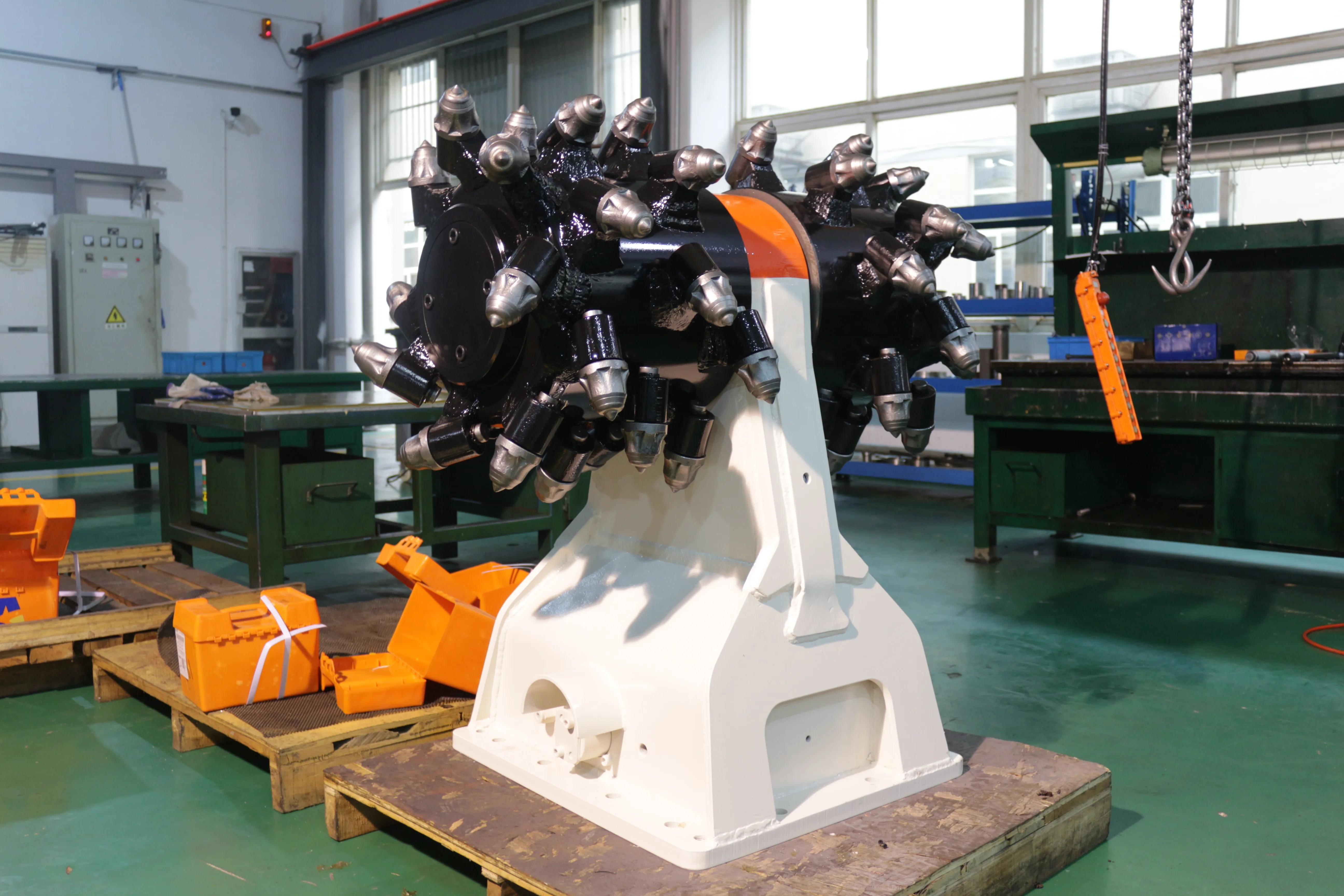

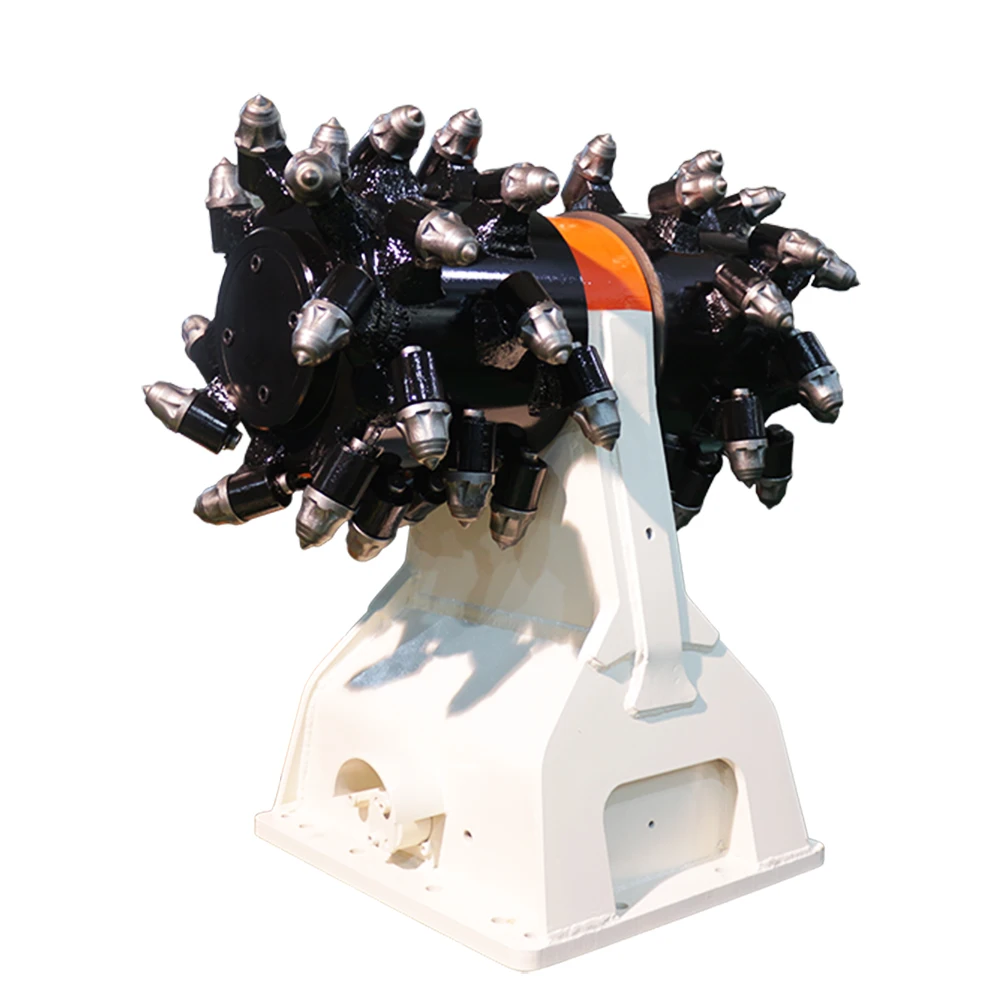

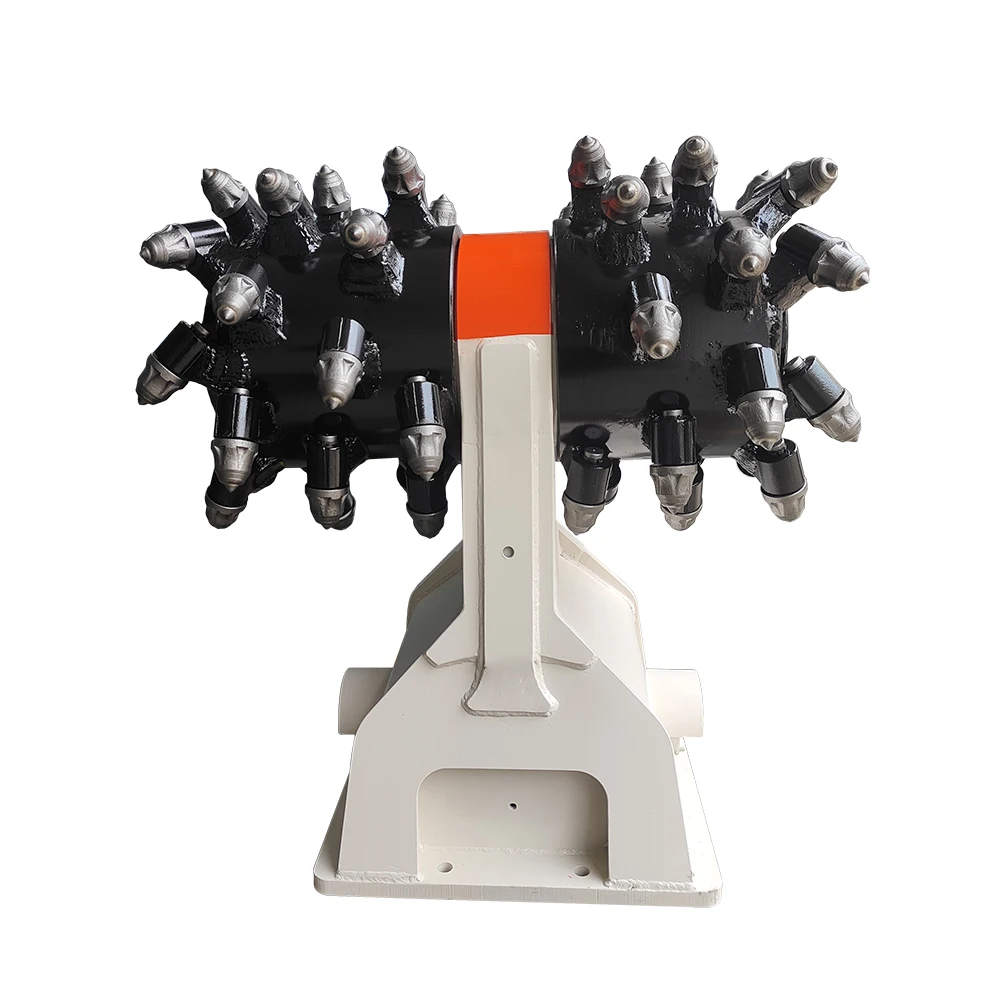

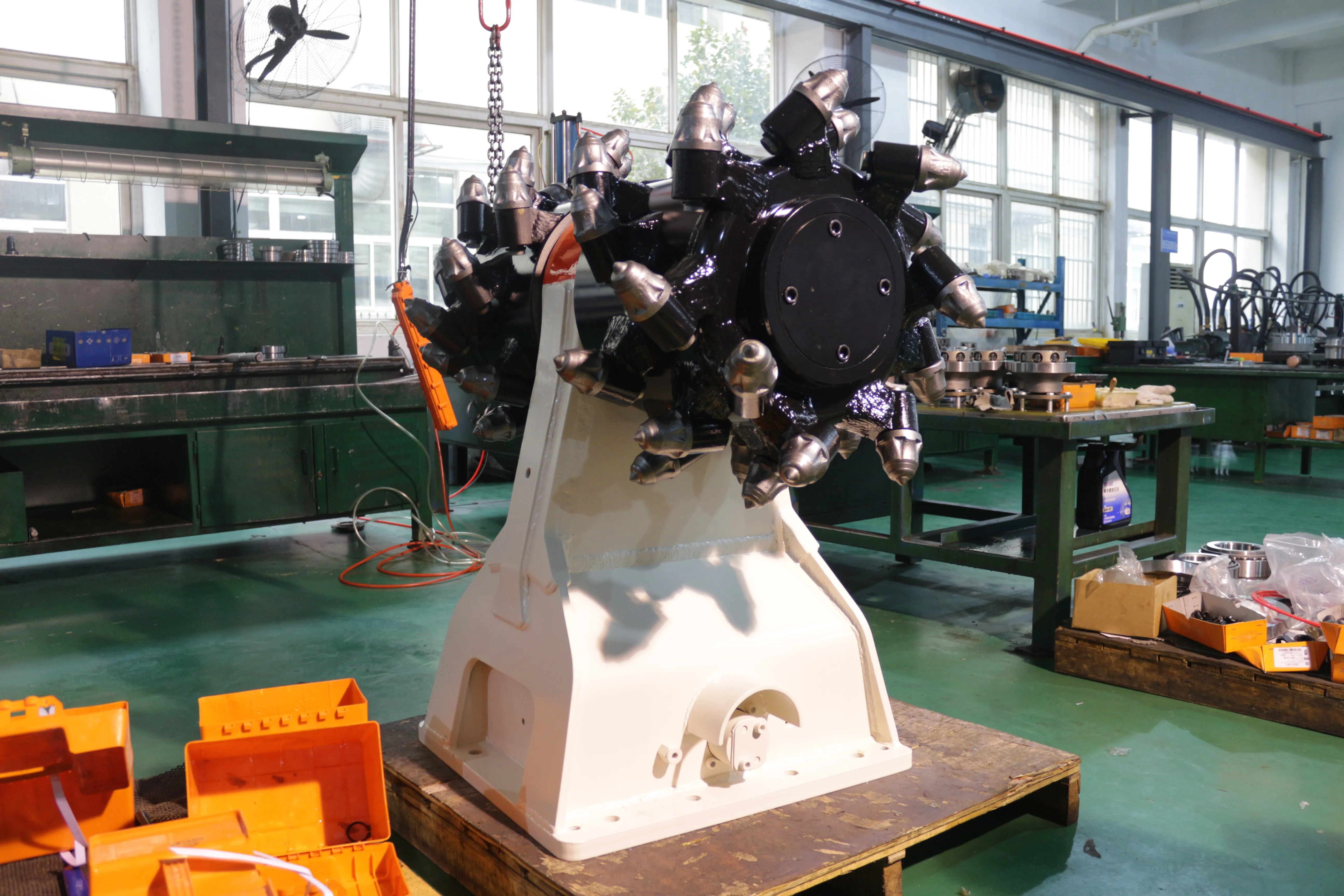

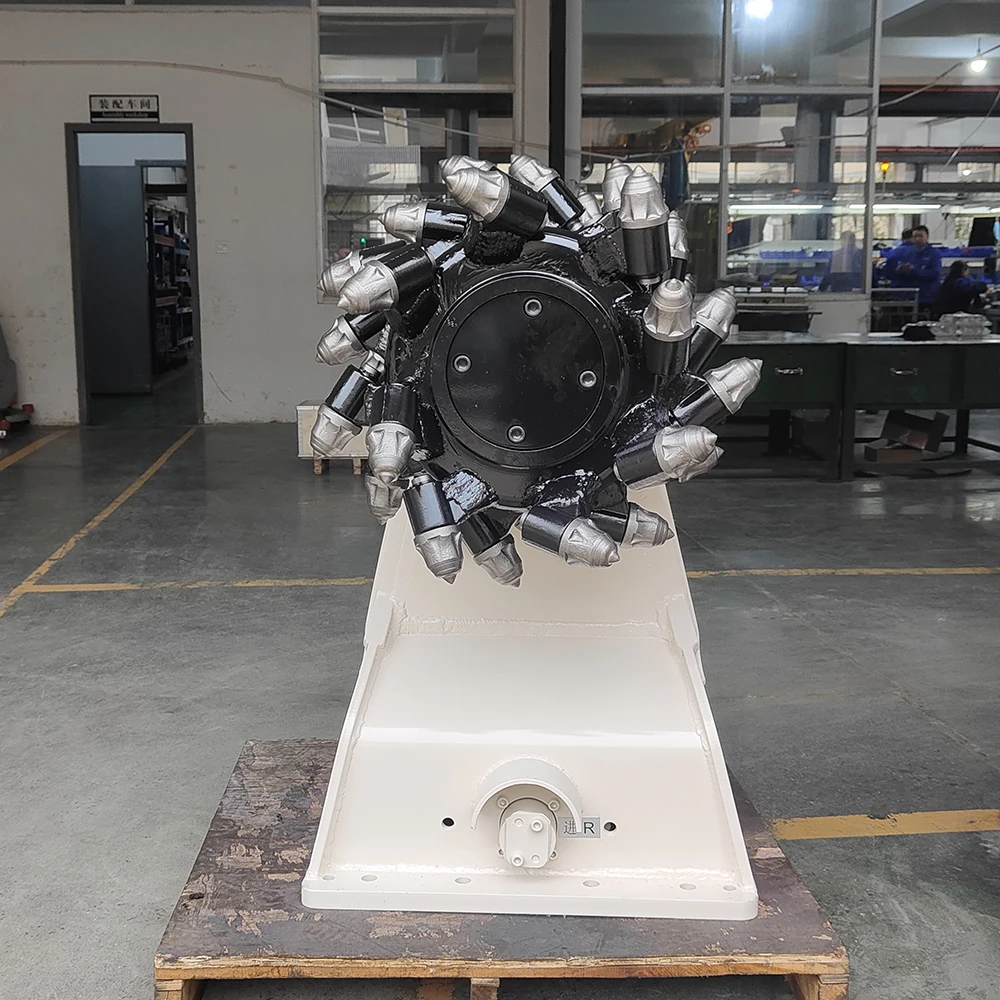

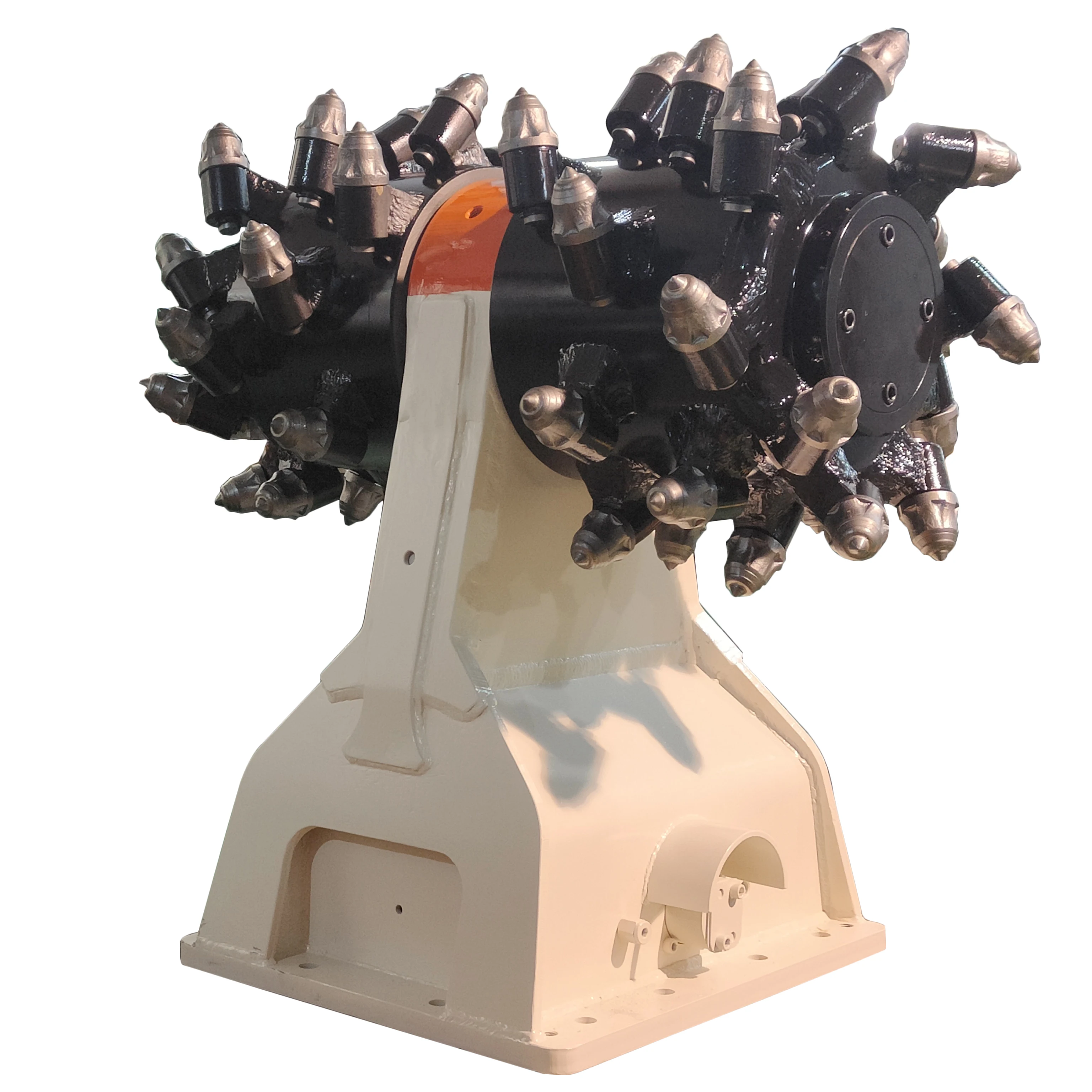

Details Images






Specification


Model
RDC-5RW
RDC-10RW
RDC-15RW
RDC-20RW
RDC-30RW
Maximum pressure/Kw
22
29
45
90
110
Oil/LPM
65
112.5
132
320
460
Flow range/LPM
40
60
120
220~320
320
greatest pressure/Bar
400
400
400
450
450
Output torque/Nm
1875
3570
6320
17840
21376
Output shaft speed/RPM
100
80
95
78
76
Weight/Kg
215
381
595
1370
1400
Number of cutter heads
56
56
64
64
60
Carrier/T
2.5-6
8-16
12-18
18-30
25-40


Model
RDC-5RD
RDC-10RD
RDC-20RD
Maximum pressure/Kw
25
50
80
Oil/LPM
85
210
265
Flow range/LPM
40-70
100-150
110-170
greatest pressure/Bar
205
310
380
Output torque/Nm
2200
10272
14272
Output shaft speed/RPM
95
80
65
Weight/Kg
210
750
750
Number of cutter heads
28
36
42
Carrier/T
2.5-6
8-15
18-30


Our Advantages




1. Durable milling head bearing structure and wear-resistant cutter head.

2. Can excavate medium-hard and below-medium-hard rocks in a large area.






3. 360 degree milling angle can be adjusted.

4. Reduce the disturbance to the surrounding rock, avoid the decrease of rock strength caused by blasting vibration, and it is not
easy to cause large-scale deformation and local collapse.



Warranty:
Motor warranty for one year, no warranty for wearing parts

Materials:
Manganese Plate/Wear-resistant plate/Alloy

Motor:
Imported motor



Company Profile




RAYMOND is a factory with authorized Imp. & Exp. right which including two companies, Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City, Jiangsu Province, China, Factory building areas cover around 20,000 square meters. Raymond Precision Machinery Co.,Ltd was established in 2002, committed to focus on the development, production and sales of construction machinery and their spare parts.






EVERYBODY LOVES RAYMOND






Exhibition






FAQ


1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.

2. Do you have warranty?
Yes. RAY excavator crusher bucket has 12 months warranty.
Warranty starts from the time you receive the machines, not include production and shipping time.
Exceed warranty, all parts are offered at cost prices.

3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
