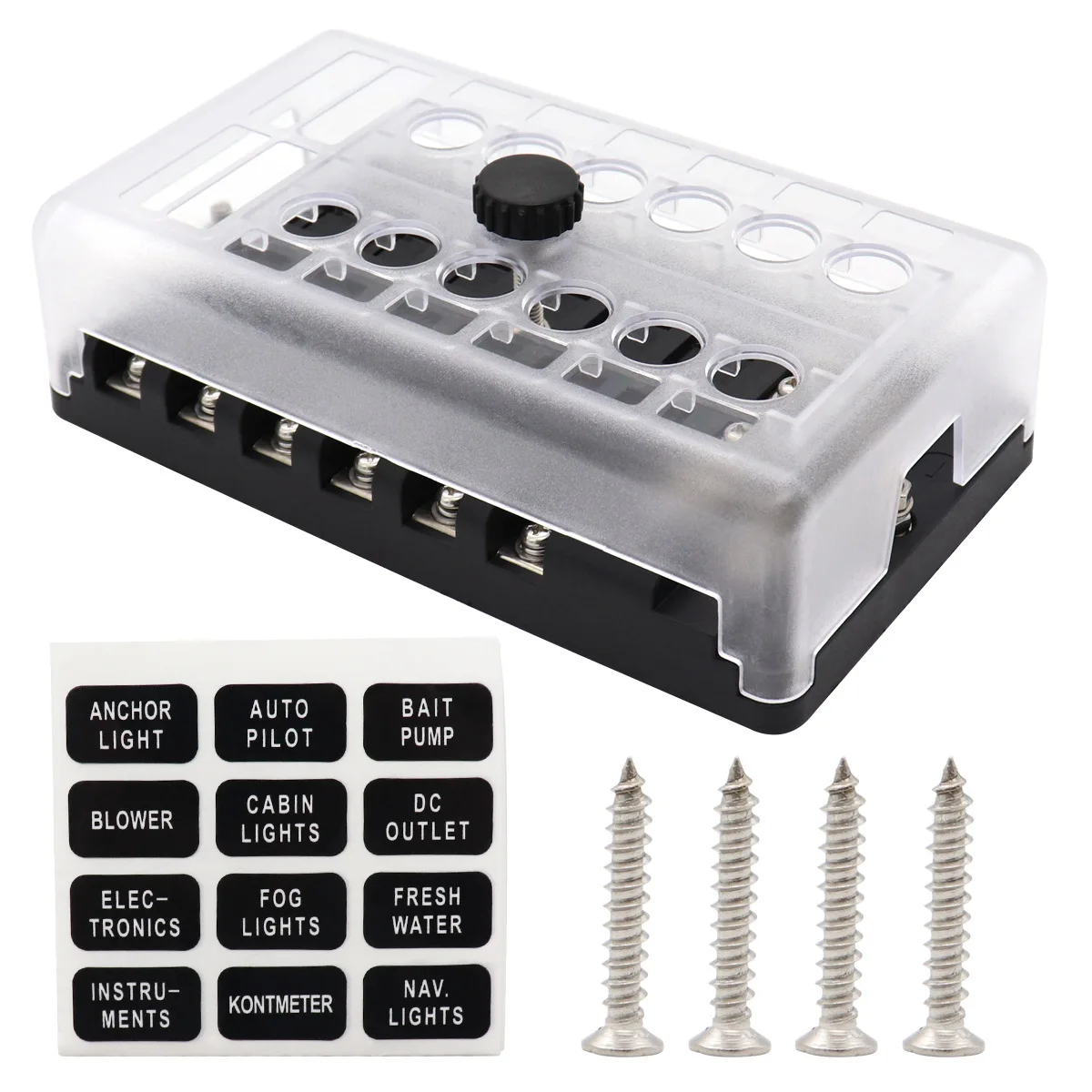

KETO Waterproof 12 Way Electronic 88 Series Mini Circuit Breaker Block Distribution Box with negative bar
- Category: >>>
- Supplier: Shenzhen Keto Technology Co. Ltd.
Share on (1600241424924):
Product Overview
Description
Product Description
Product name | KETO Waterproof 12 Way Electronic 88 Series Mini Circuit Breaker Block Distribution Box with negative bar |
Material | PC, PBT, Nickel plated copper |
Input terminal | M5 threaded studs |
Input rating | 100A 32V DC.max |
Output Terminal | Screw terminal |
Output rating | 25A max per circuit |
Application | Cars, Bus, Boats, RV car, Yacht, SUV and Off-road vehicle. |
Suitable for | Middle size Blade fuse |
Output circuit | 12 Way |
Main line：
terminal rating：M5 threaded studs
(100A 32V DC.max)。
wire size：#4-6 AWG。
Single line：
terminal rating：M4 threaded studs
( 25A 32V DC.max)。
wire size：#12-16 AWG。
* Material：
Base：PA66
Cap：PC
Terminal：Nickel plated copper。
Screw：Stainless steel。
Label：PP×70。
* Circuit Breaker Type：
88 model
* SIZE：
183×105×65mm
