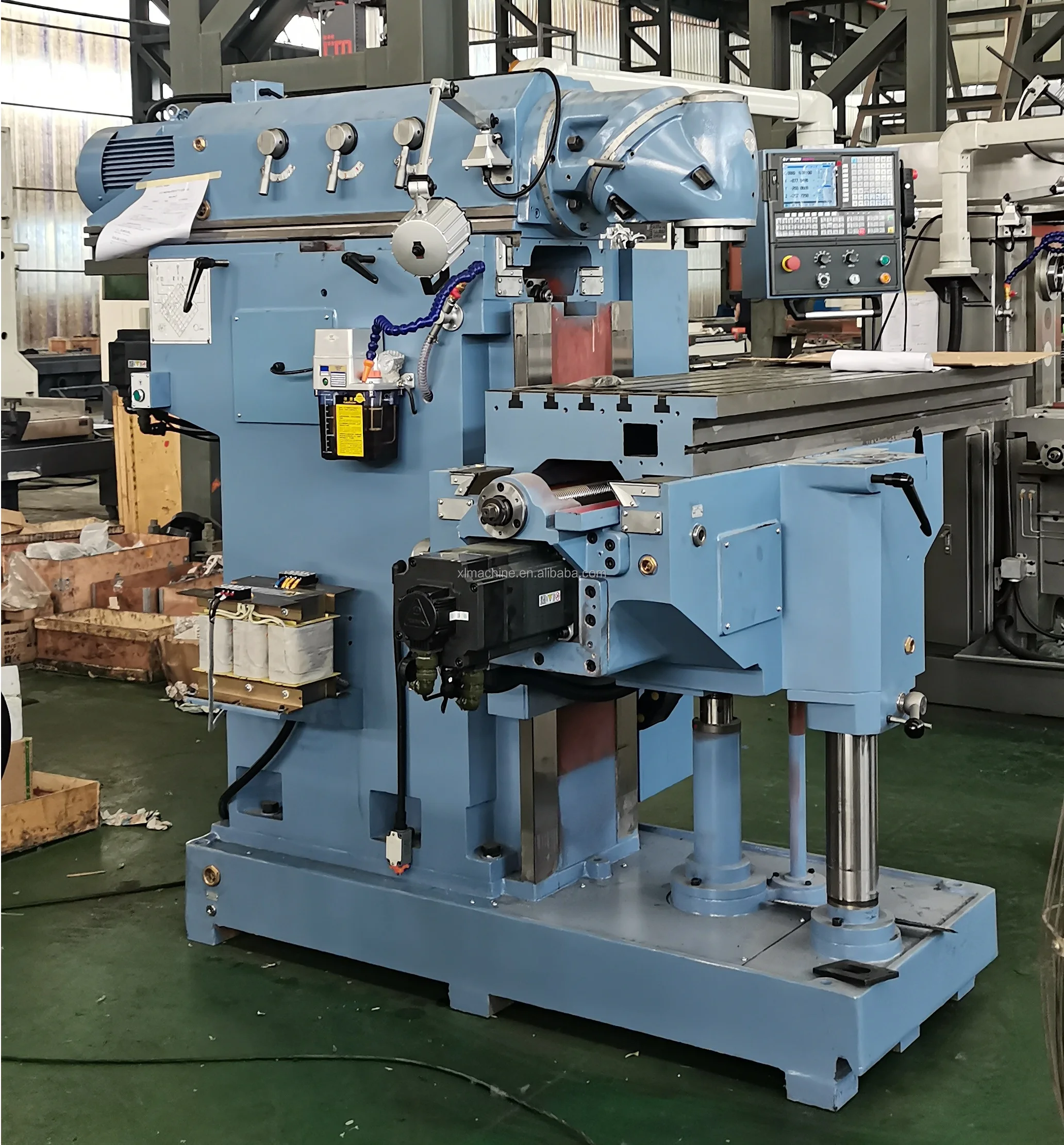

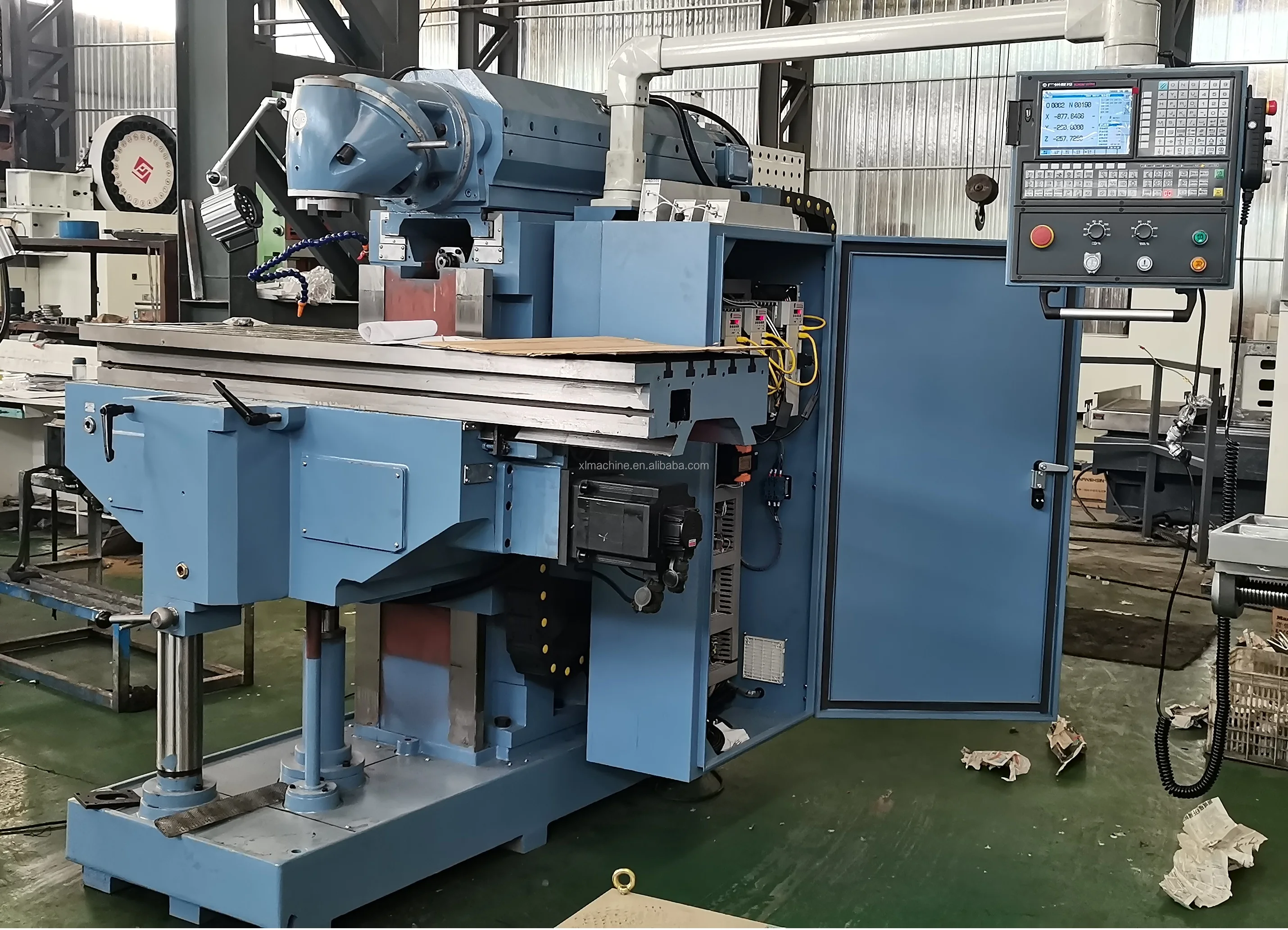

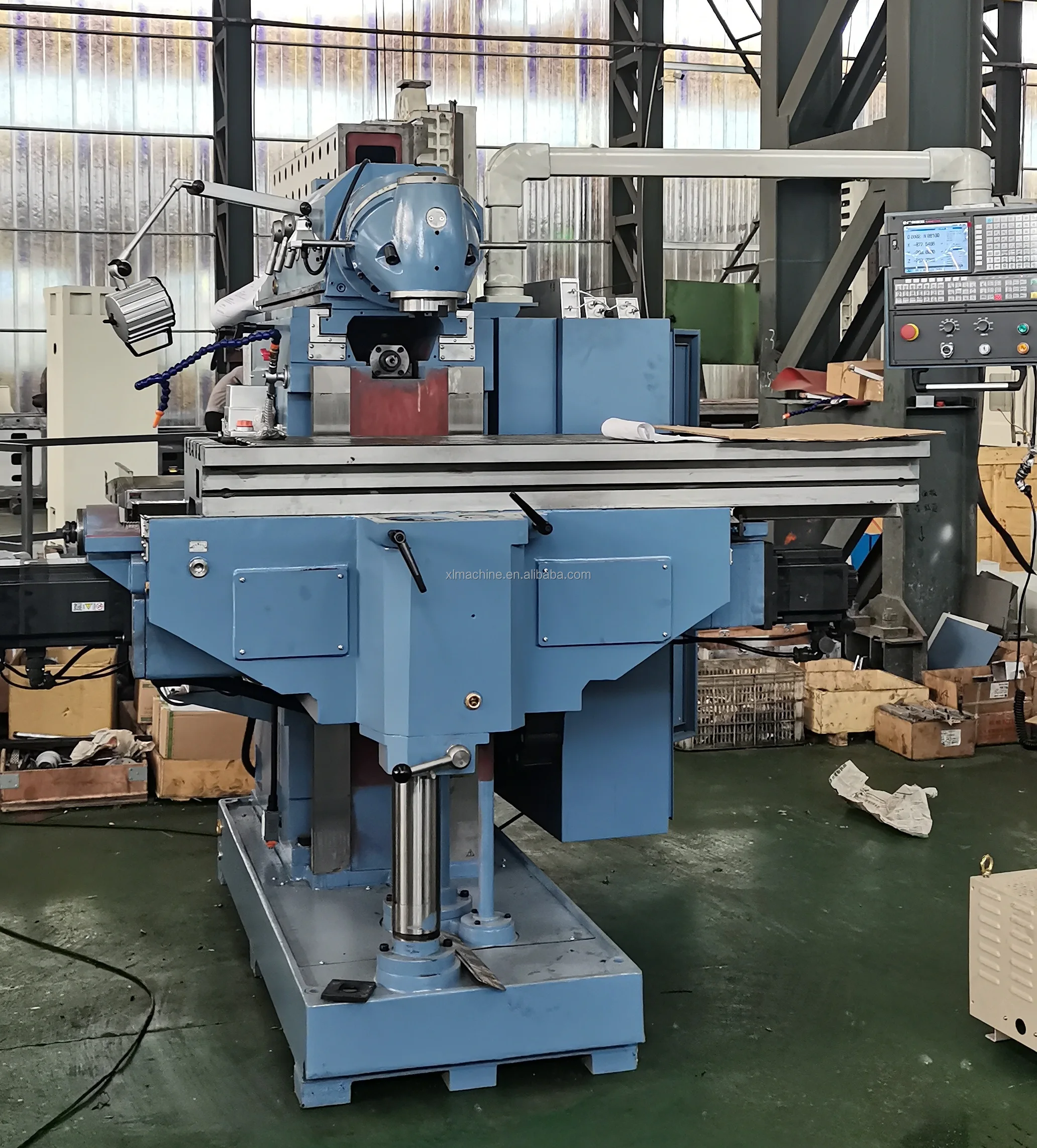

XK5750A heavy duty wide machining range universal CNC milling machine
- Category: >>>
- Supplier: Tengzhou XILI Machine Tool Co. LTD.
Share on (1600241444366):
Product Overview
Description
XK5750A heavy duty wide machining range universal CNC milling machine
Brief Introduction
1). table with extra supporting column, big load
2). sliding ram for longitudinal travel, long travel in Y-axis
3). mechanical speed change of milling head, powerful milling, 27 steps
4). 360° swivel head, can process any angle surface
4). 360° swivel head, can process any angle surface
5). Siemens CNC system is standard, other system is available as per client's request
Specificaitons of This Series
ITEM | UNIT | XK5746 | XK5750 | XK5750A | ||
table size | mm | 460*1235 | 500*1600 | 500*2000 | ||
table travel (X/Y/Z) | mm | 900/650/450 | 1200/700/500 | 1400/700/500 | ||
table feed (X/Y/Z) | mm/min | 10-1000/10-1000/6-640 | 10-1000/10-1000/5-500 | |||
table rapid feed (X/Y/Z) | mm/min | 2200/2200/1100 | ||||
max load | kg | 800 | 1800 | |||
T-slots (No./width/pitch) | 5/18/80 | |||||
spindle taper | ISO40 | ISO50 | ||||
spindle speed | rpm | 30-2050 (27 steps) | ||||
rotary milling head | 360° | |||||
distance from spindle nose to table | mm | 58-508 | 50-550 | |||
distance from spindle center to vertical column | mm | 20-670 | 45-745 | |||
main motor power | kw | 5.5 | 7.5 | |||
X/Y/Z servo motor torque | N.m | 15/15/18 | ||||
overall size | mm | 2570*2035*1990 | 2625*2460*2080 | 2625*2860*2080 | ||
N.W. | kg | 3600 | 4200 | 4500 | ||
Our Company
Shandong XILI Machine Tool Co., Ltd. is located in Tengzhou City, Shandong Province.
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
We have nearly 30 years manufacturing history & more than 200 employees.
Our products include: CNC center / CNC gantry machining center / general milling machines (vertical, horizontal, universal swivel head, knee-type, ram-type, bed-type etc.)
Welcome to visit us !
Company is with CE, ISO certificates.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
We are now cooperating with many world famous brand, like Knuth, Jet, Bernardo etc.
Please be assured of our products.
Every year, we attend several exhibitions at home and abroad, such as CIMES, CCMT, CANTON fair, EMO, Metalloobrabotka etc.
