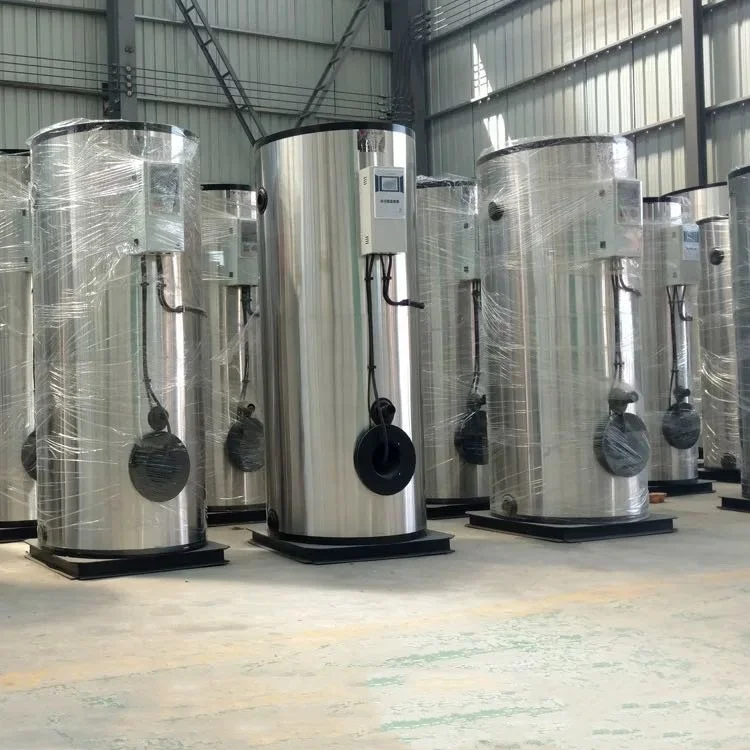

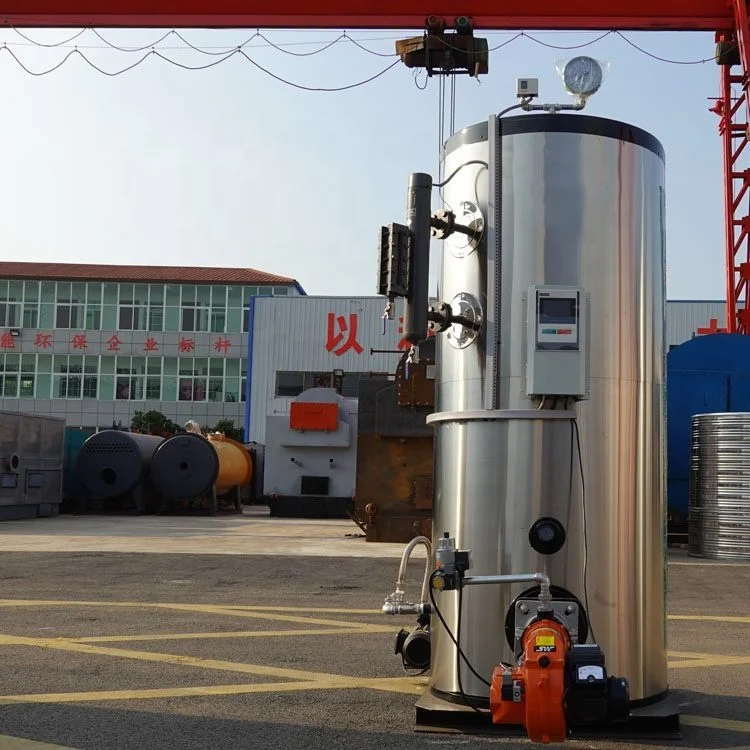

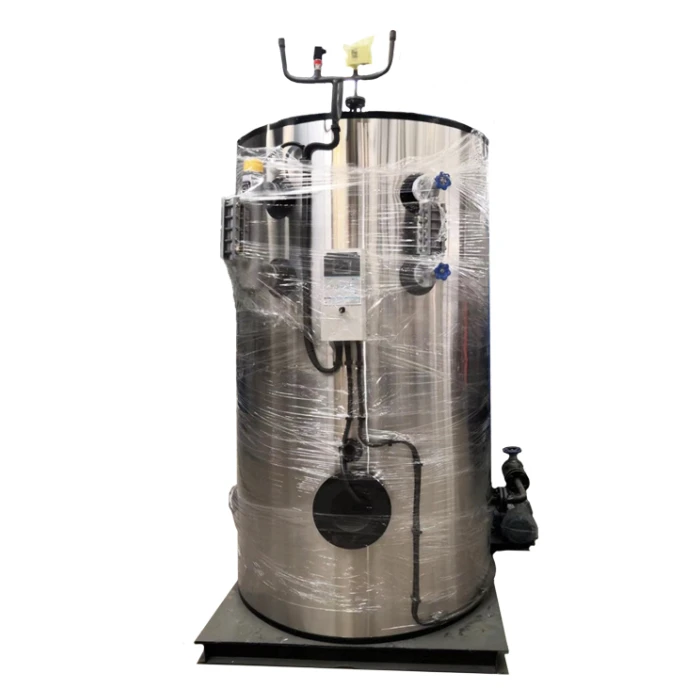

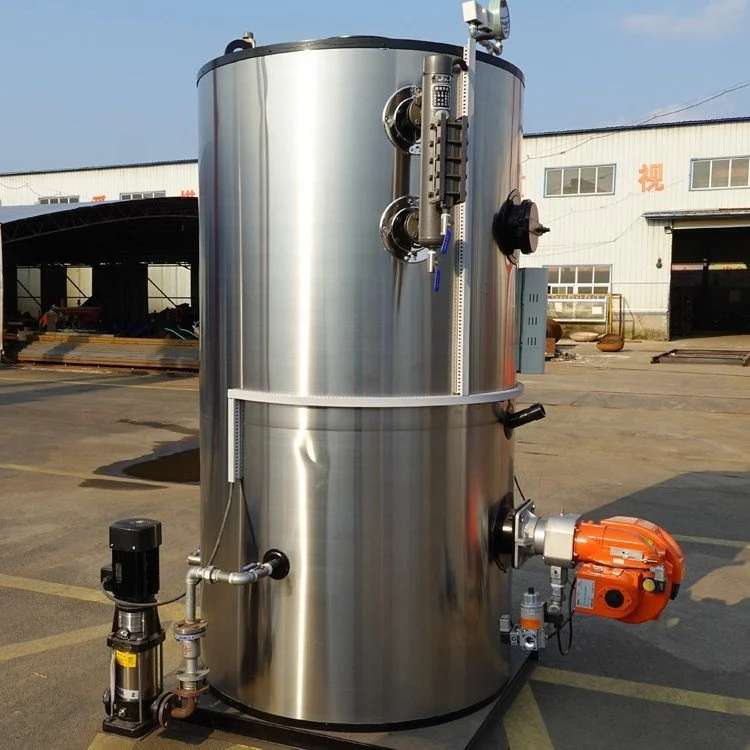

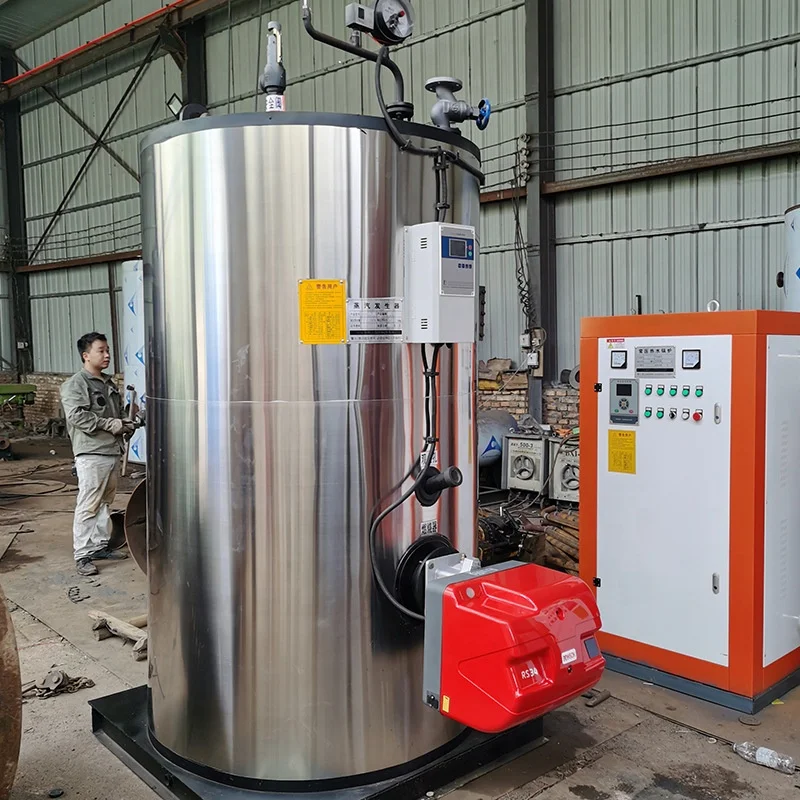

Steam Boiler Price Space Saving 200kg per hour Natural Gas Steam Generator
New series gas steam generator adopts a wet back floating three-pass structure. The heating adopts a corrugated smoke tube (optional), and is arranged at a low position to maximize the radiant heating surface.
All the flue gas channels are placed in the water, and the tail is equipped with a The hot water tank and perfect thermal insulation outsourcing design have a thermal efficiency of over 95% and low smoke temperature. The product design is novel, the structure is reasonable, and the craftsmanship.
It has good performance, safety and reliability, and has the characteristics of small footprint, energy saving, and good
environmental performance.
All the flue gas channels are placed in the water, and the tail is equipped with a The hot water tank and perfect thermal insulation outsourcing design have a thermal efficiency of over 95% and low smoke temperature. The product design is novel, the structure is reasonable, and the craftsmanship.
It has good performance, safety and reliability, and has the characteristics of small footprint, energy saving, and good
environmental performance.

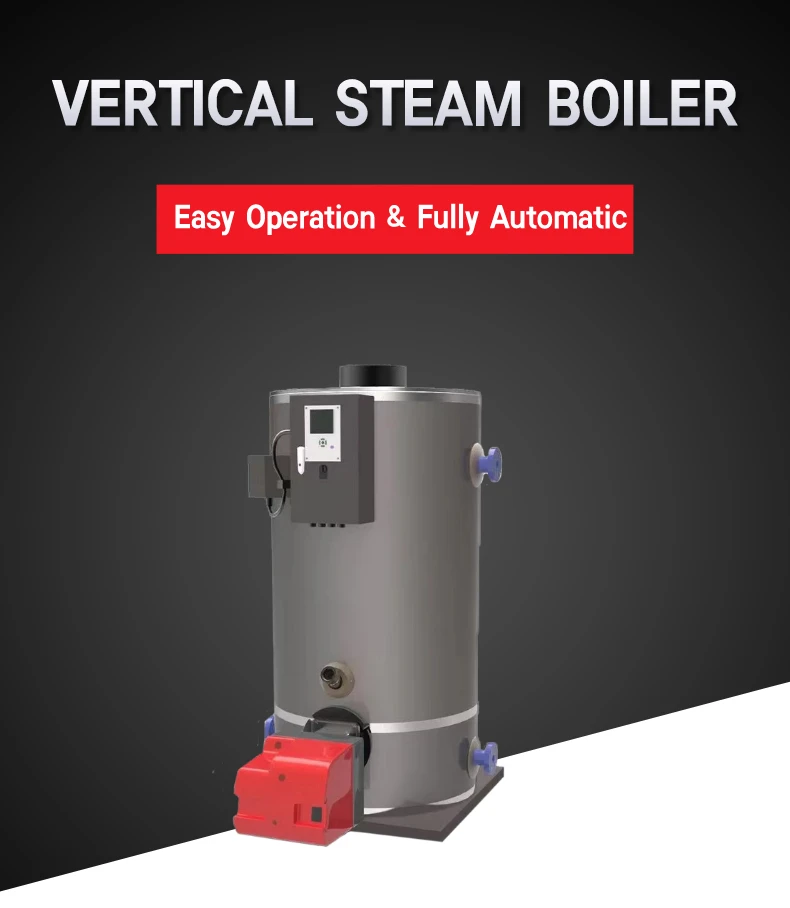

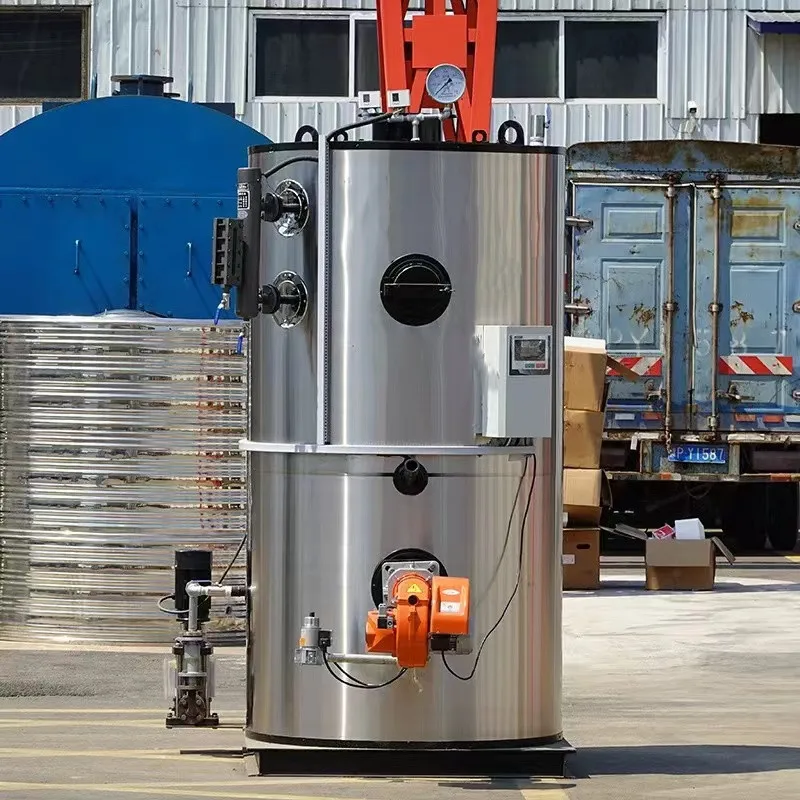

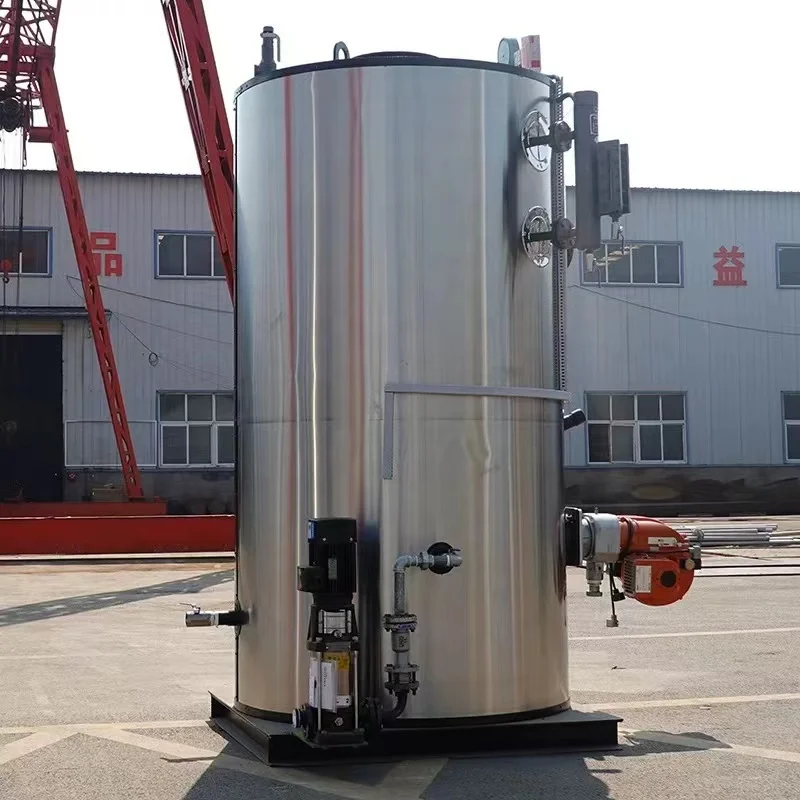

Detail Picture
No | Item | Data |
1 | Fuel | gas, oil, natural gas. |
2 | Capacity | 50-1000kg/h |
3 | Pressure | 0.4/0.7/1.0 Mpa |
4 | Temperature | 100-184 C |
5 | Control | Automatic |
6 | Voltage | 220/380 |
7 | Package | Wooden box |
Advantages of natural gas steam generator:
2. Water shortage protection: when there is water shortage along the line, the combustion control system power off With the police.
3. Overpressure protection: when the pressure exceeds the preset value, the combustion control system power off and alarm. If too much steam causes pressure to build up, the steam relief valve opens automatically to reduce the pressure. Steam pressure gauges can be visually observed for steam pressure exceeding full range.Manual reset pressure control provides manual reset for high limit pressure cut-off.
Design Parameters
Type | LHS0.05 | LHS0.1 | LHS0.2 | LHS0.3 | LHS0.5 | LHS1.0 | ||||||
Steam capacity(kg/h） | 50 | 100 | 200 | 300 | 500 | 1000 | ||||||
Pressure(MPa） | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | ||||||
Light Diesel consumption(kg/h) | 3.5 | 6.6 | 13 | 19 | 32 | 64 | ||||||
Thermal efficiency（%) | 85-90% | |||||||||||
Water capacity(L) | 29 | 106 | 190 | 660 | 770 | 1310 | ||||||
Steam outlet(mm) | 20 | 20 | 32 | 40 | 40 | 50 | ||||||
length(mm) | 675 | 900 | 1100 | 1250 | 1450 | 1750 | ||||||
Wide(mm) | 550 | 900 | 1100 | 1250 | 1450 | 1750 | ||||||
Height(mm) | 1200 | 1950 | 2220 | 2220 | 2240 | 2660 | ||||||
Weight(kg) | 252 | 720 | 1100 | 1400 | 1800 | 2655 | ||||||
The technical parameters of this product are subject to change due to the improvement of product performance without prior notice. | ||||||||||||

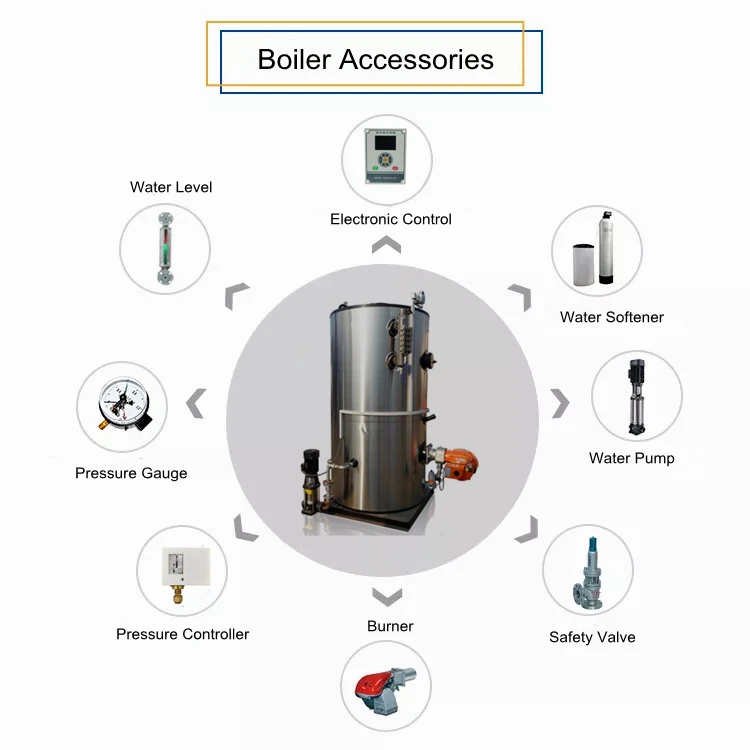

Accessories
Application
Natural gas steam generators are widely used in many areas:
1. Medical and pharmaceutical industry
2. Biological and chemical industry
3. Experiment and scientific research
4. Restaurant and food industry
5. Packing and machinery industry
6. Clothing and washing ironing industry
7. High temperature cleaning industry
8. Railway bridge construction industry
2. Biological and chemical industry
3. Experiment and scientific research
4. Restaurant and food industry
5. Packing and machinery industry
6. Clothing and washing ironing industry
7. High temperature cleaning industry
8. Railway bridge construction industry
Packing&Shipping
Company Profile
Xinda Boiler, located in Zhonglian Road, Xinxiang City, Henan Province, is a new star in the manufacturing base of industrial boilers and pressure vessels in northern Henan Province.
It is a comprehensive boiler and pressure vessel production enterprise integrating design, manufacture, installation, renovation and maintenance.
The company has gathered a large number of professional and technical personnel and management personnel engaged in boiler and pressure vessel design and manufacture.And with the domestic certification universities and authoritative research institutions to maintain a solid technical cooperation and information exchange.
The company is based on integrity, excellence, safety and reliability, energy saving and environmental protection, building brand for the purpose.The company hopes friends from all walks of life sincere cooperation, hand in hand to create a better tomorrow.
It is a comprehensive boiler and pressure vessel production enterprise integrating design, manufacture, installation, renovation and maintenance.
The company has gathered a large number of professional and technical personnel and management personnel engaged in boiler and pressure vessel design and manufacture.And with the domestic certification universities and authoritative research institutions to maintain a solid technical cooperation and information exchange.
The company is based on integrity, excellence, safety and reliability, energy saving and environmental protection, building brand for the purpose.The company hopes friends from all walks of life sincere cooperation, hand in hand to create a better tomorrow.
Certificate
Exhibition
Our Services
Customer Evaluation
FAQ
Q1: Are you a trading company or manufacturer?
We are a trading company, meanwhile, we are the exclusive export agent and marketing & sales representatives for our core cooperating manufacturers, with an even better price than that of a regular factory.
Q2: How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Q3. Can you provide OEM service?
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate. 3). Order amount USD 10000 or more.
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate. 3). Order amount USD 10000 or more.
Q4: What is the warranty period?
During the warranty period, if there is a problem caused by a quality problem, we will repair or replace the damaged parts free of charge. If the problem is caused by the customer, we will provide spare parts at the lowest cost.
