Die scrap chip detection material crush protection mold (SD 402) for punching machine

Product Overview

Description

Advantage:

1, Last time Value Comparison
2, Automatic Timing
3, Large-sized Digital Display
4, Periodic Monitoring

5, Reset Button



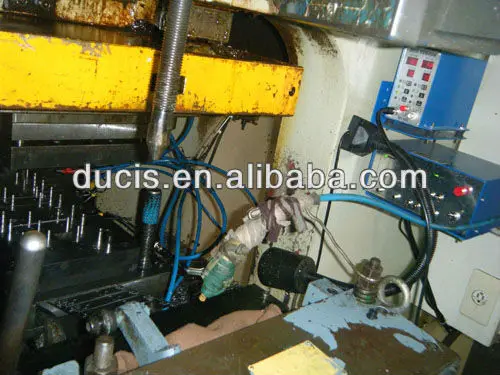

SC Series Bottom Dead Point Monitoring Device

SC31/32

This device will detect the slugs coming up by detecting the displacement of stripper plate

when slugs come up. The displacement is detected by the sensors, which are installed on

the stripper plate.

SC31,comprise of Monitor, Proximity sensor, Proximity Block, Connection cable, Fixing Mount.

SC32,comprise of Monitor, 2 Proximity sensors, 2 Proximity Blocks, 2 Connection cables, 2 Fixing Mounts.



Detection Method:

Bottom Dead Center Monitoring (B.D.C)

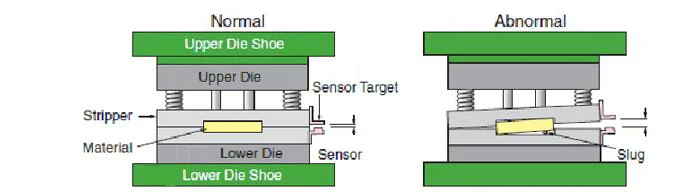

If a slug is caught in the die with spring loaded stripper, the stripper position will be changed,

the slug is detected by the displacement of the B.D.C.



1. Characteristic:

The slug, which is caught in upper or lower surface of the raw material will be crashed by

stripper plate of the die which has spring loaded stopper at B.D.C. However, 20 to 40% of

slug thickness (depends on material) will be remained and it will shift the position of stripper

plate. This device will detect the displacement of the stripper plate by comparing with normal

position.
This device will not be affected by the change of material thickness or rise in temperature of

the unit since it compares the displacement of the stripper plate at every stroke.
This device is not be affected by the bound or spring load of the stripper plate due to bottom

hold type system which only detects the lowest point of the stripper plate by using micro-processor.



2, Parameters:

Power supply	AC85-265V
Power consumption	<9W
Output Type	Safety relay
Relay Contact Capacity	AC250V/5A
Monitoring Accuracy	+/-1μm
Monitor value indication	99μm LED 2 digits (1μm/digit)
Displacement indication	+/- 99μm LED 2 digits (1μm/digit, +/- indication)

More information, please contact us any time to require the latest illustrated

catalogue to optimize your choice and needs.

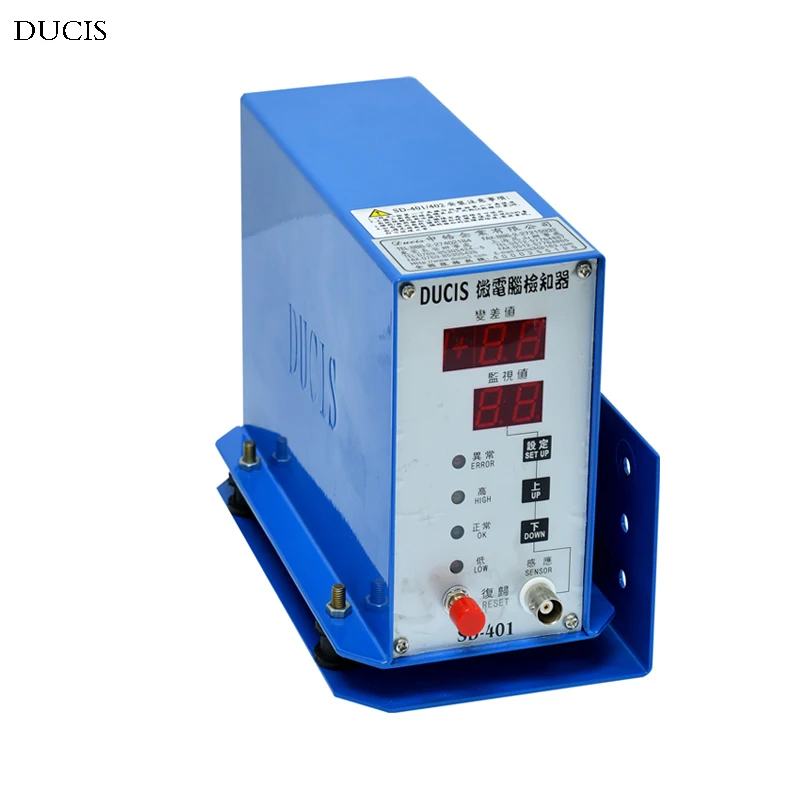

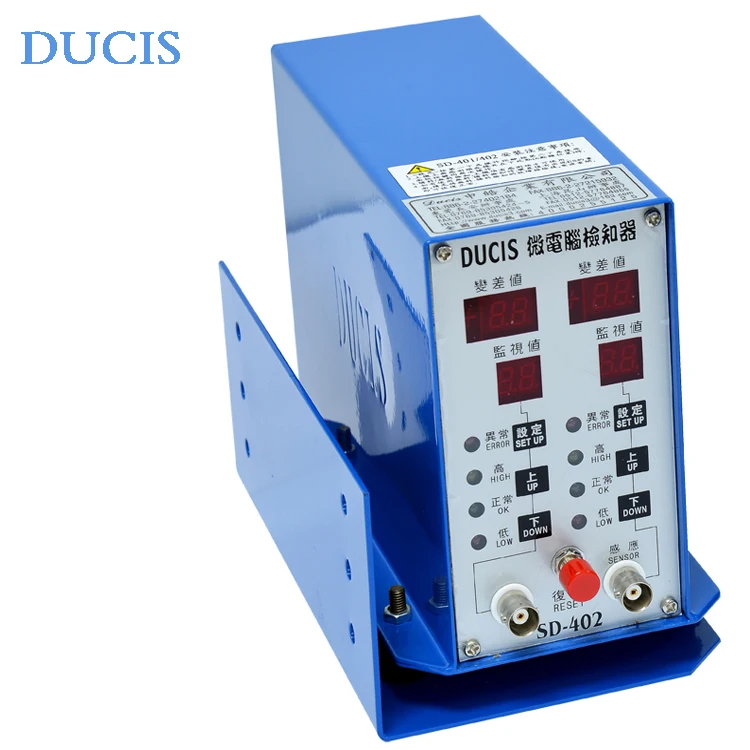

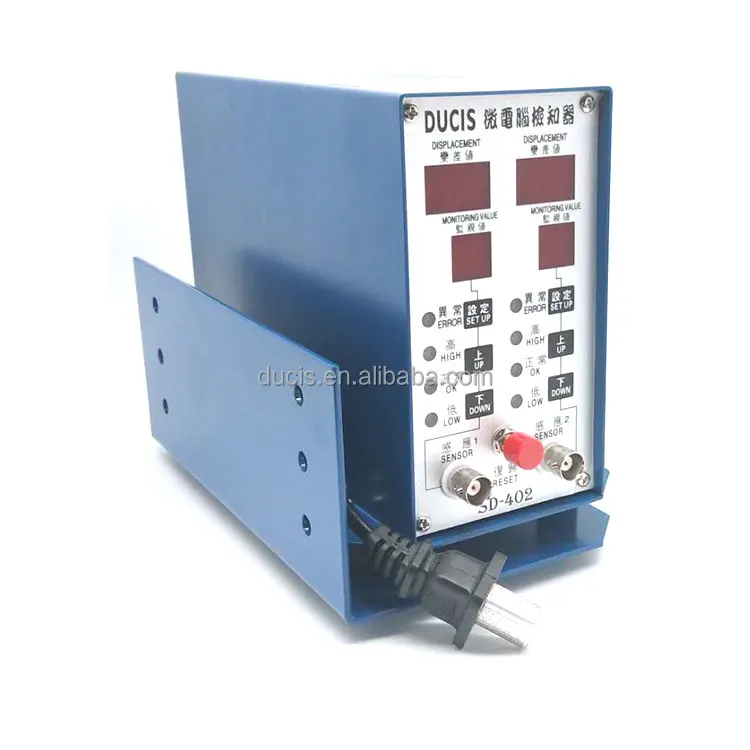

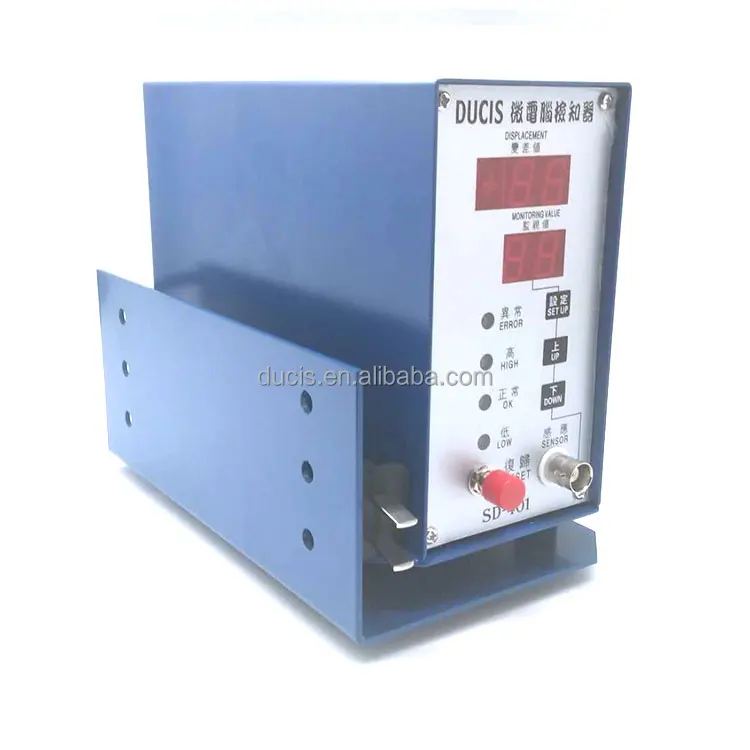

Computerized slug detector SD-402









1.Protect safety and plant equipment



2.With the various detection modes, catch even a slight deviation at slug occurrence



3.BBC detection



4.Slug detection for pendulum motion of servo press



5.Error-carry-on, missing material or material jammed.



6.Packing: paper box



7.Quality guarantee:about 1 year.



8.Certificate:ISO9001



9.Payment: D/P at sight; T/T



10.Hot sell in the market



11.Superior quality and durable



12.Having great reputation in the word market



13.Competitive price for the world market.



	Models	Accuracy	Accuracy range	OperatingTemperatureRange	Max Operating Speed	Size of Main Unit
Computerized slug detector	SD-401	1μm	±1μm~±99μm	0~50°C	2000 S.P.M	105W×140H×185D
Computerized slug detector	SD-402	1μm	±1μm~±99μm	0~50°C	2000 S.P.M	105W×140H×185D



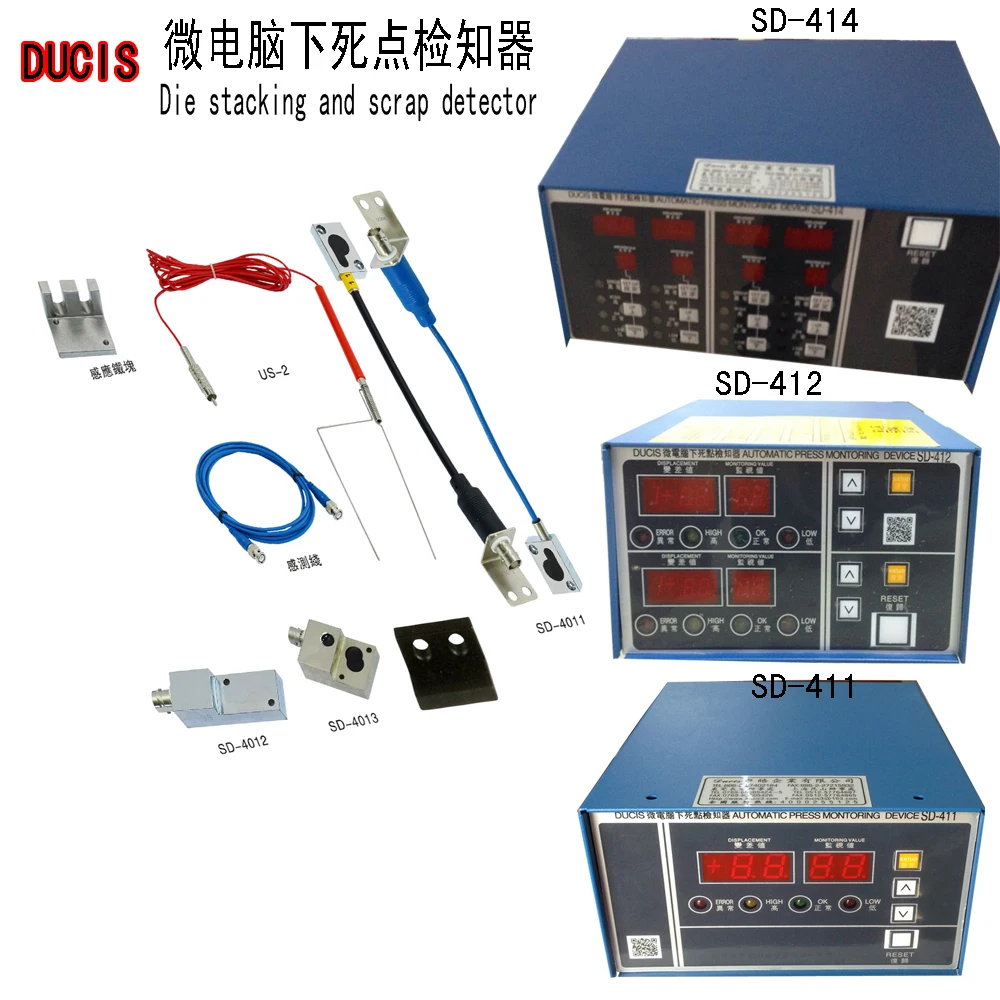

SD-401-One basic unit,Single output device (Single Port)

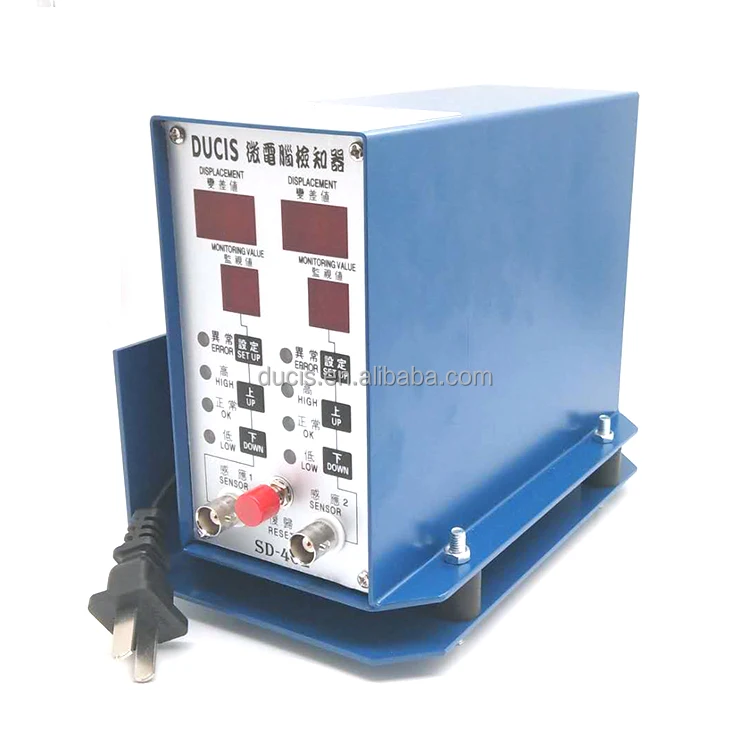

SD-402-One basic unit,Dual output device (Dual Ports)

1. Sensor operation setup distance:Location (A)from0.8mm to 1.2mm, please press setup switch thereafter 199-0 displayed, Move the iron block of the sensor head, it can be adjusted to 80~120 as operation distance. (Meaning 0.8mm to 1.2mm) Press setup switch again after set-up process.
2. Operation of monitoring value setup:Accuracy range sets up from ±1μm~±99μm depends on your exact accuracy requirement.
3. While stamping die starts runing, the first four times displaying digits meaning the averange of the die-height testing.(It will be re~calculated while stamping machine power off or the sensor line out of the basic unit and re-plug-in)
4. SP:Deplays when abnormal speed and machine stop; other reasons: upper or lower iron blocks drop out suddenly.
5. OP:Sensor line and sensor head disconnect or sensor line pull out from the unit.
6. HI:Abnormal too high, the red light lights up and abnormal high the yellow light lights up.(Distance higher over than1.2mm)
7. LO:Abnormal too low and low, the red light lights up.(distance lower over than 0.8mm)
8. ES:Displays when error carring, missing material or material jammed.
9. Abnormal light lights up when tolerance displayed value over than pre-set.

    10.Self-Check functions avaliable.

    11.This product provides precision set-up value as 1μm, it is selectable against different accurate toolings.

Options available for Error-Carry-On, Missing material ( by Electro-Eyes sensor ) and Material Jammed ( By sensoring Bar ) .



 Protect safety and plant equipment

With the various detection modes, catch even a slight deviation at slug occurrence

BBC detection

Slug detection for pendulum motion of servo press

Error-carry-on, missing material or materical jammed.
