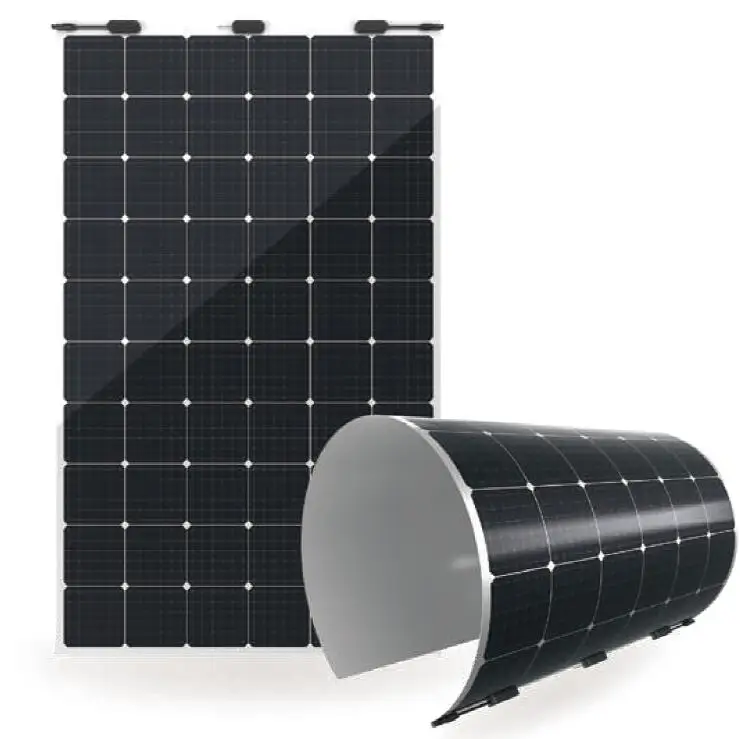

New technology material nano polymer film solar module flexible ETFE solar panel 100W 50W
- Category: >>>
- Supplier: Shenzhen,Topsky,Energy,Co.,Ltd.
Share on:
Product Overview
Description

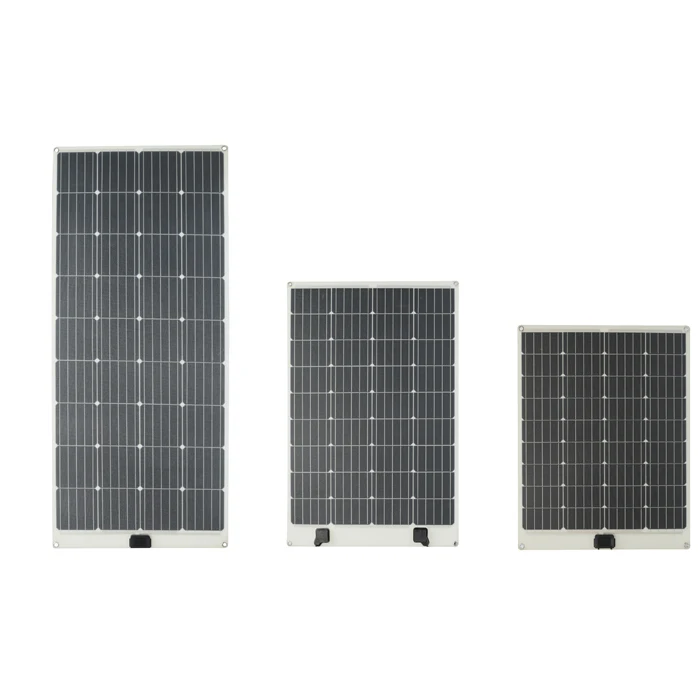

Lightweight solarpanel flexible 100w 120w 50w 60w mono silicon panels with cheap price
Product Description
TP Energy Flexible Solar Panel Features:
Ultra-light: weighs as 60% less than conventi-onal PV panels.

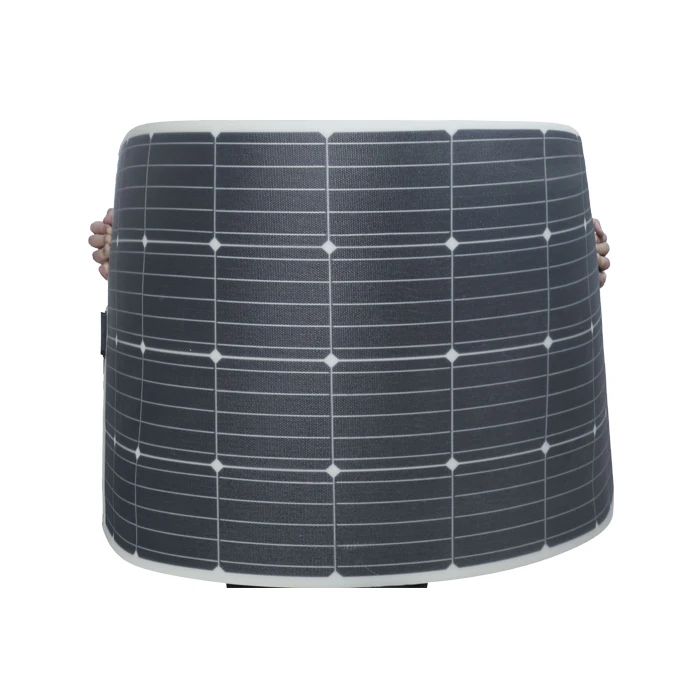

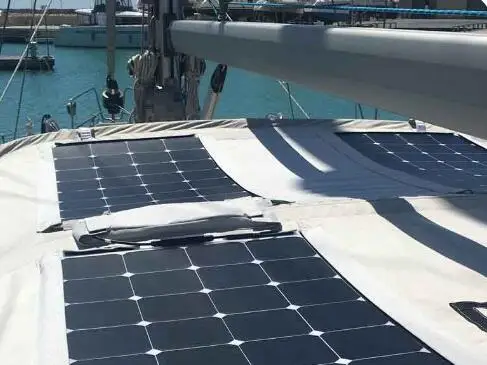

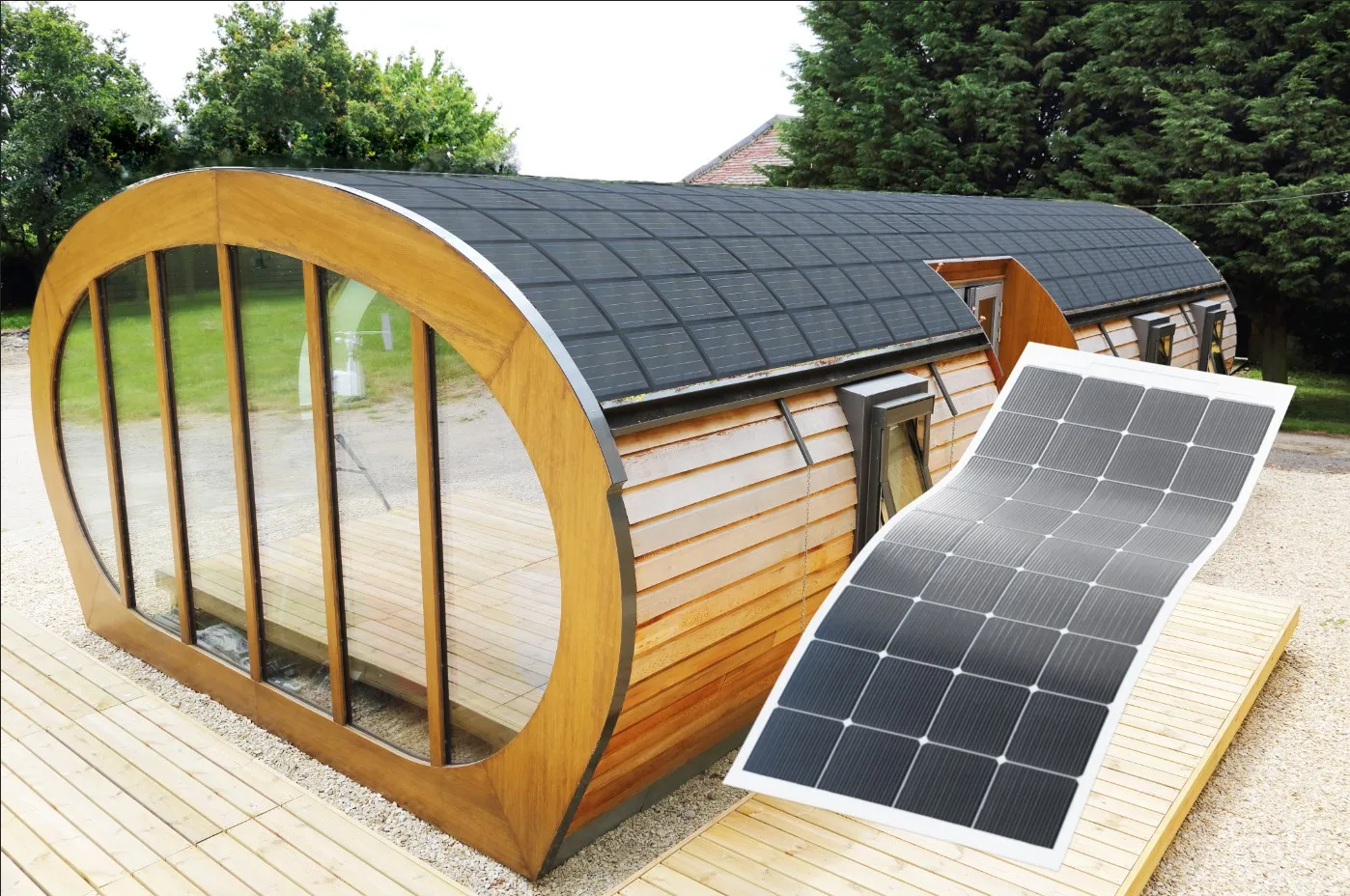

Flexible: The bendable product characteristics make it more fit when installed on all kinds of curved surfaces.
Easy Installation: Can reduce installation cost by up to 50% through the use of re-engineered components, ease of handling and faster install-ation.
Transportation: low weight, will very significantly reduce the cost of transportation.

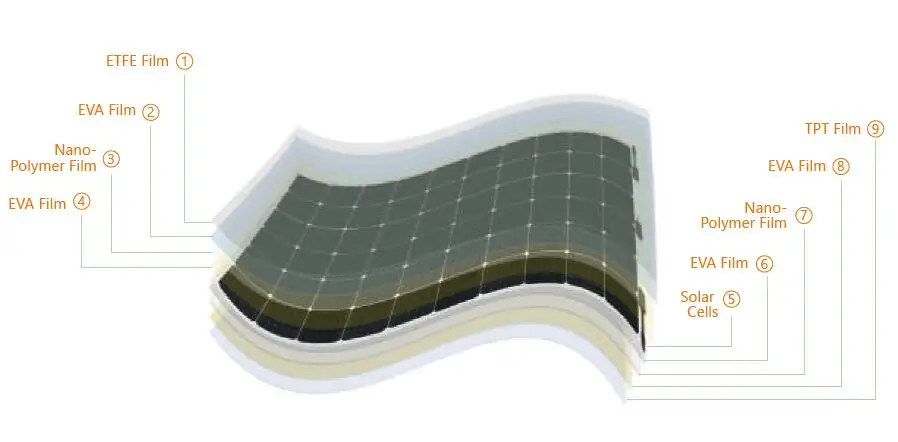

Durable：The use of multi-layer nano polymer film materials enables the product to have better solar cell protection, longer service life, and grea-tly reduce power loss caused by external shocks.

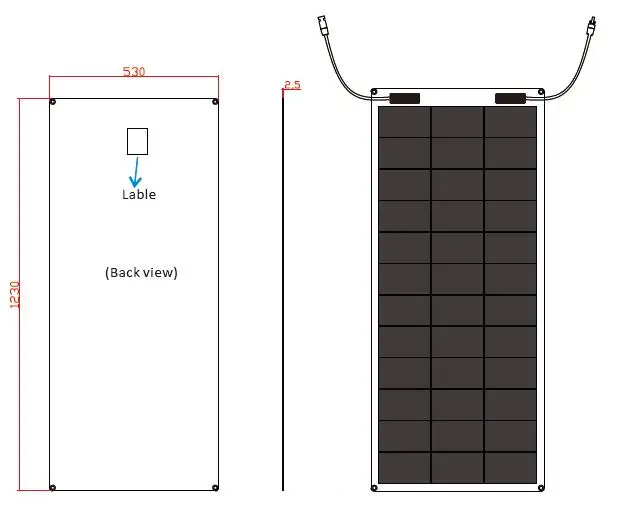

Specification
Advanced polymers have good performance and long life
1.Excellent optical properties, high and low temp-erature resistance, high structural strength, resi-stance to chemical corrosion.
2.Using advanced polymer materials, nearly 60% lighter than traditional solar panels, but much more longer service life, and also easily for tr-ansportation & installation".
1.Excellent optical properties, high and low temp-erature resistance, high structural strength, resi-stance to chemical corrosion.
2.Using advanced polymer materials, nearly 60% lighter than traditional solar panels, but much more longer service life, and also easily for tr-ansportation & installation".

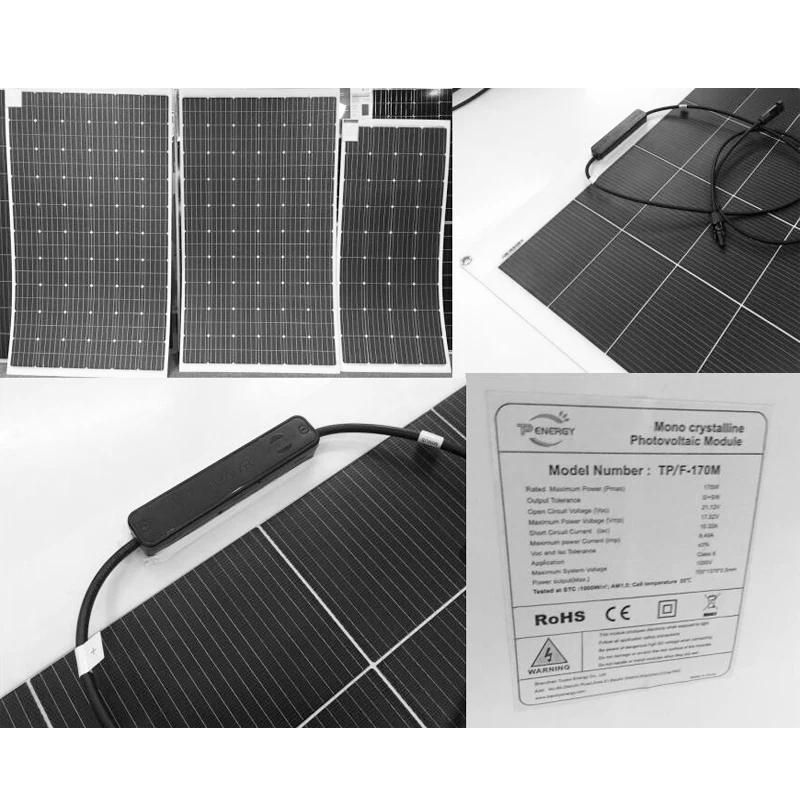

Electrical Parameters of Mono Flexible Lightweight solar panel: | ||||||||||
Maximum Power at STC (Pmax) | 100W | 395W | 400W | 405W | 410W | |||||
Optimum Operating Voltage (Vmp) | 18.0V | 41.08V | 41.33V | 41.6V | 41.88V | |||||
Optimum Operating Current (Imp) | 5.55A | 9.62A | 9.68A | 9.74A | 9.79A | |||||
Open Circuit Voltage (Voc) | 21.24V | 49.29V | 49.58V | 49.86V | 49.93V | |||||
Short Circuit Current (Isc) | 6.11A | 10.27A | 10.33A | 10.39A | 10.45A | |||||
Operating Module Temperature | -40 °C to +85 °C | |||||||||
Maximum System Voltage | 500V DC | |||||||||
Power Tolerance | 0/+5 W | |||||||||
Temperature Coefficient of Pmax | -0.35%/℃ | |||||||||
Temperature Coefficient of Voc | -0.29%/℃ | |||||||||
Temperature Coefficient of Isc | 0.048%/℃ | |||||||||
Recommend Products

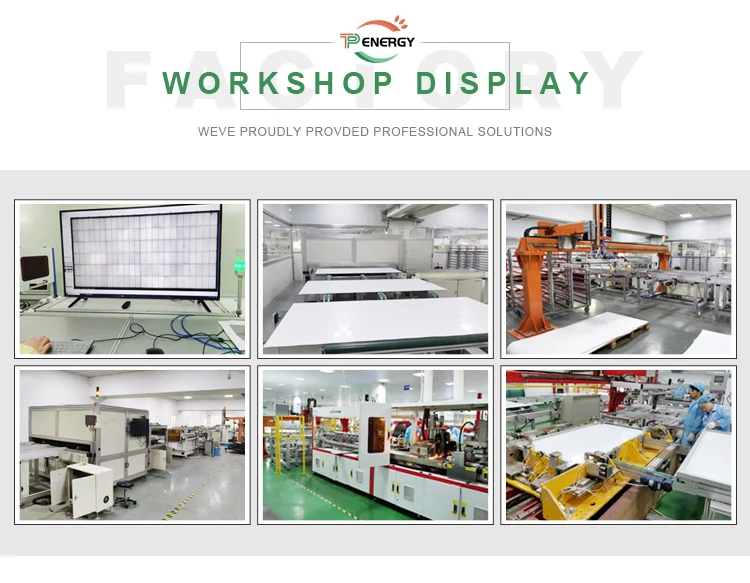

Company Profile
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono power panels and solar application products and Solar PV system solutions with experience over 10 years.
TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar kits.

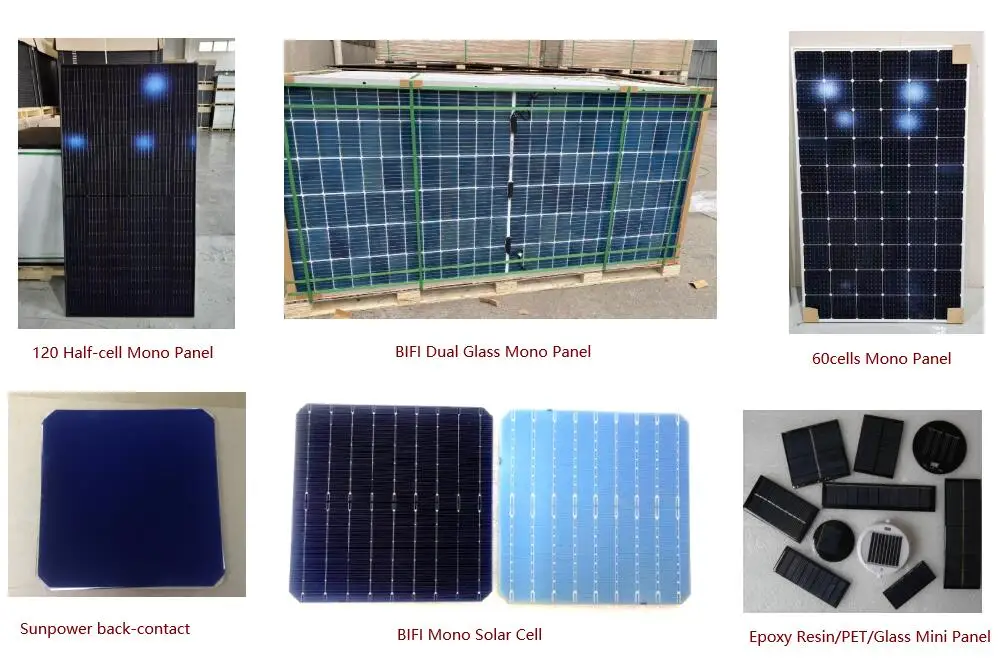

Main products are as follows:
*125mm 2BB mono solar cell, back-contact sunpower solar cells, 156.75/157mm 3BB/4BB/5BB poly solar cell, 158.75mm/166mm/182mm/210mm monocrystallline solar cells.
*3W-600W standard mono silicon and polycrystalline silicon solar panel, Mono PERC half cells solar panels, Bifacial dual glass panel solar, HJT BIFI glass glass solar energy panels.
*Solar PET/Epoxy resin/Glass panels, small mini solar panels, lightweight flexible solar panel are offered OEM and ODM service as per customers’ request.
*Exclusive channel to get solar cells and solar panels from tier-1 rating brand at pretty more competitive price,they are Risen solar,Trina solar, JA, Longi, Jinko solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH, LONGI,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.

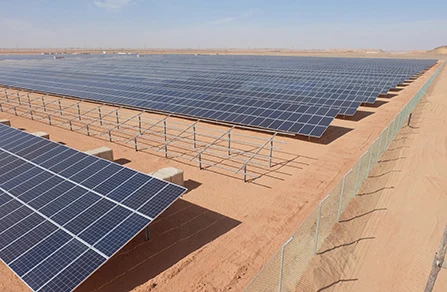

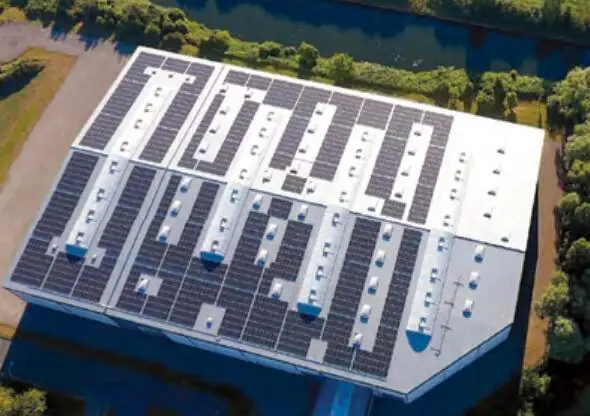

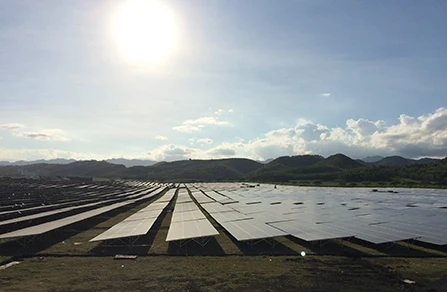

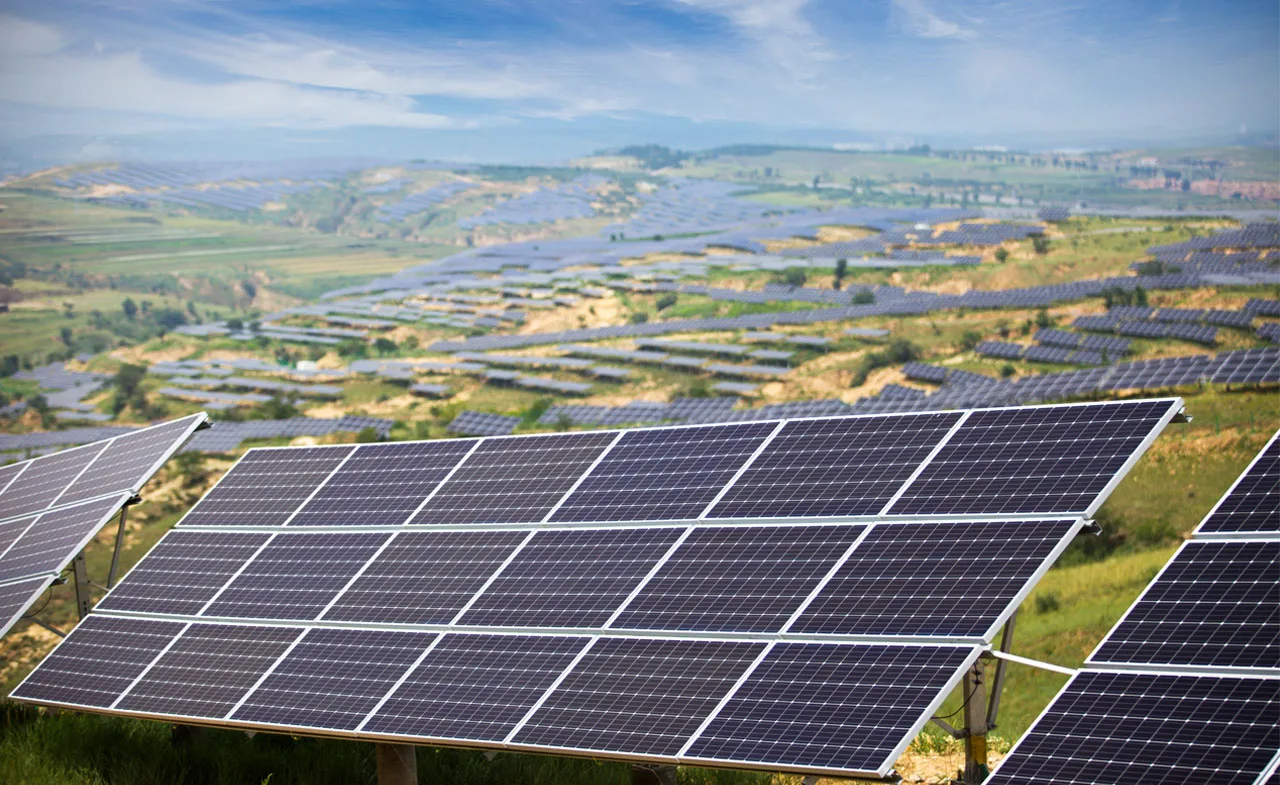

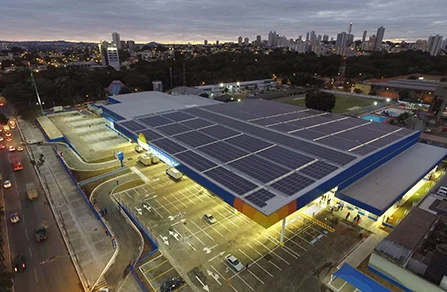

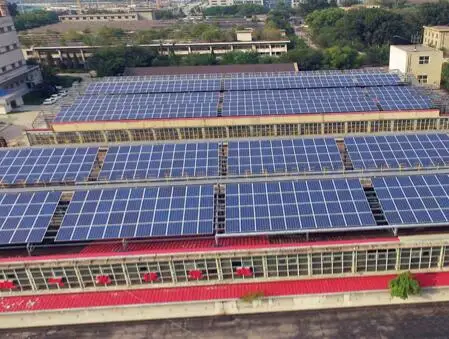

Project Case
Packing & Delivery
FAQ
Q: What kind of certification of solar cells solar panel do you have?
A: Power from 3W to 600w solar power panel with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10/12 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
A: Power from 3W to 600w solar power panel with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10/12 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
