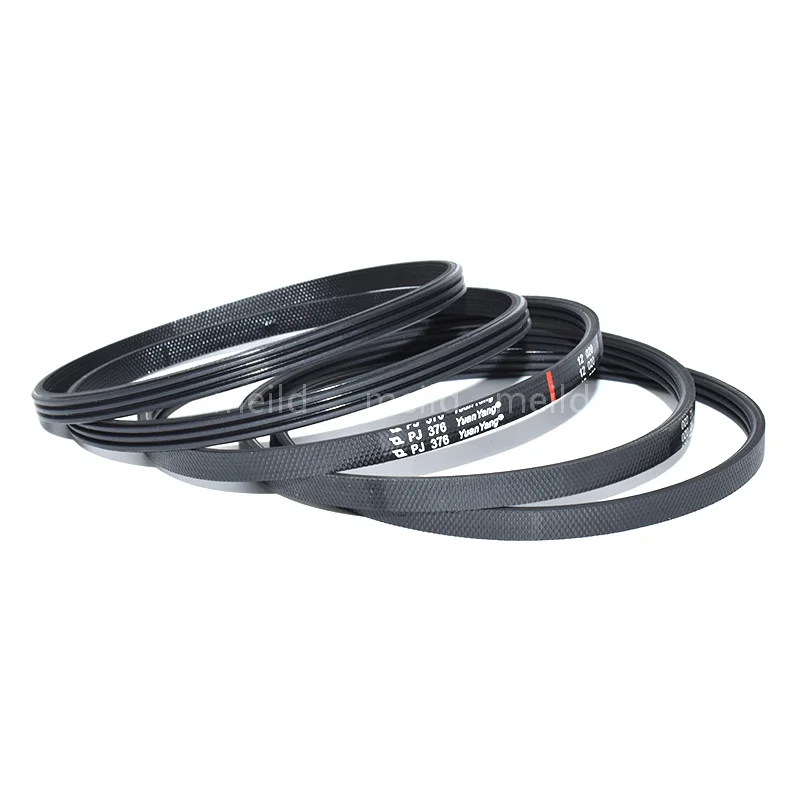

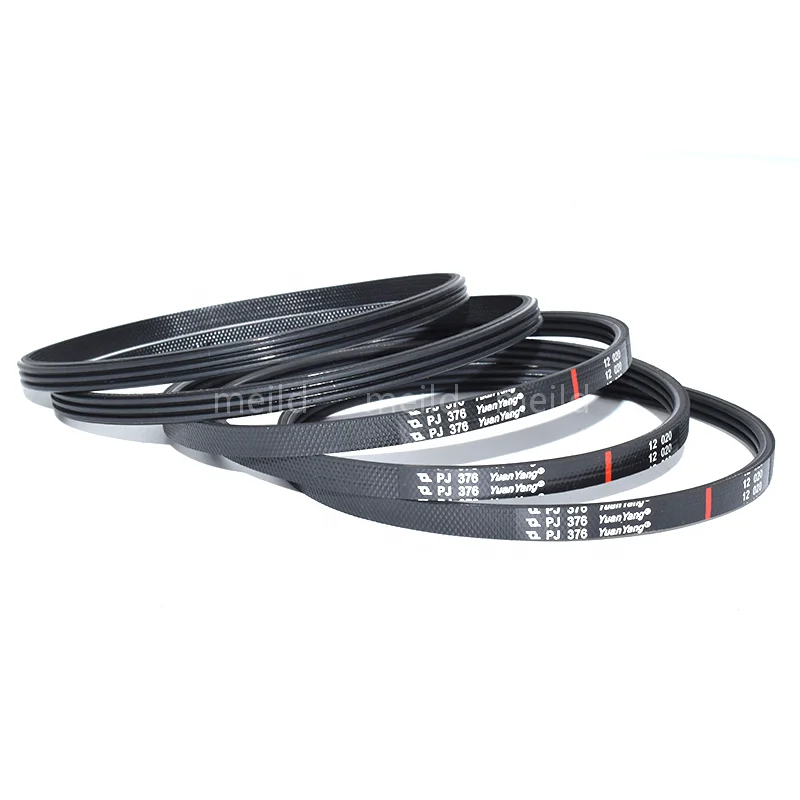

pj376 V ribbed belt pj Rubber V ribbed belt pj Molded V ribbed belt
- Category: >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600242037075):
Product Overview
Description
Product introduction
----We are a supplier specializing in the production and sales of industrial transmission parts. Based on the principles of honesty, integrity and mutual benefit, we are willing to establish a stable cooperative relationship with our customers for a better future.
----Please tell us your needs, we will provide you with the best service.
Brand | YuanYang | model | 2PJ376,3PJ376,4PJ376 |
Multi-groove belt | Multi-groove belt | Material | rubber |
Name | convey-v Belt-PJ Series | Number of teeth | 2/3/4 |
Custom processing | NO | bandwidth | 4.68/7.02/9.36(mm) |
Suitable | Conveyor, packaging machinery | Core wire material | polyamide core wire |
Material source | imported | Elastic ribbed belt | YES |
warranty period | 4 years | Center distance of roller | 120mm |
Product Features
1. Suitable for light load and medium load
2. Suitable for roller conveyor/roller conveyor
3. Suitable for high-speed operating environment
4. Maintenance-free, labor-saving and cost-saving
5. Quiet, environmentally friendly and easy to clean
6. Working temperature: -35°C~100" C
7. Constant tension is stable, unchanged for three years
2. Suitable for roller conveyor/roller conveyor
3. Suitable for high-speed operating environment
4. Maintenance-free, labor-saving and cost-saving
5. Quiet, environmentally friendly and easy to clean
6. Working temperature: -35°C~100" C
7. Constant tension is stable, unchanged for three years

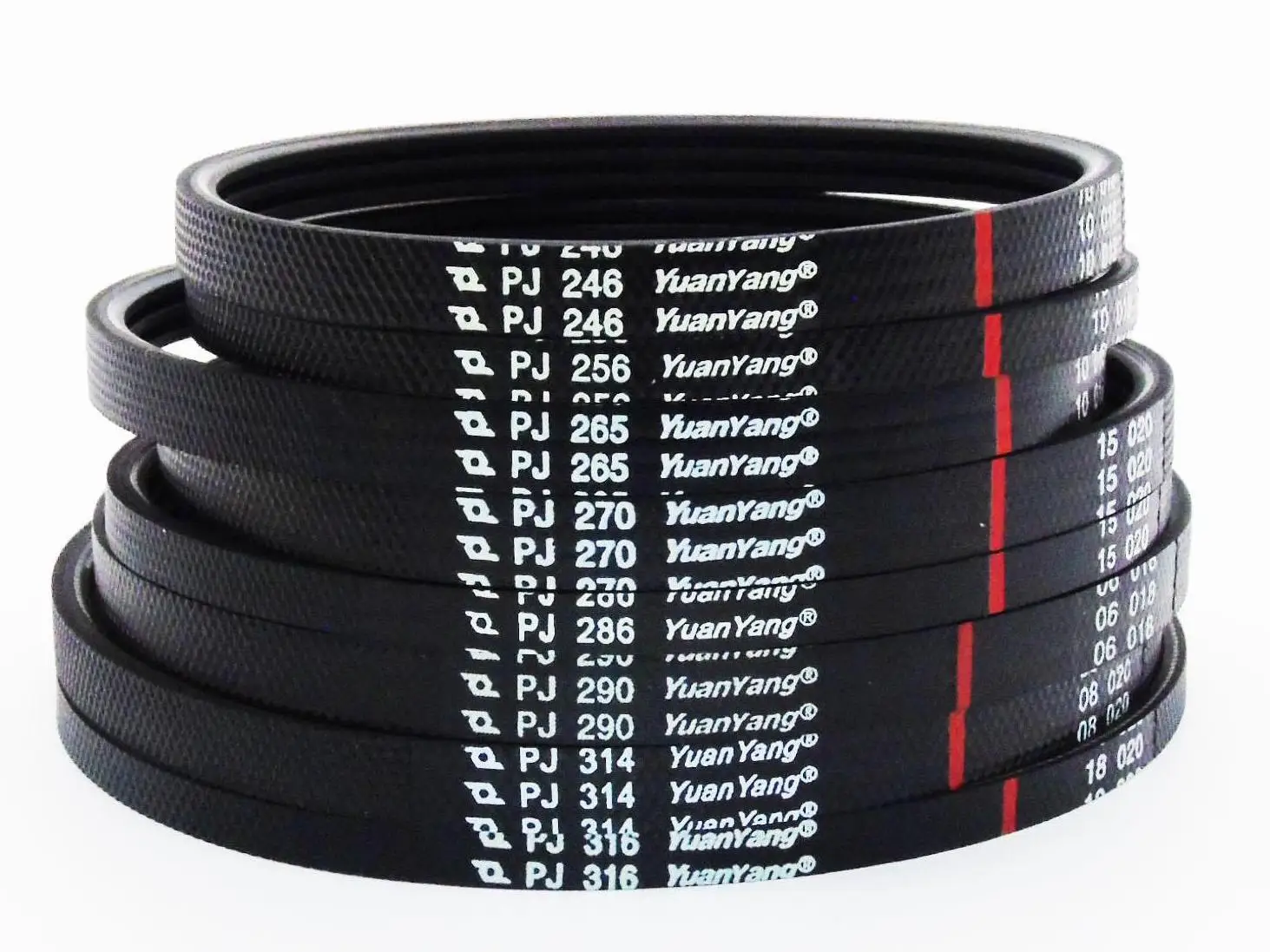

PJ270
PJ256
PJ246
PJ-416 Applicable environmental requirements
1. Roller center spacing: 133mm 2. This specification is non-standard specification, please communicate with the salesman when
ordering!
ordering!
PJ-586 Applicable environmental requirements
1. Roller center spacing: 225mm 2. This specification is non-standard specification, please communicate with the salesman when
ordering!
ordering!

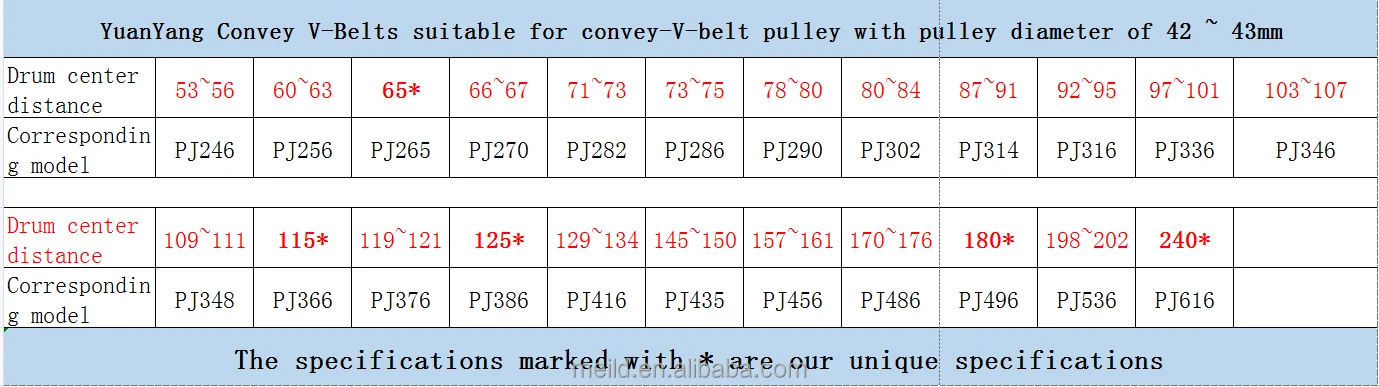

Product Paramenters
If you have special requirements, please contact us and we will meet your needs.
Comparison of the use of the elastic core of the drum convey-V-ribbed belt and the standard convey-V-ribbed belt
-----The elastic convey-V-ribbed belt will quickly decay to the rated center distance in a short time, and keep this center
distance constant for a long time.
distance constant for a long time.
-----The standard convey-V-ribbed belt reaches the rated center distance in a certain period of time, but it cannot keep the enter
distance constant for a long time, that is, there is no constant tension!
distance constant for a long time, that is, there is no constant tension!

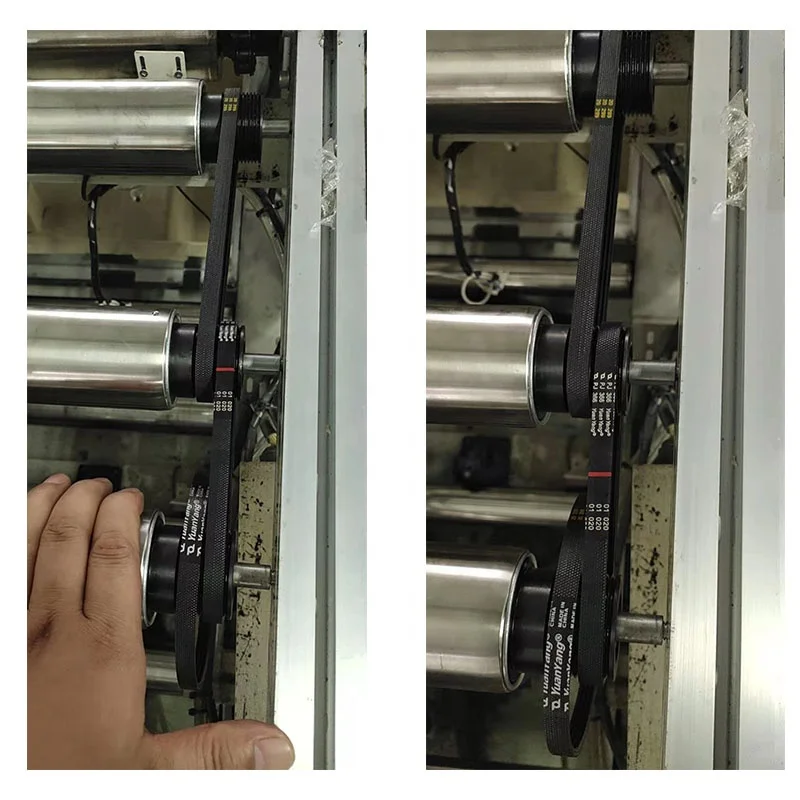

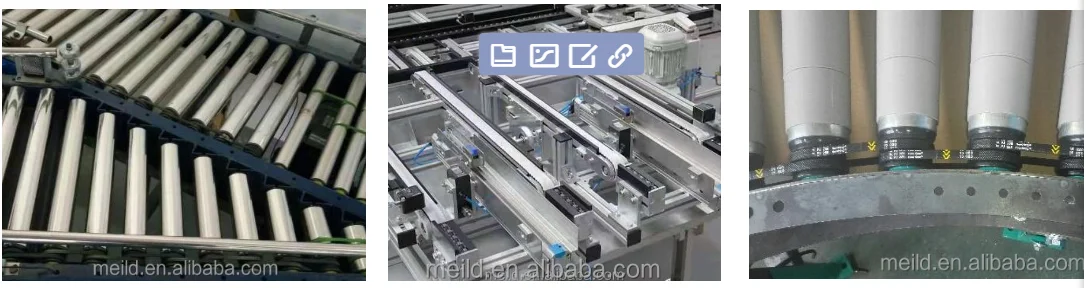

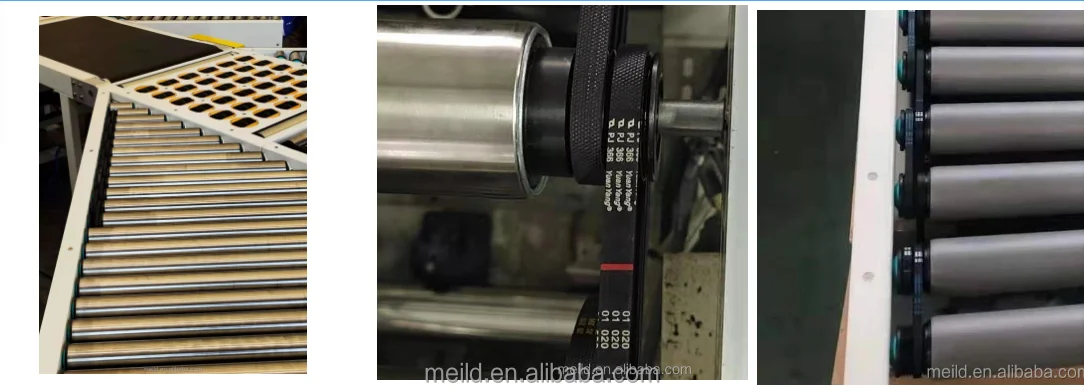

Scenario application diagram
Application requirements of drum multi - wedge belt
1. The pulley diameter is 42.8~43mm (the market has been standardized, nylon material is 42.8mm, the general motor is prone to non-standard diameter), such as non-standard situation, please contact the business, we will calculate the accurate length according to your requirements!
2. Drive the maximum number of drums: 20~28 drums (considering the cost of the motor and the end speed, it is recommended to try to be within the range), if you need to drive more than 30, please communicate with the salesman, we will guide you how to choose!
3. Maximum line speed: 3m/s (180m/min), the current market our customers have done the fastest speed is 2.5m/s
4. Maximum unit load: 150KG (2PJ maximum load: 50KG; 3PJ maximum load: 120KG; 4PJ maximum load: 150KG) We made sure it was operational and not the maximum load
2. Drive the maximum number of drums: 20~28 drums (considering the cost of the motor and the end speed, it is recommended to try to be within the range), if you need to drive more than 30, please communicate with the salesman, we will guide you how to choose!
3. Maximum line speed: 3m/s (180m/min), the current market our customers have done the fastest speed is 2.5m/s
4. Maximum unit load: 150KG (2PJ maximum load: 50KG; 3PJ maximum load: 120KG; 4PJ maximum load: 150KG) We made sure it was operational and not the maximum load
