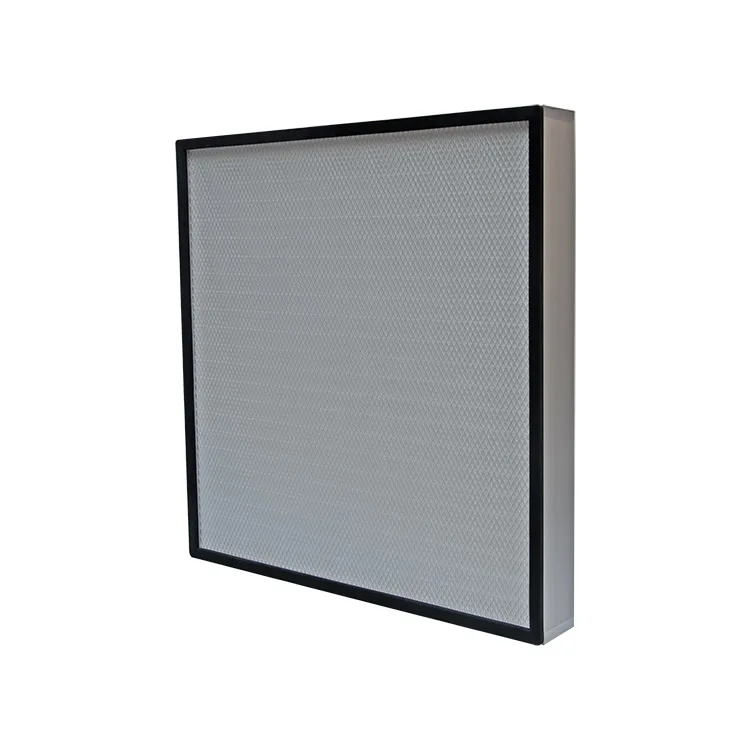

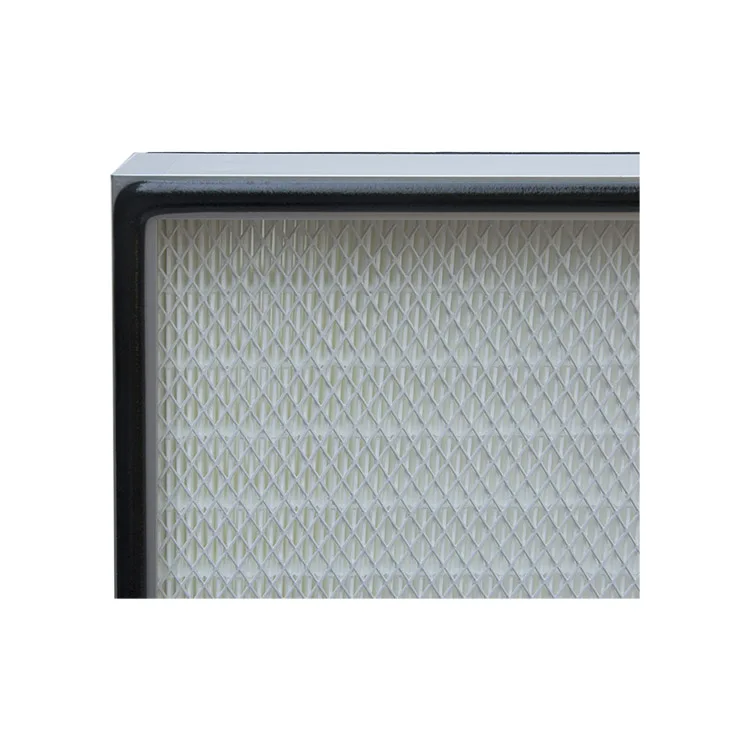

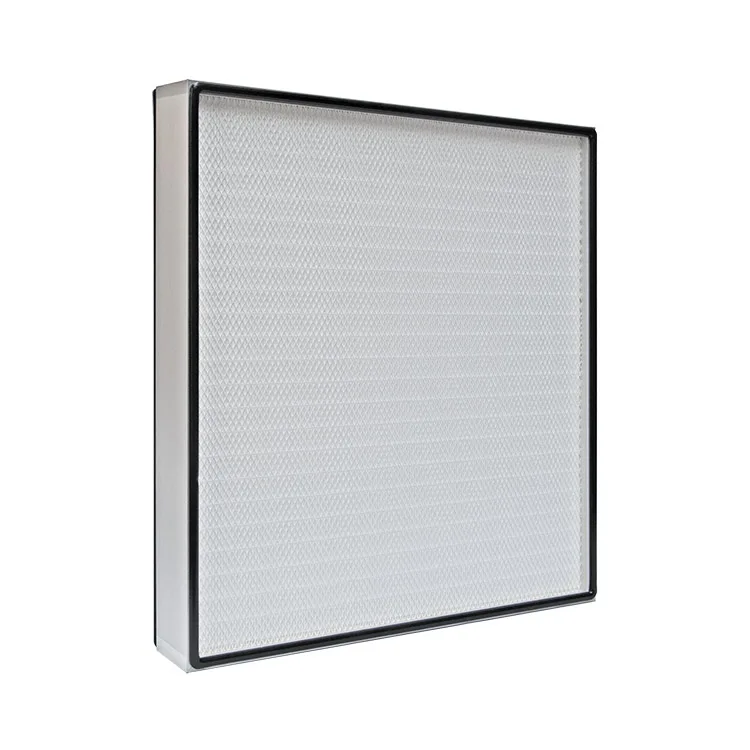

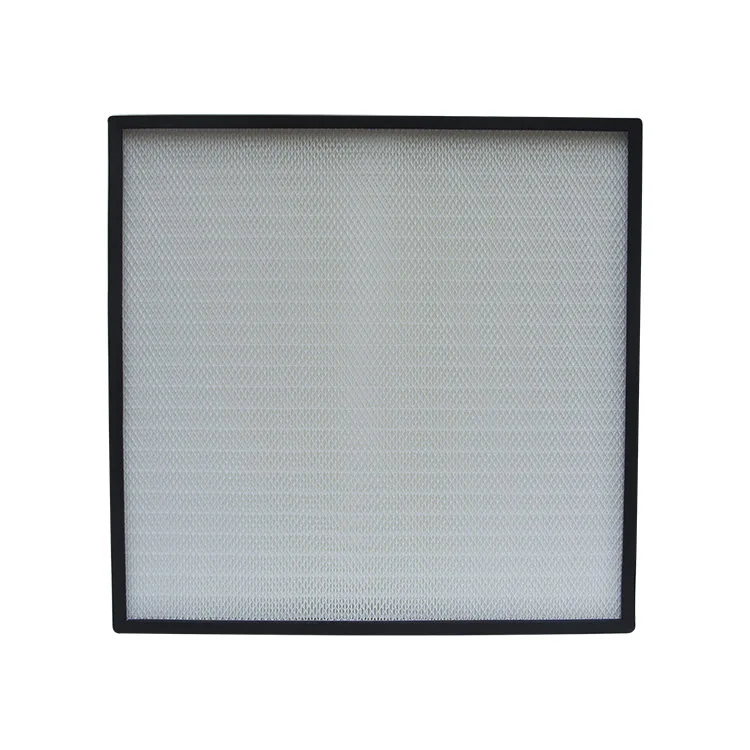

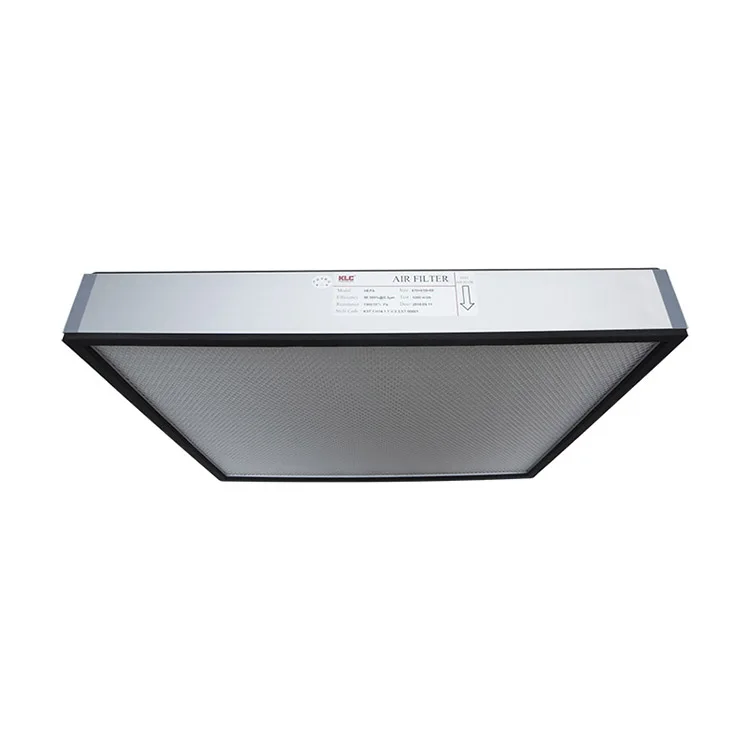

H13 99.99% система ОВКВ HEPA фильтр 24x24 воздушный фильтр для ламинара потоковой бленды
- Category: >>>
- Supplier: Guangzhou KLC Cleantech Co. Ltd.
Share on (1600242108971):
Product Overview
Description
Products Description
Material And Operation Conditions
Efficiency: H13 / H14 / U15 / U16 / U17
Media: Micro glass fiber
Frame: Aluminum / GI / SUS / MDF
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: Hot melt bead
Optional thickness: 38 ~ 120mm
Max Temperature: 70℃
Max Humidity: 100%
Media: Micro glass fiber
Frame: Aluminum / GI / SUS / MDF
Sealant: Pu two-component polyurethane glue
Gasket: Pu endless gasket / EVA / EPDM
Separator: Hot melt bead
Optional thickness: 38 ~ 120mm
Max Temperature: 70℃
Max Humidity: 100%
Product Feature
● Low run cost
● Light weight, convenient installation and replacement
● Long life-span
● 100% factory inspection
● Good sealing
● Super high efficiency

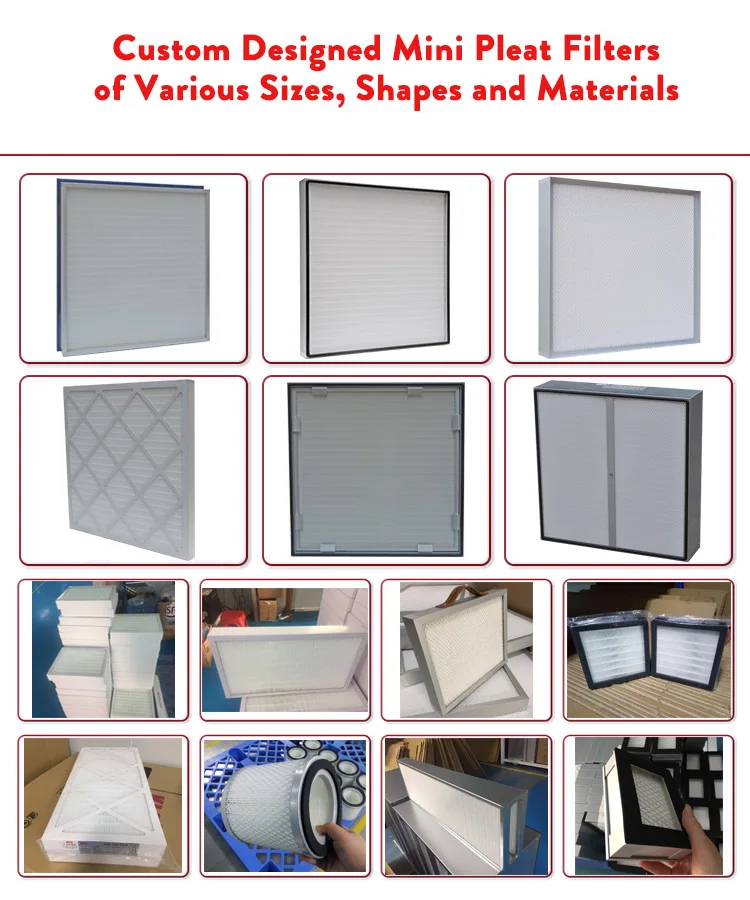

Custom Design
Product Specification
Model NO. | Actual Size HxWxD (mm) | Air Flow (m³/h) | Media Area Flow (m²) | Velocity (m/s) | Efficiency |
K57-B-002 | 484*484*50 | 500 | 4.81 | 0.55 | H13-H14,U15 |
K57-B-006 | 610*915*50 | 1100 | 11.29 | 0.55 | H13-H14,U15 |
K57-B-028 | 305*610*69 | 500 | 4.92 | 0.75 | H13-H14,U15 |
K57-B-031 | 610*610*69 | 1000 | 10.00 | 0.75 | H13-H14,U15 |
K57-B-033 | 610*915*69 | 1500 | 14.84 | 0.75 | H13-H14,U15 |
K57-B-035 | 610*1220*69 | 2000 | 19.68 | 0.75 | H13-H14,U15 |
K57-B-041 | 610*915*96 | 2400 | 23.19 | 1.20 | H13-H14,U15 |
K57-B-042 | 610*1220*96 | 3200 | 30.76 | 1.20 | H13-H14,U15 |
K57-B-051 | 870*1170*69 | 2750 | 27.08 | 0.75 | H13-H14,U15 |
K57-B-052 | 1170*1170*69 | 3700 | 36.52 | 0.75 | H13-H14,U15 |
HEPA filter: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
