Product Overview
Description
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment

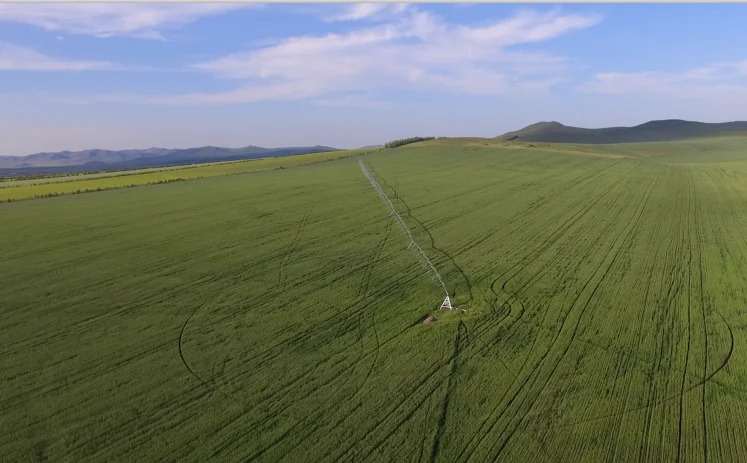

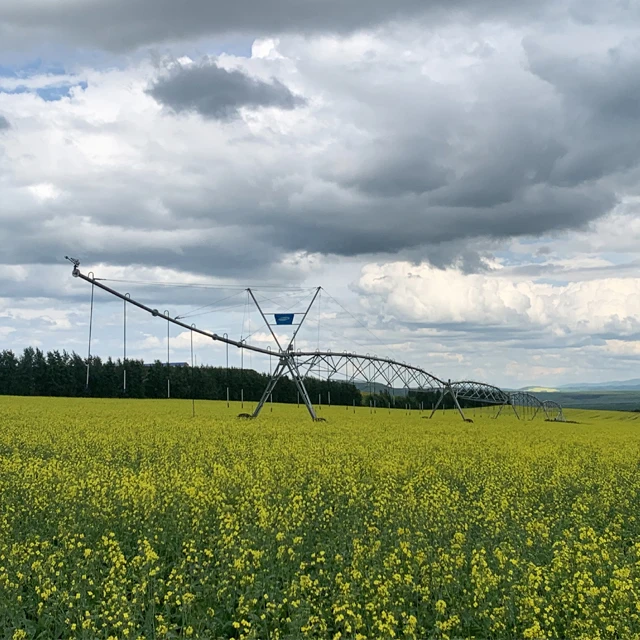

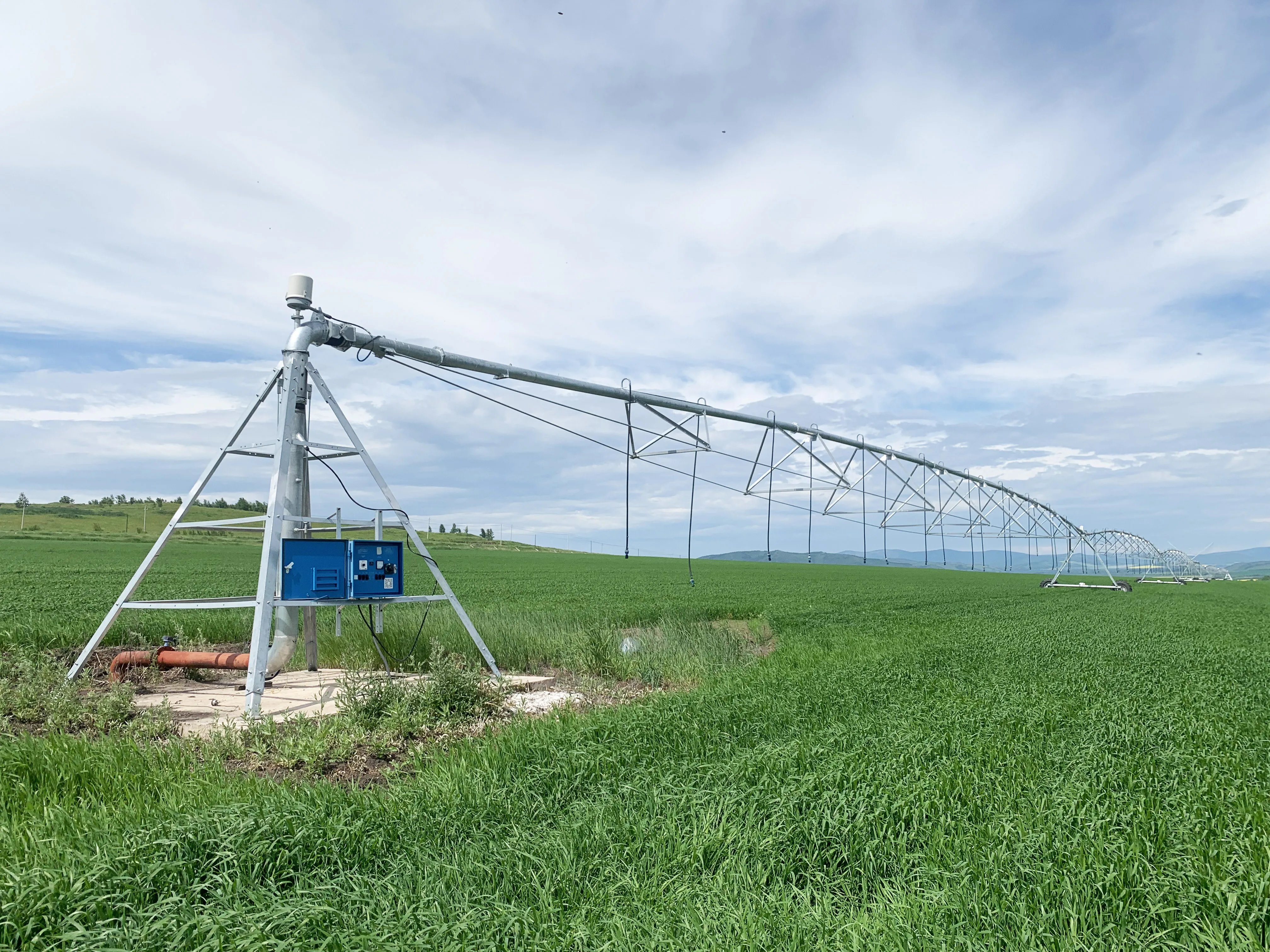

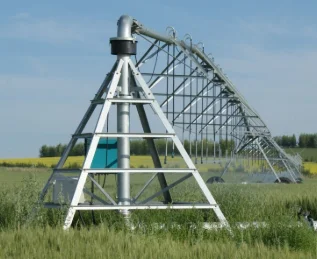

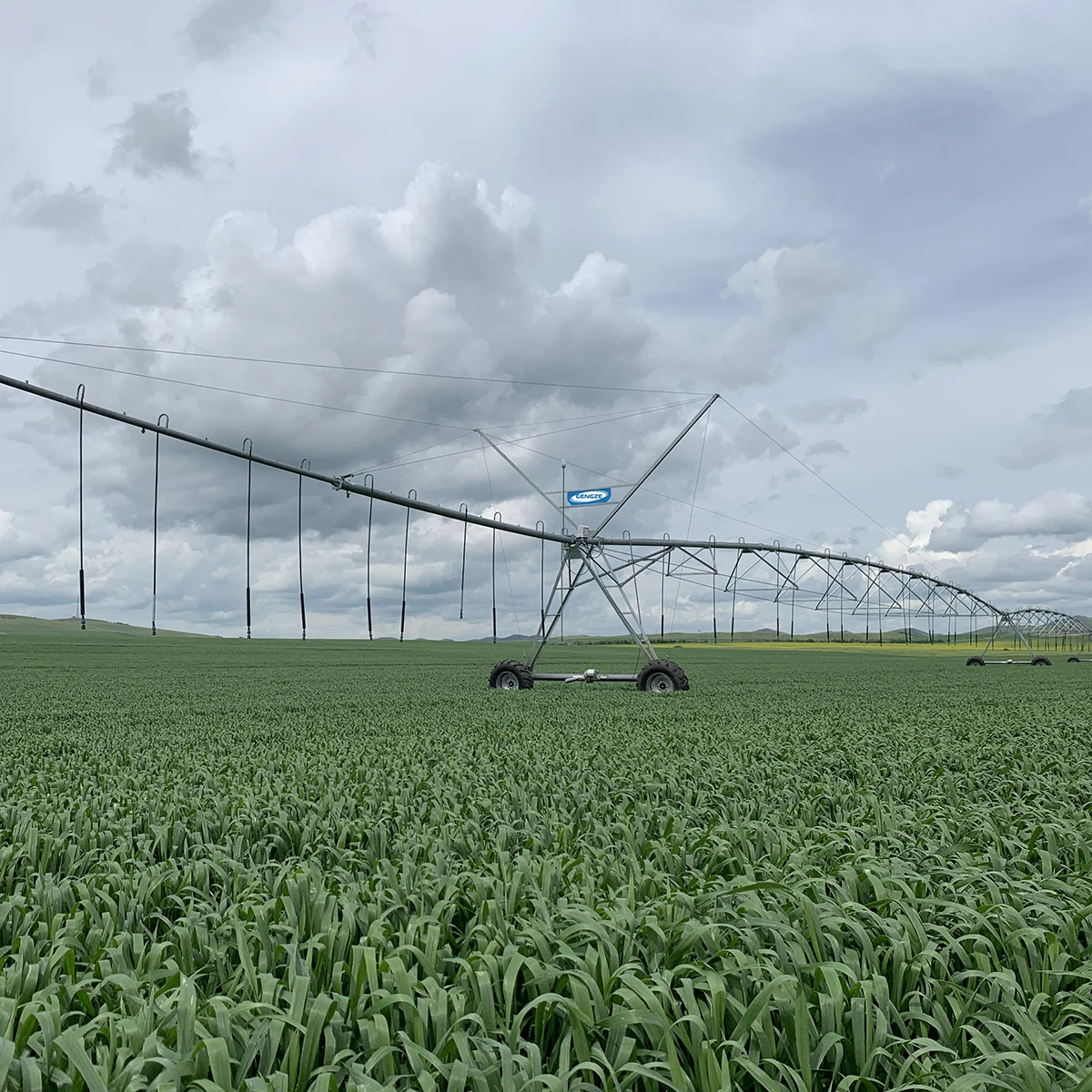

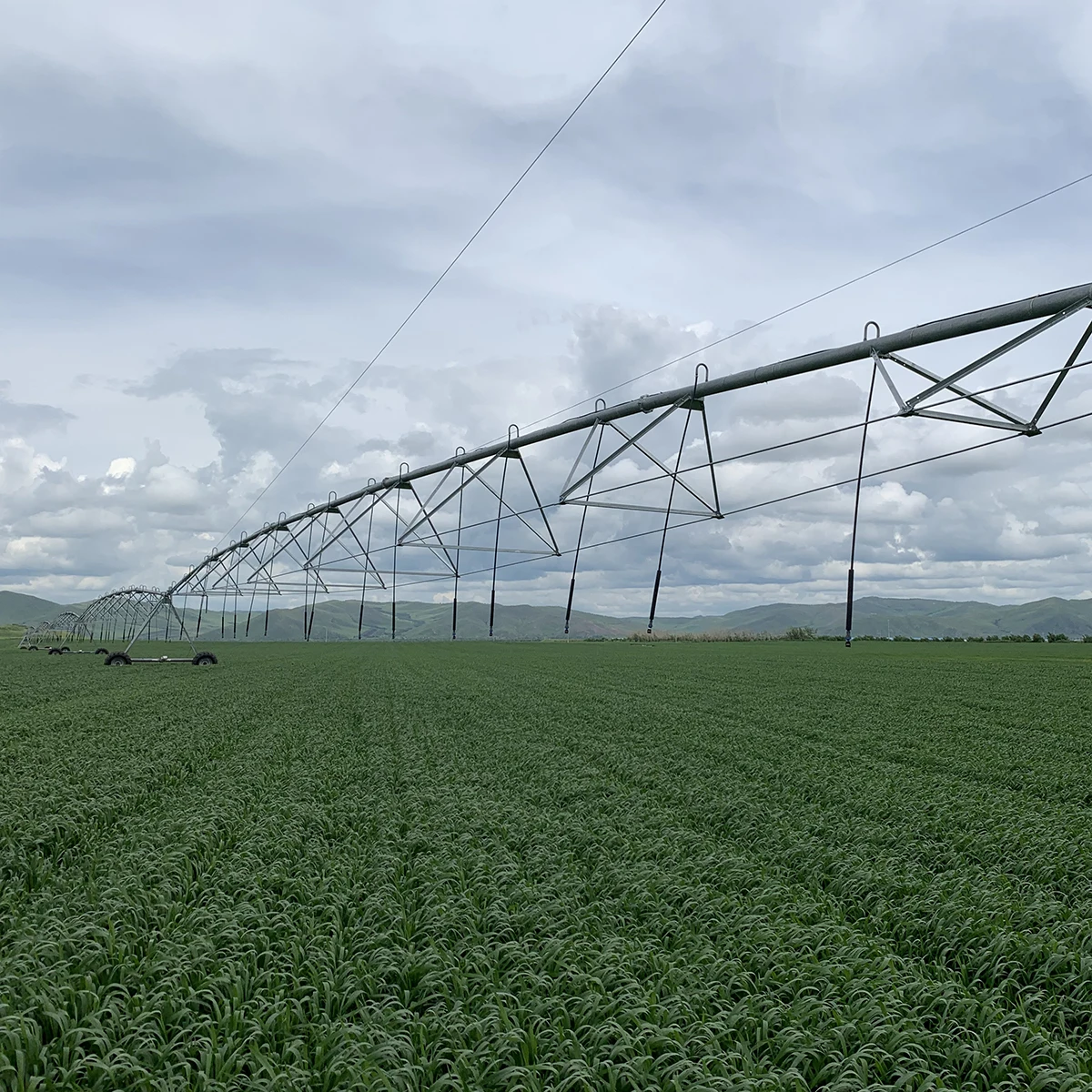

Center Pivot Sprinkler Irrigation System is also called pointer sprinkler and circular sprinkler. This machine is a sprinkler irrigation equipment with a central pivot as a circle point, and the irrigation area is realized by the length of the irrigation radius. The upper end is connected with a rotating elbow through a rotating mechanism (snubber ring), and is a water-saving and production-increasing irrigation machine that sprays water to crops through a spray system on the truss. The core structure is made of hot-dip galvanized steel pipe, angle steel, steel plate, round steel, etc. The central pivot sprinkler irrigation machine is suitable for square, round and other large plots. It can overcome the slope of ≤25° plots. It has a wide range of applications and a large sprinkler irrigation area.The center pivot is firmly fixed on the cement base to eliminate the force generated by the machine operating on irregular terrains, , so that the water supply pipe can rotate freely in a circle radius to irrigate the whole round field.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment

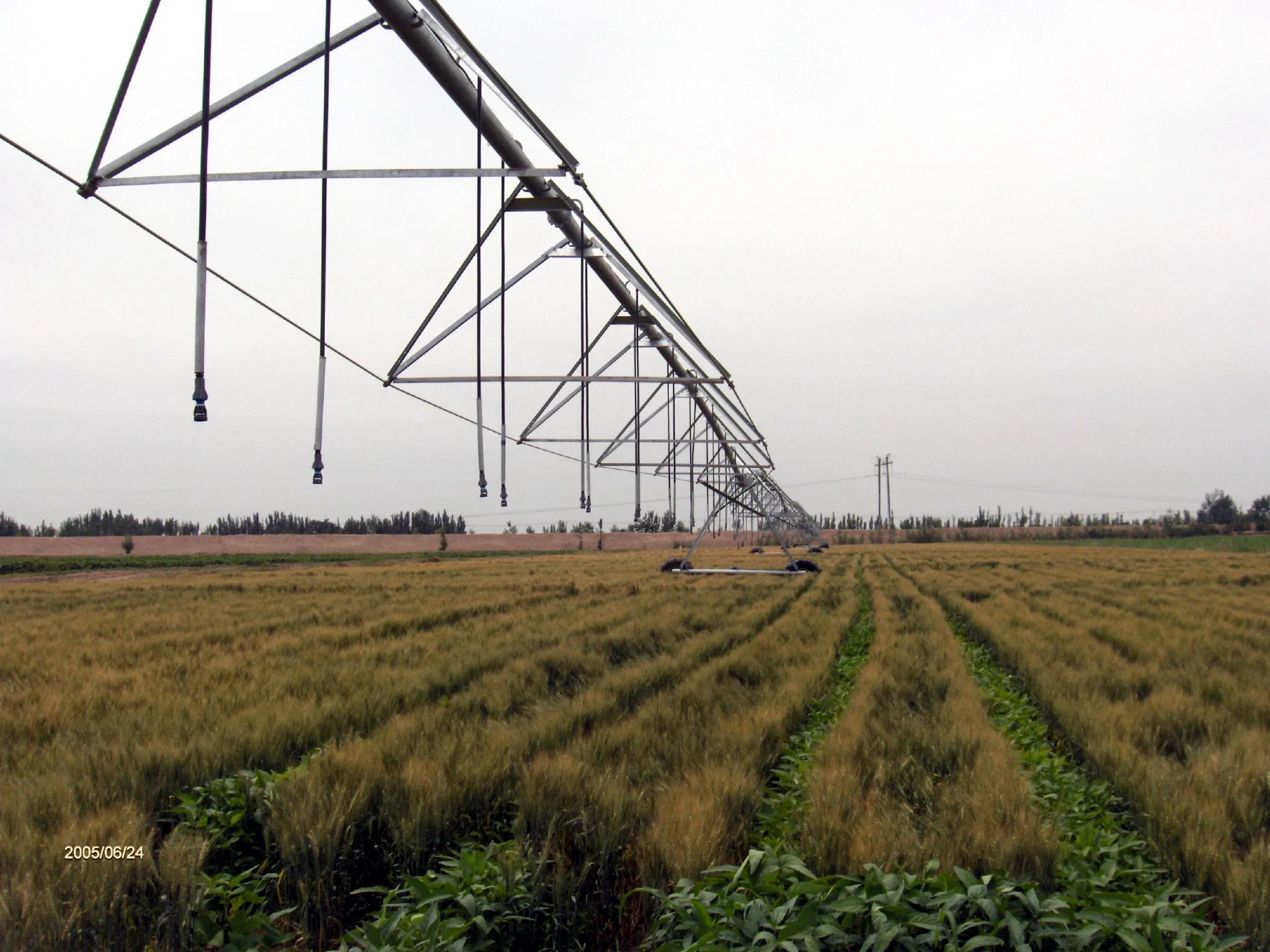

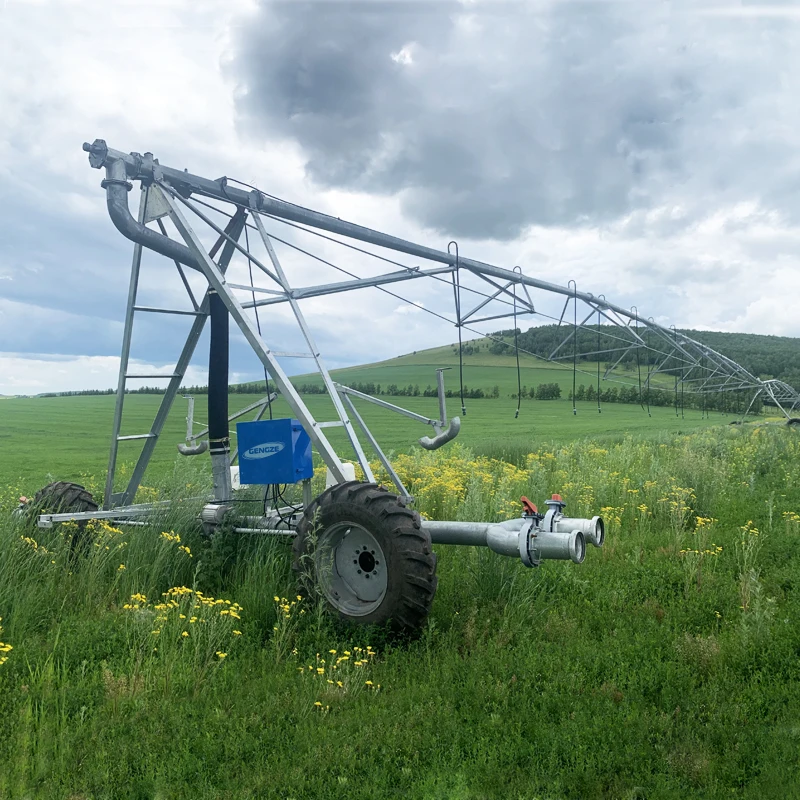

Translational sprinkler irrigation machine
The translational sprinkler irrigation machine is suitable for rectangular or trapezoidal slender plots. When irrigation is needed, the equipment can walk automatically without anchoring. The advantage is that it occupies a small area, has no dead corners for irrigation, and has a high utilization rate of land.
The water supply method can be used to introduce water supply along the open channel of the plot or the management road of the field water source. The power system adopts diesel generator or city power supply.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation EquipmentThe water supply method can be used to introduce water supply along the open channel of the plot or the management road of the field water source. The power system adopts diesel generator or city power supply.
Translational rotary sprinkler irrigation machine. It can support both lateral moving and rotating irrigation.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment
The equipment can be controlled by mobile phone/computer intelligent operation, you can save a lot of time to do other things while using it. Because it is a semi-automatic irrigation equipment.
Product Description
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment
Can be operated on a various terrains such as deserts, flood plains, flat land and rolling hills and on a varieity of crops such as rice, patato, sugar cane, etc.
Gengze designs the irrigation system according to your specific climatic, topographical and cropping coonditions that maximizes time,labor and water savings for your induvidual needs.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment | ||
Pipeline Diameter | 141mm, 168mm, 203mm, 254mm | |
Pipeline Material | Hot-dip galvanized pipe, Steel 304 pipe ： Option: with poly span inside | |
Pipeline Thickness | 3.0mm | |
Pipe Length | 6.7m | |
Span Length | 61.3m, 54.5m, 48m, 41m | |
Maximum Machine Length | 1200m | |
Overhang Length | 22ft=6.7m/pc, not more than 3pcs | |
Sprinkler | Nelson D3000/R3000 | |
Working Voltage | 380-460V/50-60HZ: powered by Diesel generator or local power supply | |
Truss Diameter | 22mm,19.1mm,17.5mm( 61.3m:22mm; 54.5m&48m: 19mm; 41m&34m:17.5mm ) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Irrigation intake pressure | 0.25-0.35Mpa | |
Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Tire Options | 11.2x22.5; 11.2x24.5; 11.2''x24''; 14.9x24'' | |
Motor/Gearbox | American brand | |
Motor power | 0.75/1.5 HP | |
Span body tower structure | Adopt V model tower | |
Control Panel | Digital control or PLC | |
End Gun | Option: 35--45m | |

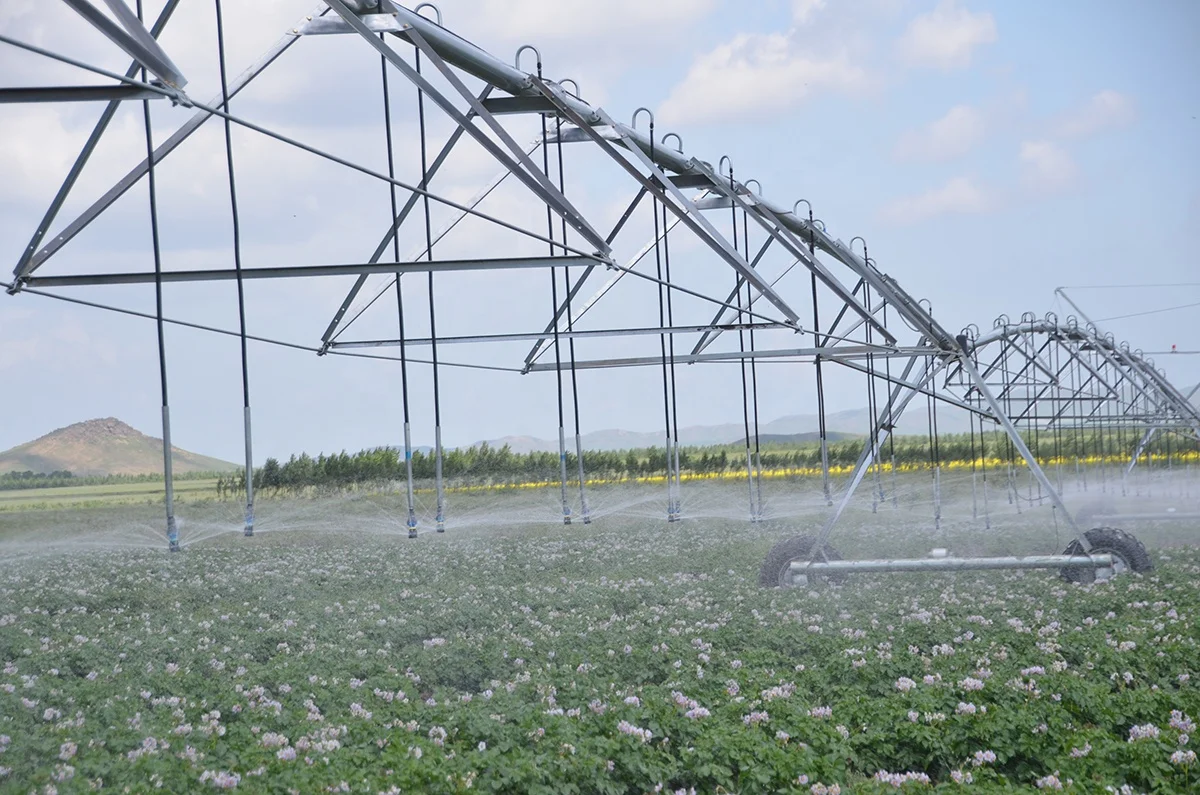

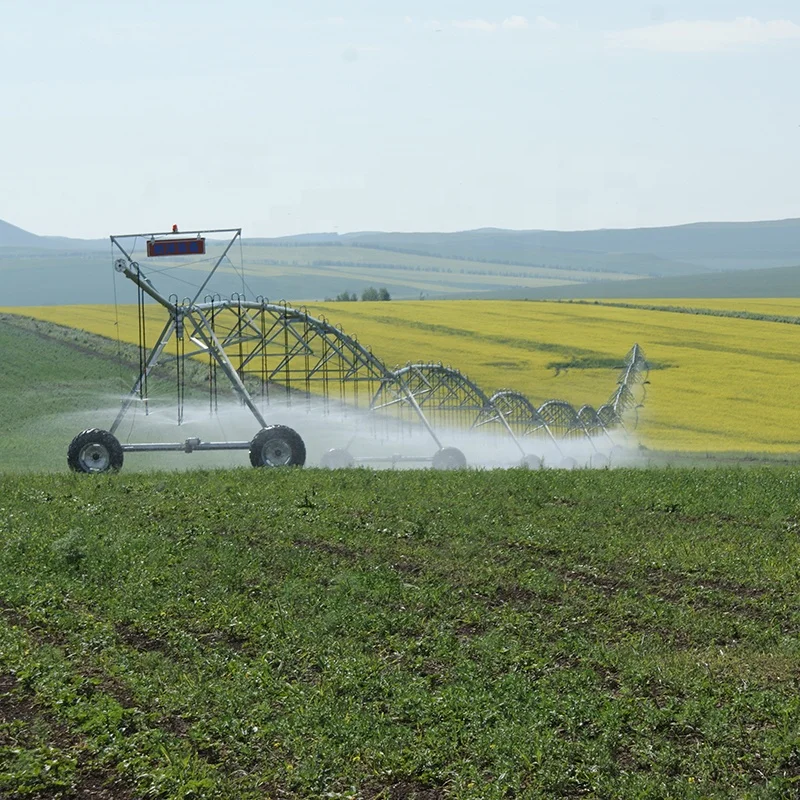

Spray effect display
It can have different length options, the longest can reach 1200 meters. The configuration is divided into standard and smart configurations. Can meet your various needs.
Details Images

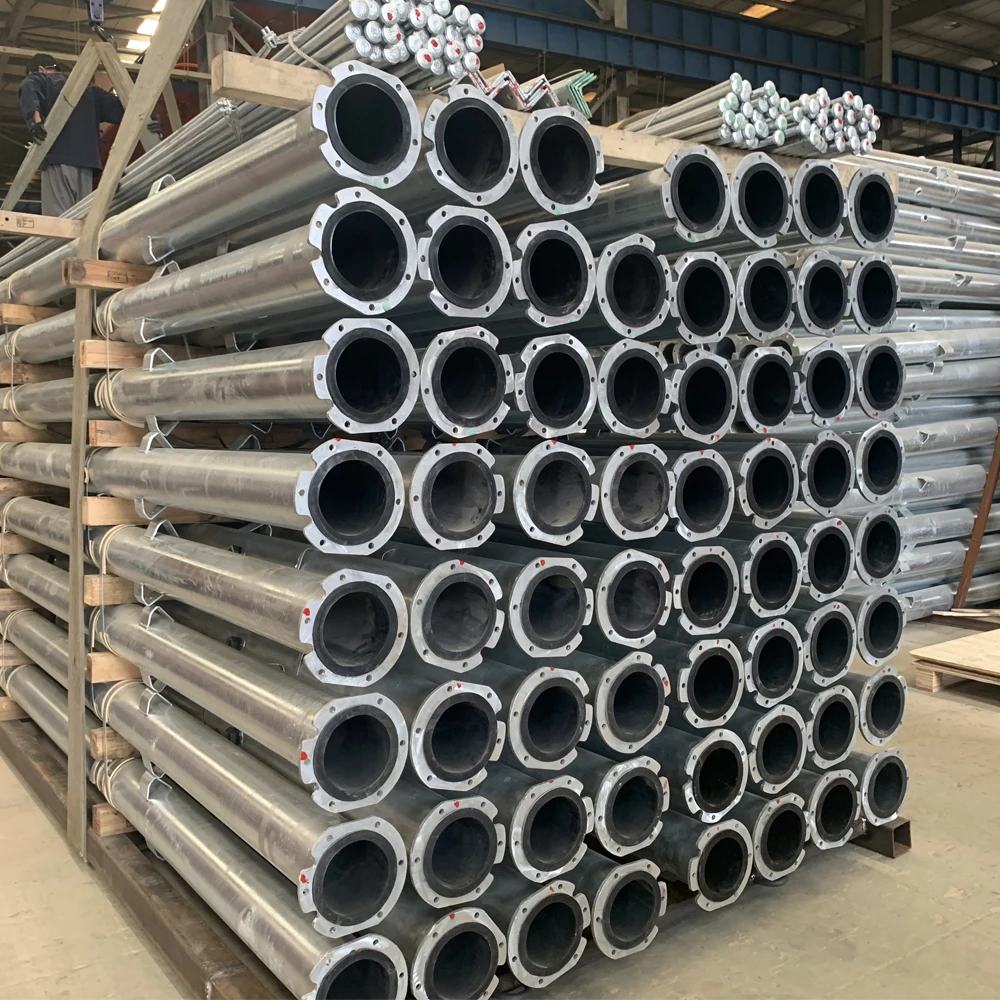

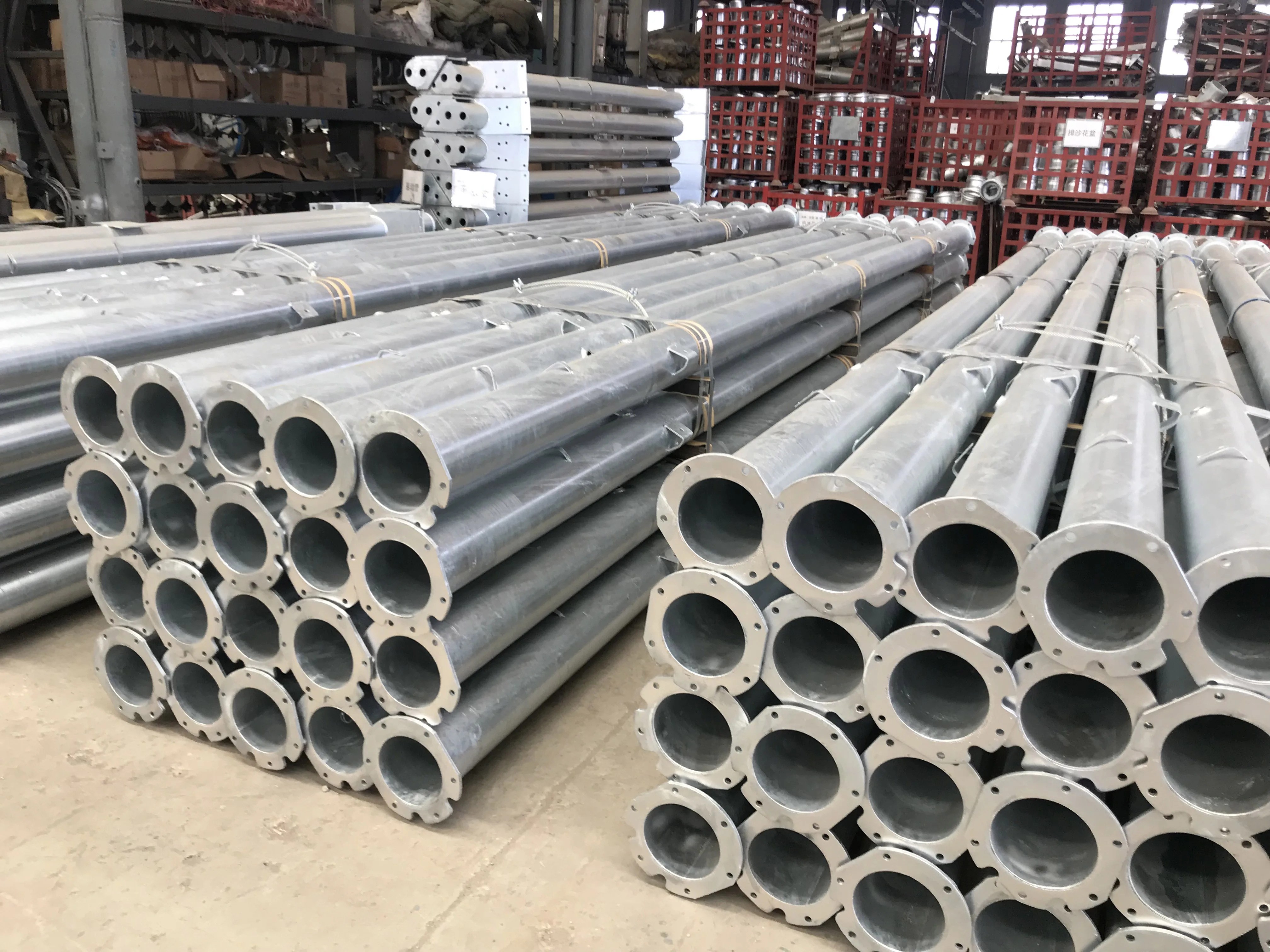

The enforced standard pipes are normally carbon steel, their diameters are 6 5/8 inch(168 mm), which is 10% thicker than the competitor's top quality level.And they are effected the hot-dip galvanized process according to maritime standard.
In addition to 168mm, there are other diameters to choose from, 141mm, 203mm, 254mm. Direct supply from the factory to meet your different needs.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment

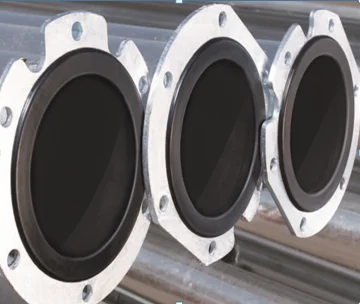

Lined with hose. If your water quality is not good, lined hose is a good choice. With it, it is more resistant to corrosion.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment

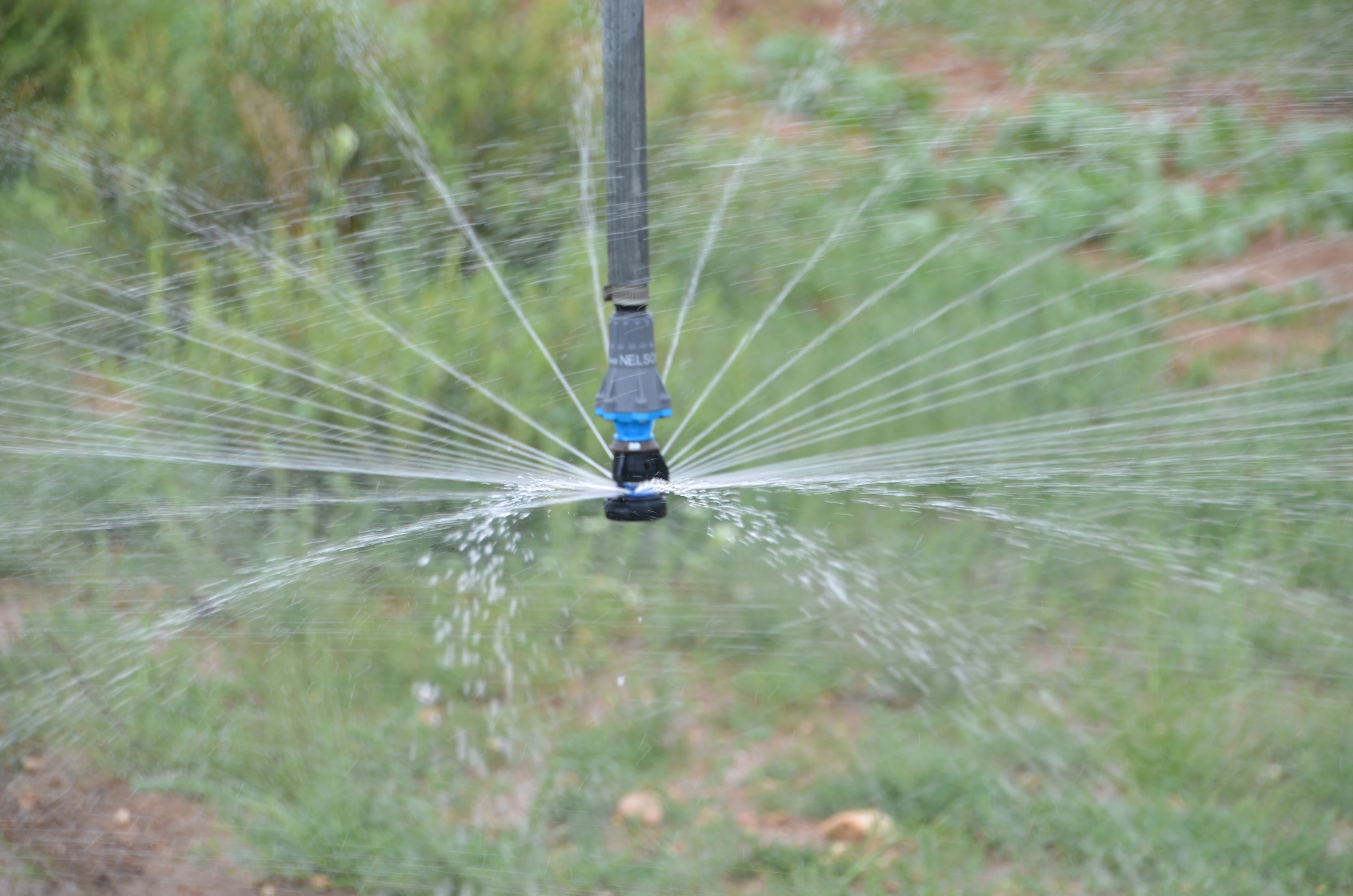

Sprinklers are selected from world-renowned brands, and the irrigation is even more uniform.
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment
1. Work status indication and real-time monitoring
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump if water pressure is too low or if irrigation machine encounters some problem
5. Auto-start of water pump with the start of the machine
New Type Automatic Engines Electromotion Pivot Irrigation Machine/Center Pivot Irrigation Equipment
End spray gun
Reducer
Coupler
Drive unit
Filter
End tower end control box
Product Packaging
Only 40ft Container or 40HQ can load our equipment.
Our equpiments are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
Installation
Company Profile
Office
Factory
FAQ
1. What about the MOQ?
- 1 set (at least 2 spans)
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
- 1 set (at least 2 spans)
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
