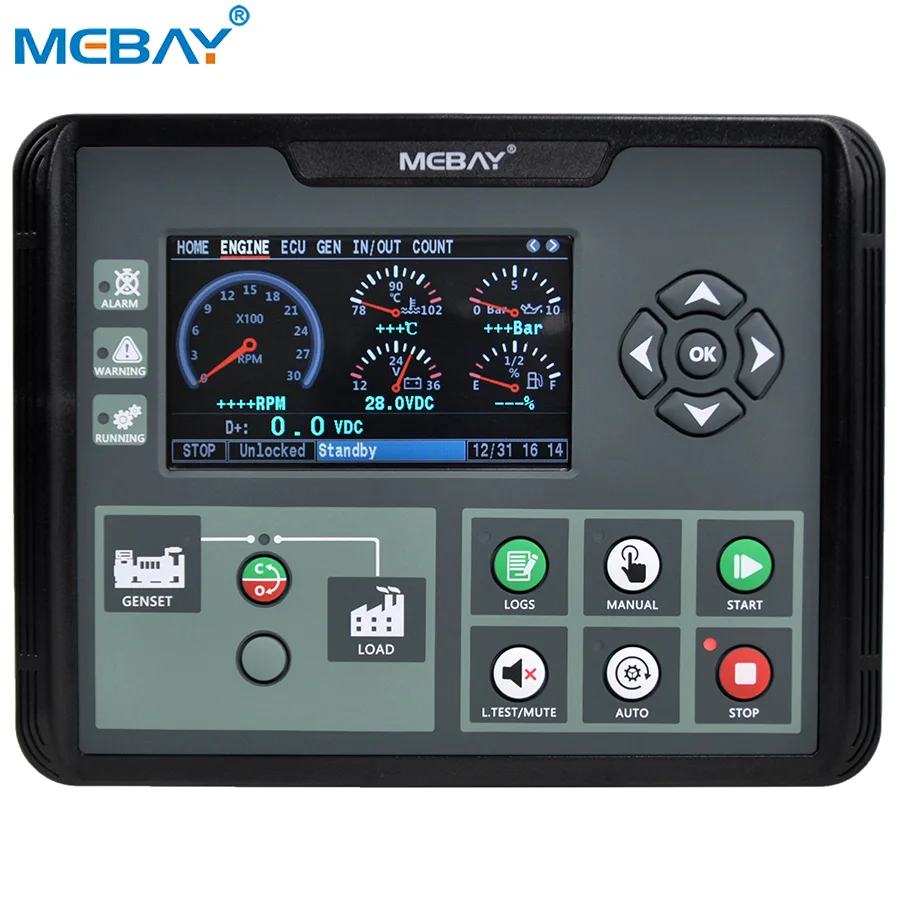

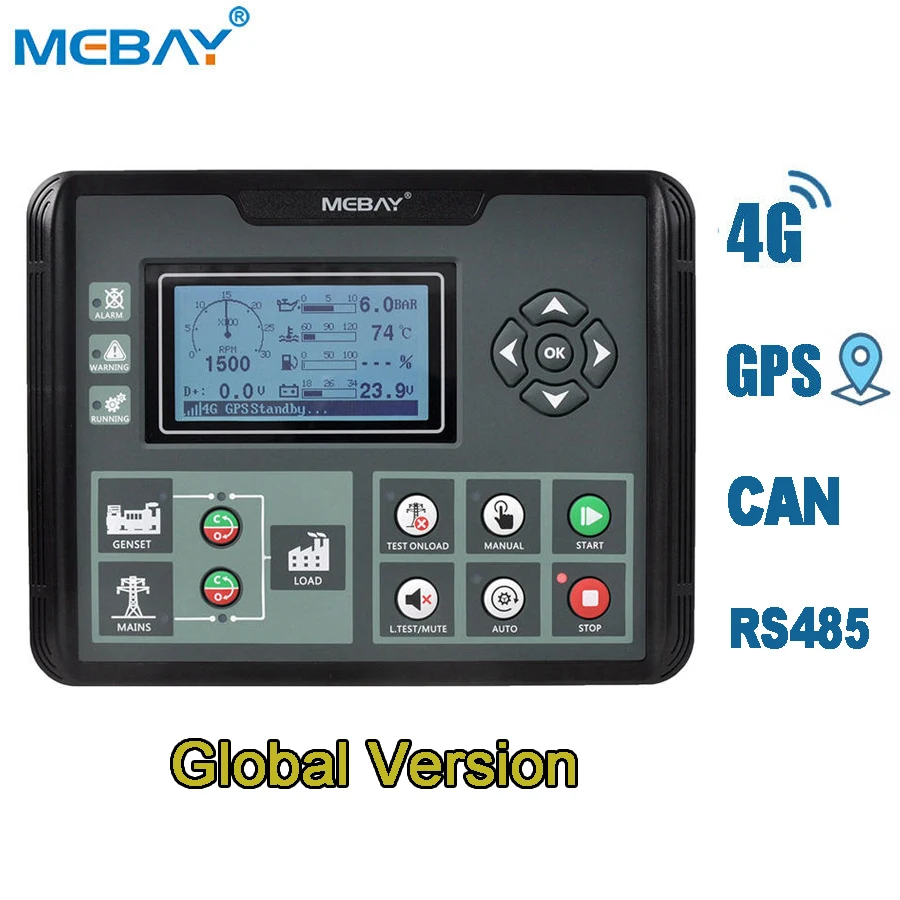

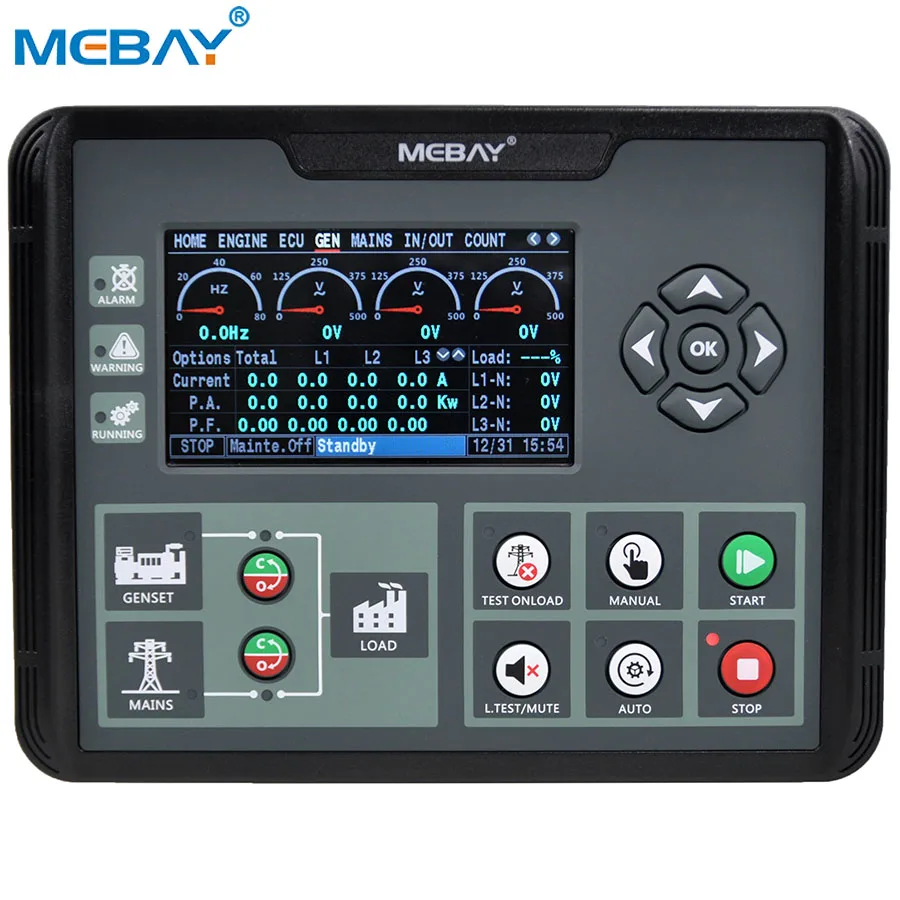

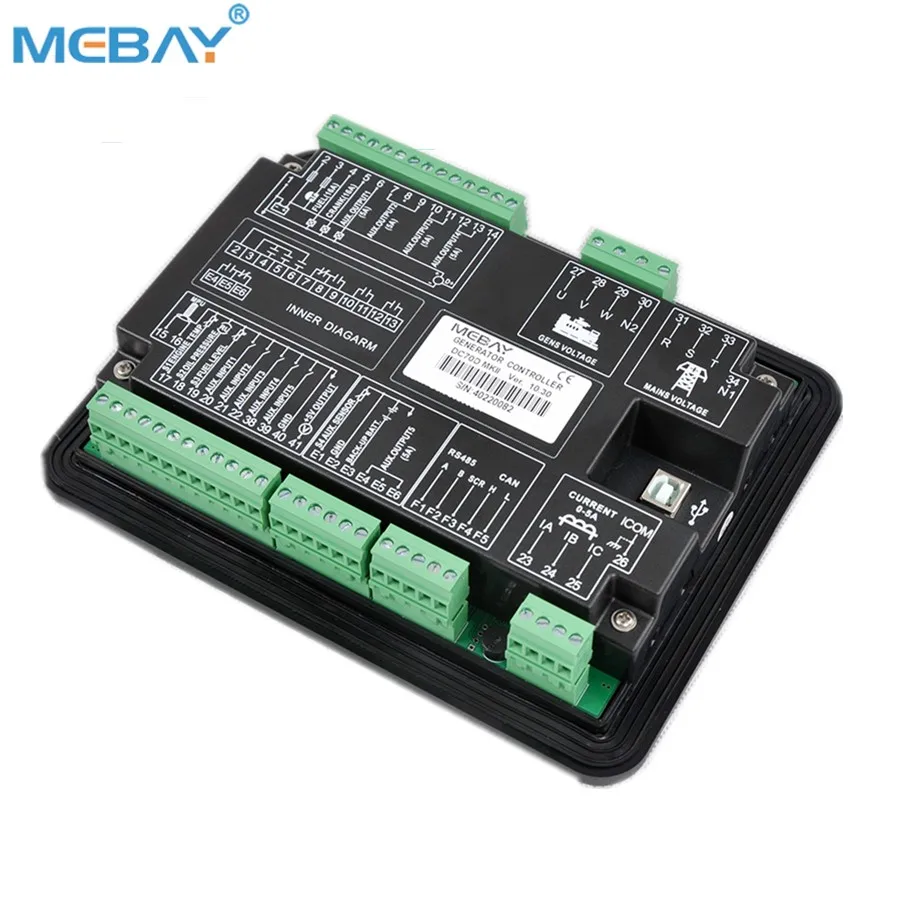

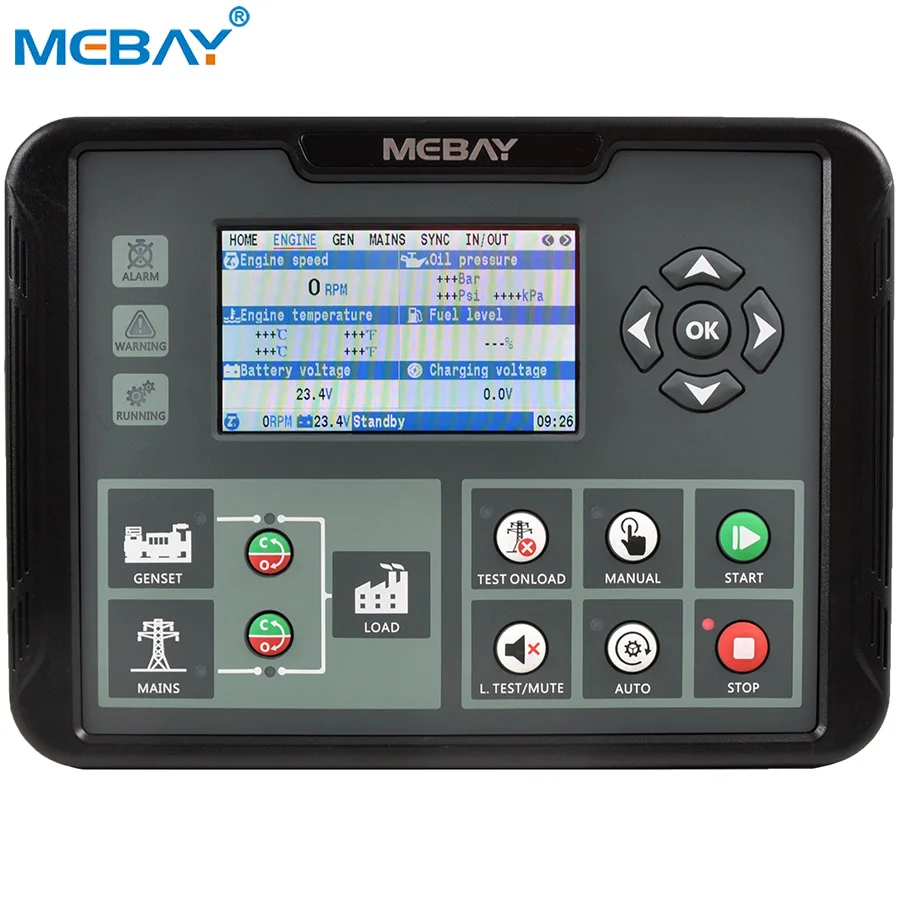

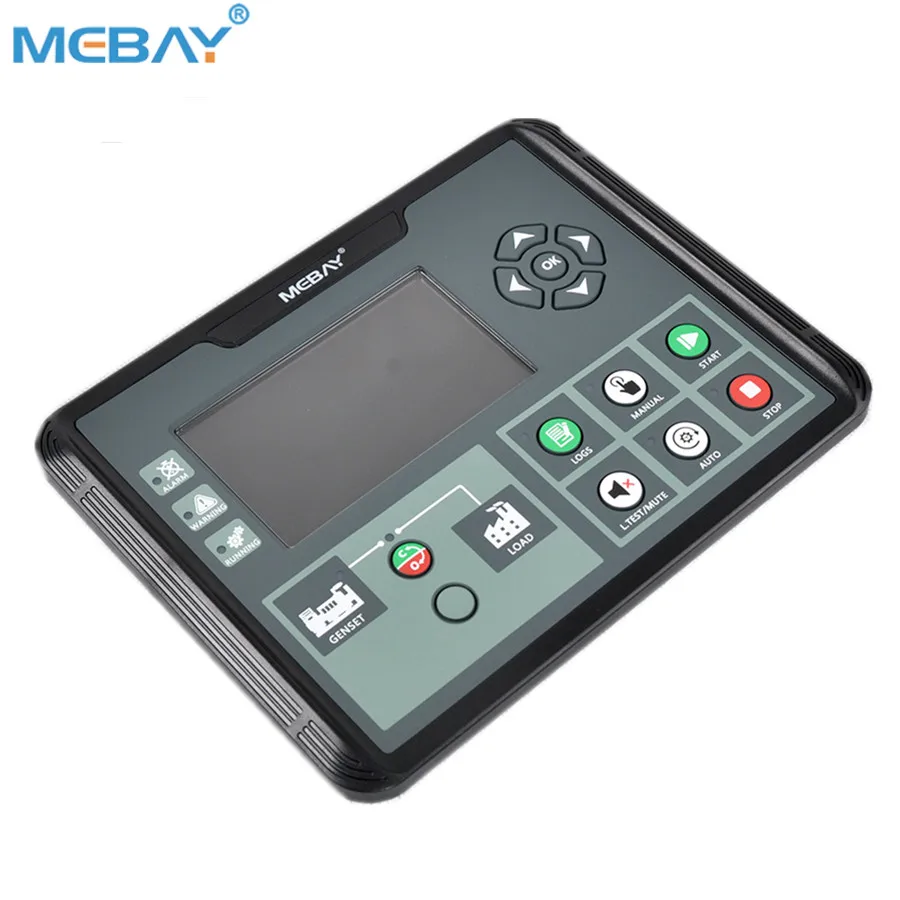

Mebay Automatic Remote Generator Controller DC70D MKII ECU Engine Controller with CAN RS485

Generator controller DC70D MK2,which is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting.

4 models in this series. Please click the following picture to check.

Personalized setting

☑ Brand new UI design is adapted
☑ Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)

Main Features:

☑4.3" LCD Screen

☑CAN port, built-in J19379 protocol

☑Real Time Clock

☑3 class Maintenance countdown

☑Fault Record Function

☑Battery charging control function

☑Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions

☑With 5 switches input, up to 40 functions optional

☑4 sensor simulation input connectors

☑Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)

☑Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.

☑Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.

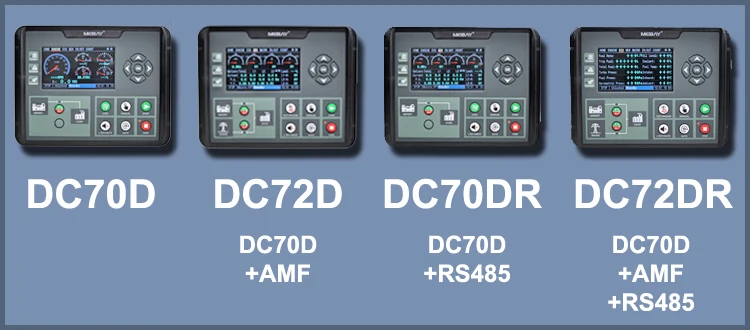

4 Models in DC7XD Series, please click the following pic to check details.

Options	Parameters
Working voltage	DC8V----36VContinuous
Power consumption	Standby：24V：MAX1W
Power consumption		Working：24V：MAX5W
AC Voltage Input	1P2W 30VAC-276VAC(ph-N)
		2P3W 30VAC-276VAC(ph-N)
		3P4W 30VAC-276VAC(ph-N)
Rotate speed sensor Frequency	200-10000Hz
Start Relay Output	16Amp DC+VE Supply voltage
Programmable Relay output 1	5Amp DC+VE Supply voltage
Programmable Relay output 2	5AMP Non-contact-Normal open--Normal close output
Programmable Relay output 3	5AMP Non-contact Normal Open output
Programmable Relay output 4	5AMP Non-contact normal open output
Excitation output	Max 1AMP DC+VE supply voltage
Switch value input	Available if connecting with Battery -
Working condition	-20-65℃
Storage condition	-40-85℃
Protection Level	IP54：when waterproof rubber gasket is added between controller and its panel

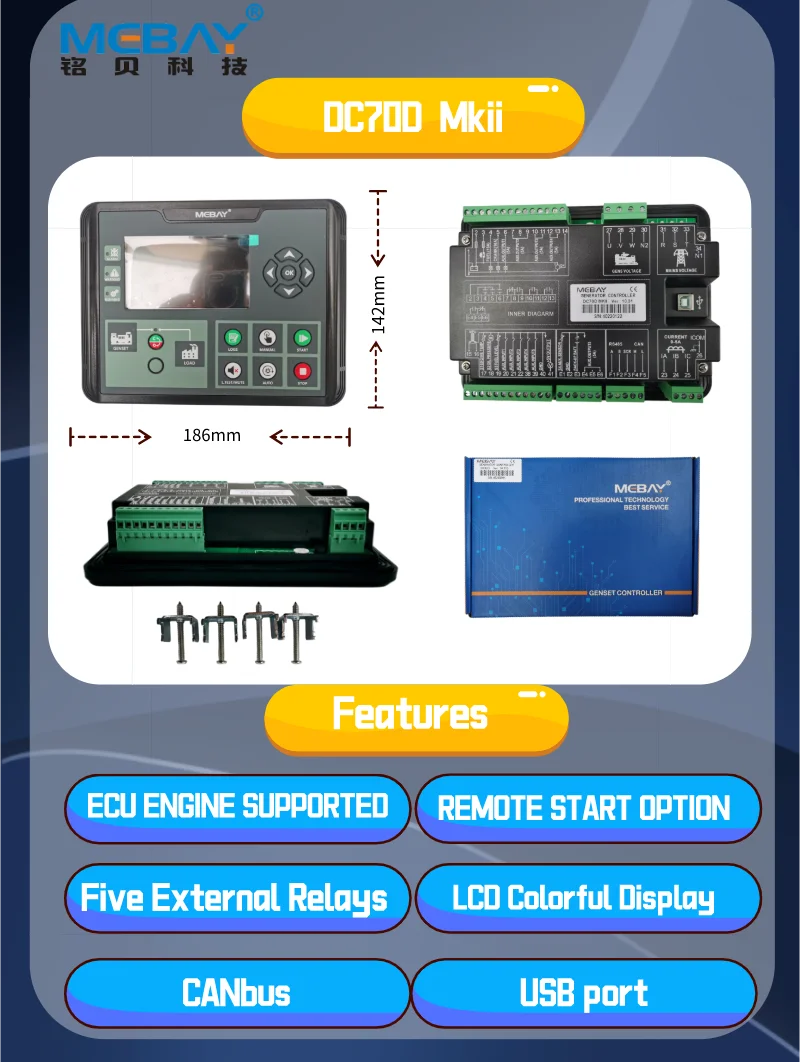

Overall dimension	210mm160mm50mm
Panel cutout	186mm*142mm
Weight	0.9Kg

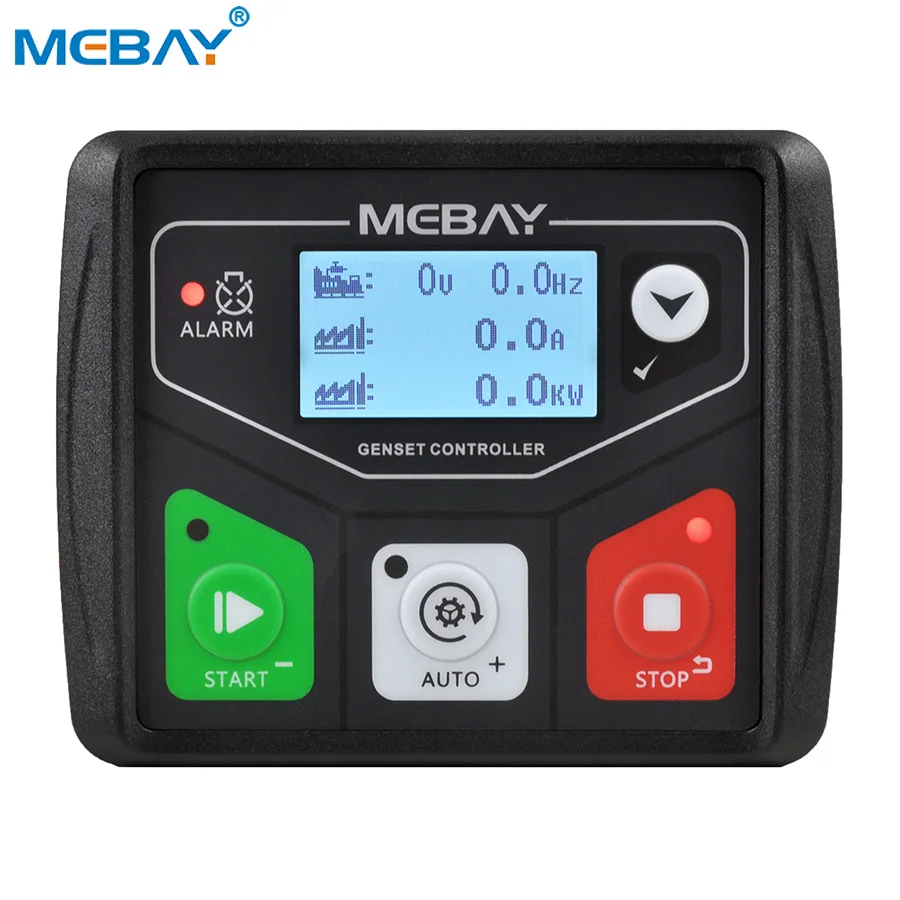

Recommend Products

Mebay Generator Controllers Chart
Manual Start Models

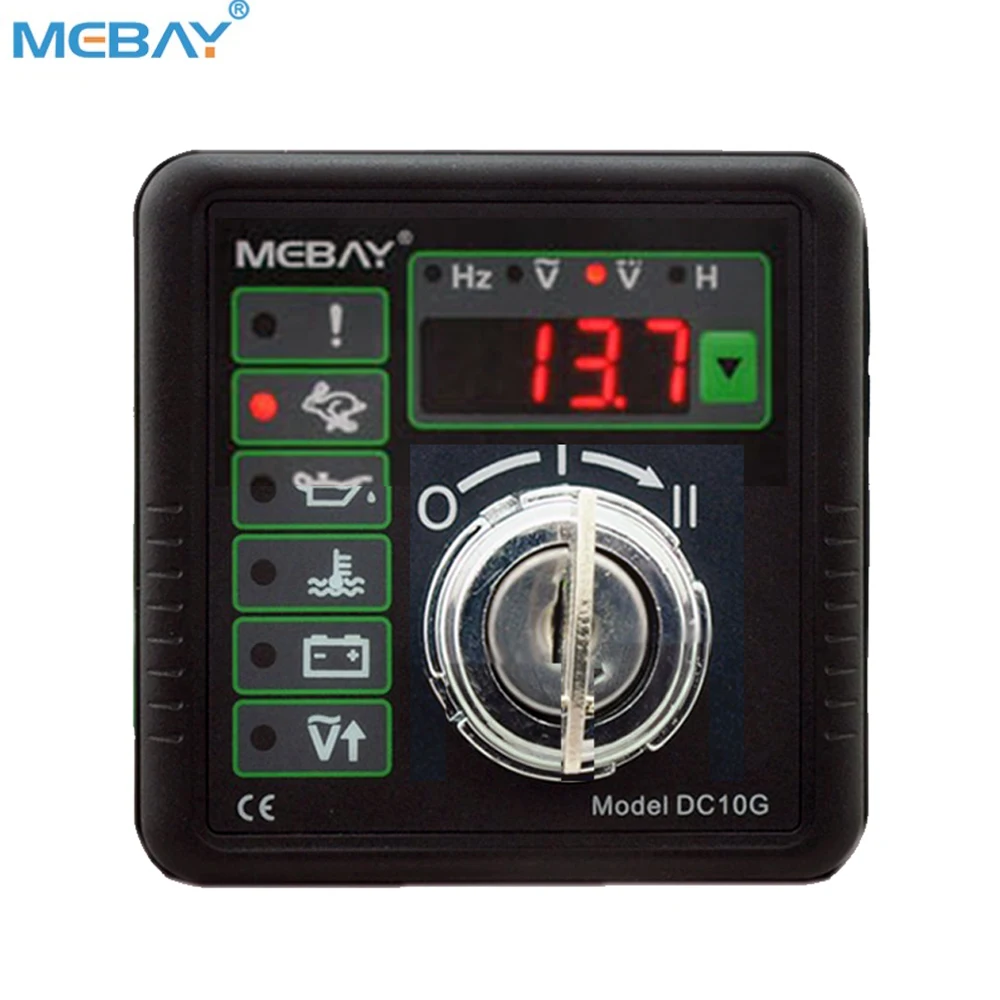

DC10G	DC10K	DC10KE
Auto Start Module-Small Size

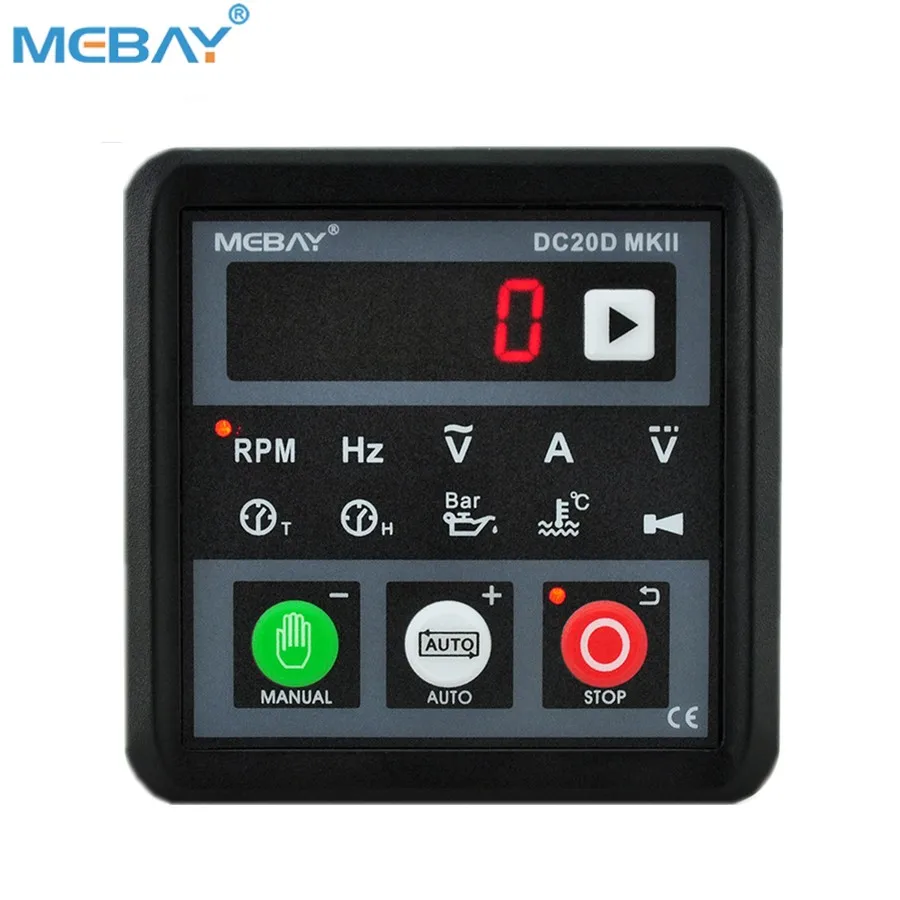

DC20D	DC20D MKII
DC30D	DC30T (0-50mA CT)	DC30C (CANBUS)
Auto Start Module-Bigger Size (RS485/AMF Optional)
DC40D	DC40S	DC40C (CANBUS)
DC50C (CANBUS)	DC60D	DC70D (CANBUS)
DC50D	DC80D	DC90D (CANBUS)
Synchronising Module
DC100D		DC102D (AMF)
4G/GPS Module
DC50CR-G4G (CANBUS)		DC52CR-G4G (CANBUS AMF)

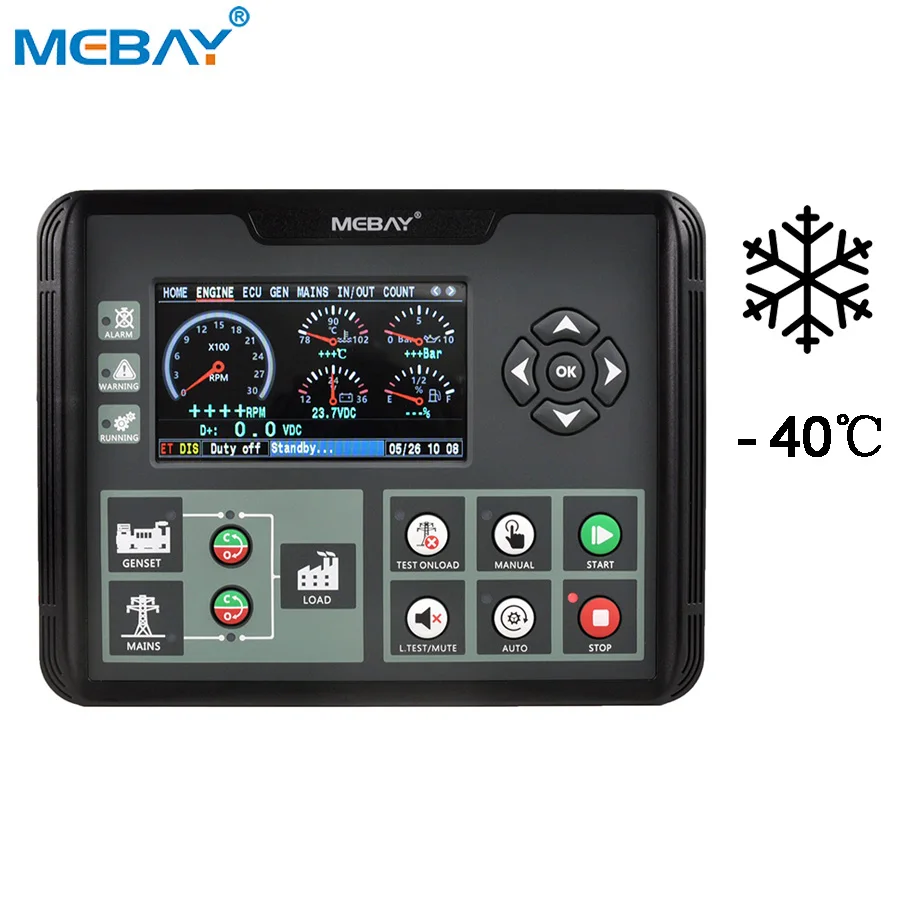

Low Temperature Module (-40 C)
DC42MR (AMF) /DC42MCR (CANBUS AMF)		DC70MR/DC72MR (CANBUS AMF)
Split Type Module
FM7000 (Control Module)	HM500 (Display Module)	HM700 (Display Module)

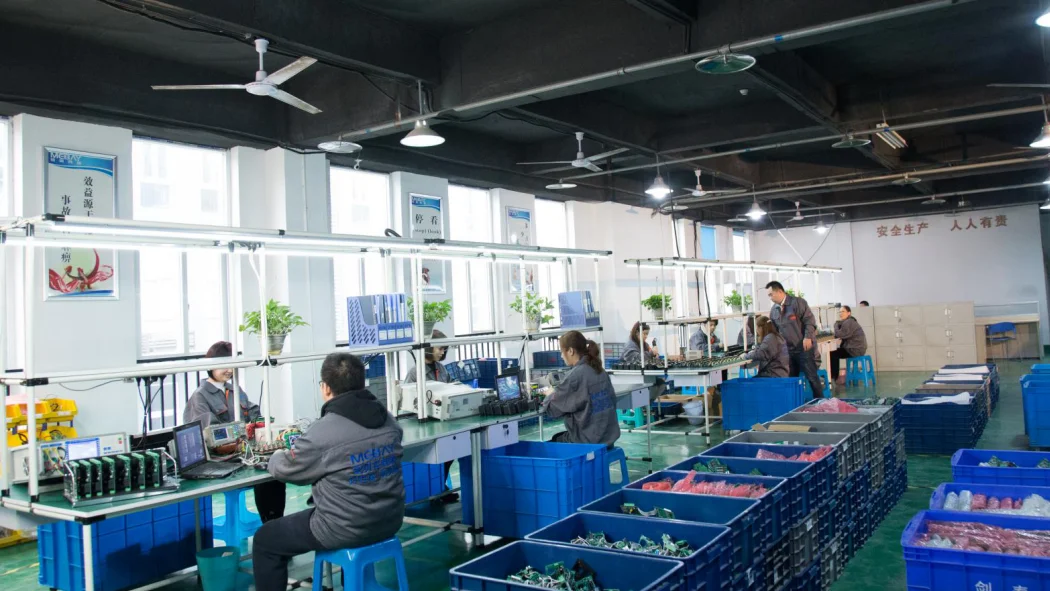

Company Profile
