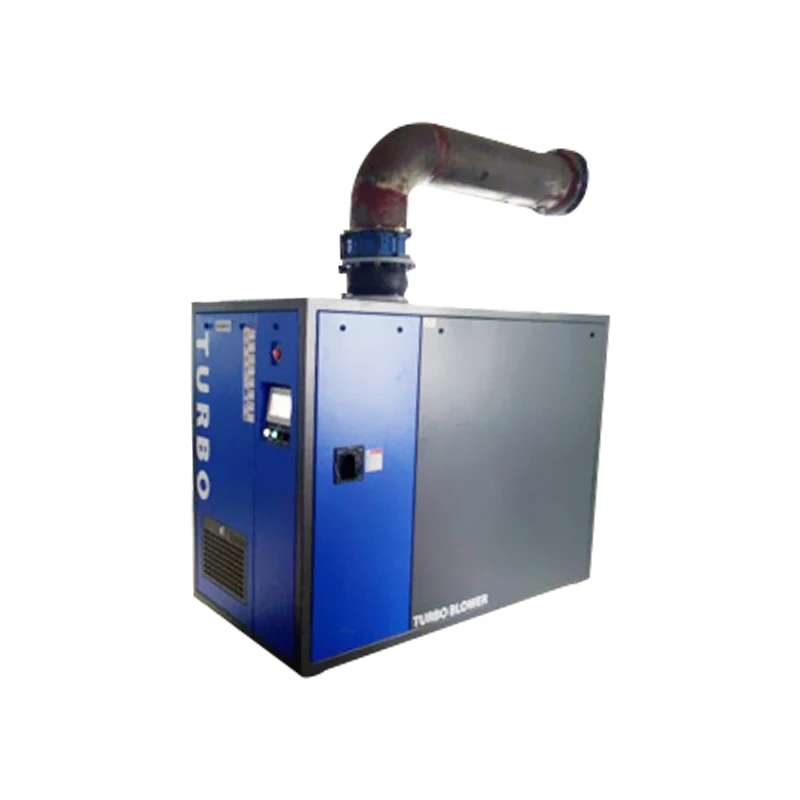

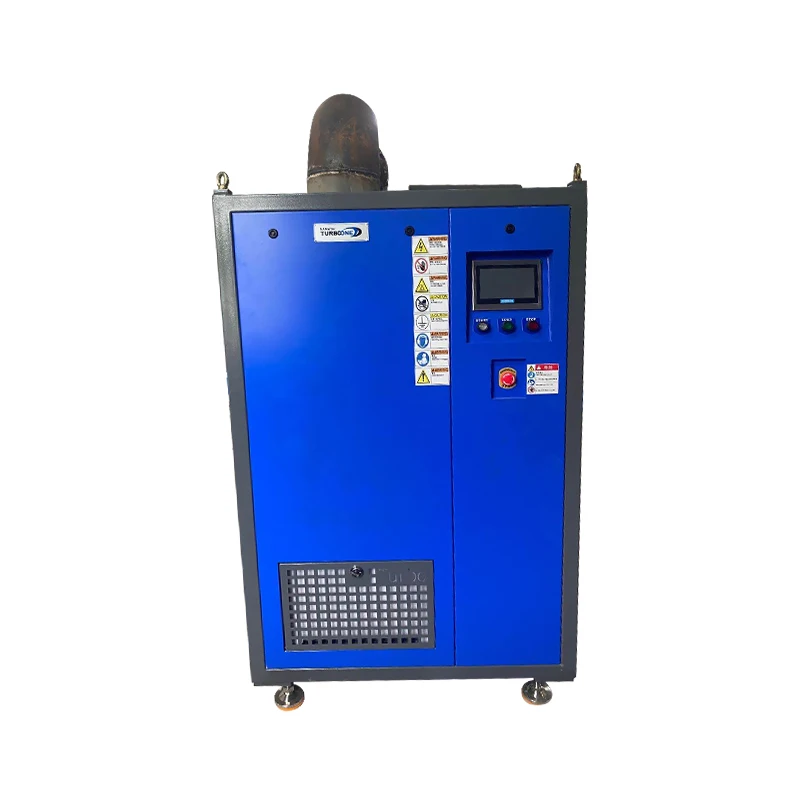

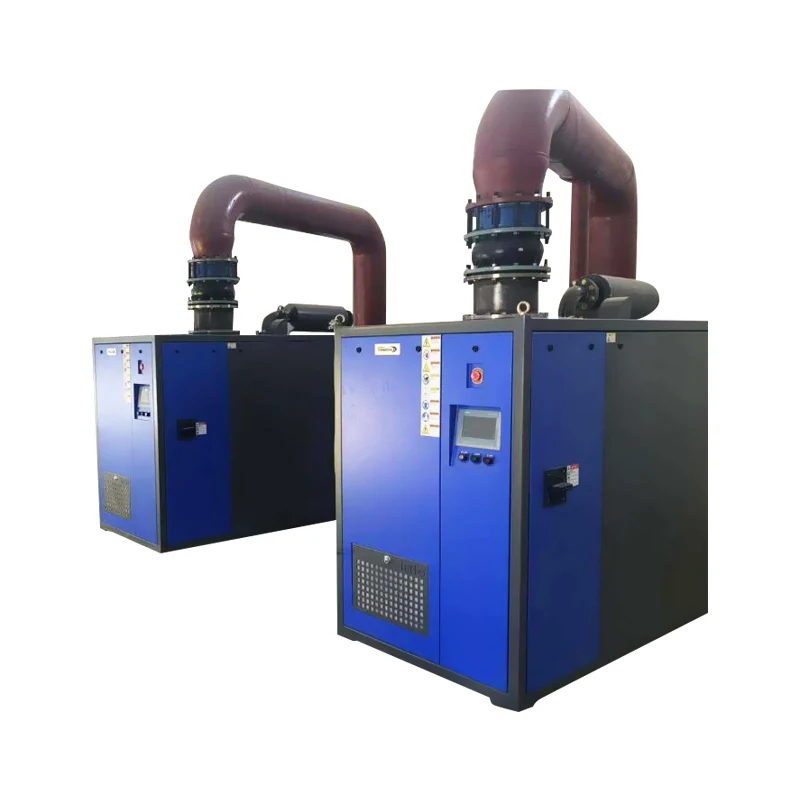

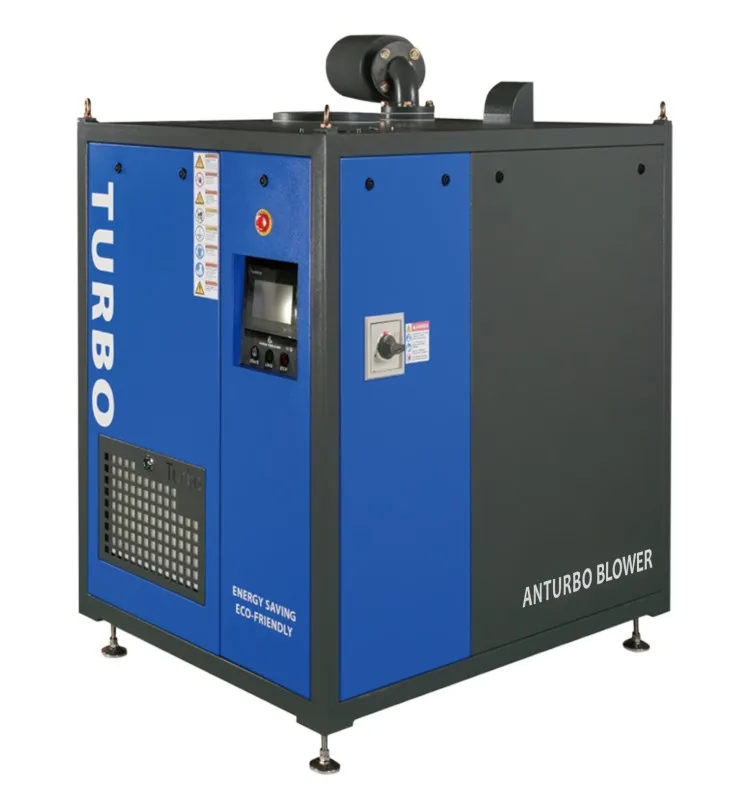

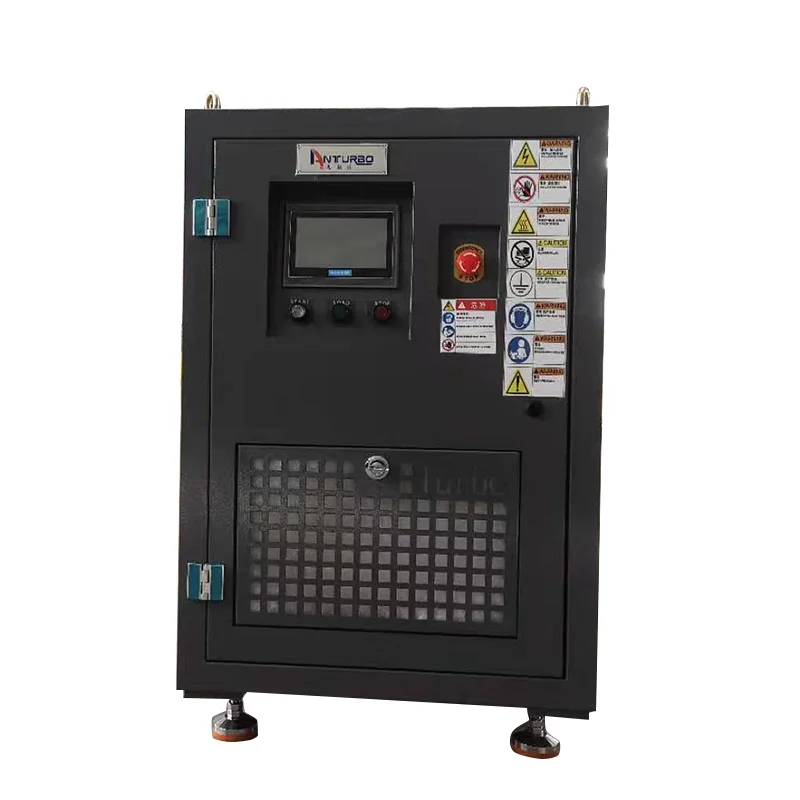

Multifunction Iron Low Voice High Pressure Blower Fan Centrifugal Fan
- Category: >>>
- Supplier: Shanghai Anturbo Mechanical Technology Co. Ltd
Share on (1600242519619):
Product Overview
Description
Products Description

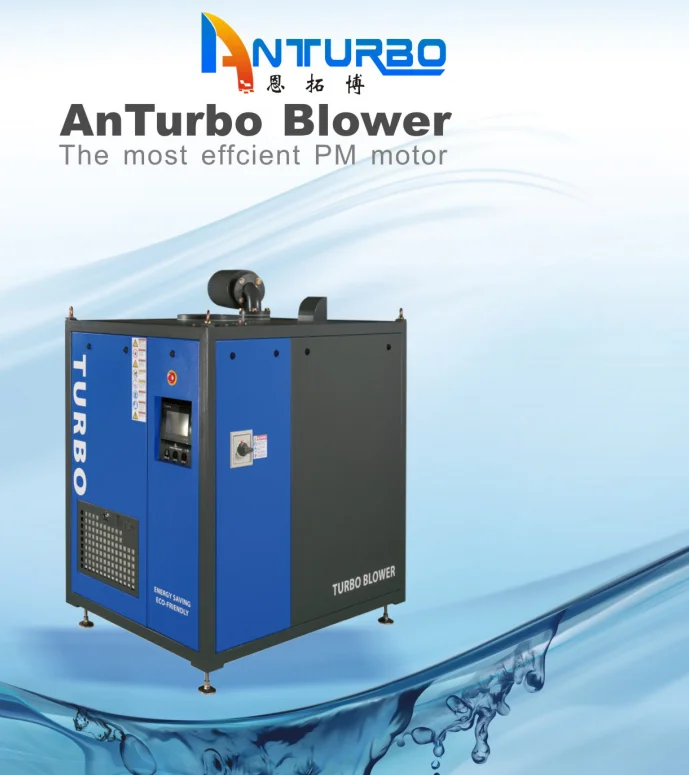

Anturbo air suspension centrifugal turbo blower is a kind of high-tech green energy saving and environmental friendly products. We adopt air foil bearing, high speed permanent magnet synchronous motor, ternary flow impeller, frequency converter speed regulation, intelligent monitoring and control and other core technologies. Due to its no vibration, no friction and no lubricating oil, the transmission loss is reduced. The ternary flow impeller adopts high-strength heat treatment of aluminum/titanium alloy AL7075, which improves accuracy and durability through 5-axis machining. The air suspension centrifugal turbo blower realizes the intelligent control of frequency conversion, which can realize the local and remote control. We now have different models from TB10、TB15、TB20、TB25、TB30、TB50 to TB75、TB100、TB120、TB150、TB200、TB250、TB300、TB400、TB600, the air flow varies from 7m³/min to 440m³/min, the pressure ranges from 30kPa to 200kPa, to meet the needs of different users.
Compared with the traditional roots blower, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels. Widely used in sewage treatment, cement, paper, textile, aquaculture, steel, food, brewing, petrochemical, thermal power and other industries.
Compared with the traditional roots blower, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels. Widely used in sewage treatment, cement, paper, textile, aquaculture, steel, food, brewing, petrochemical, thermal power and other industries.
Product Parameters
Model | TB120-0.6 |
Colour | blue,grey |
Key Words | air suspension centrifugal blower |
Motor | permanent magnet motor |
Application Occasions | municipal sewage treatment, paper making industry, chemical industry, cement and other industries |
Certification | CE ISO |
Types Of | industrial ventilation |
Noise | low |
Weight | 600~1500kg |
difference | Roots blower | Multistage centrifugal blowers | Air suspension centrifugal turbo blower |
picture | |||
Principle | capacity type | Centrifugal type | Centrifugal type |
Driving Method | V-belt | overdrive gear | Direct Attach |
outlet pressure | 0.6bar | 0.6bar | 0.6bar |
Air flow | 70m³/min | 70m³/min | 70m³/min |
power | 102kw | 90kw | 75kw |
noise（@1m) | 95~110dB | 85dB | 80dB below |
vibration | max | less | none |
lubricating oil | need | need | No need |
Service life | 10years | 5~15years | semi-permanent |
Advantage
Economical efficiency
Energy consumption can be saved by 20%~50% Procurement costs can be recovered within two and a half years Simple and convenient
maintenance, reasonable maintenance cost Air filter cotton quick-wear part
Environmental-friendly performance
100% oil-free system Low vibration, the noise is less than 80dB The operating environment is more peaceful
Convenience
Optimized motor speed control, with lower energy consumption to achieve ideal gas volume Various control modes and communication
modes Provide a full range of management solutions
Features
First of all, the air suspension blower adopts high speed permanent magnet motor air suspension bearing. The running speed of the blower can reach more than 40000 RPM, so the mechanical efficiency is high. Compared with the traditional fan, the energy saving rate can reach 35-45 percent.
Secondly, the air suspension blower adopts three dimensional flow impeller, the vortex shell adopts aviation aluminum alloy
material, and the air bearing is directly connected, with no mechanical friction, and the noise is only 75 dB to 80 dB (1 meter)
without the need for sound insulation cover.
material, and the air bearing is directly connected, with no mechanical friction, and the noise is only 75 dB to 80 dB (1 meter)
without the need for sound insulation cover.
Air suspension blower has the advantages of simple structure, small volume, space saving, easy to move and install, can be
operated remotely, monitoring, without going to the fan site, you can monitor the motor speed, air pressure, air volume, power,
temperature, filter dust and so on.
operated remotely, monitoring, without going to the fan site, you can monitor the motor speed, air pressure, air volume, power,
temperature, filter dust and so on.

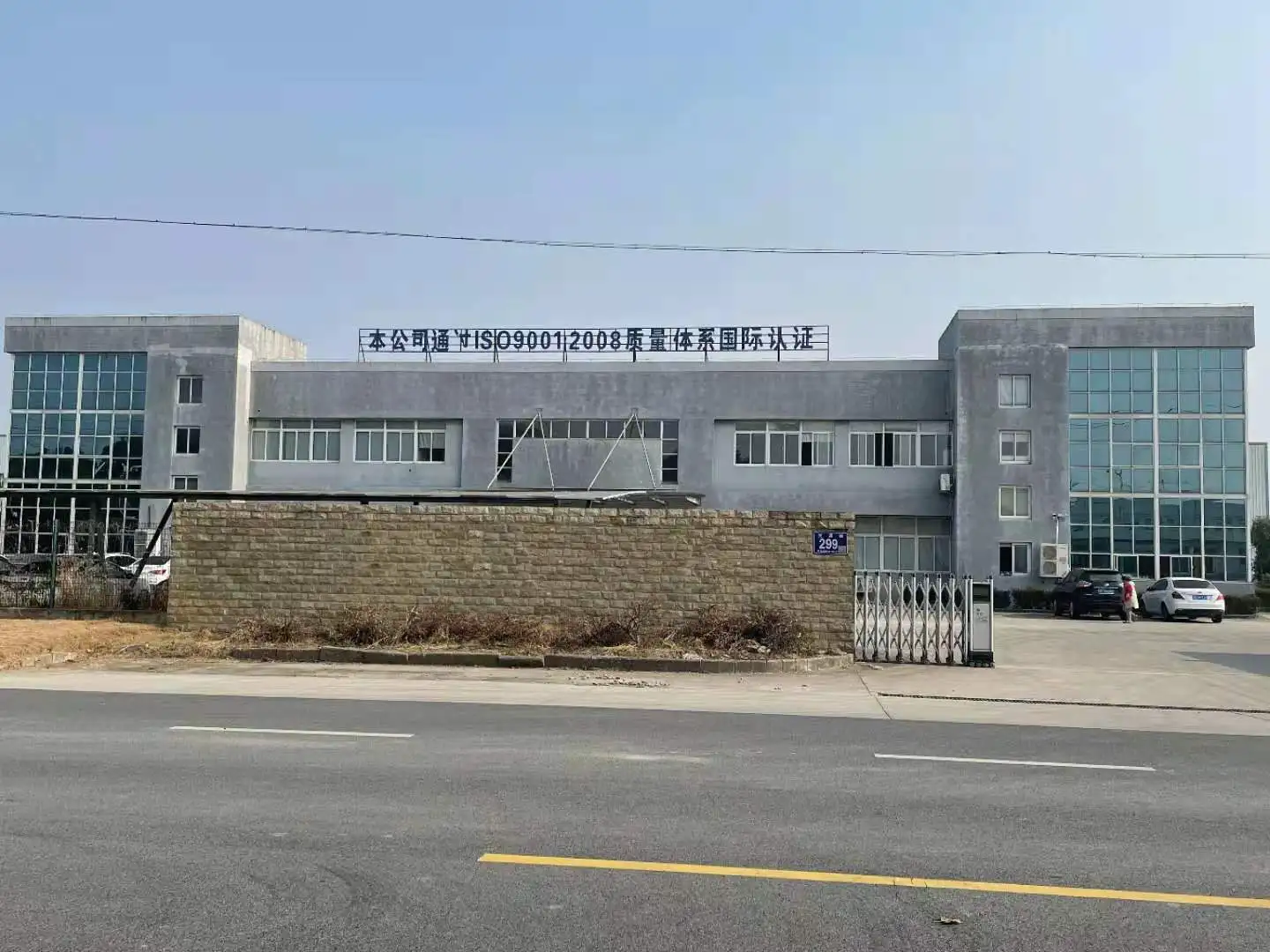

Company Introduction
Shanghai Anturbo Machinery Technology Co., Ltd., headquartered in Gwangju, Korea, is a professional manufacturer of air suspension centrifugal blower integrating research and development, production and sales. The equipments are exported to dozens of countries around togetherthe world, the company has more than 50 professional employees to provide customers around the world with rapid, accurate service.
The company's main products are TB series air suspension blowers and supporting filters. Compared with traditional blowers, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels.

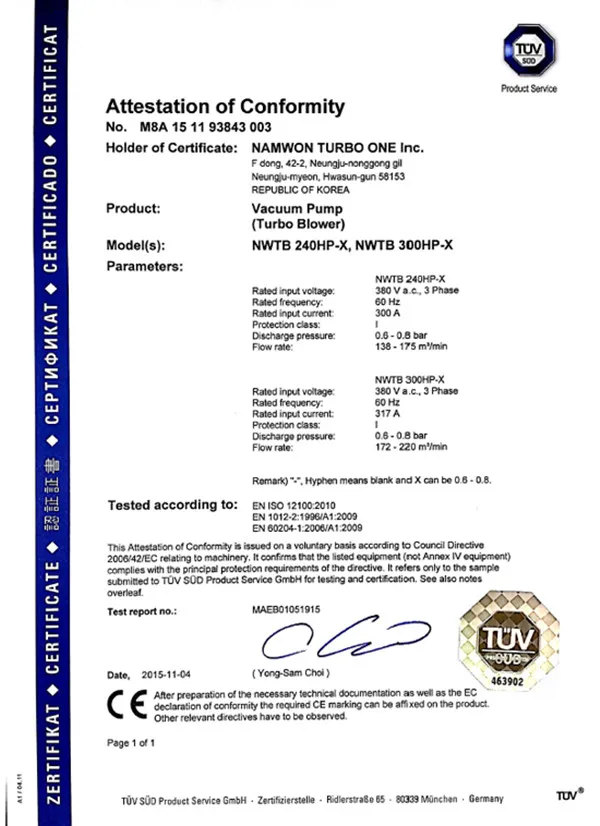

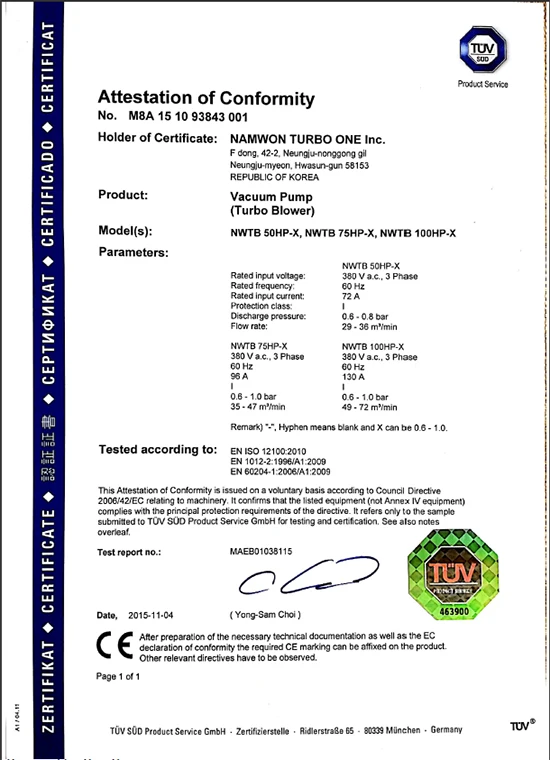

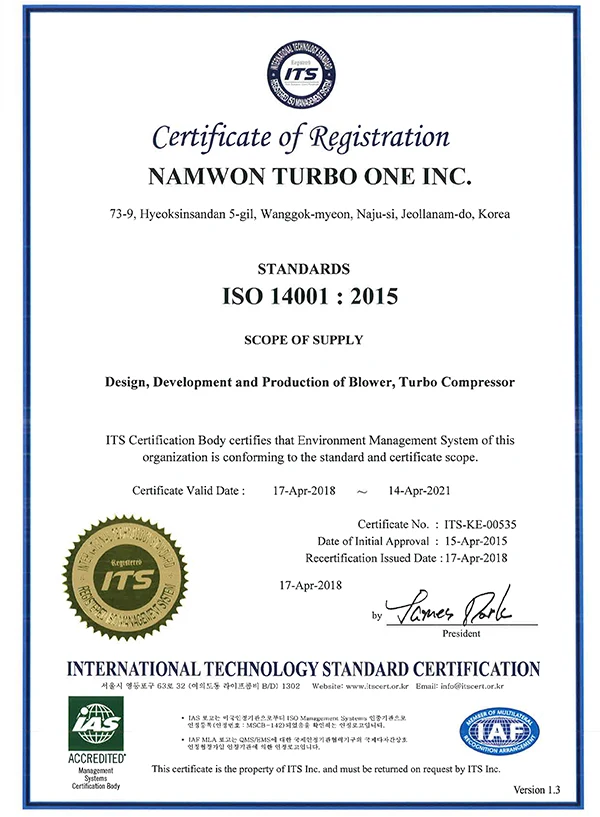

Certificate

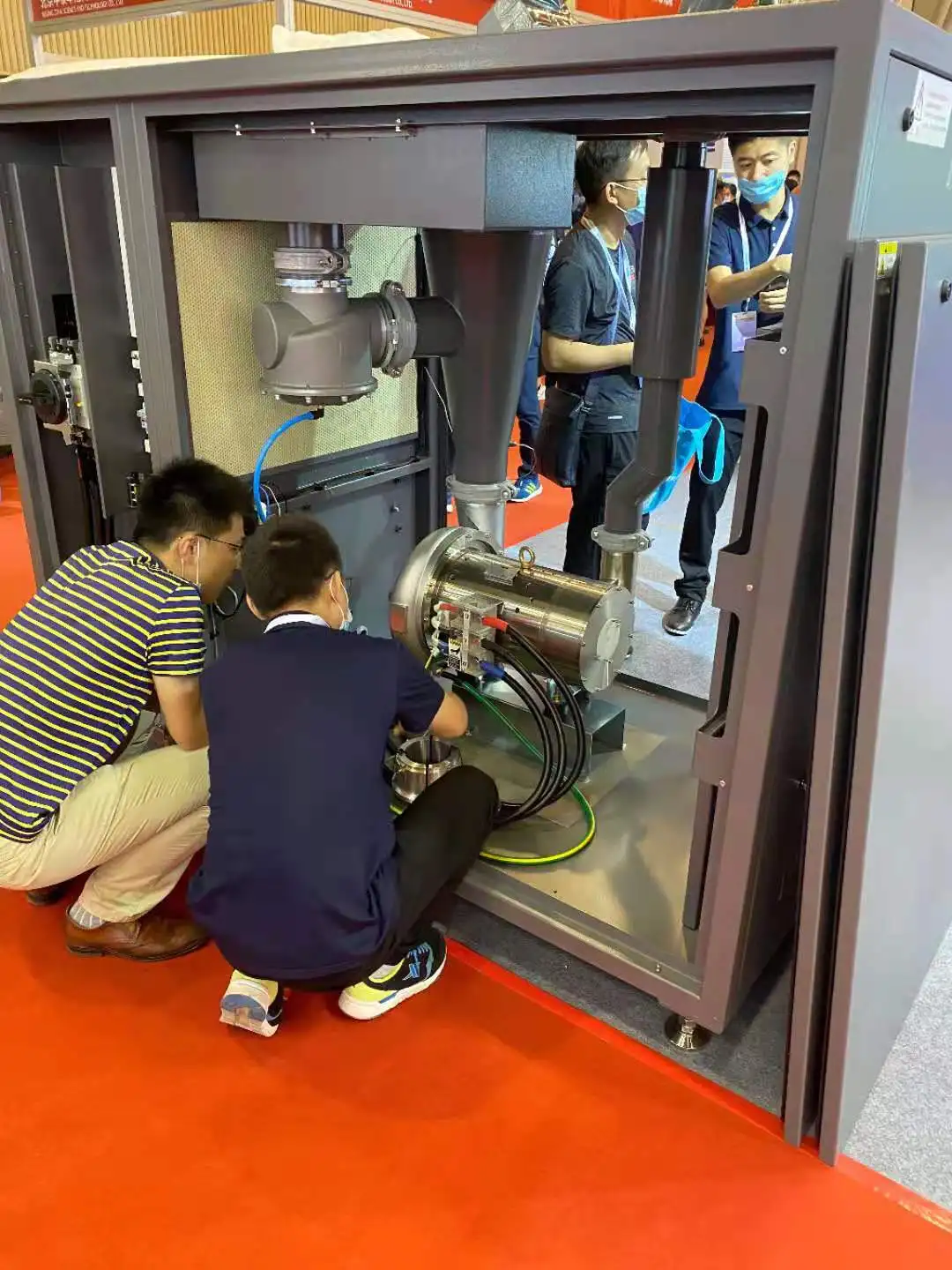

Exhibition
Why Choose Us
Our core values are honesty and altruism, sharing and win-win, benefiting the industry and the society.
Our company possesses the first-class expert team , strong R&D strength to support the development and innovation of the product, and the global purchasing service. We also have the best technology development and sales team in the region.
* MORE PROFESSIONAL PRODUCTION CAPACITY
Professional blower production, research and development and service supplier, covering an area of 20,000 square meters, with advanced equipment such as fully automatic plasma cutting machine, CNC boring machine, Roots blower processing center, CNC lathe, etc.
* HIGHER COST PERFORMANCE
The company purchases raw materials in batches, produces large-scale production, and deals with zero links in the middle; continuously develops new products to meet the production needs of various industries in response to new needs
* CUSTOMIZED SOLUTIONS
The technical team has a wealth of project experience, and can customize product energy-saving solutions for customers through on-site inspections, comprehensive data collection, comprehensive evaluation and diagnosis, and recommend reasonable models.
* PROVIDE TECHNICAL SUPPORT
We have foreign installation and debugging experience, and technicians can come to service; if customers want to save costs, we can also guide the installation online and remotely connect to assist in the debugging
Our company possesses the first-class expert team , strong R&D strength to support the development and innovation of the product, and the global purchasing service. We also have the best technology development and sales team in the region.
* MORE PROFESSIONAL PRODUCTION CAPACITY
Professional blower production, research and development and service supplier, covering an area of 20,000 square meters, with advanced equipment such as fully automatic plasma cutting machine, CNC boring machine, Roots blower processing center, CNC lathe, etc.
* HIGHER COST PERFORMANCE
The company purchases raw materials in batches, produces large-scale production, and deals with zero links in the middle; continuously develops new products to meet the production needs of various industries in response to new needs
* CUSTOMIZED SOLUTIONS
The technical team has a wealth of project experience, and can customize product energy-saving solutions for customers through on-site inspections, comprehensive data collection, comprehensive evaluation and diagnosis, and recommend reasonable models.
* PROVIDE TECHNICAL SUPPORT
We have foreign installation and debugging experience, and technicians can come to service; if customers want to save costs, we can also guide the installation online and remotely connect to assist in the debugging
