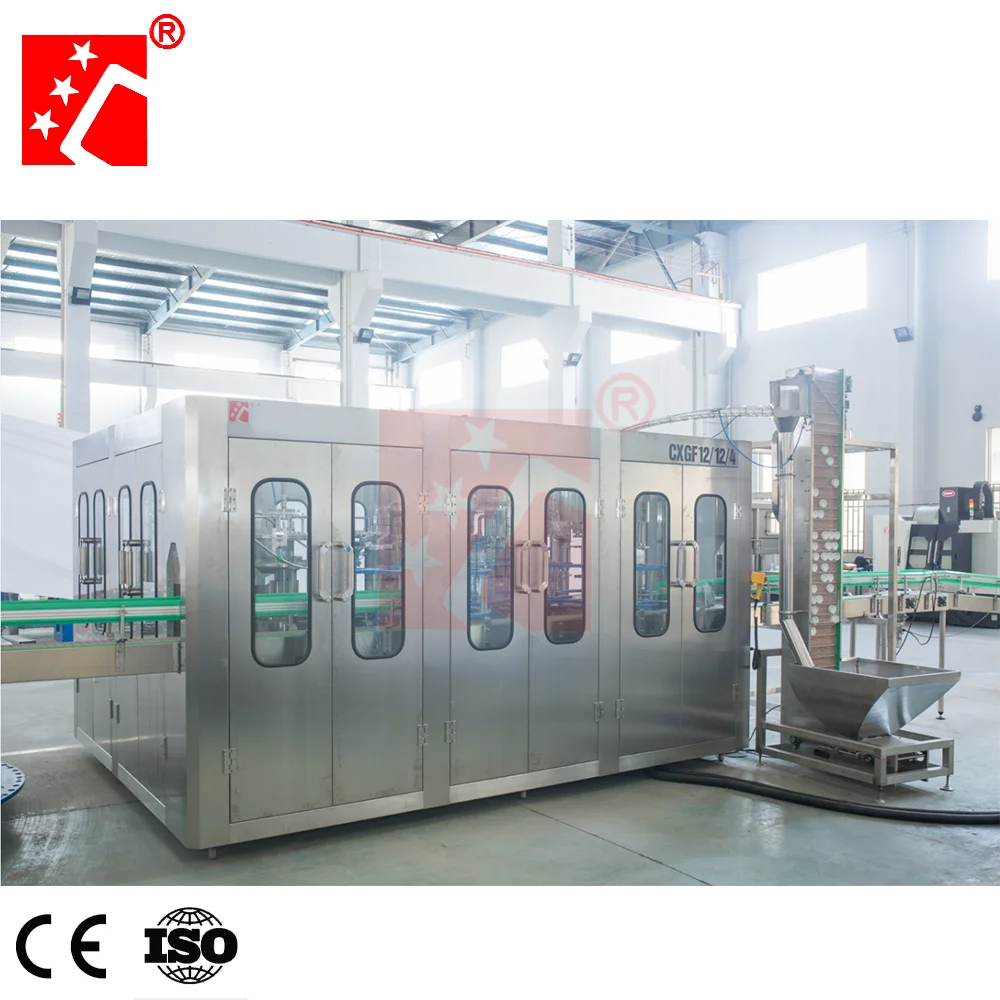

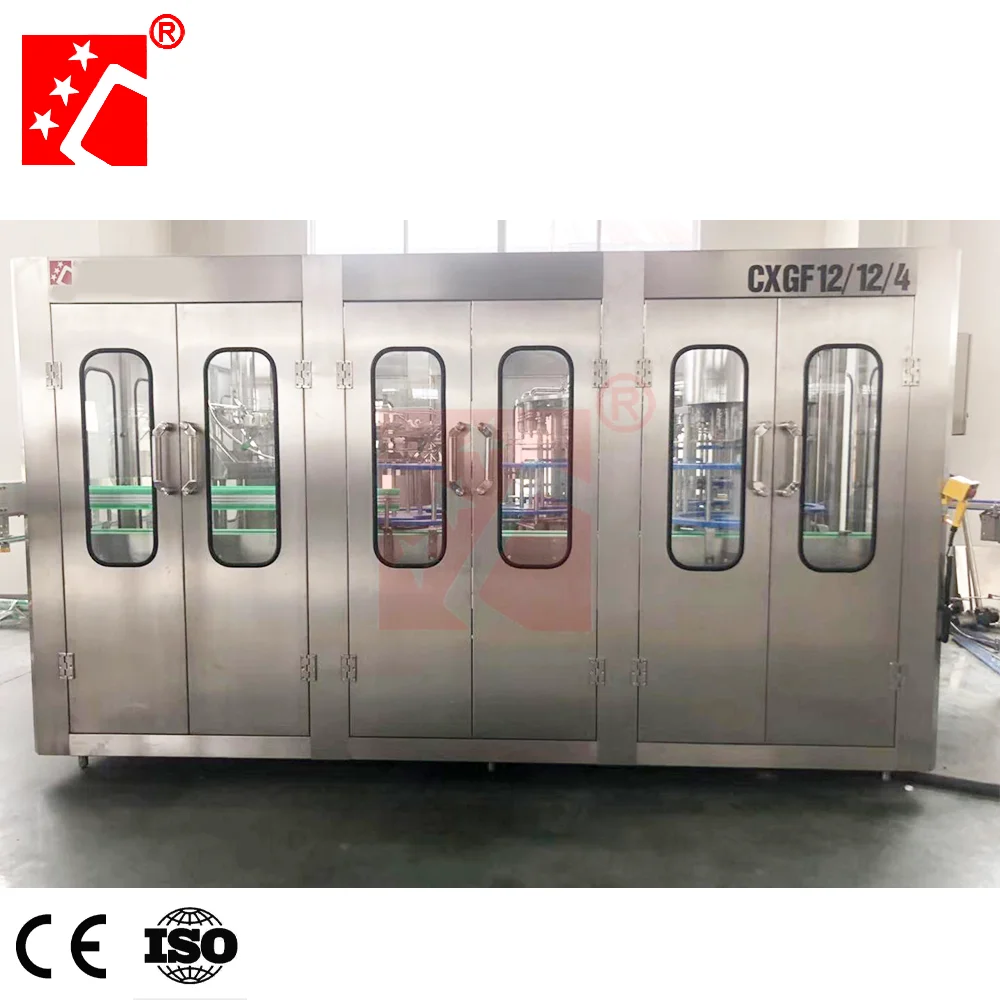

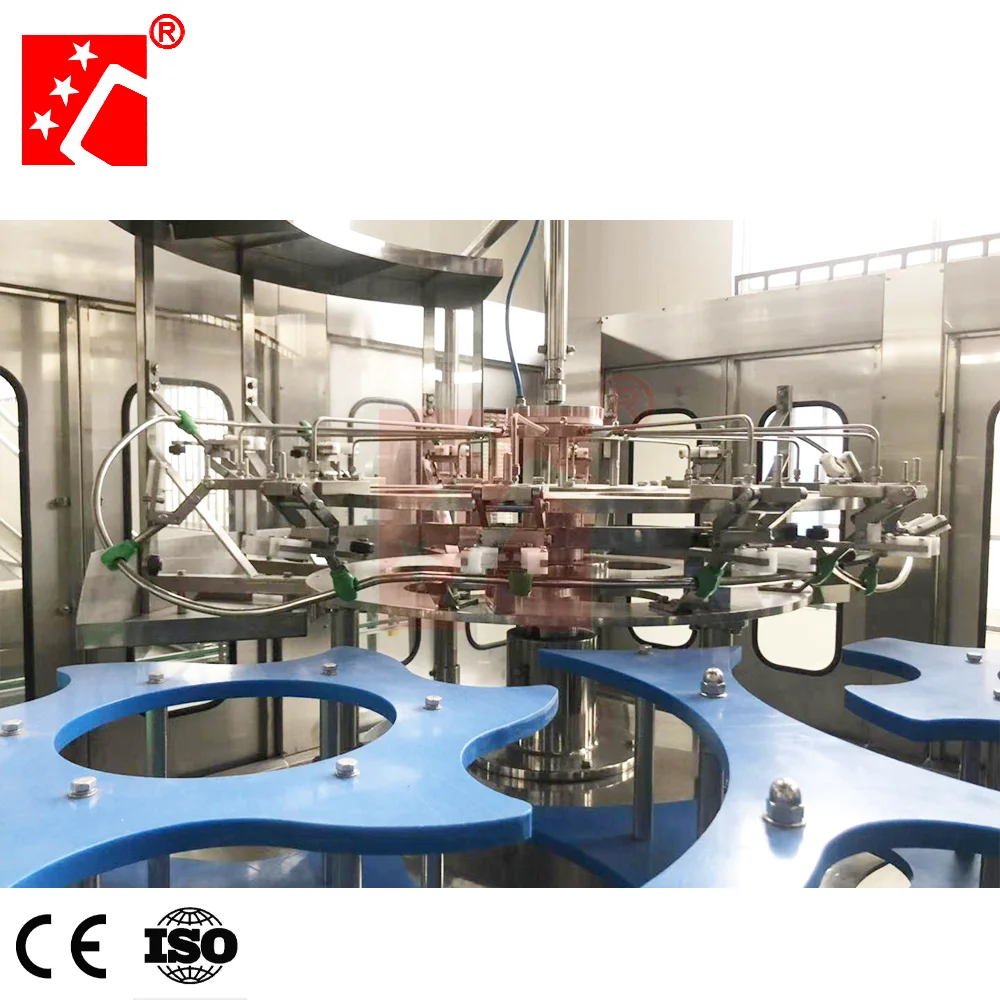

Competitive Price 3 in 1 flavor water filling machine with CE
- Category: >>>
- Supplier: Suzhou Yaoshi Machinery Co. Ltd.
Share on (1600242547852):
Product Overview
Description
YAOSHI Machine.
SUZHOU YAOSHI MACHINERY CO., LTD is a professional manufacturer of beverage machinery in China.It is located in Zhangjiagang City which is very closed to Shanghai with beautiful scenery and convenient transportation.With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature technique and first-class quality. Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also oil filling machine, piston filling machine and 5 Gallon bottle filling production line, and all other auxiliary equipment.
Products Description
YAOSHI Water Filling Machine.
1) Compact structure, good shape, easy operation, high automation degree and low labor intensity.
2) Adopts the technology of direct contact air conveyor and bottle inlet poking wheel, instead of " Feeding screw" And " Conveyor"; Thus making it is easy to change the bottle shape.
3) Adopts bottle neck clamping technology which removes the need for changing the height of the bottle; Just change the parts which are relevant to the bottle diameter, such as the arc guide plate and poking wheel.
4) Special stainless steel bottle gripper of rinser does not touch the bottle screw part, thereby avoiding secondary
contamination.
5) All parts directly contacting the media adopt food level stainless steel, without dead angles, so they can be cleaned easily.
6) Diaphragm adjustment valve controls the inlet flow rate of liquids, and can keep the slight turbulence of liquids level in the solution barrel and ensure accuracy in filling.
7) Automatically closes feeding valve if there is no bottle on the machine, thus avoiding the loss of aqueous feed.
8) Fills automatically with high speed and accurate control of liquid level.
2) Adopts the technology of direct contact air conveyor and bottle inlet poking wheel, instead of " Feeding screw" And " Conveyor"; Thus making it is easy to change the bottle shape.
3) Adopts bottle neck clamping technology which removes the need for changing the height of the bottle; Just change the parts which are relevant to the bottle diameter, such as the arc guide plate and poking wheel.
4) Special stainless steel bottle gripper of rinser does not touch the bottle screw part, thereby avoiding secondary
contamination.
5) All parts directly contacting the media adopt food level stainless steel, without dead angles, so they can be cleaned easily.
6) Diaphragm adjustment valve controls the inlet flow rate of liquids, and can keep the slight turbulence of liquids level in the solution barrel and ensure accuracy in filling.
7) Automatically closes feeding valve if there is no bottle on the machine, thus avoiding the loss of aqueous feed.
8) Fills automatically with high speed and accurate control of liquid level.
Final Products
Equipment Type | Automatic |
Bottle Type | PET round or square bottle Volume 200 - 2000ml Bottle diameter 50-115mm Bottle height 160-320mm |
Output | up to 32,000 bph |
Your product | mineral water/pure water/non-gas wine drink and so on. |
Details Images

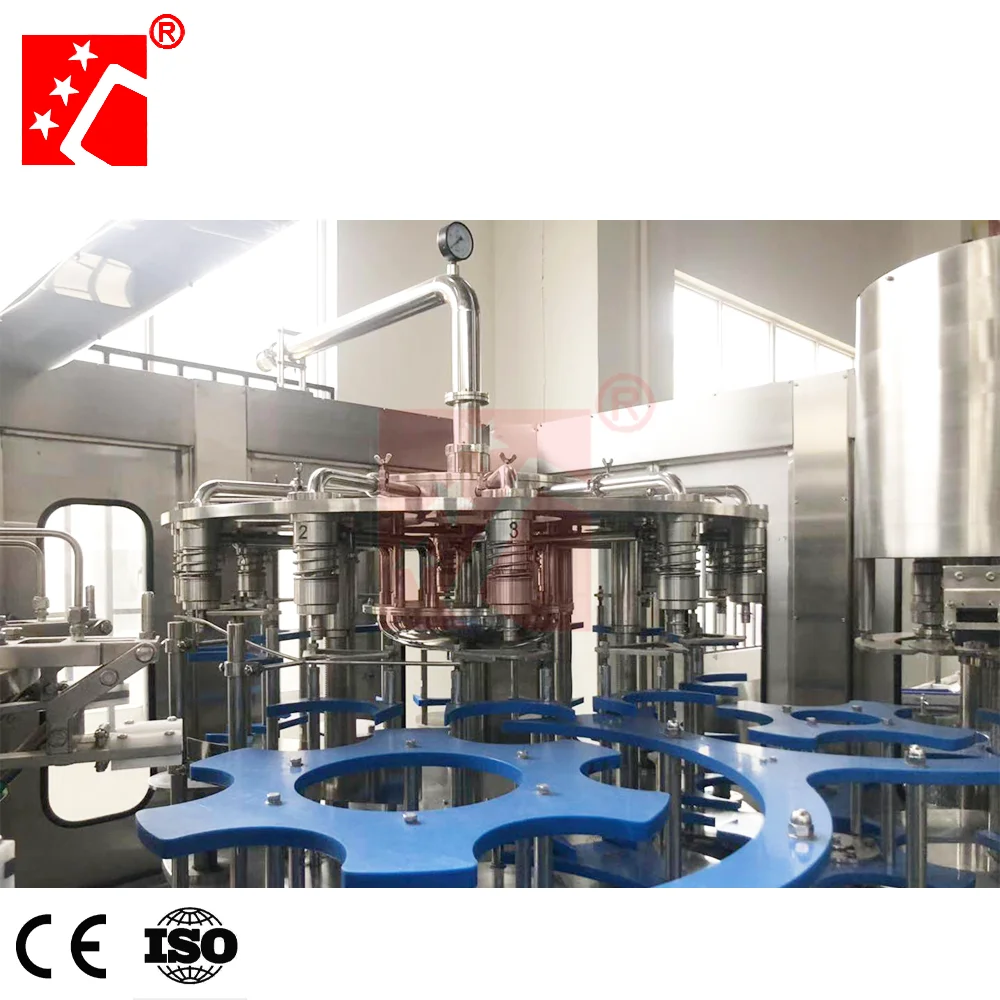

Washing Part.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

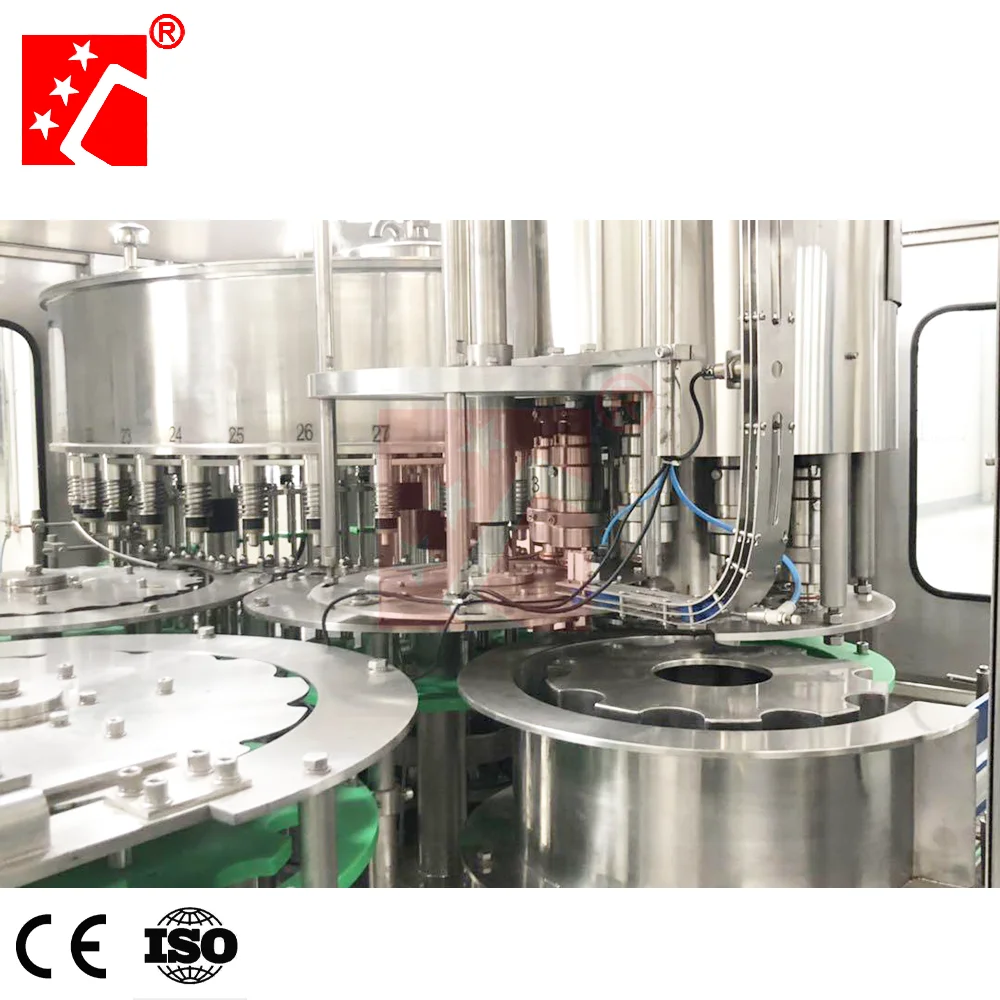

Filling Part.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

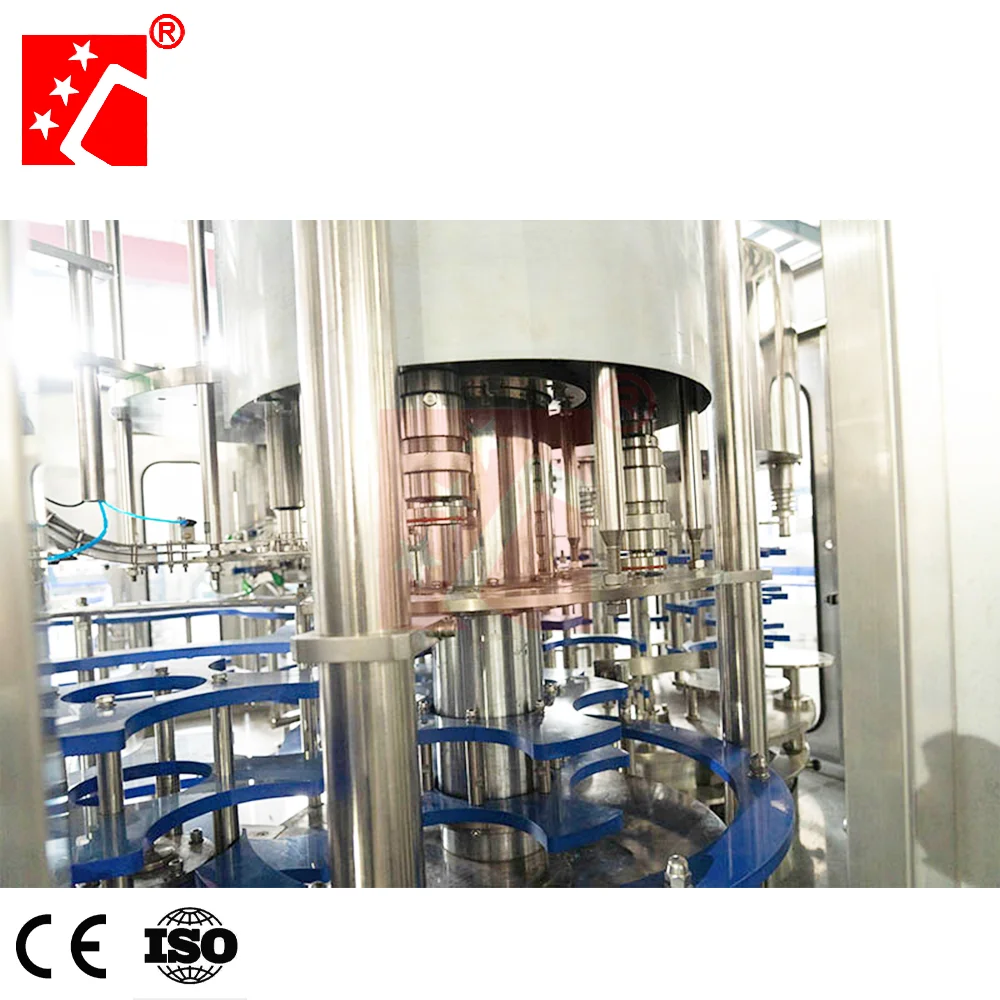

Capping Part.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Product Paramenters
Mode | CXGF8-8-3 | CXGF14-12-5 | CXGF16-16-6 | CXGF18-18-6 | |||
Capacity BPH | 2000 | 2000-4000 | 4000-6000 | 6000-8000 | |||
Washing head | 8 | 14 | 16 | 18 | |||
Filling head | 8 | 12 | 16 | 18 | |||
Capping head | 3 | 5 | 6 | 6 | |||
Bottle diameter(mm) | φ50-115 | ||||||
Bottle height(mm) | 160-320 | ||||||
Compressed air pressure(mpa) | 0.3-0.7 | ||||||
Total power(kw) | 3.8 | 4.4 | 4.4 | 4.4 | |||
Size (mm) | 2300*1500*2100 | 2500*1880*2300 | 2600*1900*2300 | 2800*2150*2300 | |||
Weight (kg) | 2800 | 3200 | 4000 | 4500 | |||
Mode | CXGF24-24-8 | CXGF32-32-10 | CXGF40-40-10 | CXGF60-60-15 | |||
Capacity BPH | 8000-12000 | 13000-15000 | 16000-18000 | 28000-32000 | |||
Washing head | 24 | 32 | 40 | 60 | |||
Filling head | 24 | 32 | 40 | 60 | |||
Capping head | 8 | 10 | 10 | 15 | |||
Bottle diameter(mm) | φ50-115 | ||||||
Bottle height(mm) | 160-320 | ||||||
Compressed air pressure(mpa) | 0.3-0.7 | ||||||
Total power(kw) | 5.2 | 6.2 | 9.6 | 12 | |||
Size (mm) | 3100*2450*2300 | 3880*2800*2500 | 4550*2650*2300 | 5450*3210*2300 | |||
Weight (kg) | 6500 | 7500 | 8500 | 12000 | |||
Recommend Products
5 gallon water filling machine
Linear filling machine
Juice filling machine
Carbonated drinking filling machine
Sauce filling machine
Why Choose Us
YAOSHI Machine.
SUZHOU YAOSHI MACHINERY CO., LTD is a professional manufacturer of beverage machinery in China.It is located in Zhangjiagang City which is very closed to Shanghai with beautiful scenery and convenient transportation.With scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to tens of countries such as America, Poland, Uzbekistan, Thailand, Malaysia, Indonesia, Japan, Nigeria and Egypt. Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also oil filling machine, piston filling machine and 5 Gallon bottle filling production line, and all other auxiliary equipment.
Our compnay complies with ISO9001:2000 international quality management system. Also carries out the modern enterprises management system, to executes quality control during the processes of producing. Win’s customers’ recognition by the high quality products and services.
We will carry on trying our best to meet the demands of our customers continually and seek for development together with our customers.
We will carry on trying our best to meet the demands of our customers continually and seek for development together with our customers.

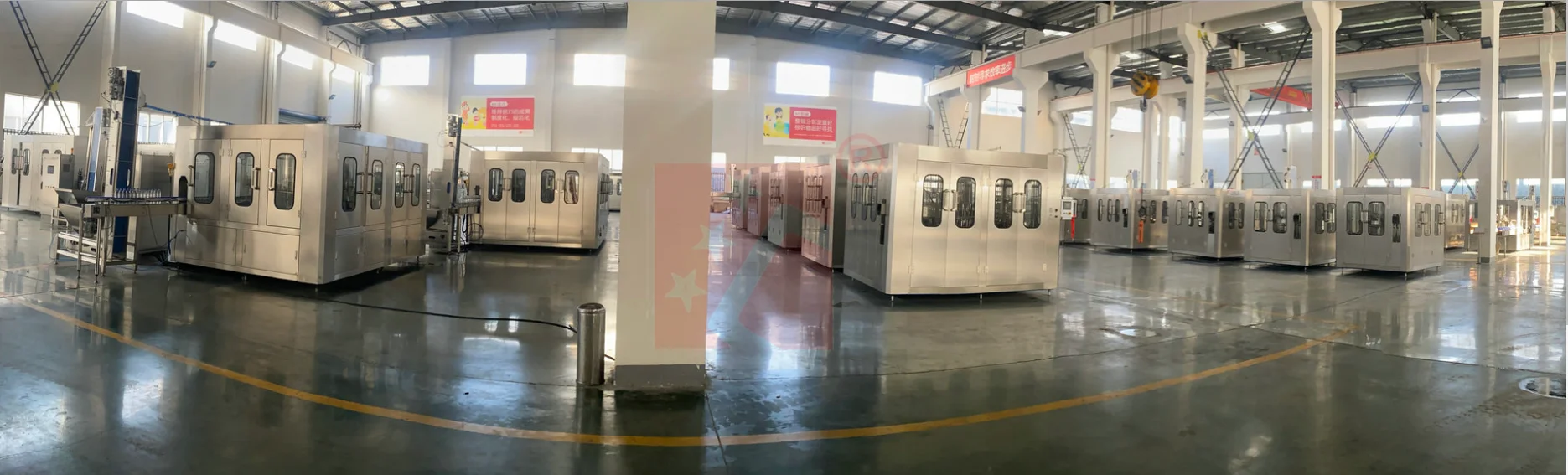

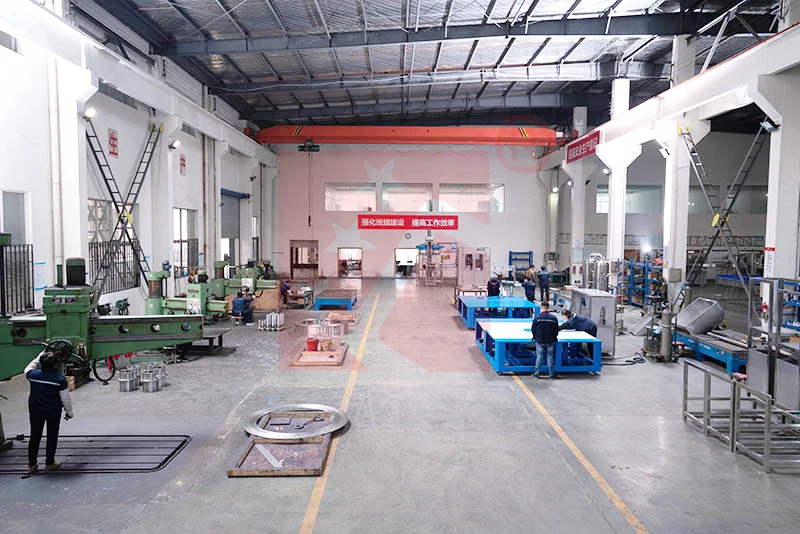

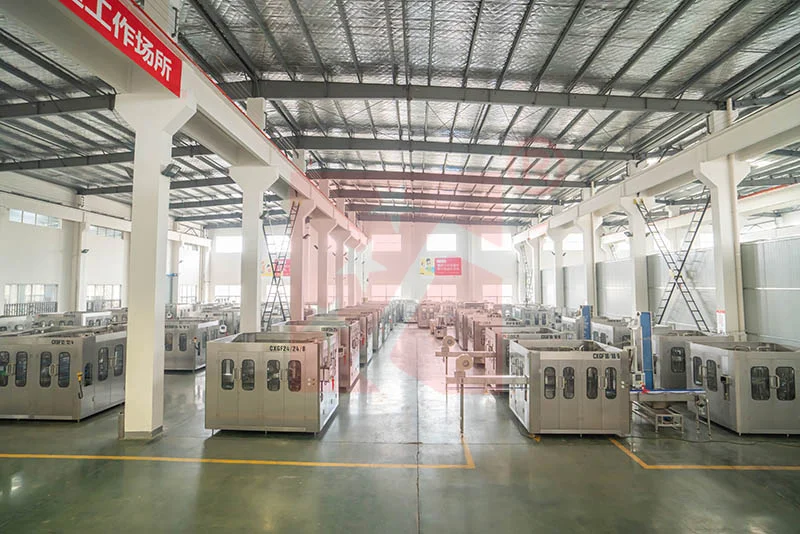

Factory show.
