7 LCD 800x480 TN Type TFT Display 7 inch RGB 40 Pin
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (1600242550478):
Product Overview
Description
Product Description
Display 7 inch RGB 40 PIN
MX-70T4080021L11H-RT
Product Name | 7.0 inch TFT LCD |
Module NO. | MX-70T4080021L11H-RT |
Resolution | 800x480 |
Display Mode | TN / Transmissive / Normally white |
Viewing Direction | 6 o’clock(Gray inversion) |
Brightness | 400 nits |
Module Size | 164.90(W)×100.00(H)×3.30(T) |
Active Area | 154.08(W)×85.92(H) |
TFT Interface | RGB/40PIN |
Operating Temperature | -10 ~ +60℃ |
Storage Temperature | -20 ~ +70℃ |

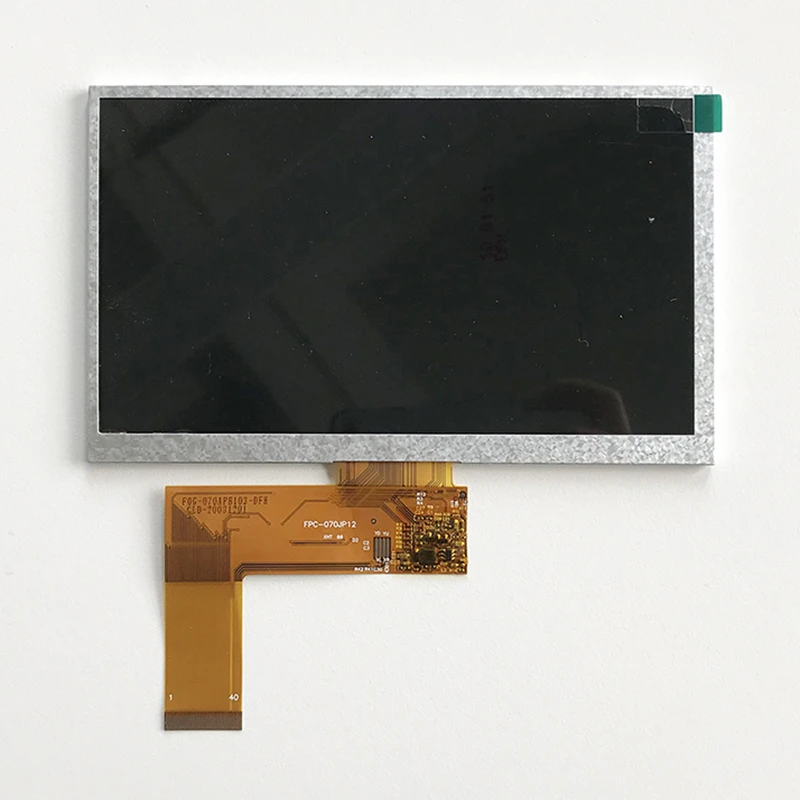

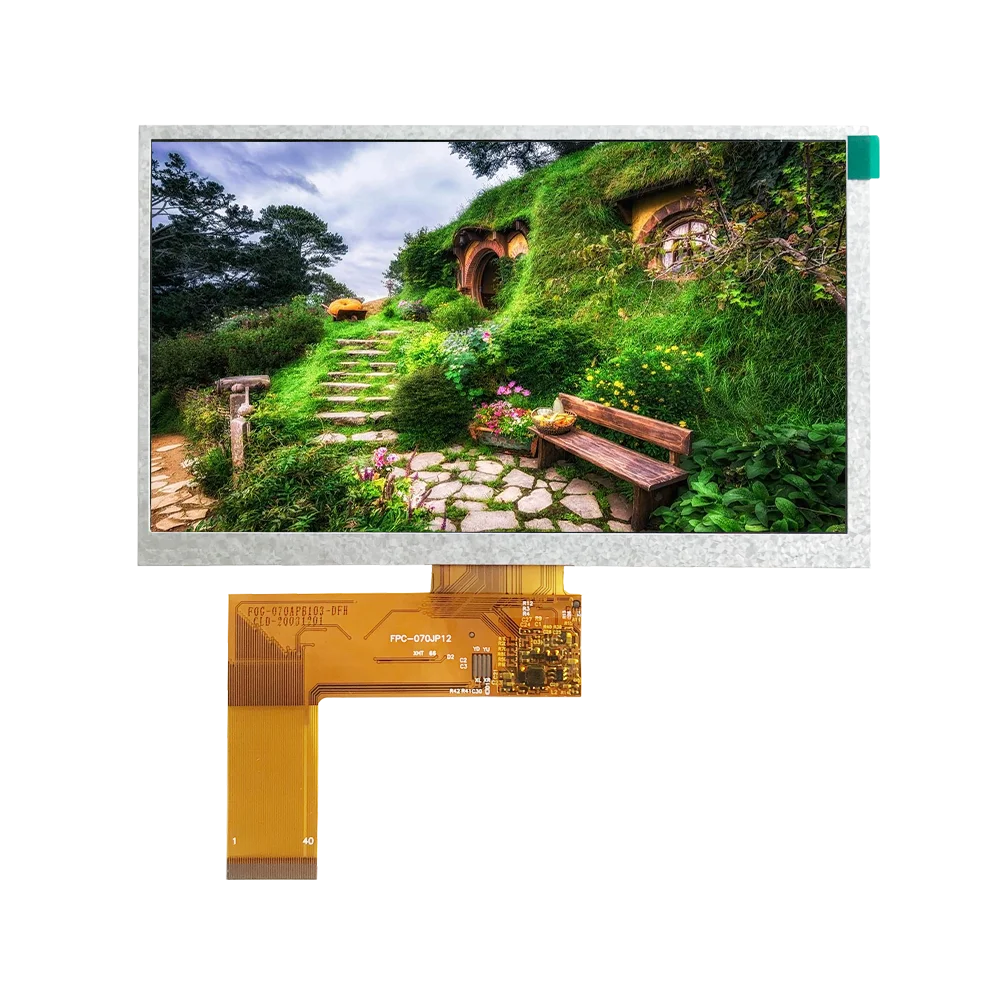

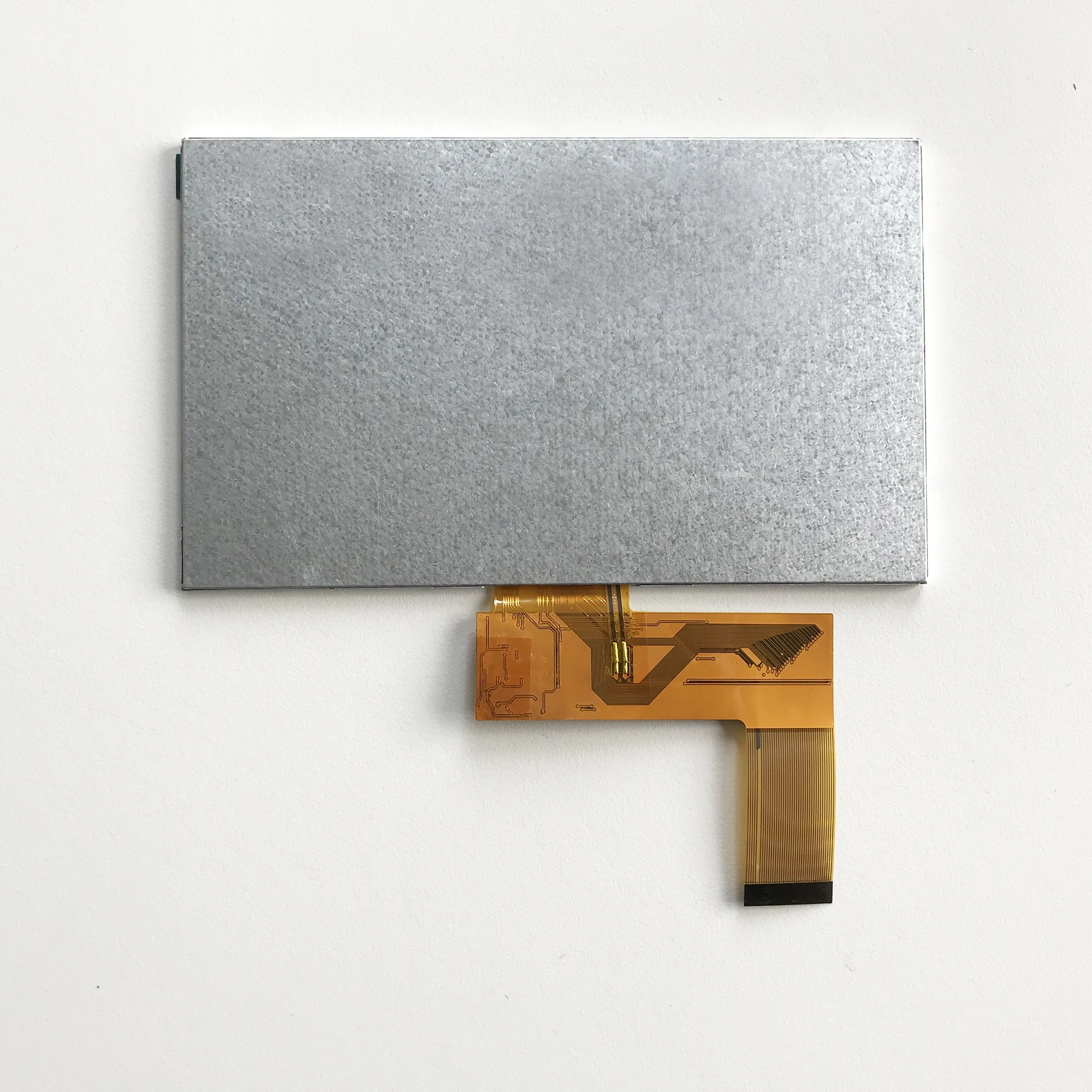

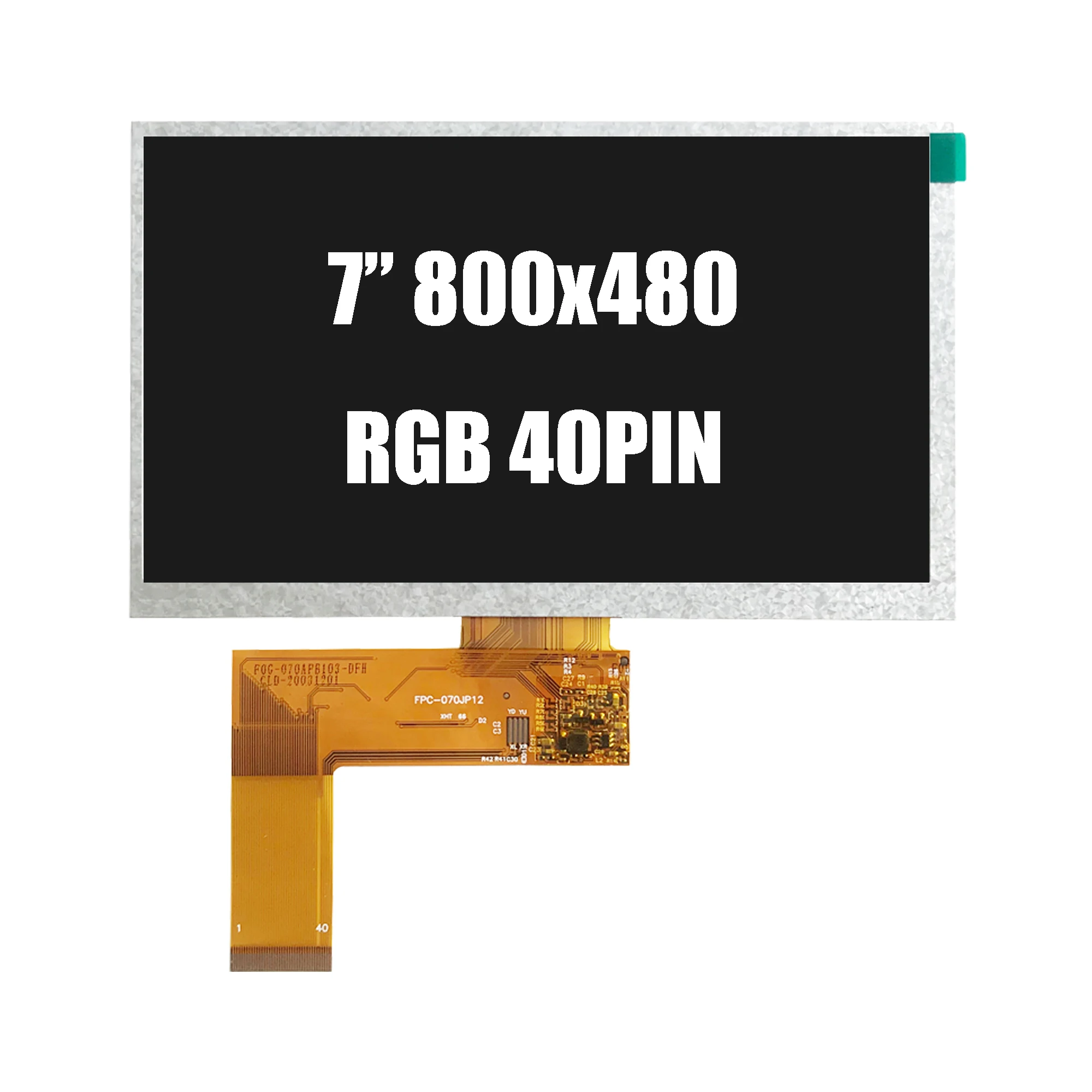

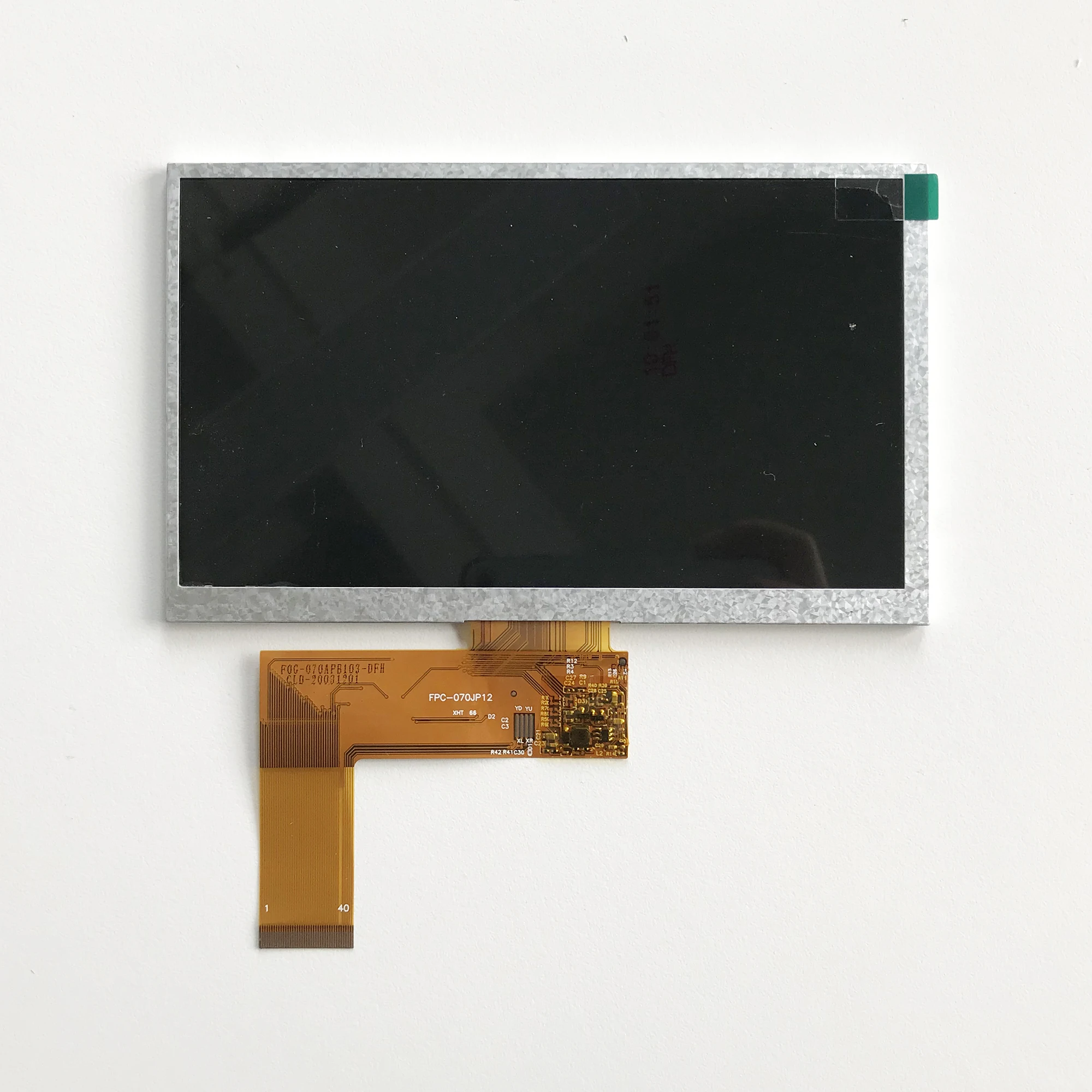

Product Pictures

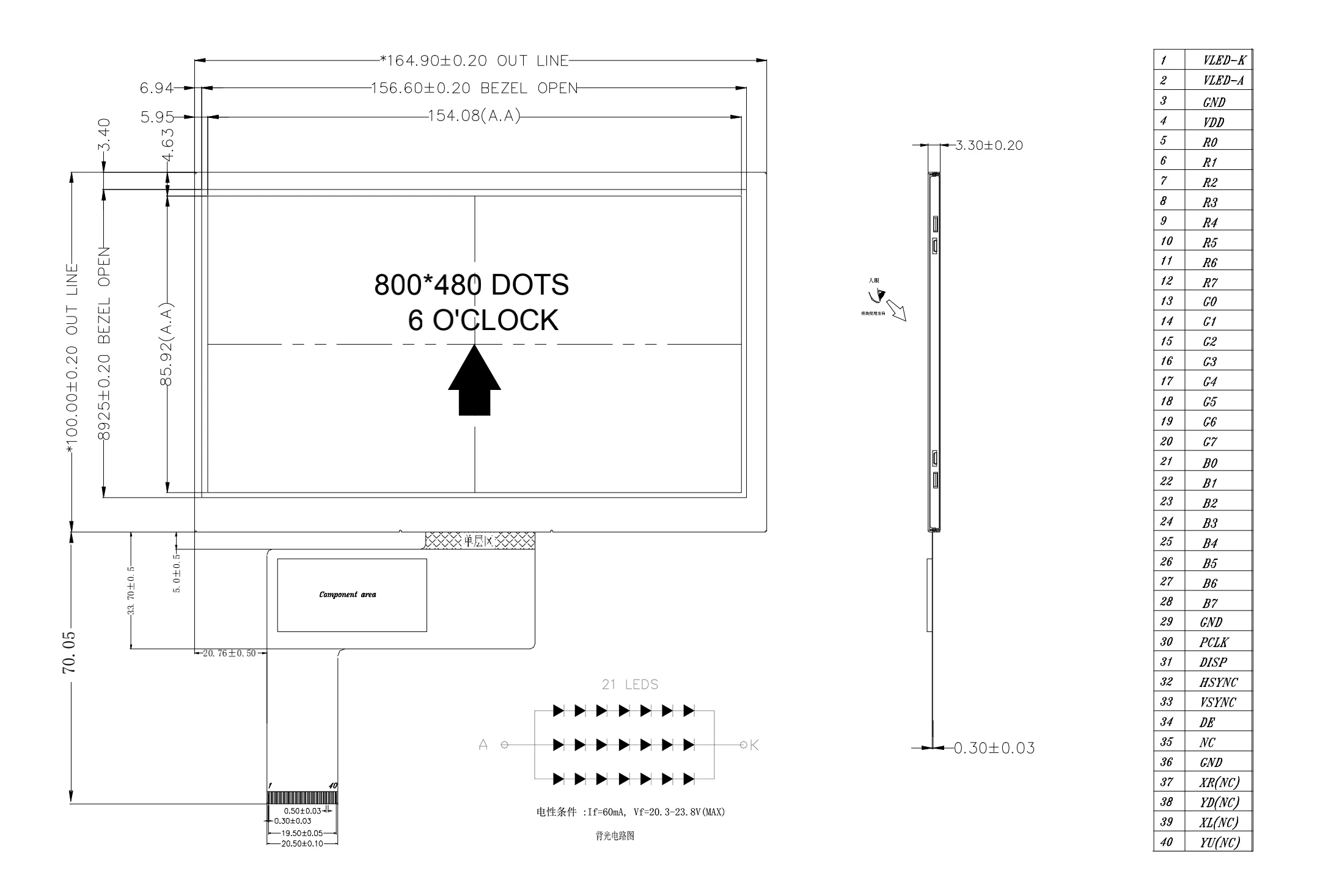

Product Structure

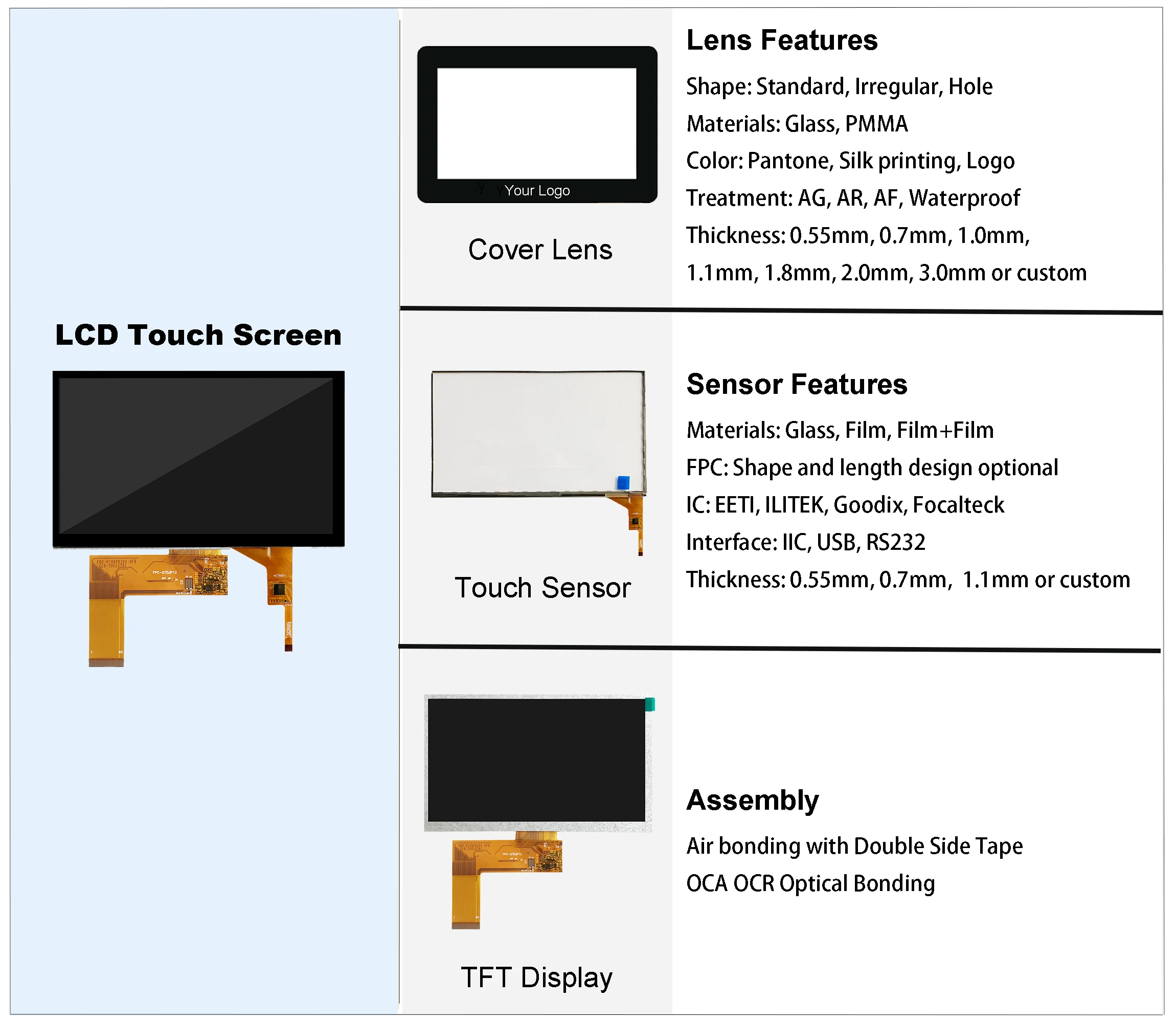

Customized Solution
OEM&ODM Service
Company Profile
Shenzhen HCT Electronics Co., Ltd is a professional supplier of small and medium size TFT LCD panel and touch screen. Our products are produced in around 7,000 square meters production area, including 5,000 square meters 100 level to 1000 level dust-free workshop. Our Company is an ISO9001 and ISO14001 certified manufacturer and qualified producer of TS16949. Our well trained 2100 employees are having rich experience in producing touch screen and TFT LCD display with 10 years' experience. Through modern management skills, by introducing constant updating newly automated technology and facilities into our production, contributing by our talented and innovative engineering human resources, HCT can meet your diversified needs.

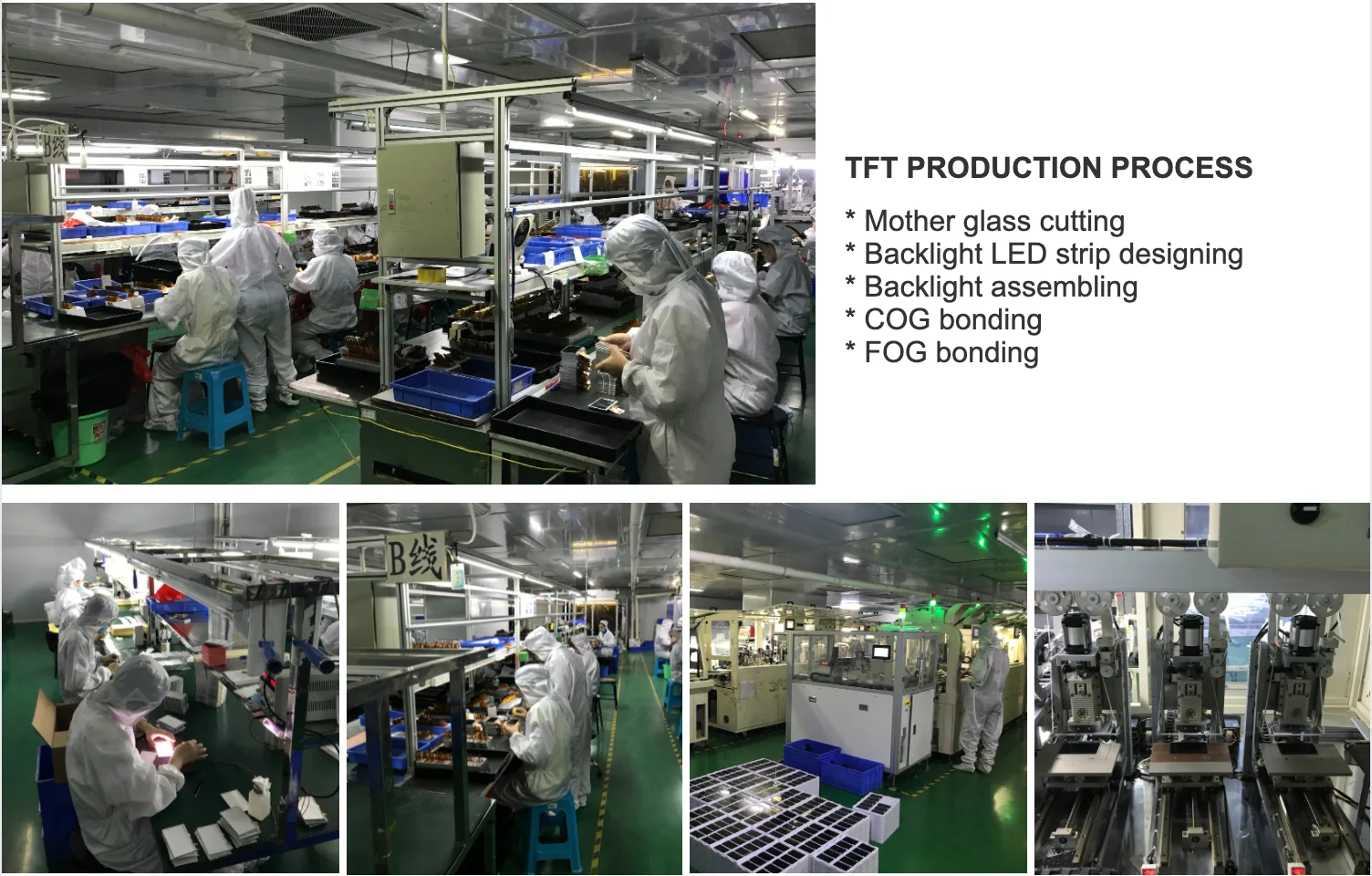

TFT Workshop

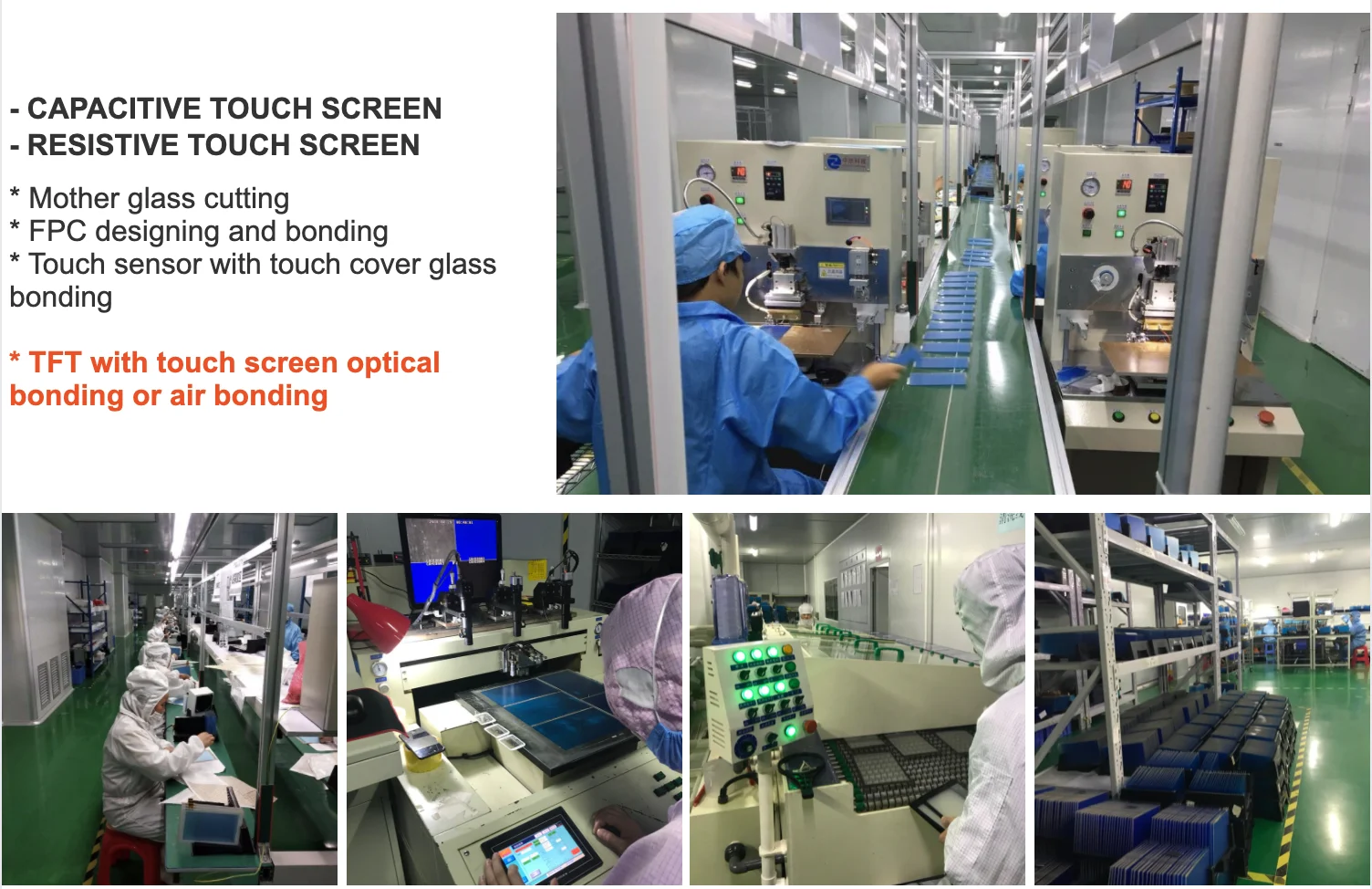

Touchscreen Workshop
Packing & Delivery
FAQ
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.
> 2.4" to 15.6" TFT LCD Module;
> Bar type LCD screen up to 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 32";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the lcd or touch screen for me?
A2: Yes we can provide the custom services.
> For the lcd display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after total quantity reaches to 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q3. What's the delivery time?
A3: > For samples order, 2-3weeks;
> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, amount will be return at mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
