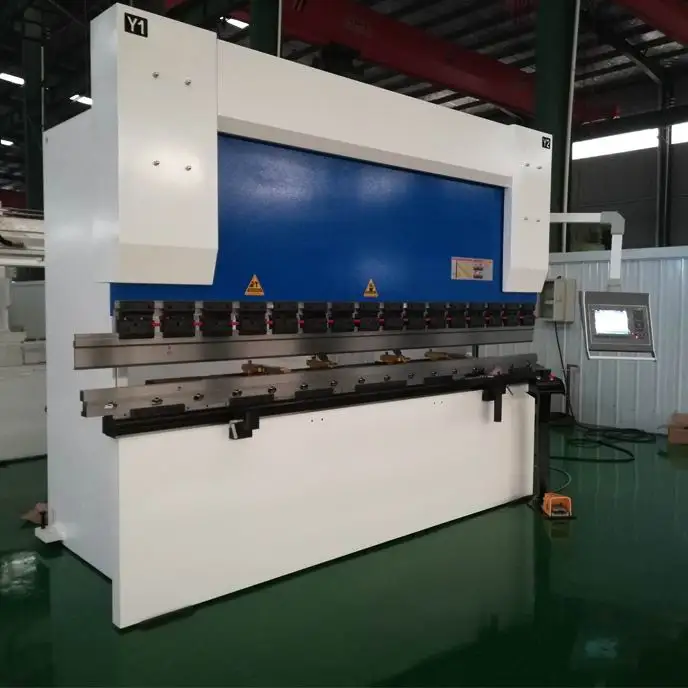

Low price ISO9001 CE assurance 5 years warranty factory yangli press brake
- Category: >>>
- Supplier: Shandong Darling Machinery Equipment Co. Ltd.
Share on (1600242579896):
Product Overview
Description
Low price ISO9001 CE assurance 5 years warranty factory yangli press brake
Video link:
YouTube: https://youtu.be/HzisjruaH58
QQ video: https://v.qq.com/x/page/g3215t4ypx2.html
Baidu video: https://haokan.baidu.com/v?vid=3975549612635568580&bfe=1
Technical Parameters
Model | Nominal pressure (KN) | Worktable length (mm) | Poles Distance (mm) | Throat depth (mm) | Slider travel (mm) | Open height (mm) | Main motor (KW) | Machine weight (kg) | Machine size L×W×H (mm) |
WC67K-30T/1600 | 300 | 1600 | 1280 | 200 | 70 | 220 | 3 | 1800 | 1600x800x1620 |
WC67K-30T/2000 | 300 | 2000 | 1600 | 200 | 80 | 240 | 3 | 3000 | 2000x780x1700 |
WC67K-40T/2200 | 400 | 2200 | 1850 | 250 | 100 | 320 | 4 | 4200 | 2260x1200x1900 |
WC67K-40T/2500 | 400 | 2500 | 1850 | 250 | 100 | 320 | 4 | 3600 | 2560x1200x1900 |
WC67K-50T/2500 | 500 | 2500 | 1850 | 250 | 100 | 320 | 4 | 3800 | 2560x1200x1900 |
WC67K-63T/2500 | 630 | 2500 | 1900 | 250 | 120 | 320 | 5.5 | 4900 | 2560x1340x2200 |
WC67K-63T/3200 | 630 | 3200 | 2560 | 250 | 120 | 320 | 5.5 | 5200 | 3260x1340x2200 |
WC67K-80T/2500 | 800 | 2500 | 1990 | 320 | 120 | 320 | 7.5 | 6200 | 2560x1400x2300 |
WC67K-80T/3200 | 800 | 3200 | 2560 | 320 | 120 | 350 | 7.5 | 6500 | 3260x1400x2300 |
WC67K-80T/4000 | 800 | 4000 | 3000 | 320 | 120 | 350 | 7.5 | 6800 | 4060x1400x2300 |
WC67K-100T/2500 | 1000 | 2500 | 2020 | 320 | 130 | 370 | 7.5 | 8000 | 2560x1480x2450 |
WC67K-100T/3200 | 1000 | 3200 | 2600 | 320 | 130 | 370 | 7.5 | 8500 | 3260x1480x2450 |
WC67K-100T/4000 | 1000 | 4000 | 3000 | 320 | 130 | 370 | 7.5 | 9000 | 4060x1480x2450 |
WC67K-125T/3200 | 1250 | 3200 | 2500 | 320 | 130 | 370 | 11 | 9800 | 3260x1520x2550 |
WC67K-125T/4000 | 1250 | 4000 | 3000 | 320 | 130 | 370 | 11 | 105000 | 4060x1520x2550 |
WC67K-160T/3200 | 1600 | 3200 | 2600 | 320 | 150 | 460 | 11 | 13800 | 3260x1600x2800 |
WC67K-160T/4000 | 1600 | 4000 | 3000 | 320 | 150 | 460 | 11 | 14400 | 4060x1600x2800 |
WC67K-160T/5000 | 1600 | 5000 | 4000 | 320 | 150 | 460 | 11 | 14800 | 5060x1700x2900 |
WC67K-160T/6000 | 1600 | 6000 | 5000 | 320 | 150 | 460 | 11 | 15600 | 6060x1700x3000 |
WC67K-200T/3200 | 2000 | 3200 | 2500 | 400 | 200 | 460 | 15 | 16500 | 3260x1600x2800 |
WC67K-200T/4000 | 2000 | 4000 | 3000 | 400 | 200 | 460 | 15 | 17800 | 4060x1600x2800 |
WC67K-200T/5000 | 2000 | 5000 | 4000 | 400 | 200 | 460 | 15 | 19600 | 5060x1700x2900 |
WC67K-200T/6000 | 2000 | 6000 | 5000 | 400 | 200 | 460 | 15 | 21800 | 6060x1700x3000 |
WC67K-250T/3200 | 2500 | 3200 | 2500 | 400 | 200 | 590 | 18.5 | 18800 | 3260x1600x2800 |
WC67K-250T/4000 | 2500 | 4000 | 3000 | 400 | 200 | 590 | 18.5 | 19500 | 4060x1700x3000 |
WC67K-250T/5000 | 2500 | 5000 | 4000 | 400 | 200 | 590 | 18.5 | 21800 | 5060x1700x3100 |
WC67K-250T/6000 | 2500 | 6000 | 5000 | 400 | 200 | 590 | 18.5 | 22700 | 6060x1800x3200 |
WC67K-300T/3200 | 3000 | 3200 | 2500 | 400 | 250 | 590 | 22 | 22000 | 3260x1900x3000 |
WC67K-300T/4000 | 3000 | 4000 | 3000 | 400 | 250 | 590 | 22 | 24000 | 4060x2000x3000 |
WC67K-300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 590 | 22 | 27000 | 5060x2000x3100 |
WC67K-300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 590 | 22 | 29500 | 6060x2100x3200 |
WC67K-400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 27500 | 4060x2000x3100 |
WC67K-400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 31000 | 5060x2000x3200 |
WC67K-400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 34200 | 6060x2100x3300 |
WC67K-500T/4000 | 5000 | 4000 | 3000 | 400 | 250 | 590 | 37 | 37000 | 4060x2300x3500 |
WC67K-500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 37 | 38000 | 5060x2300x3500 |
WC67K-500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 37 | 41500 | 6060x2300x3600 |
WC67K-600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 45 | 39000 | 4060x2400x3600 |
WC67K-600T/5000 | 6000 | 5000 | 4000 | 400 | 250 | 590 | 37 | 43500 | 5060x2400x3600 |
WC67K-600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 47000 | 6060x2500x3700 |
WC67K-800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 650 | 45 | 68000 | 6200x2600x4300 |

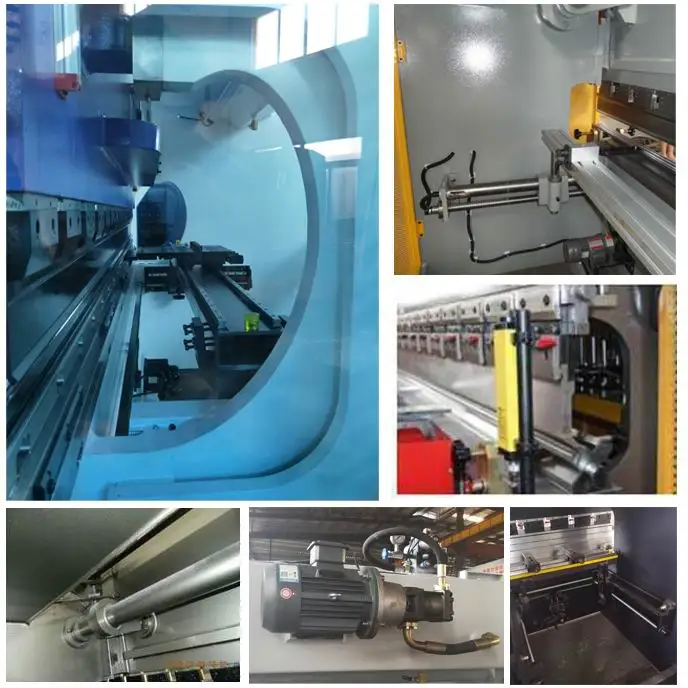

Main Characteristics
1), it is complete steel welded structure with high strength and good rigidity.
Machine frame is processed by annealing treatment.
2), Hydraulic top-transmission method can assure the machine stable and reliable.
3), Mechanical forced synchronization makes it with strong capacity of unbalancing loading resistance.
4), Precision of bending is high.
5), Angle of bending and size of back gauge is controlled by CNC system. We adopt CNC programming method, so it is operated easily and price is cheap.
6), Back gauge adopts ball screw and high precision linear guide.
Configuration

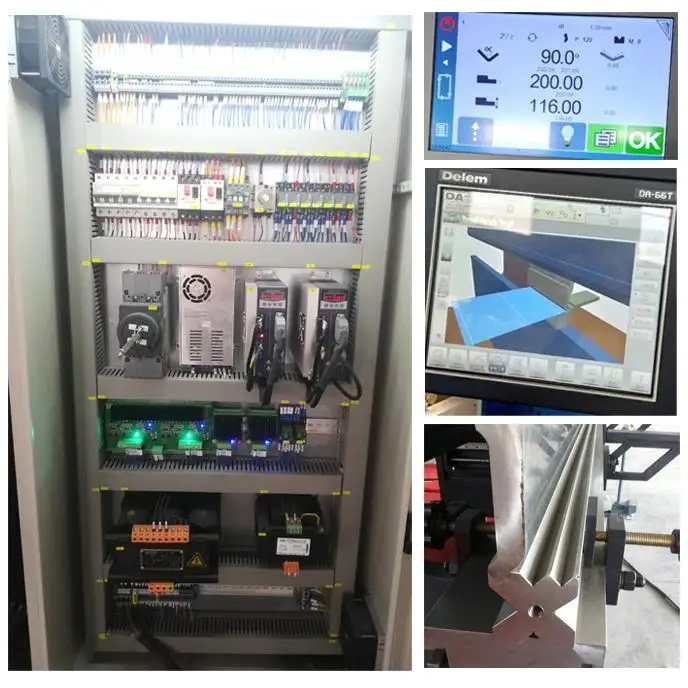

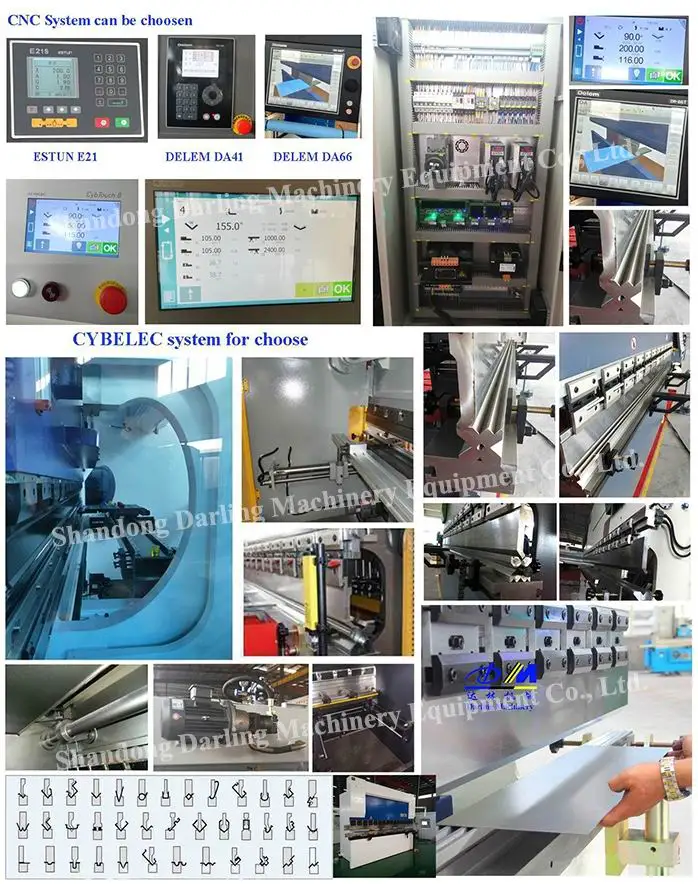

CNC control system | Mitsubishi of Japan | CYBELEC of Switzerland |
Driving | AC servo motor(Panasonic of Japan) | AC servo motor(Panasonic of Japan) |
Guide screw | Ball screw(PMI of Taiwan) | Ball screw(PMI of Taiwan) |
Guide | High precision guide(domestic) | Straight line guide(PMI of Taiwan), 30T High precision guide(domestic) |
Gauge device | CNC back gauge device | CNC back gauge device |
Hydraulic system | Taiwan | Taiwan |
Our service
1, before sales: we will give you professional instruction and help you to buy the suitable machine, after you choose our machine, let you take the biggest profit through using our machine.
2, in sales: we will give you feedback informations about your order through photos and video. let you put your heart into stomach.
3, after sales: we will go to your factory to give you a training and teach you how to use our machine, or we will give you a video training. if there is our local agent and office, we will let our local engineer to your factory and give you a training.
4, our quality assurance: all our machine using life.
Getting Local office support, please contact with our company:
| Shandong Darling Machinery Equipment Co., Ltd. Add: Shacun Industry Park, Licheng District, Jinan City, China. Contact person: Martin Hoo +86-15253156158 (WhatsApp) Skype/Wechat: martinhoo936 QQ: 613252158 Website: www.darlingmachinery.com |
We will be the best partner
Although we live in different countries, our hearts are always together. We don’t only sell machine, we also sell service, technology and brand. One time cooperation, be friend forever!
Our cooperation is Double win results.
® Our aim is:
Through using our machine, you can make better product and earn more money !
FAQ:
1, are you manufacture or trading company?

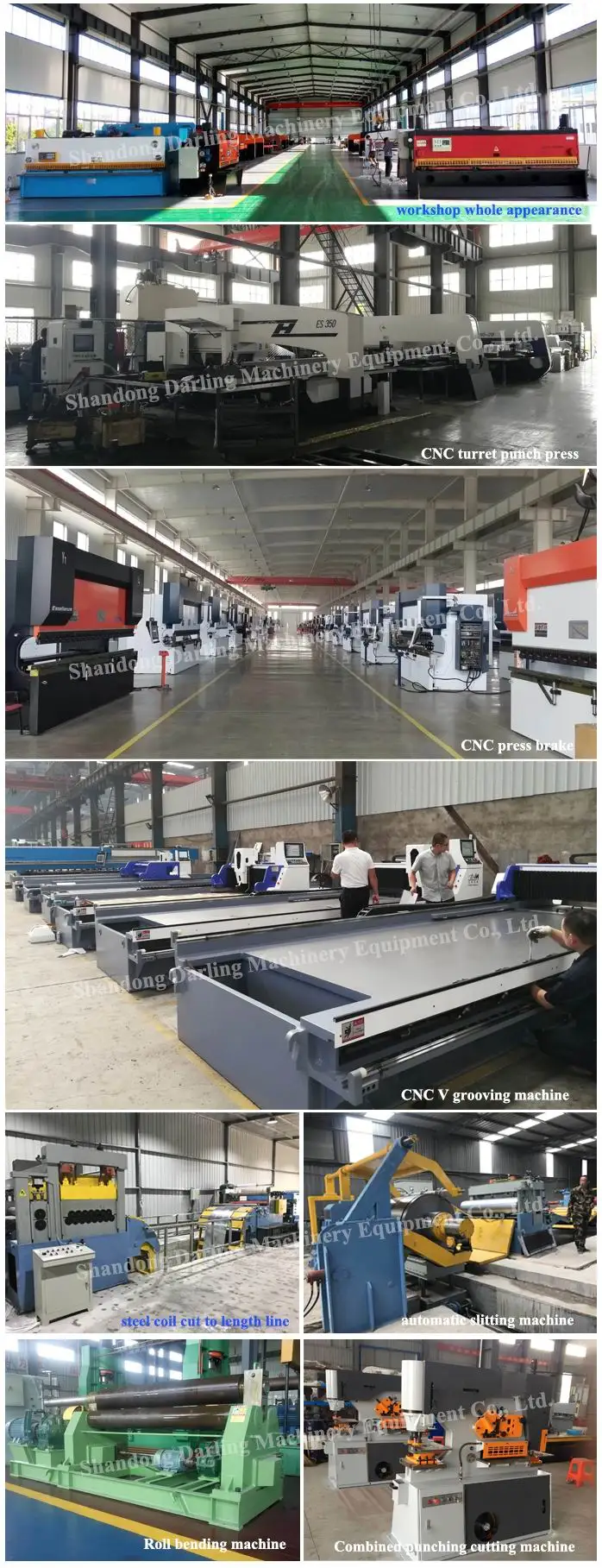

we are manufacture more than 15 years, 3 branch factory, more than 10000 square meters.
2, how about your quality ?
we only sell high quality machine, we use the world famous brand component, like SIEMENS, MITSUBISHI, DELEM, PANASONIC, SCHNEIDER, ABB, etc. so there is no worry about our quality.
3, what about your after sales service ?
we go to your factory for site training or you can get local branch company traning, if there is no requirement, we can give you video training in other methods.
4, why do we must choose you as our supplier ?
customer real voice is your best reference, 5 stars customer feedback reviews, 100% high praise. those voice can let you to cooperate with us safely.
 |  |  |
 |  |  |
 |  |  |
 |  |  |
