Precision Heavy Duty CNC Gear Matel Shaper Shaping Machine

Share on (1600242586228):


Price:

Quantity:


Product Overview

Description



Products Description

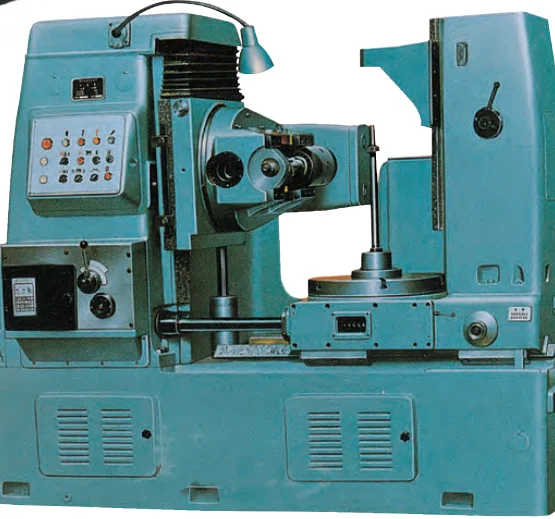

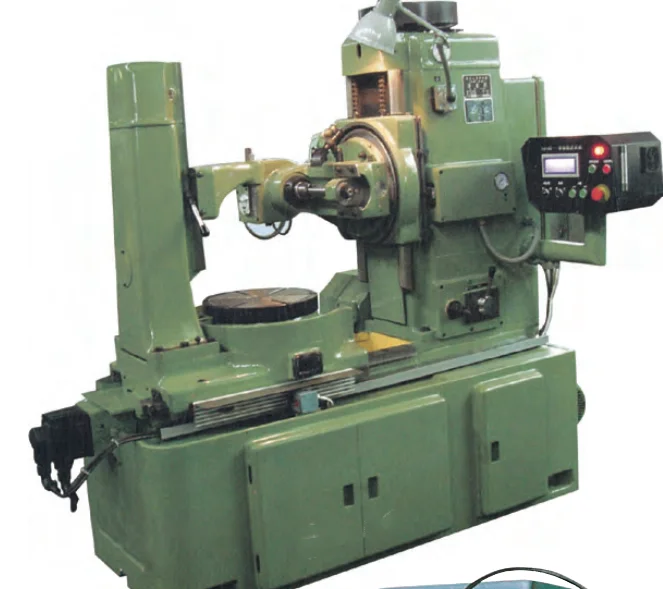

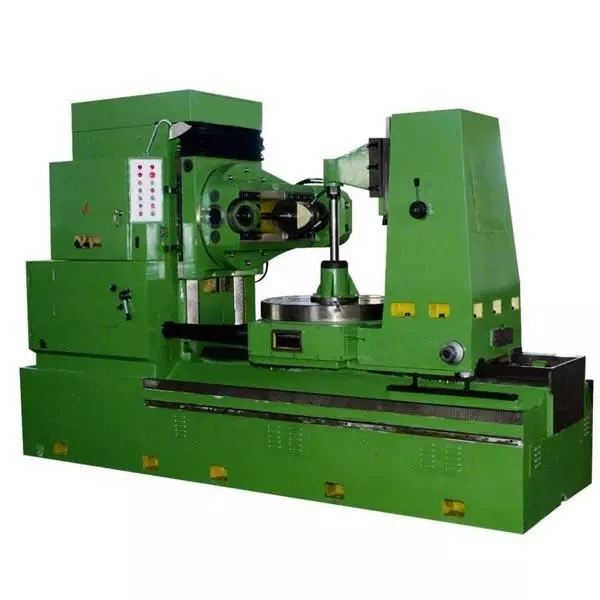

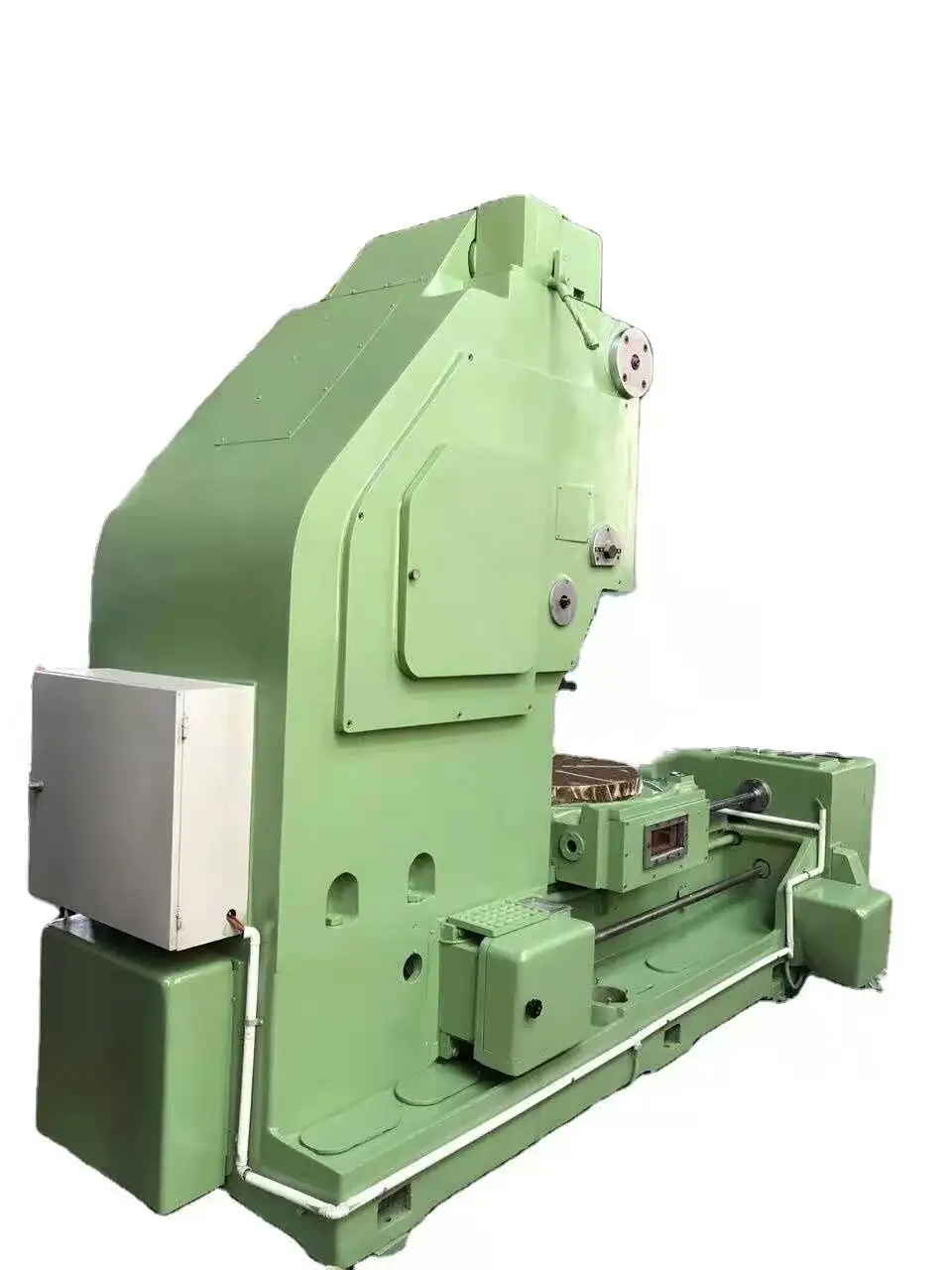

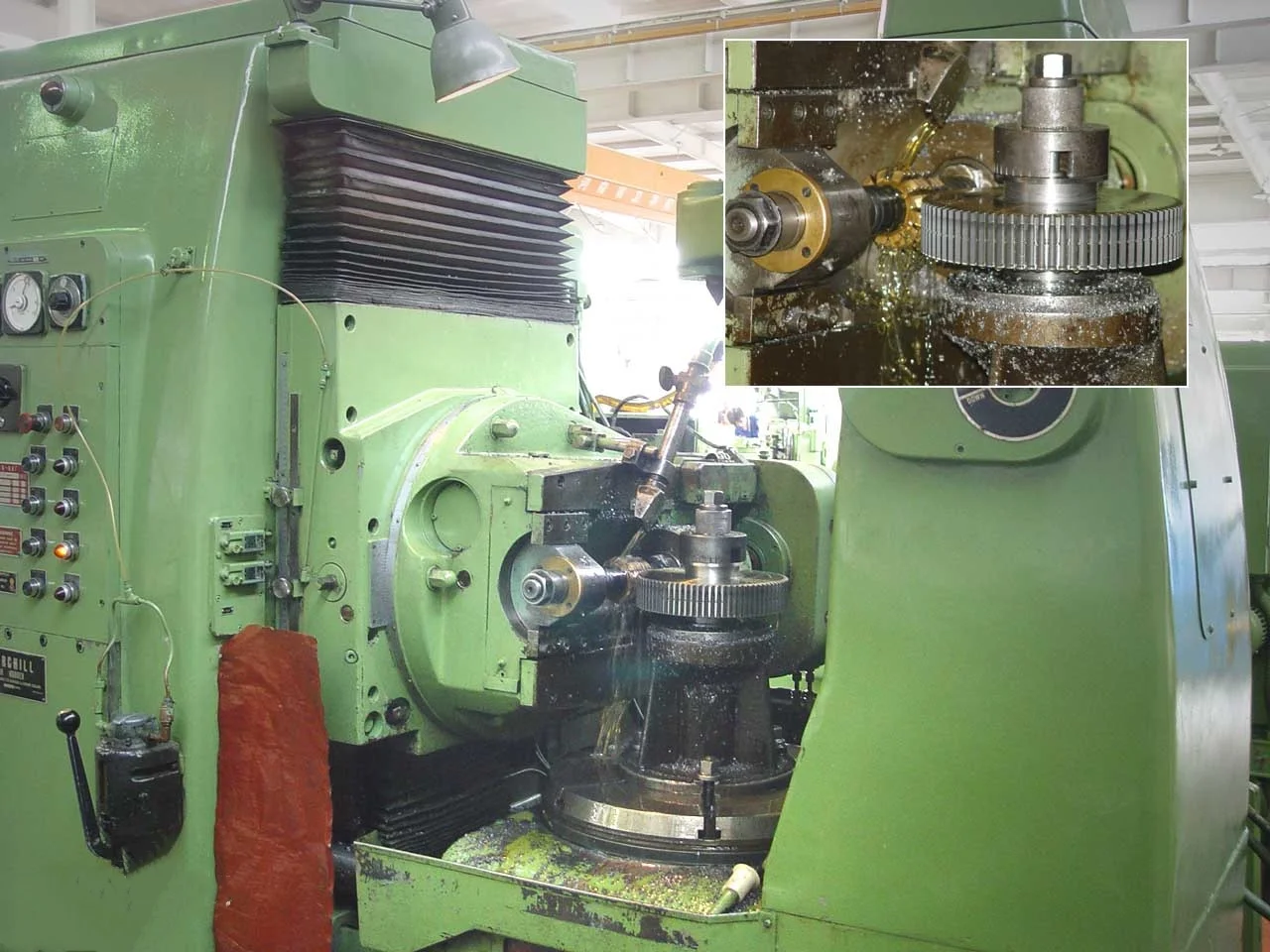

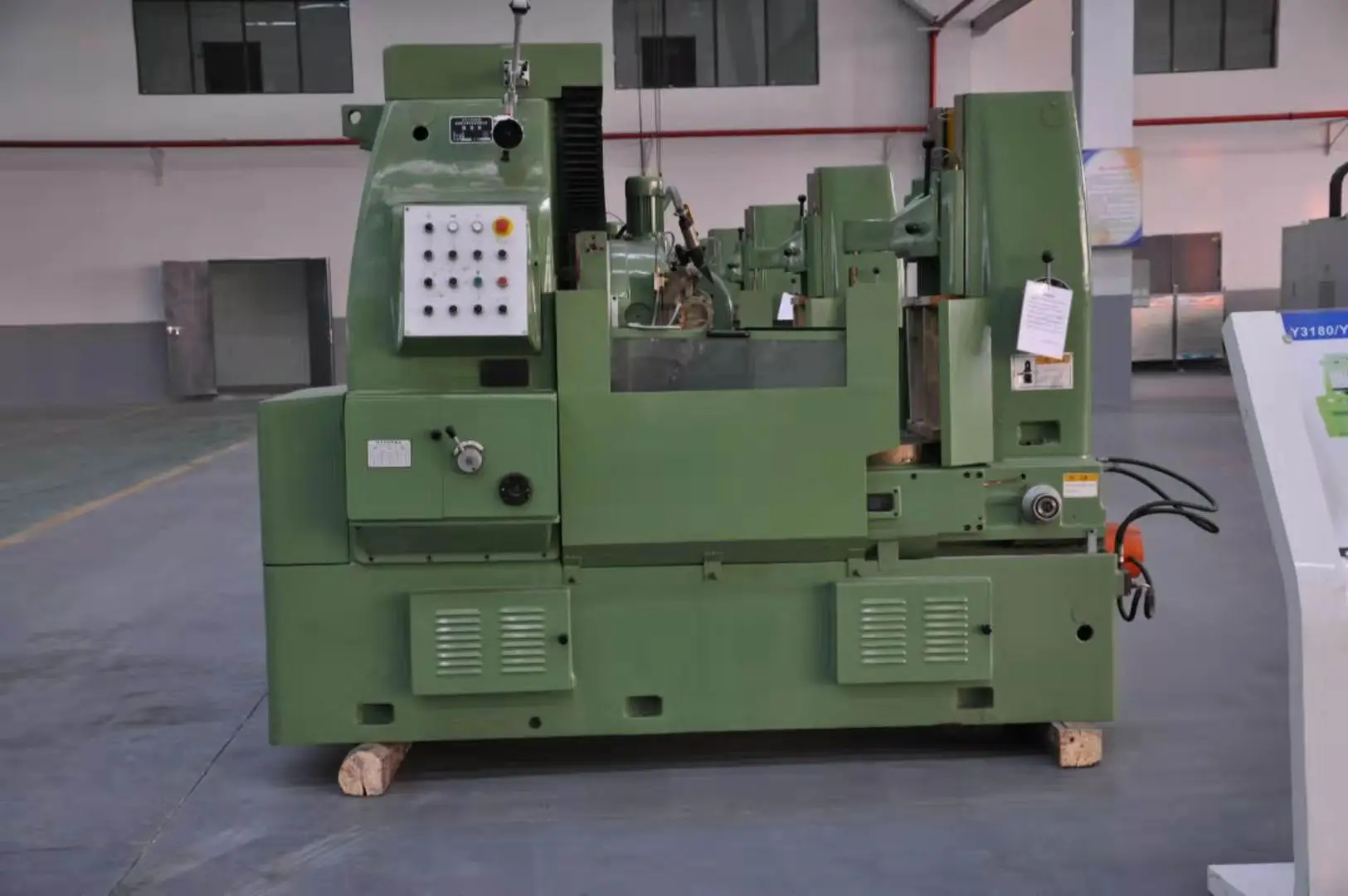

Gear hobbing machine is one of the most widely used machine tools in gear processing. In gear hobbing machine, straight and helical cylindrical gears can be cut, worm gear and sprocket can also be processed. It is a kind of gear processing machine for machining spur, helical and herringbone cylindrical gears and worm gears with hob by generating method.


(1) Small batch and single production of helical gears and worm gears, but also hobbing a certain range of parameters spline shaft

(2) Easy to adjust, with automatic parking mechanism

(3) Gear hobbing machine with reliable safety device and automatic lubrication is one of the most widely used machine tools in gear processing. It can cut straight and helical cylindrical gears, worm gear, sprocket and so on.






Gear hobbing machine is widely used in automobile, tractor, machine tool, engineering machinery, mining machinery, metallurgical machinery, petroleum, instrument, aircraft, spacecraft and other machinery manufacturing industries.






Specification


Model
15831
15832
15833
15834
15835
Type
Unit
Y31200
YB31125E
YB3180
YB3150E
Y3150
Max module of workpiece
mm
2000
1250
800
500
500
Max module of workpiece
mm
20
12
10
8
6
Max diameter of cutters
mm
280
220
180
160
120
Max length of cutter
mm
320
220
180
160
120
Max rotary angle of headstock
mm
±60°
±160°
±60°
±240°
±45°
Steps of spindle speed
steps
8
7
8
9
8
Range of spindle speed
rpm
12-91
16-125
40-200
40-250
50-270
Main motor power
kw
30
18.25
7.45
6.45
3
Dimensiods
cm
722*326*320
360*204*240
276*142*185
243*127*177
182*96*173
