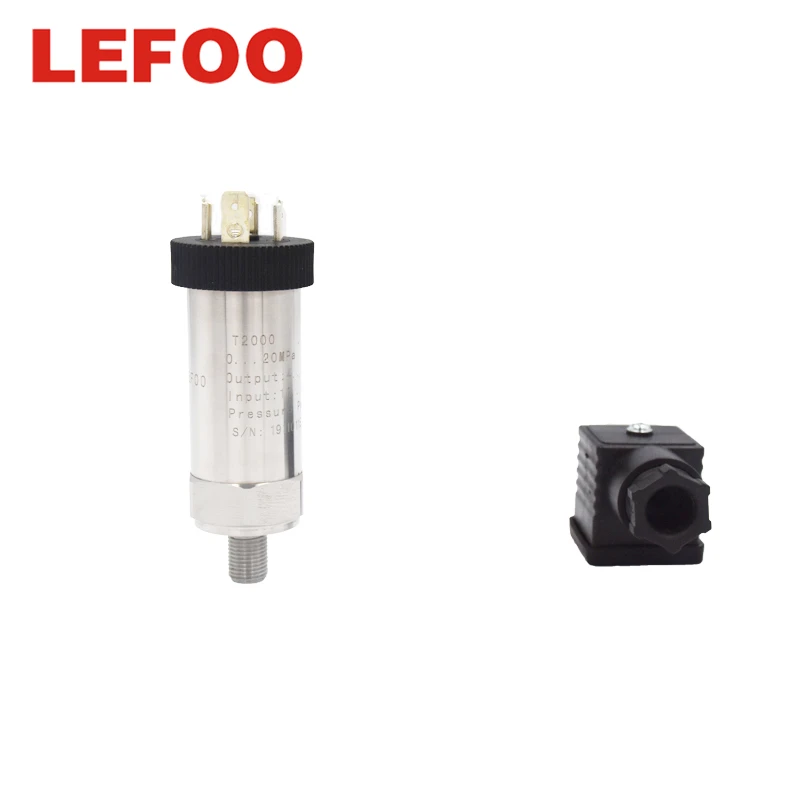

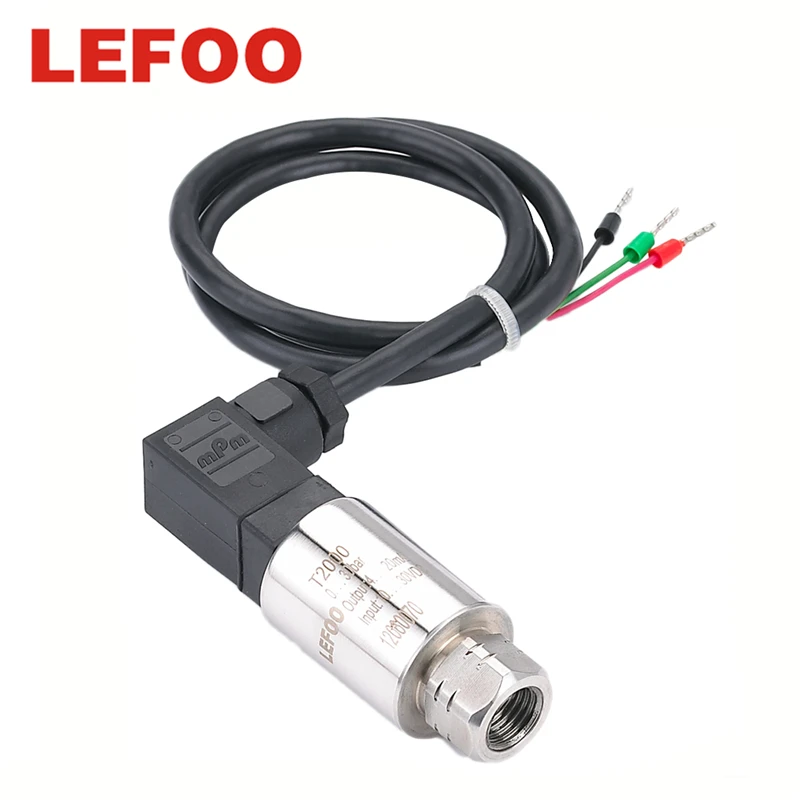

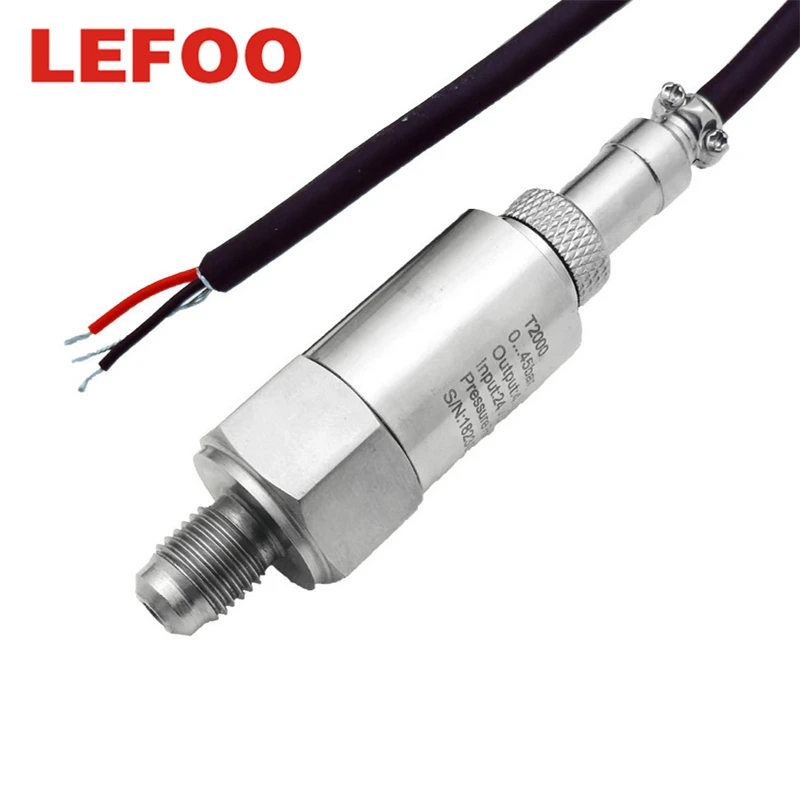

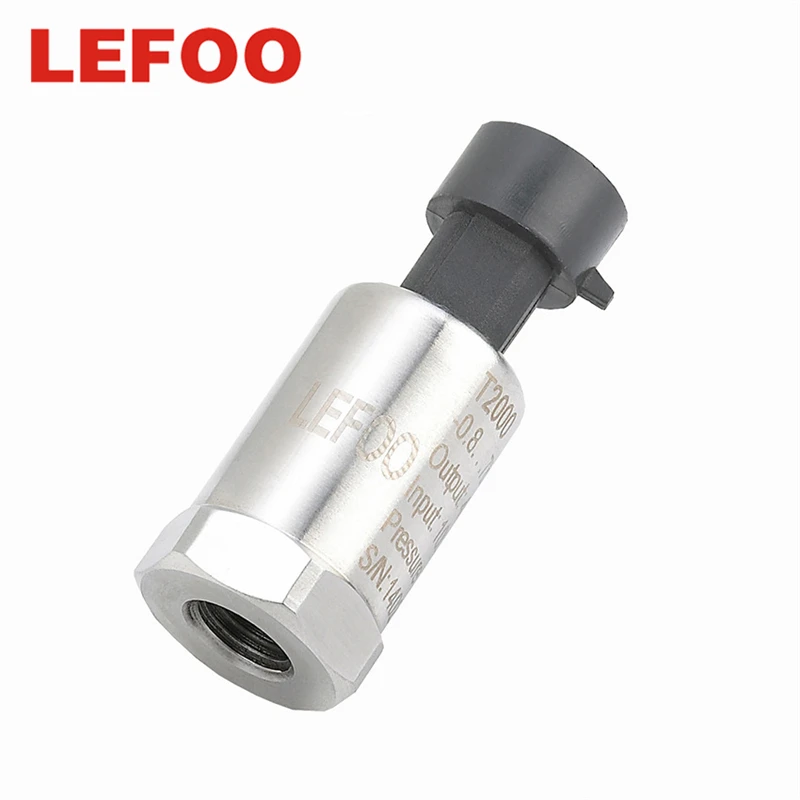

LEFOO OEM China 4 20ma Temperature Compensated Ceramic Pressure Sensor Water Pressure Transmitter T2000
- Category: >>>
- Supplier: Zhejiang Lefoo Controls Co. Ltd.
Share on (1600242685605):
Product Overview
Description
Product Description

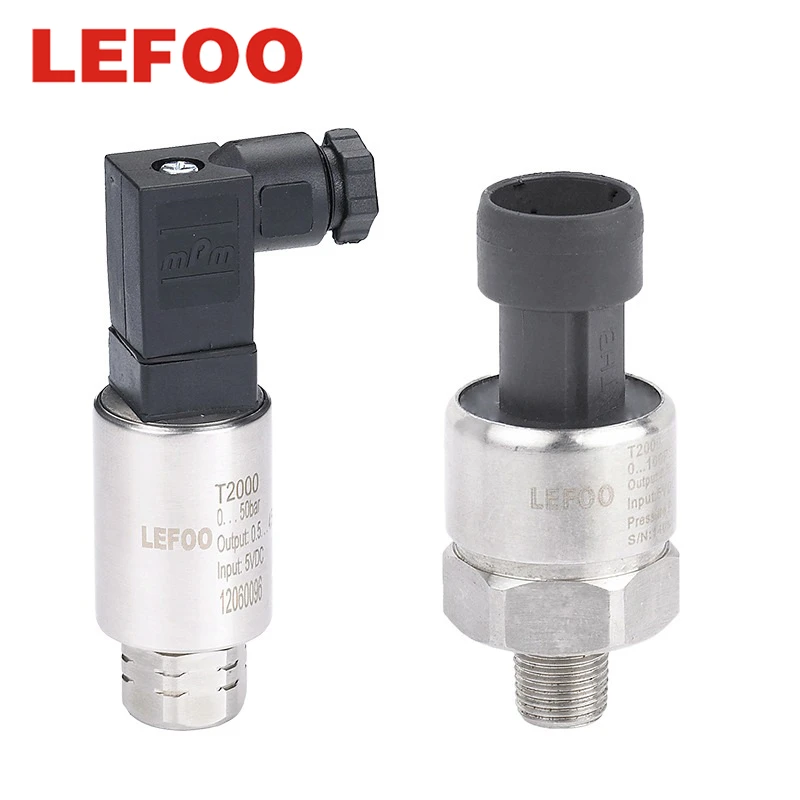

The heart of T2000 pressure transmitter is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it
convenient to be installed in small room.
Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S

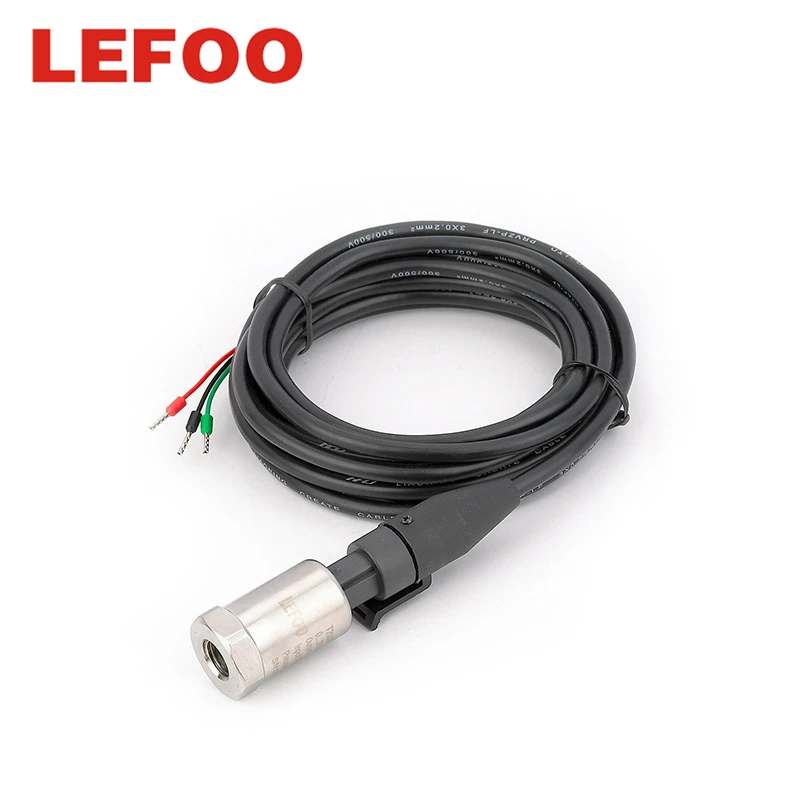

Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)
Specification
| General | Value | |||
| Measurement Range | -1~0......100bar,0~2......3bar,0~4......60bar(normal range),0~61......600bar | |||
| Overload Pressure | 1.5 times of full scales | |||
| Burst Pressure | 3 times of full scales | |||
| Accuracy | ±0.5%F.S,±1.0%F.S | |||
| Long Term Stability | Typical value: 0.5%F.S Maximum: 1%F.S | |||
| Working Temperature | -40℃~100℃ | |||
| Compensated Temperature | -10℃~80℃ | |||
| Storage Temperature | -50℃~125℃ | |||
| Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic | |||
| Output Mode | Two-wired | Three-wired | ||
| Output | 4~20mA | 0.5~4.5V | 0/1~5V | 0~10V |
| Power Supply | 10~30VDC | 5VDC | 10~30VDC/AC | 12~30VDC/AC |
| Load Resistance | (U-10)/0.02(Ω) | >100K(Ω) | ||
| Insulation | >100M(Ω)@50V | |||
| Electrical Connection | Packard, DIN43650C, DIN72585, M12, Cable | |||
| Protection Grade | IP67 | |||
| Pressure Connection | Male G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/ (Female and other connection is available on request) | |||
| Response Time | 10ms | |||
| Pressure Form | Gauge pressure | |||
| Electromagnetic Compatibility | Electromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2 | |||
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
Related Products
Company Information
FAQ
1.What kind of products do you offer ?
Zhejiang Lefoo Controls Co., Ltd. develops and manufactures reliable, high quality standard pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches Pressure Control,temperature control Devices offering innovative solutions and components able to outfit at best machines and production systems and give a single answer to any requirements in pressure control systems.
2.Are you manufacturer ?
Yes,We have 20 years of experience
3. How can I get the quotation?
Send your inquiry to us by the inquiry from on the right-side or the bottom of this page,
4.Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
5. Can you make customized products ?
Yes, customized is accept, please contact us for specific requirements.
6.Can I to be your distributor ?
Please contact us directly for details. Looking forward to work with distributors all over the world.
