Customized Fast Food shop hinge system Pop up container for cafe bar
- Category: >>>
- Supplier: Hysun Eco Building Co. Ltd.
Share on (1600242912136):
Product Overview
Description
Products Description

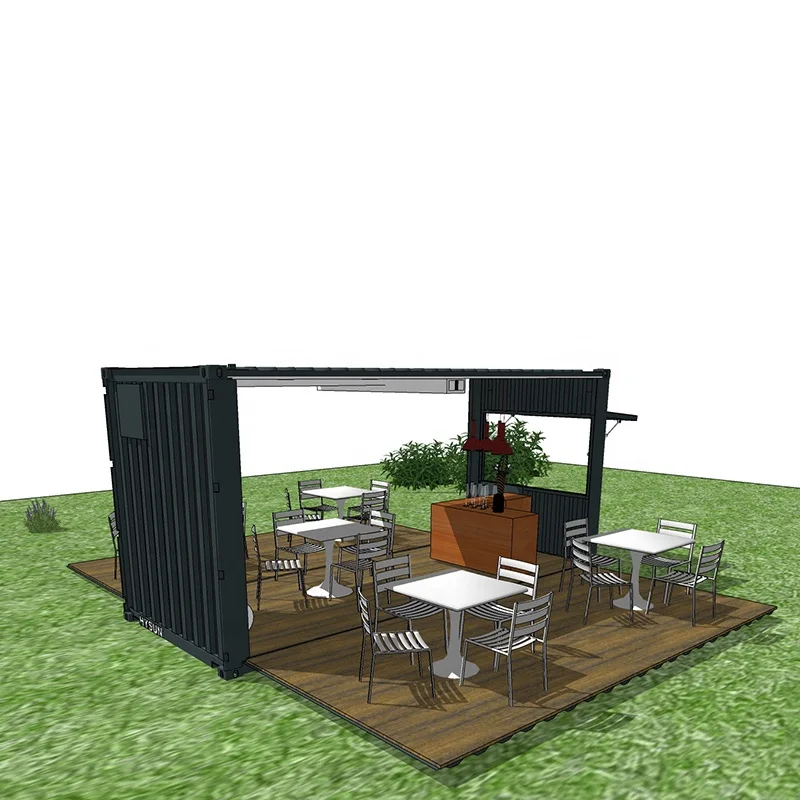

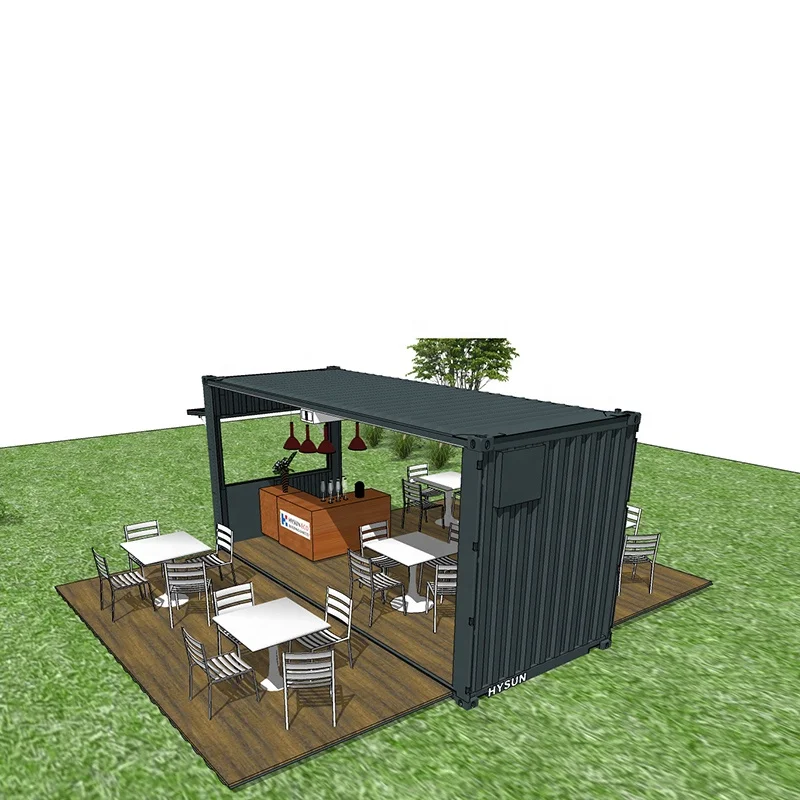

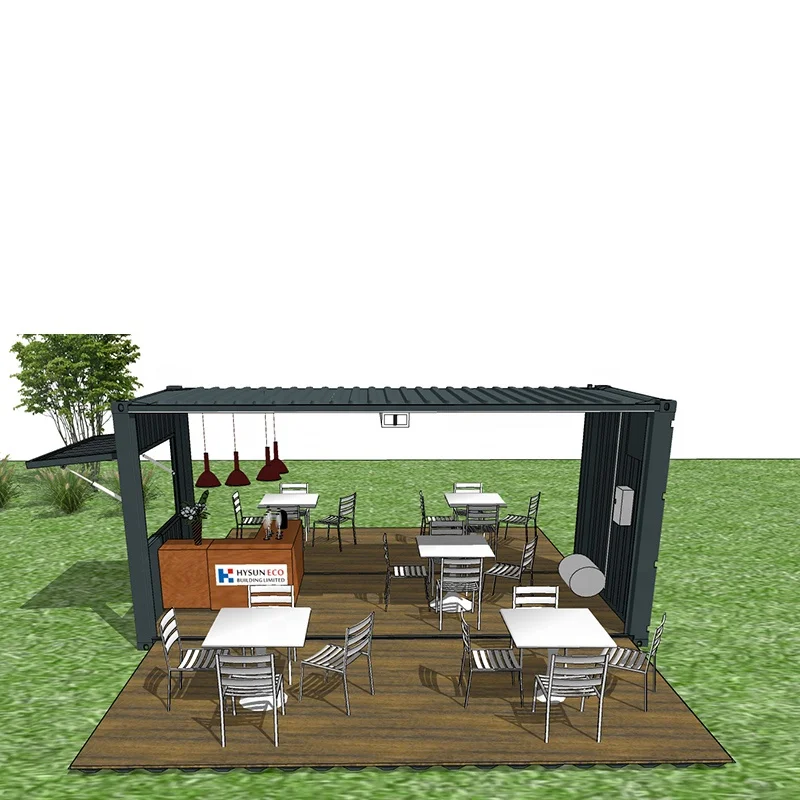

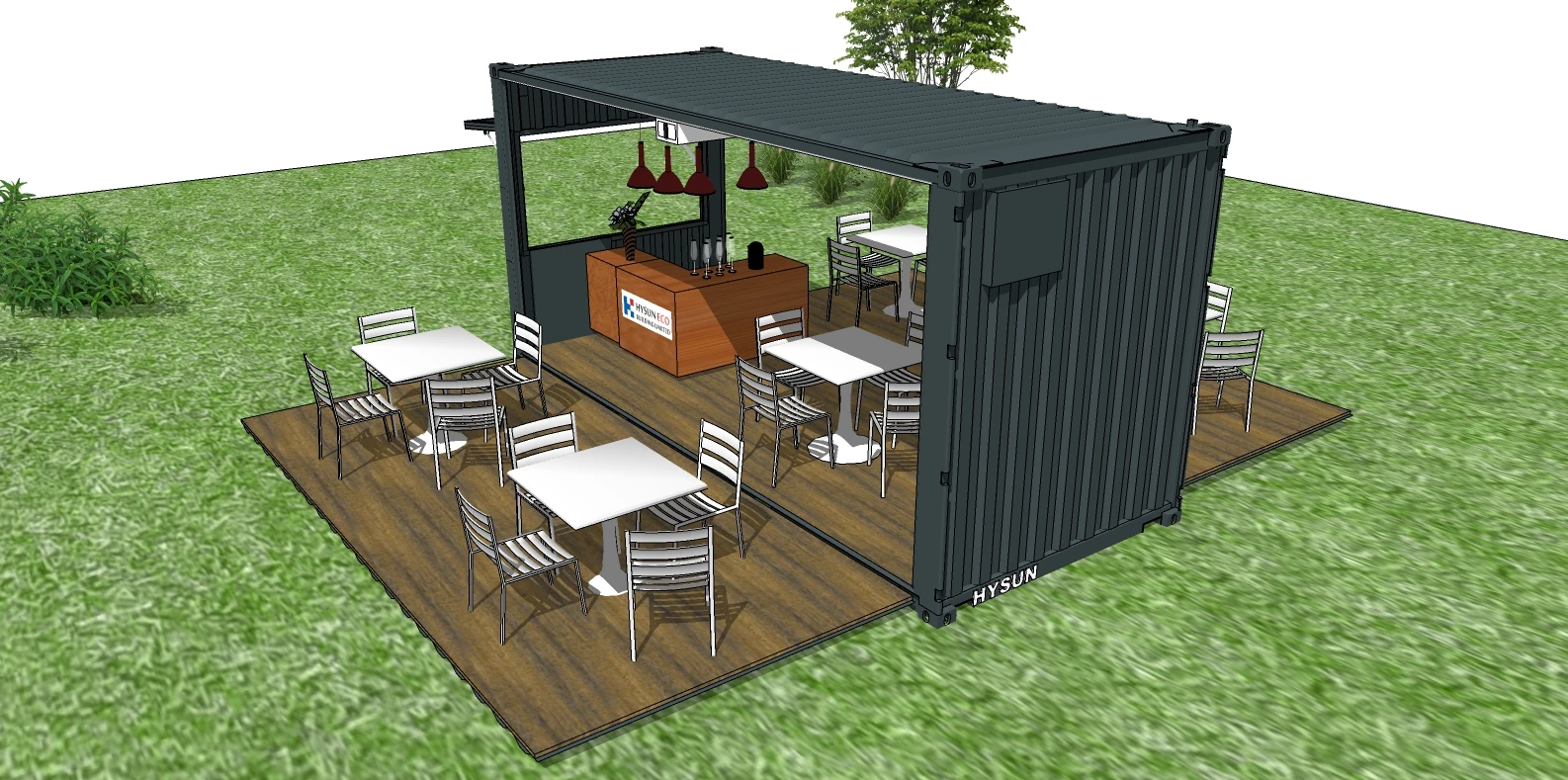

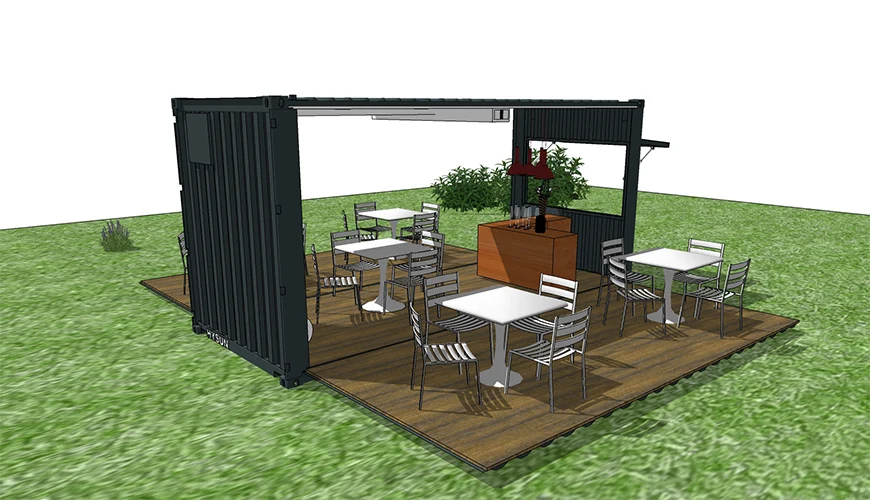

Customized Fast Food shop hinge system Pop-up container for cafe bar
ISO SHIPPING CONTAINER STRUCTURE | ||
Floor beam | 6mm steel | |
Corner | iron casting | |
Post | 6mm steel, 4 pcs | |
Wall panel | 2mm steel | |
Roof panel | 2mm steel | |
Floor | hardwood | |
Add door, window, wall decoarion, electrical system, plumping system,etc | ||
Container frame | ISO 20'GP/HQ container, new. CIMC container, pre-cutting and welding before painting under customzied design. No ending door default. Material: Corten A steel | ||
Container Wall and Roof | Material: Corten A steel | ||
Hatch | Pre-design a hatch plate for possible to supplier gas, wifi, electrical power, plmbing pipe Size: 350*350mm default default Q'ty: 1 set | ||
Container floor | ISO martime plywood floor Plywood thickness : 28 mm Plywood moisture content : Less than 14 % Plywood ply number : Min. 19 plies Plywood material : Apitong, Hardwood, Bamboo, OSB | ||
container paint | Inside wall paint thickness: 75µ, default RAL7035. Outside Wall paint thickness: 30+40+40=110µ Outside Roof paint thickness: 30+40+50=120µ Chassis paint thickness: 30+200=230µ Painting:white or RAL color. | ||
Hingle Sytem | Hinge system for folding the both side floor With remote control | ||
Service Door | special section steel sheet To cover the route to fix the wires of hinge system | ||
Pop up window | gas spring pop up window. Size: 2000*1000mm with 2 pcs gas spring. | ||
Service Door | Size: 700*600mm or per your advise. | ||
internal wall | container wall. Paint: default RAL 7002. | ||
Ceiling | 50mm rock wool sandwich panel. Face: 0.5mm PPGI both side Insulation: 50mm rock wool Color: RAL9002 | ||
Floor | 28mm solid timber floor | ||
Distrubute box | per drawing, 1 for light, 1 for socket, 1 for kitchen, 1 for power. 1 set for a apartment. | ||
RCD | per drawing- legrand | ||
Electrical wire | full set- Pre-install into wall | ||
Outlet | Per drawing. Default Brand:Legrand CE, UL, AZ certification available. | ||
light-Bar area | LED downlight. Brand: PHILIPS or same level. | ||
Switch | per pic, color: white. Default Brand:Legrand | ||
Industrial plug | 1pcs Industrial Plug | ||
Inside wall paint thickness: 75µ, default RAL7035.
Outside Wall paint thickness: 30+40+40=110µ
Outside Roof paint thickness: 30+40+50=120µ
Chassis paint thickness: 30+200=230µ
Painting: white or RAL color.
Outside Wall paint thickness: 30+40+40=110µ
Outside Roof paint thickness: 30+40+50=120µ
Chassis paint thickness: 30+200=230µ
Painting: white or RAL color.
Container Body
Container Part:
1.Pre-cut the hole of window and door
2.With necessary support system for the cut area
3.Paint under client demand. (pls offer the RAL No.)
1.Pre-cut the hole of window and door
2.With necessary support system for the cut area
3.Paint under client demand. (pls offer the RAL No.)
4.Special demand from client, such as logo, brand
Will pre-welding the steel frame of window and door according the size of each window/ door.

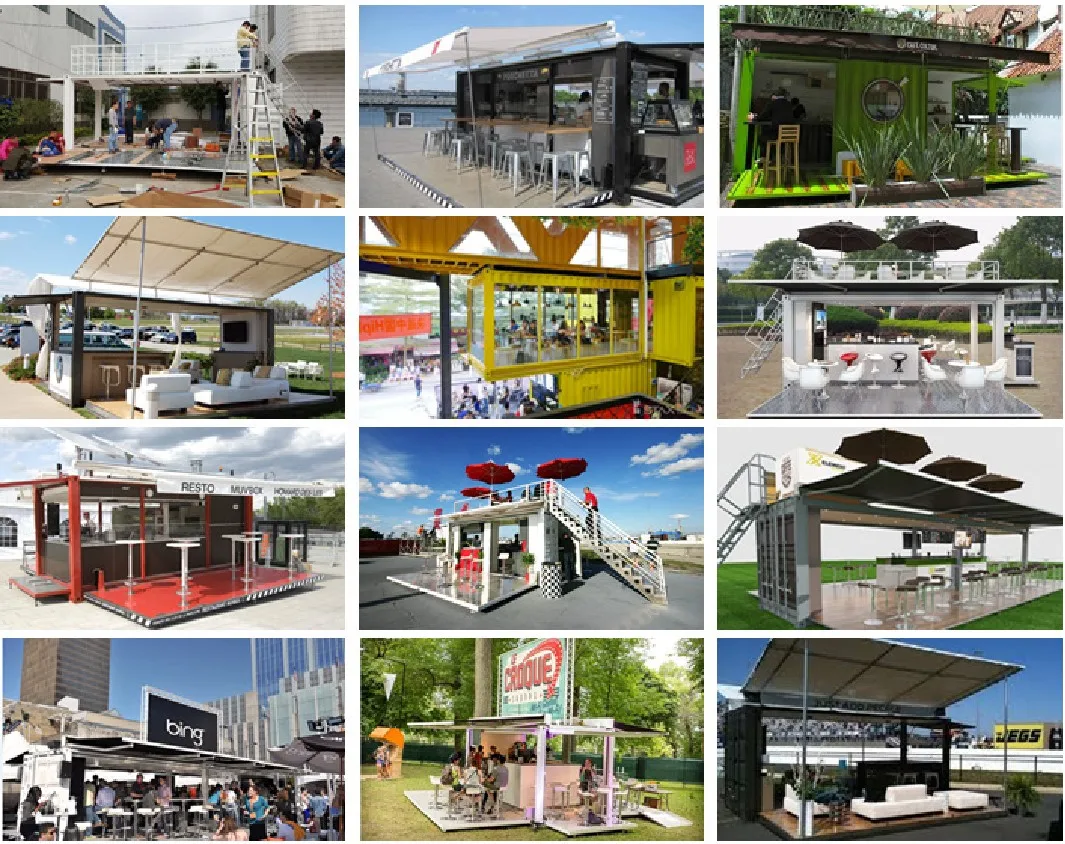

Wide usage of Hysun Modified House
Hysun function modular unit, they can use separately or felxable to be combined together in vary feild.
More options
Hysun is a trun key house solution supplier. We also offer many other items on option. Pls feel free to contact us if any interest or any demand.
Soft Reminder:
1. All hysun container houses are available to be customized.
2. The price and package in the list is only for refer and the final price would offer together with drawing and final material.
Pls contact us for detail material list and price.
Our Advantages
A little higher space, A more comfortable feeling
Valid in 20GP/20HQ
1. 20GP:
external size: 6055*2438*2590mm
internal size: 5800*2200*2200mm
2. 20HQ:
external size 6055*2438*2896mm
internal size: 5800*2200*2500mm
1. 20GP:
external size: 6055*2438*2590mm
internal size: 5800*2200*2200mm
2. 20HQ:
external size 6055*2438*2896mm
internal size: 5800*2200*2500mm
Hysun Modified Container House
Hysun is always insisted on using new customized containers to convert to your house. They are made of Corten A steel under SGS standard, important, they are ready to cut and welding from your design before painting also the same material and quality as the ISO maritime container.
They are different from the most way in the market to cut a new maritime container then paint(this way also would damage the original paint of maritime container and reduce the life span of the house).
For the materials, we are always insisted on high quality, too.
They are different from the most way in the market to cut a new maritime container then paint(this way also would damage the original paint of maritime container and reduce the life span of the house).
For the materials, we are always insisted on high quality, too.
Hysun Container Frame
New Customized ISO shipping container, new frame, new paint.No second shipping container to modified.
Hysun containers are longer life span and less maintain.
Meet CSC standard. Valid to issue CSC certification.
SOC(Shipper Owner Container) to worldwide.
Hysun containers are longer life span and less maintain.
Meet CSC standard. Valid to issue CSC certification.
SOC(Shipper Owner Container) to worldwide.
Hysun Use STEEL CORTEN-A
Corten A is a representative steel type of the Cu-P series steel in the United States. They are low-alloy high-strength
atmospheric corrosion-resistant structural steels, and are called weathering steels, too. Weather-resistant steel, that is,
atmospheric corrosion-resistant steel, is a series of low-alloy steels between ordinary steel and stainless steel. It is good
properties in drawing, forming, welding, abrasion, high temperature, fatigue resistance, etc.
atmospheric corrosion-resistant structural steels, and are called weathering steels, too. Weather-resistant steel, that is,
atmospheric corrosion-resistant steel, is a series of low-alloy steels between ordinary steel and stainless steel. It is good
properties in drawing, forming, welding, abrasion, high temperature, fatigue resistance, etc.
Weather resistance: 2-8 times that of carbon steel
Printability: 1.5-10 times that of carbon steel.
At the same time, it has the characteristics of rust resistance,corrosion resistance, and life extension, thinning and consumption reduction, labor-saving, and energy saving. Weathering steel is mainly used for steel structures such as railways, vehicles, bridges, and towers that have been exposed to the atmosphere for a long time. It is used to manufacture structural parts such as containers, railway vehicles, petroleum derricks, seaport buildings, oil platforms and containers containing hydrogen sulfide corrosive media.
Hysun Service
As a professional manufacturer in prefabricated house, Hysun provide the following services with professionalism and great sense of responsibility.
1. Customized drawings design
2. Competitive quotations
3. Professional suggestions for cost effective solution
4. Project installation instruction or supervision
We also guantee:
Product Quality
Hysun offer 1 year gurantee for Hysun high-end container house. All product should be checked quality from raw material, during production to before load. We make sure every parts arrive to your hand are perfect.
On-time Shipment
Hysun also guarantee on time delivery time under our experienced workers and modern machine under good management.
All steel part and materials shall be packed carefully under full protection.
Company Profile
HYSUN Company View
HYSUN ECO BUILDING CO.,LTD is specialized in container house solution and steel structure since 1993.
HYSUN become an expert in container house R&D, produce and install under our full experience design team, skilled workers and advanced equipment.
Based on the plants in Shanghai, Chengdu, and Weifang, HYSUN offers the modified container, flat pack container, and expandable container for commercial use such as bar, kitchen, restaurant, tourist and hotel, accommodation, office, health center and so on.
HYSUN has sent the houses to 44 countries. Our main market is Australia, Europe, South America and North America.
HYSUN offers the service from design to the installation guide. Meantime, Hysun offers a 1-year warranty and a 5-year guarantee for our house.
HYSUN become an expert in container house R&D, produce and install under our full experience design team, skilled workers and advanced equipment.
Based on the plants in Shanghai, Chengdu, and Weifang, HYSUN offers the modified container, flat pack container, and expandable container for commercial use such as bar, kitchen, restaurant, tourist and hotel, accommodation, office, health center and so on.
HYSUN has sent the houses to 44 countries. Our main market is Australia, Europe, South America and North America.
HYSUN offers the service from design to the installation guide. Meantime, Hysun offers a 1-year warranty and a 5-year guarantee for our house.
Office
Udana, Sri Lanka
We got a container school from Hysun. It is really so convenience for us. The containers is ready electricity and plumpbing, we also get the perfect furniture and all related fitiings. We got a turn-key solution.
Gustavo Falciroli, Australian
I really love the house. I have passed my hand drawing and HYSUN make it become real. It is exactly what I want, 1 bedroom, 1 saloon and equipment with toilet room and kitchen. I put the house in my garden, my kids like staying inside.
Gerald Gimeno, Romania
They are the best flat pack containers we've gotten. We have looked for 20ft container in SOC ship until we found Hysun. All details are prefect and our clients are satisficed with the houses. Meantime, Hysun can do different size and can offer so fashion design in short time.
Basil Azim, America
I have worked with Hysun 4 years. Before we worked in tiny house, Hysun offered some small house for us. And now we are working in booths, bars, restaurants, hotels. We design together and work as a team. We like the quality, especially the paint. Nobody like to spend more in after-sale. The first house we got from Hysun is also in good condition.
We got a container school from Hysun. It is really so convenience for us. The containers is ready electricity and plumpbing, we also get the perfect furniture and all related fitiings. We got a turn-key solution.
Gustavo Falciroli, Australian
I really love the house. I have passed my hand drawing and HYSUN make it become real. It is exactly what I want, 1 bedroom, 1 saloon and equipment with toilet room and kitchen. I put the house in my garden, my kids like staying inside.
Gerald Gimeno, Romania
They are the best flat pack containers we've gotten. We have looked for 20ft container in SOC ship until we found Hysun. All details are prefect and our clients are satisficed with the houses. Meantime, Hysun can do different size and can offer so fashion design in short time.
Basil Azim, America
I have worked with Hysun 4 years. Before we worked in tiny house, Hysun offered some small house for us. And now we are working in booths, bars, restaurants, hotels. We design together and work as a team. We like the quality, especially the paint. Nobody like to spend more in after-sale. The first house we got from Hysun is also in good condition.
Packing&Delivery
Transport and ship with SOC style.
SOC: Shipper own container
FAQ
1. who are we?
We are based in Sichuan, China, start from 2016,sell to South America(20.00%),Northern Europe(15.00%),Mid East(15.00%),Domestic Market(15.00%),North America(15.00%),Eastern Europe(12.00%),South Asia(8.00%).
We are based in Sichuan, China, start from 2016,sell to South America(20.00%),Northern Europe(15.00%),Mid East(15.00%),Domestic Market(15.00%),North America(15.00%),Eastern Europe(12.00%),South Asia(8.00%).
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
container house,martime container,modified container,expandable container,flat pack container
4. why should you buy from us not from other suppliers?
1. Since 1993 focus in steel structure 2. Powerful factory with modern machine
3. Professional Team in design and sale
4. Full Service from design to after-sale
5. Quality Control on whole production
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
container house,martime container,modified container,expandable container,flat pack container
4. why should you buy from us not from other suppliers?
1. Since 1993 focus in steel structure 2. Powerful factory with modern machine
3. Professional Team in design and sale
4. Full Service from design to after-sale
5. Quality Control on whole production
5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish
