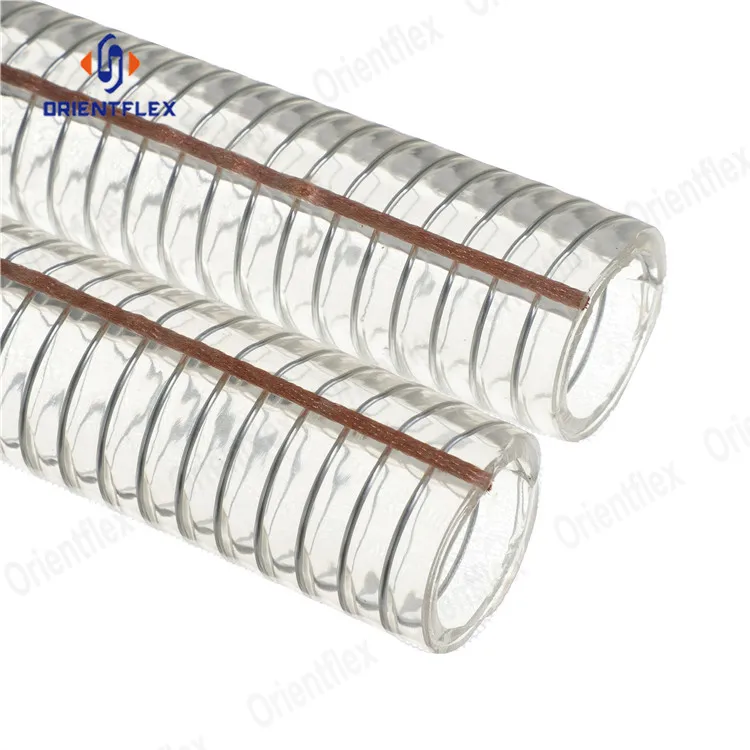

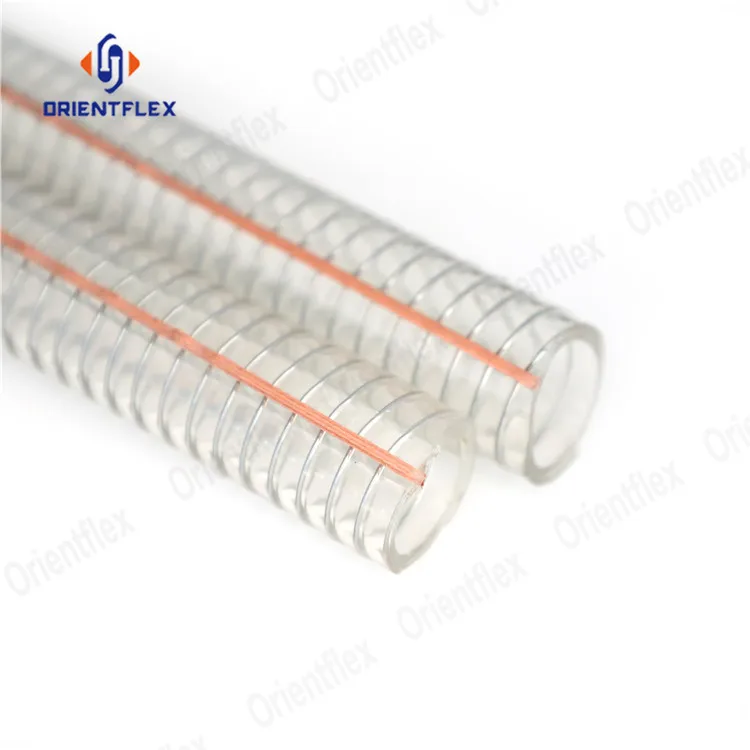

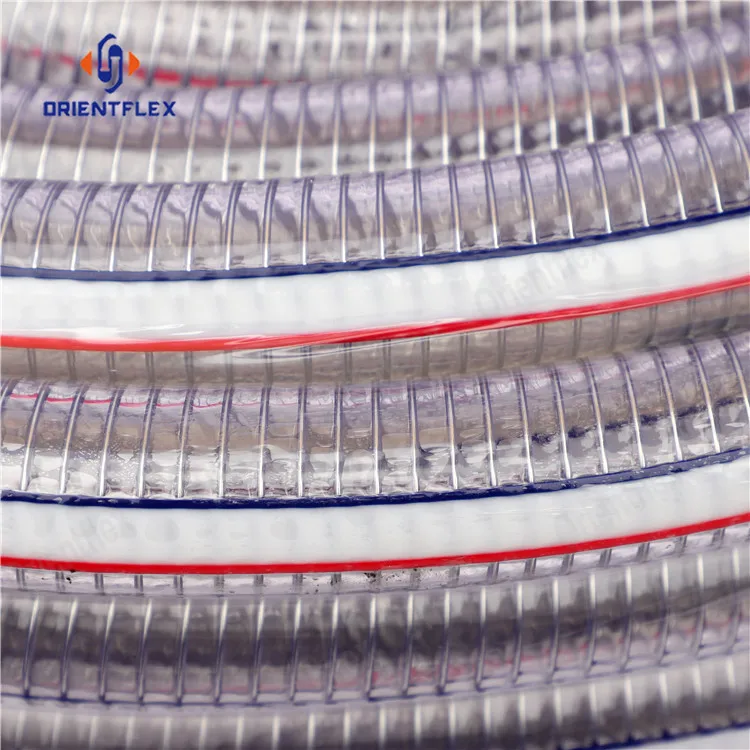

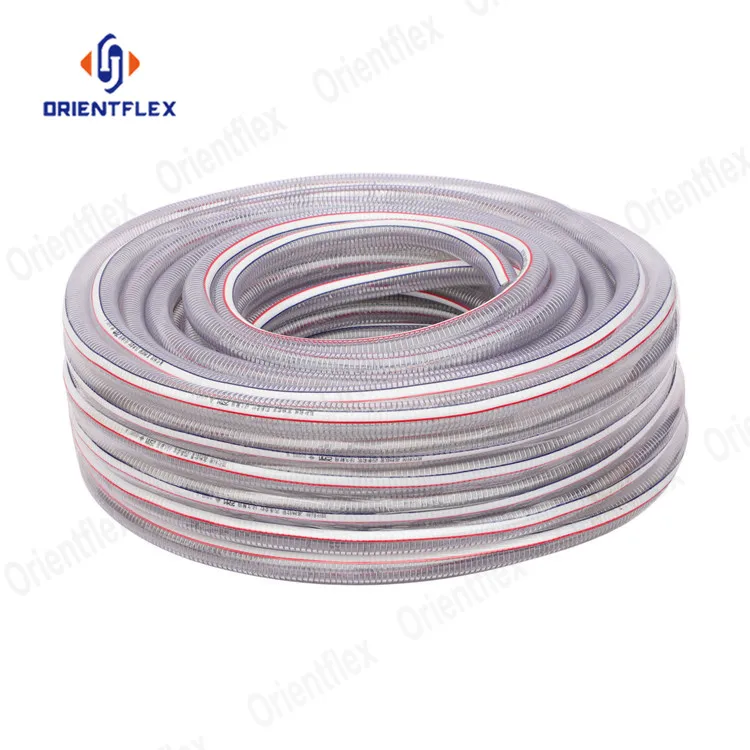

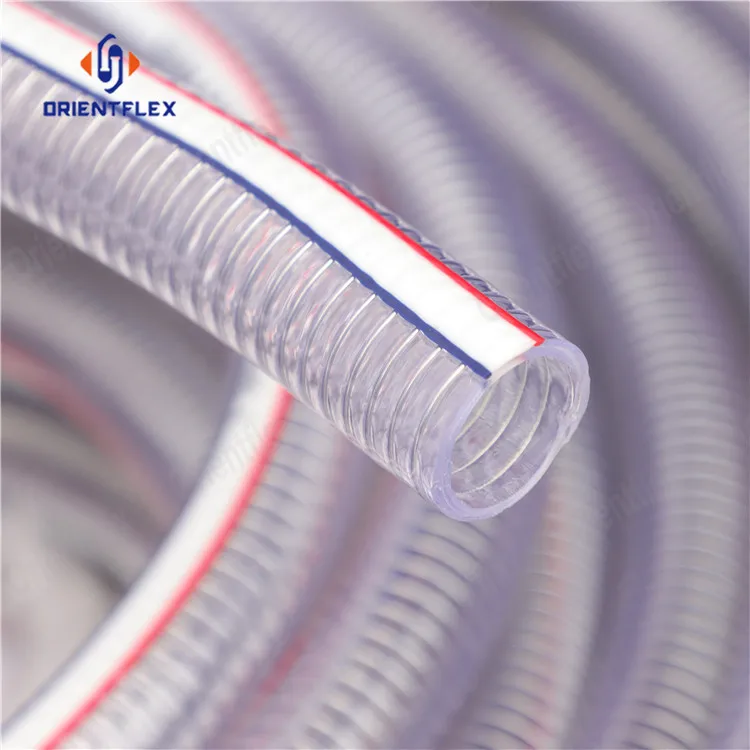

PVC Steel Wire Hose Flexible Transparent Hose In Oilfield

Product Overview

Description



Application:

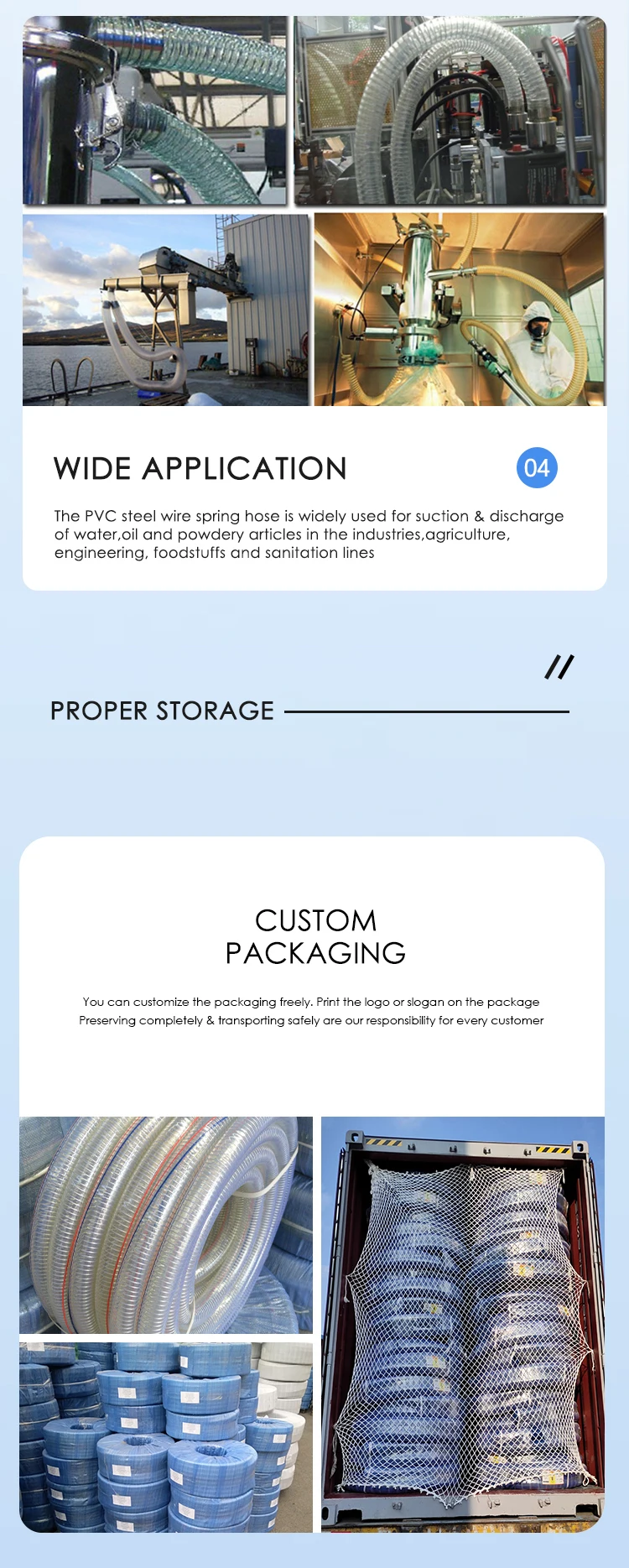

The PVC steel wire spring hose hose is widely used for suction and discharge of water,oil and powdery articles in the industries,agriculture,engineering, foodstuffs and sanitation lines,the hose used for foodstuffs is made of special food grade pvc.It is non-toxic,light,without odor and transparent.
The food grade PVC steel wire spring hose can be used for conveying milk,beverage,distilled liquor,beer,jam and other foods. We can also insert the cooper wire into hose.This hose can avoid the block of the flowing in the hose due to static,and protect users from getting electric shock or electric current impingement.

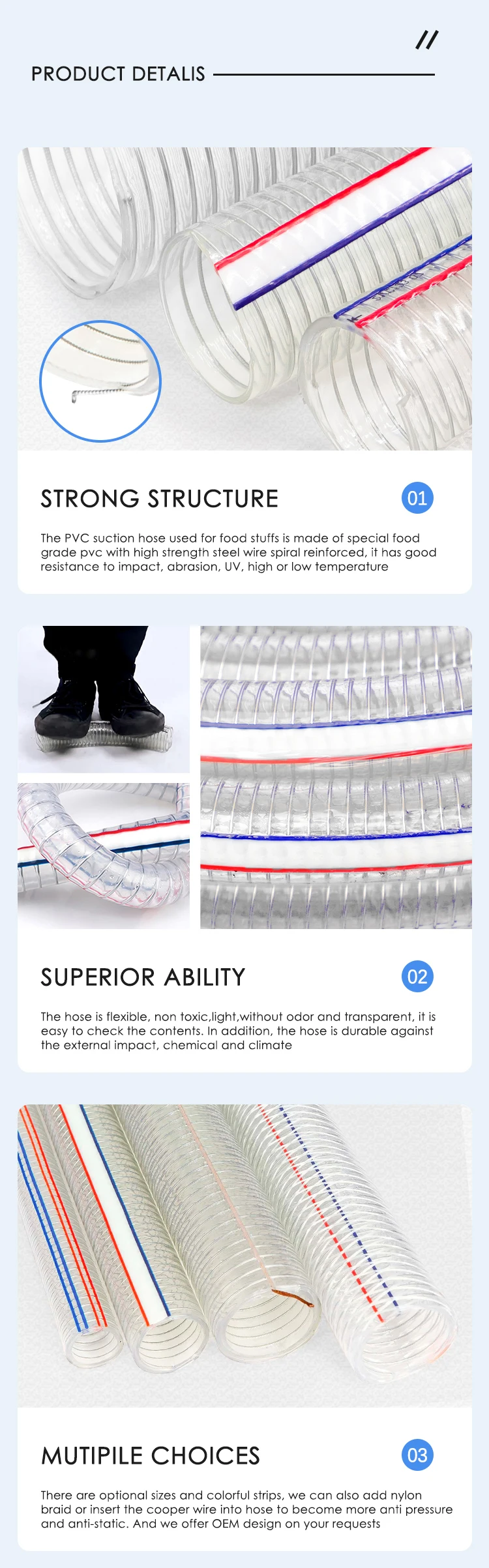

Characteristic:

Lightweight,flexible with small bending radius.

Durable against the external impact,chemical and climate

Transparent, easy to check the contents.

Anti-UV,anti-aginglong working life



Item Code	I.D		O.D	W.P.		B.P.		L
	inch	mm	mm	psi	bar	psi	bar	m/roll
PSWH-32	1-1/4"	32	41	102	7	290	20	40
		32	36	73	5	276	19	50
		32	38.6	73	5	276	19	50
		32	41	87	6	290	20	50
		32	41.6	87	6	290	20	50
PSWH-38	1-1/2"	38	48	87	6	261	18	40
		38	42.8	73	5	232	16	50
		38	44	73	5	232	16	50
		38	44.6	73	5	232	16	50
		38	45.5	87	6	261	18	50
		38	46.4	87	6	261	18	50
PSWH-45	1-3/4"	45	56	87	6	247	17	40
		45	50	73	5	232	16	50
		45	52	73	5	232	16	50
		45	53	73	5	232	16	50
PSWH-48	1-7/8"	48	59	73	5	232	16	40
		48	54.6	73	5	218	15	50
		48	56.4	73	5	218	15	50
		48	58	73	5	218	15	50
PSWH-50	2"	50	62	73	5	232	16	40
		50	55.6	73	5	145	10	50
		50	57.2	73	5	203	14	50
		50	58.2	73	5	203	14	50
		50	60	73	5	218	15	50
PSWH-58	2-5/46"	58	70	73	5	218	15	40
PSWH-64	2-1/2"	63	80	73	5	203	14	30
		64	72.3	58	4	145	10	40
		64	75	58	4	145	10	40
		64	76	58	4	145	10	40
		64	77	58	4	145	10	40
PSWH-75	3"	75	91	73	5	189	13	30
		75	84	58	4	145	10	40
		75	85	58	4	145	10	40
		75	87	58	4	145	10	40
		75	89	58	4	145	10	40
PSWH-90	3-1/2"	90	108	58	4	174	12	20
PSWH-100	4"	100	118	44	3	145	10	20
		102	112	44	3	145	10	30
		102	114	44	3	145	10	30
		102	115	44	3	145	10	30
		102	118	44	3	145	10	30
PSWH-110	4-3/8"	110	123	44	3	145	10	20
PSWH-114	4-1/2"	114	126	44	3	145	10	20
PSWH-117	4-5/8"	117	133	44	3	145	10	20
PSWH-127	5"	127	143	44	3	145	10	20
PSWH-140	5-1/2"	140	156	44	3	145	10	10
PSWH-152	6"	152	170	44	3	145	10	10
PSWH-160	6-5/16"	160	176	44	3	145	10	10
PSWH-180	7"	180	196	44	3	145	10	10
PSWH-200	8"	200	224	44	3	145	10	10
