SD card MDVR, Mobile DVR Wholesale Tracking Stream Recording 1080P 8 Channel Car Bus AHD MDVR Mobile DVR Dashcam Car Black Bo
- Category: >>>
- Supplier: Shenzhen,Baiwei,E-Commerce,Industrial,Co.,Ltd.
Share on:
Product Overview
Description
4 CH 8 channels MDVR 3G/4G Wi-Fi GPS sd card car dvr camera 960p 1080p mobile DVR
Products Description:
Spec:
| Parameters | |||
| system | Language | Chinese/English/Russian (can be customized) | |
| Operation interface | OSD Menu | ||
| Password security | User Password and Administrator Password | ||
| GUI | Image OSD | Can connect to external AV display and VGA display. Setup system parameters with the remote control | |
| Interface | |||
| Audio and Video | Video Input | 4CH 1080P/720P input ,aviation connector 1.0VP-P,75Ω | |
| Video Output | 1CH Composite AV-output, aviation connector 1.0Vp-p, 75Ω, 1CH VGA-output | ||
| Audio input/output | 4CH input, 1CH output, aviation connector | ||
| Compression Format | Encoding format:G726_40KBPS, Sampling rate: 8000 sample bit width,16bit Sampling points:320; | ||
| Preview | 1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function | ||
| Resolution | Support 1080P/960P/720P/D1/HD1/CIF, MAX:4 channels 1080p | ||
| Video Quality | 1-8 levels, 1 is the highest level, 8 is the lowest level. | ||
| Video Standard | PAL:100fps/s,CCIR625 line,50 fields | ||
| NTSC:120fps/s,CCIR525 line,60 fields | |||
| 1080P:1536Kbps~ 8Mbps, multi levels video quality optional | |||
| 720P:1000 Kbps ~ 6Mbps, multi levels video quality optional | |||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional | |||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional | |||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional | |||
| Record Mode | The default: auto recording after power on. | ||
| Ignition recording, alarm trigger recording and manual recording are supported. | |||
| Recording & Storage | File Format | H.265 | |
| File System | Special file system or FAT32 | ||
| SD Card | Support 2 SD card,Max 256G/each, cyclic recording. | ||
| Upgrade | Support USB flash disk updating / SD card upgrade | ||
| Recording playback | Video Search | Search video data by Record Time/Record Type etc | |
| playback | Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time | ||
| Support x 2,x4,x8,x16. fast forward or fast backward play | |||
| Alarm | Alarm input | 4CH alarm input, with alarm linkage function | |
| Alarm output | 2CH alarm output | ||
| G-Sensor | Support Built-in G-sensor, Alarm linkage trigger | ||
| Communication ports | RS232 | 1*RS232 | |
| RS485 | 1*RS485 | ||
| RJ45 interface | 1*RJ45 | ||
| USB | 1*USB | ||
| Wireless communication | 3G | Built-in 3G module(WCDMA/EVDO/TD-SCDMA) | |
| 4G | Built-in 4G module((TD-LTE/FDD-LTE) | ||
| WIFI | Built-in wifi module((2.4G) | ||
| GPS | Support Dual Module of GPS/BD, | ||
| Software | CMSV6 Client | 4G remote real-time monitoring, GPS positioning, remote management, recording, playback, intercom, monitoring, track playback, alarm processing. | |
| Mobile App | Remote real-time monitoring, GPS positioning, recording, playback, intercom, monitoring, and alarm prompts are available anytime and anywhere. | ||
| PC playback | Video playback, track playback and analysis | ||
| Power | Power Management | wide voltage power supply, Overload / undervoltage / short circuit protection, low voltage automatic shutdown, Support timer switch, delay shutdown function. | |
| Input voltage | DC:+8V ~ +36V | ||
| Output voltage | [email protected],[email protected] | ||
| Operation Environment | Temperature | -20℃ to +70℃ | |
| Humidity | 20% to 80% | ||
| Unit Size | 168mm*143mm*56mm | ||
| Box Size | 20.5*14.5*20.5cm | ||
| Carton Size | 59.5*42.5*42.5cm 16pcs/carton | ||
Accessory:
MDVR extend Function:
PC Software online view:
APP remote view:
Video Playback:
Test:

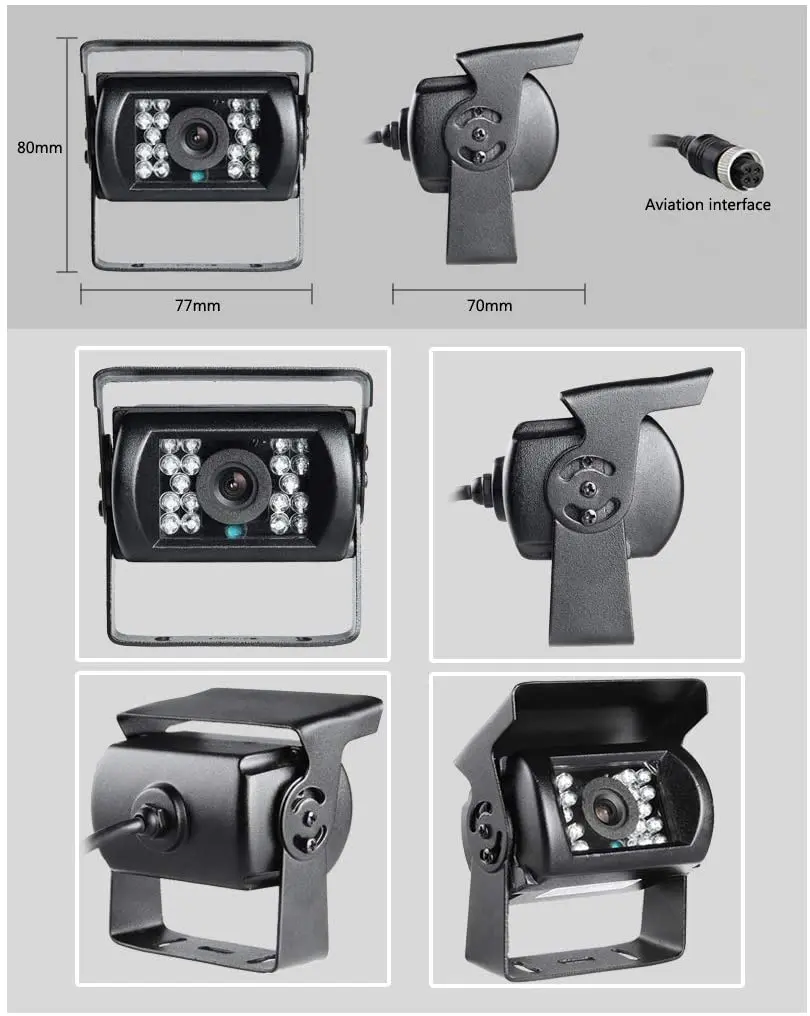

Mobile DVR other cameras:

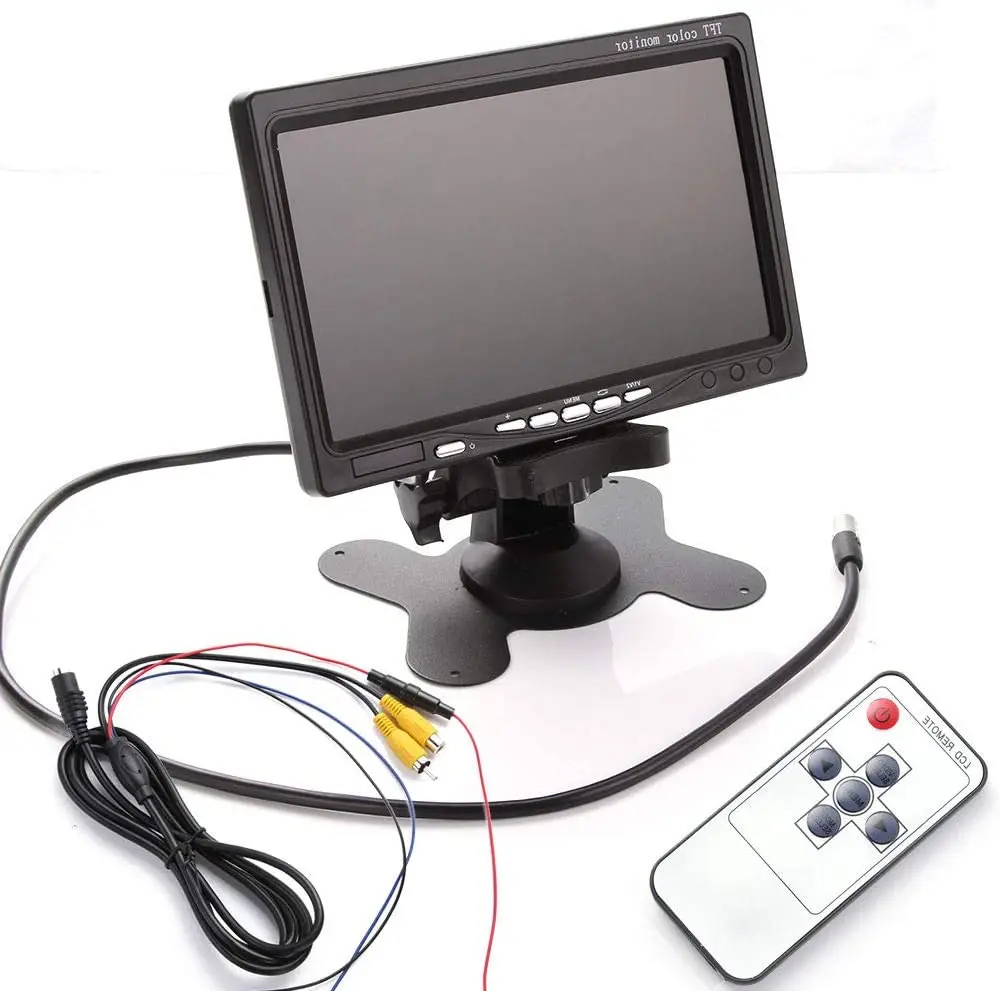

Mobile DVR Related Products:
Pacakge:
Application:
Exhibition:
Delivery:
Packing
Our usually packing is neutral color box, we also accept OEM package and master carton order over 1,000pcs.
Delivery
We cooperate with popular Express company such as DHL, FedEx, UPS etc. For small order we use Express, for mass order usually by air or by sea, up to your choice.
Company:
Advanced production facilities
We have 4 SMT lines, all imported machines. Working 24-7 to produce about 4,000pcs PCB per day. All the mainboards are produced by ourselves, make sure the eligible quality.
Experience assembly-line workers
We have several assembly-lines to make sure devices be assemblied timely. All workers are trained and efficient, we check all the cases of the devices before assembly them, make sure there is no defect on it.
Rigorous quality control
All products will be rigorously tested before packing, we have 5 steps to control the quality: 1. Material full inspection; 2. mainborad full inspection; 3. full functions inspection(with HDD); 4. Semi-finished inspection(with HDD); 5. QC inspection before packing. Only we can do inspection with HDD on the market
FAQ:
1. What is our MOQ for the Mobile DVR?
We don't have MOQ for standard orders, for orders with printing logo MOQ is usually 20pcs, and for OEM color box the MOQ is 1,000pcs.
2. Can I apply my own tracking system to the mobile DVR?
Yes, we have powerful technical team to make your tracking system compatible with our device.
3.How can I watch the record of the video?
You can see the playback from many ways: on PC client(in the attached CD), on your mobile phone, or through the CMS to watch the video. Also you can download the video through network, it will save your time to get the SD card or HDD out of the device.
4.What is your shipment time?
Usually we arrange the order after we confirmed the deposit, and it will take 3-5 days for small order, 5-15 days for mass order.
5.What if my device doesn’t work?
You can contact our sales, and they will check what is the problem. We have one year warranty for the device, if the problem is not created by act of man, we can fix it or change the new one for you.
