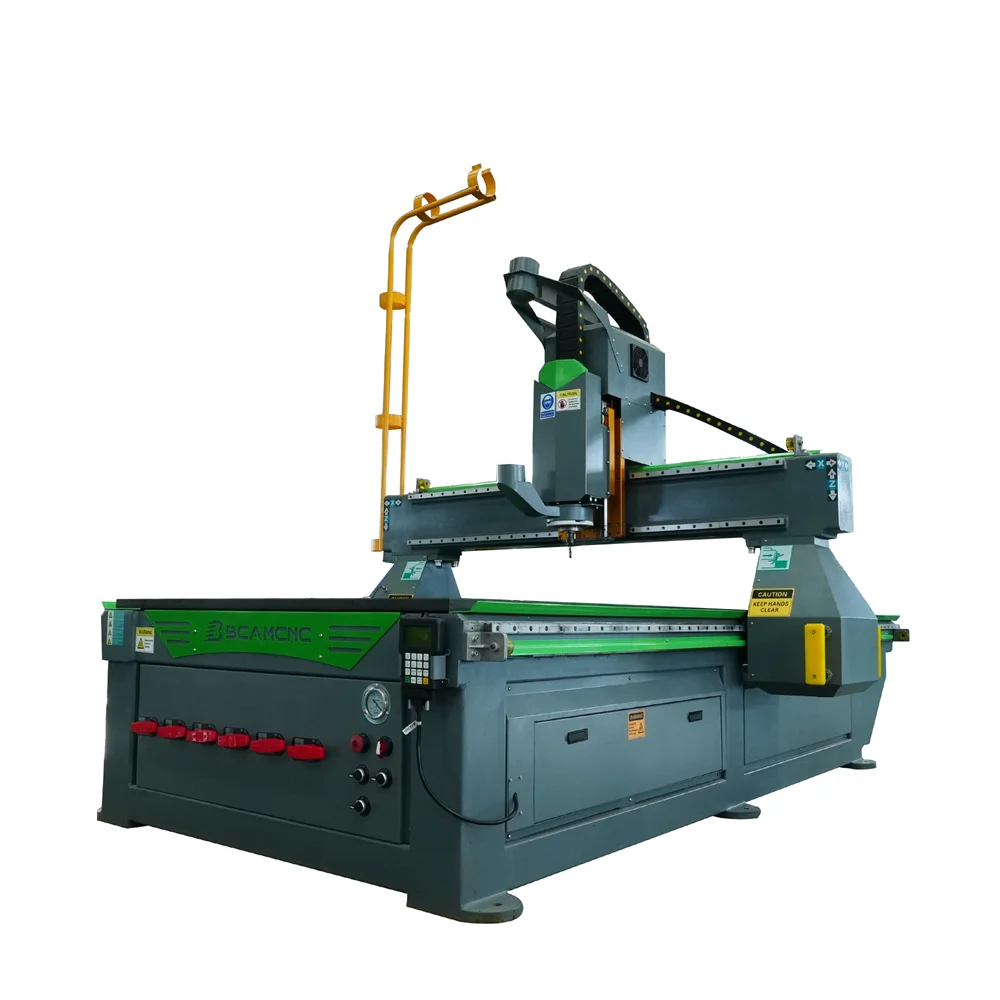

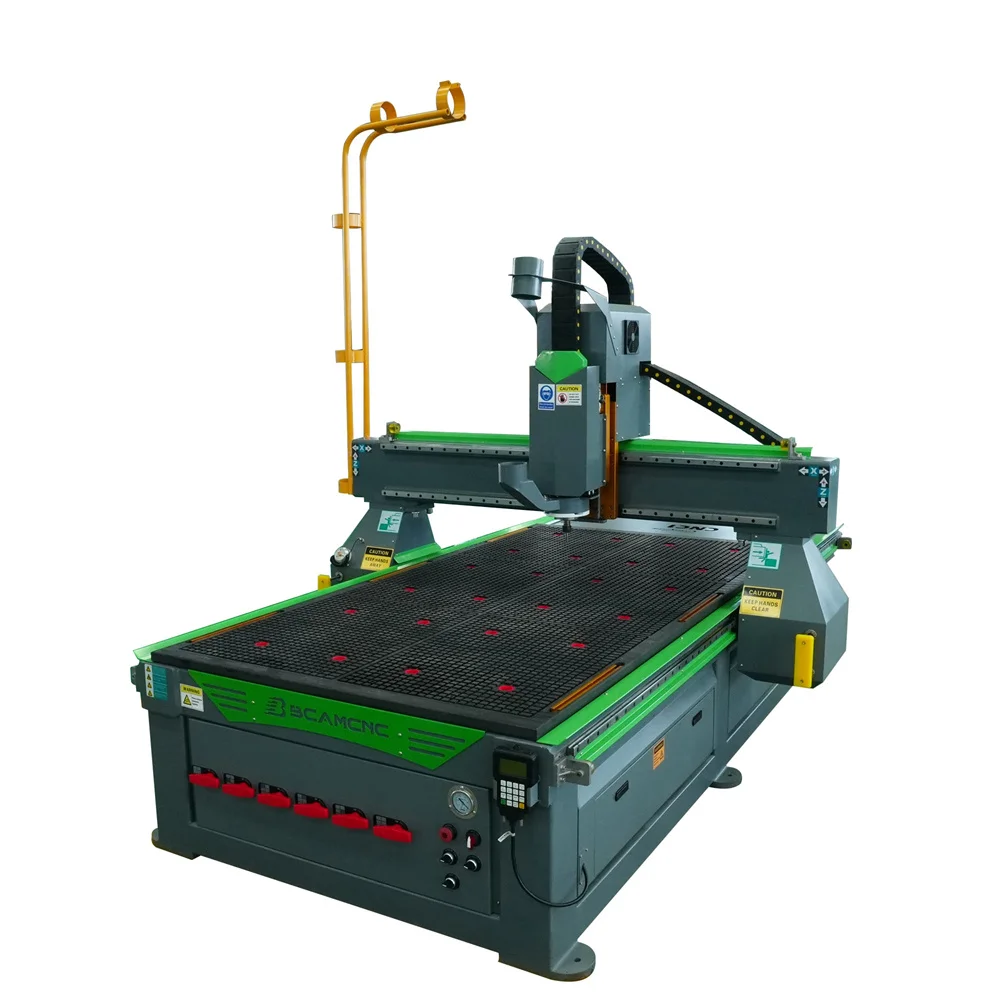

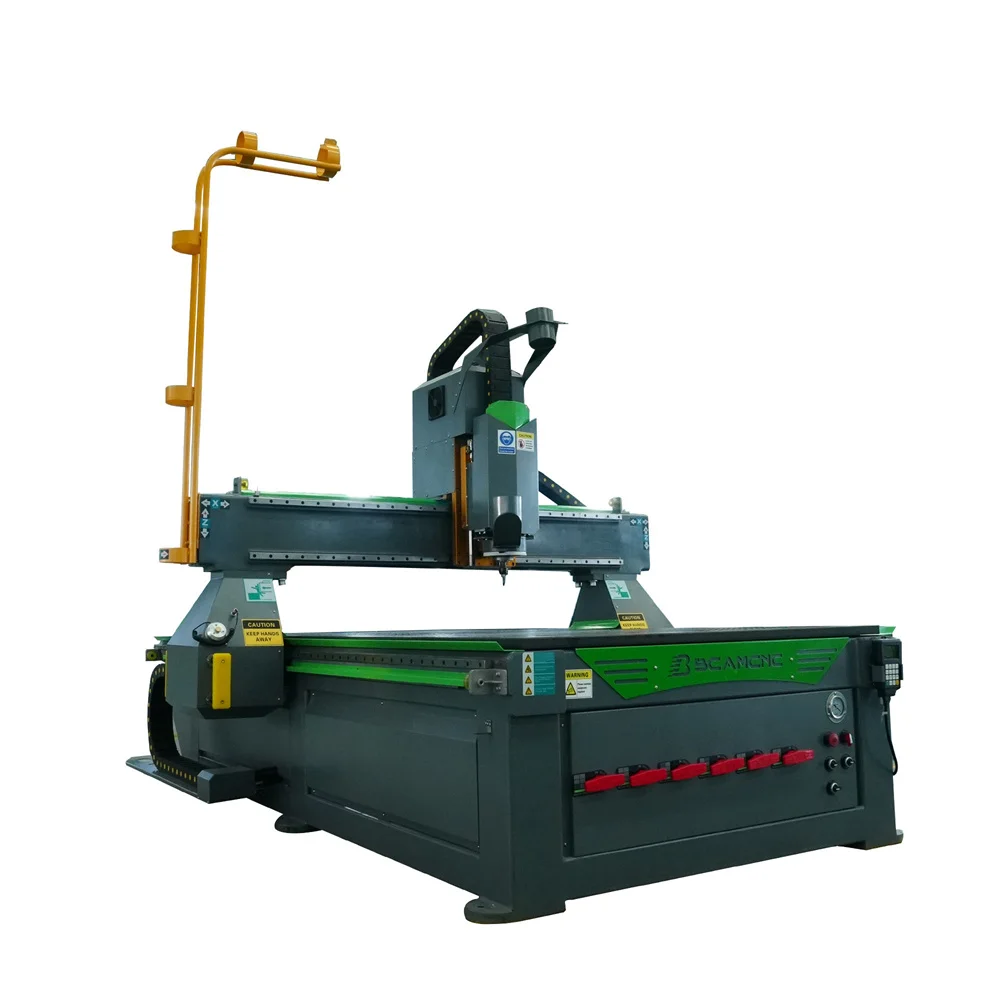

Furniture engraving machinery 1325 3d wood acrylic carving machine 4*8 ft cnc router machine
- Category: >>>
- Supplier: Spower Machinery Technology Co. Ltd. (jinan)
Share on (1600243222795):
Product Overview
Description
Furniture engraving machinery 1325 wood acrylic carving machine 4*8 ft cnc router machine
Product Description
-BCM S SERIES CNC Router, A low-cost, entry level BCAM cnc router machine
-High-quality components, for example Delta Inverter, Taiwan CSK/TBI/HIWIN guide rails,
-International sales and service(7*24h)
-Ideal for small shops or first-time CNC users
-High-quality components, for example Delta Inverter, Taiwan CSK/TBI/HIWIN guide rails,
-International sales and service(7*24h)
-Ideal for small shops or first-time CNC users

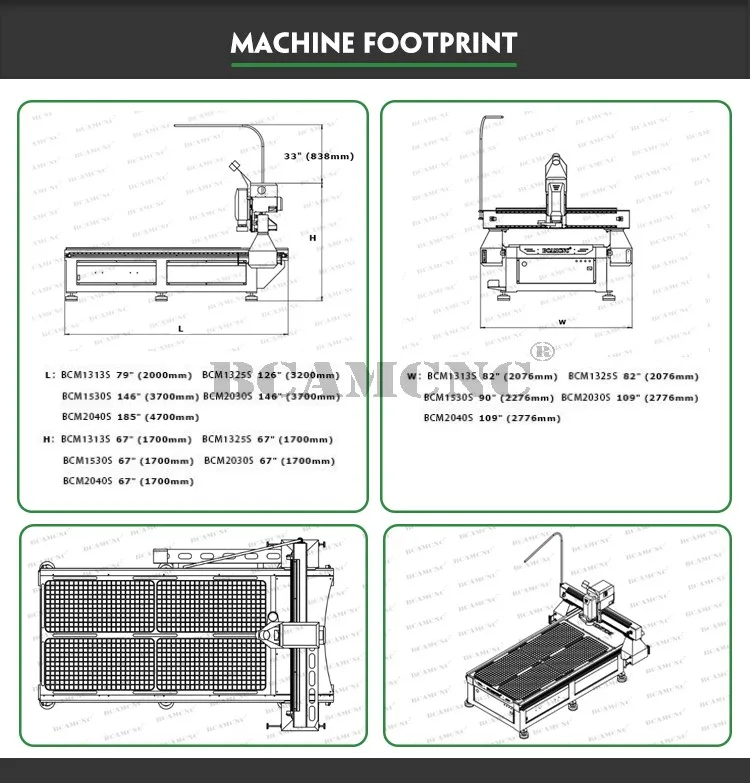

Machine model: | BCM1325S |
X, Y, Z Working Area | 1300×2500×200mm|4×8FT |
Spindle Power | 3.5kw air cooling spindle |
X, Y, Z Traveling Positioning Accuracy | ±0.05/2000mm |
Table Surface | Vacuum+T-slot Table (Optional: Full T-slot table ) |
X, Y, Z Transmission | Helical rack and pinion transmission for X and Y axis; Taiwan TBI ball screw transmission for Z axis |
Max. Rapid Travel Rate | 30m/min |
Max. Working Speed | 25m/min |
Spindle Speed | 6000-24000 rpm |
Motor and Drives | Leadshine stepper motor and drives |
Application Voltage | 380/220V; 3Phase/1Phase |
Operating System | Richauto A11 DSP control system |
Command Language | G Code |
Interface | USB |
Software Compatibility | Option: VCarve/Vcarve Pro/ ArtCAM/ UCANCAM, etc |
Products Feature

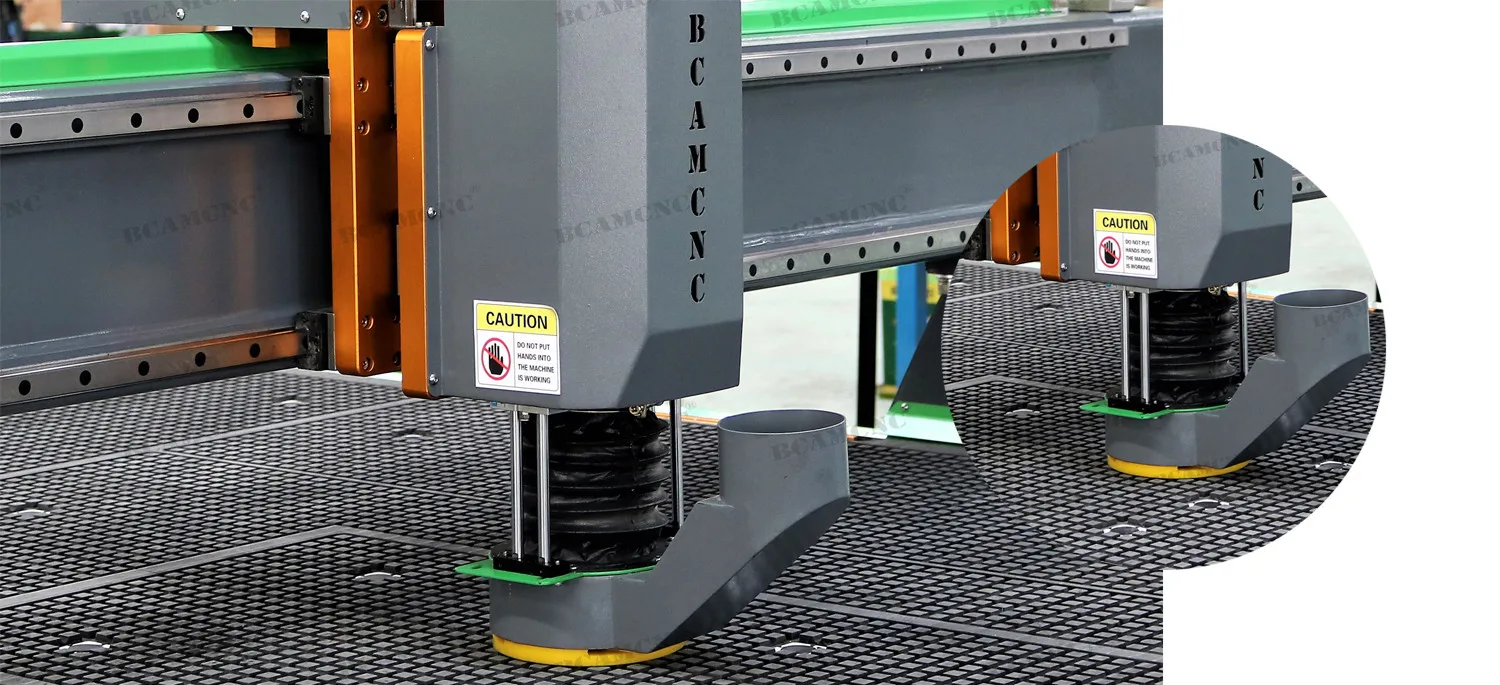

Dust-free System
BCAM original design dust-free system,
*It's adsorbed very clean,
* with bigger power, three times than ordinary designing,
That's would be very helpful if machine landed indoor workshop or closed space, protect humans' healthy.
The country's first dust-free vacuum system is inspired by the “Typhoon” cyclone. Our French engineer, Mr Ness, studied this technology for three years and finally developed it successfully which has been perfectly applied into our products, which is now a BCAM patent courtesy of our French engineer. After the improvement by Mike, our Design Director, it has been applied to our S, C, D and E series equipment. Like this video:

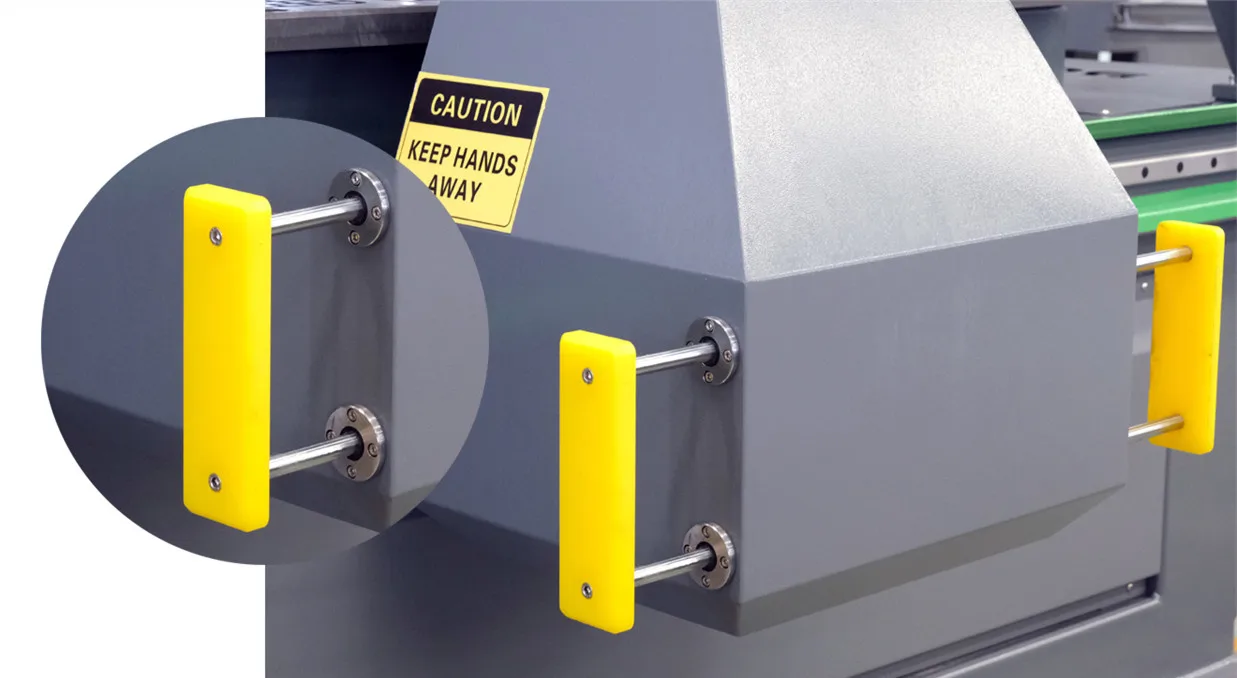

Active safety system
When people enter machine working area and impacted by the gantry, the machine would stop immediately to keep safe. Provide external emergency stop function for equipment users. meets European safety CE standards, and is very popular among users.

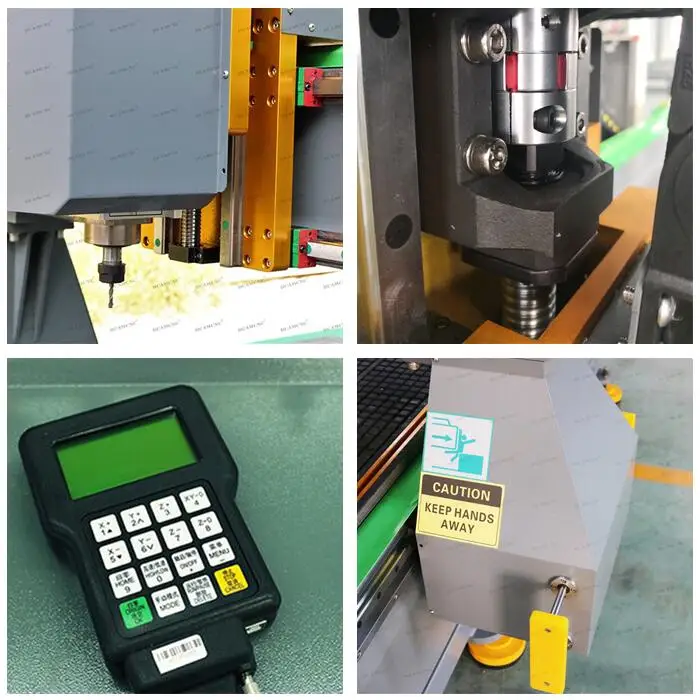

Products Details
Spindle
1325 cnc router machine could equip with a 3.5kw/4.5kw/6.0kw/7.5kw/ 9.0kw air cooling spindle. The power can be choose according to material type and thickness.
For example if you need to cut aluminum sheet and aluminum composite panels, it would be better to use a 6.0kw/7.5kw/9.0kw spindle.
Optional : Water cooling spindle

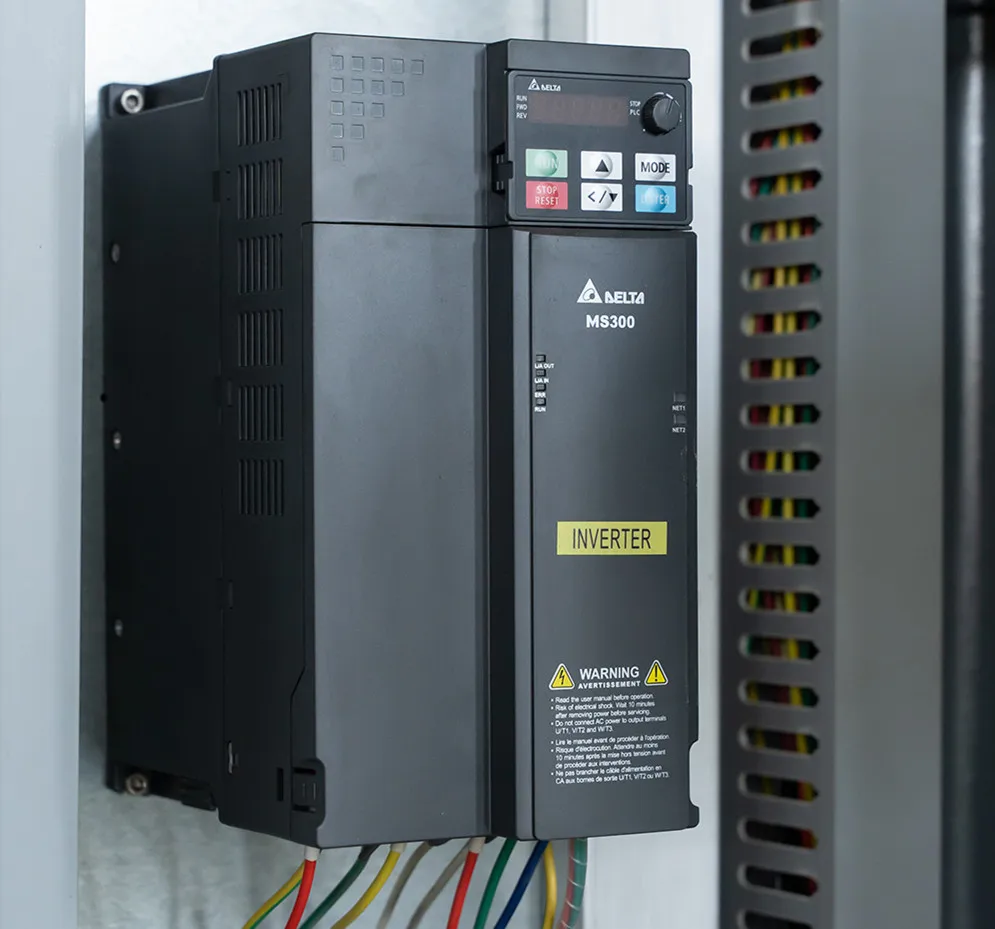

Delta Inverter
wood cnc router machine use original Delta inverter 3.7kw/5.5kw/7.5kw/11kw.

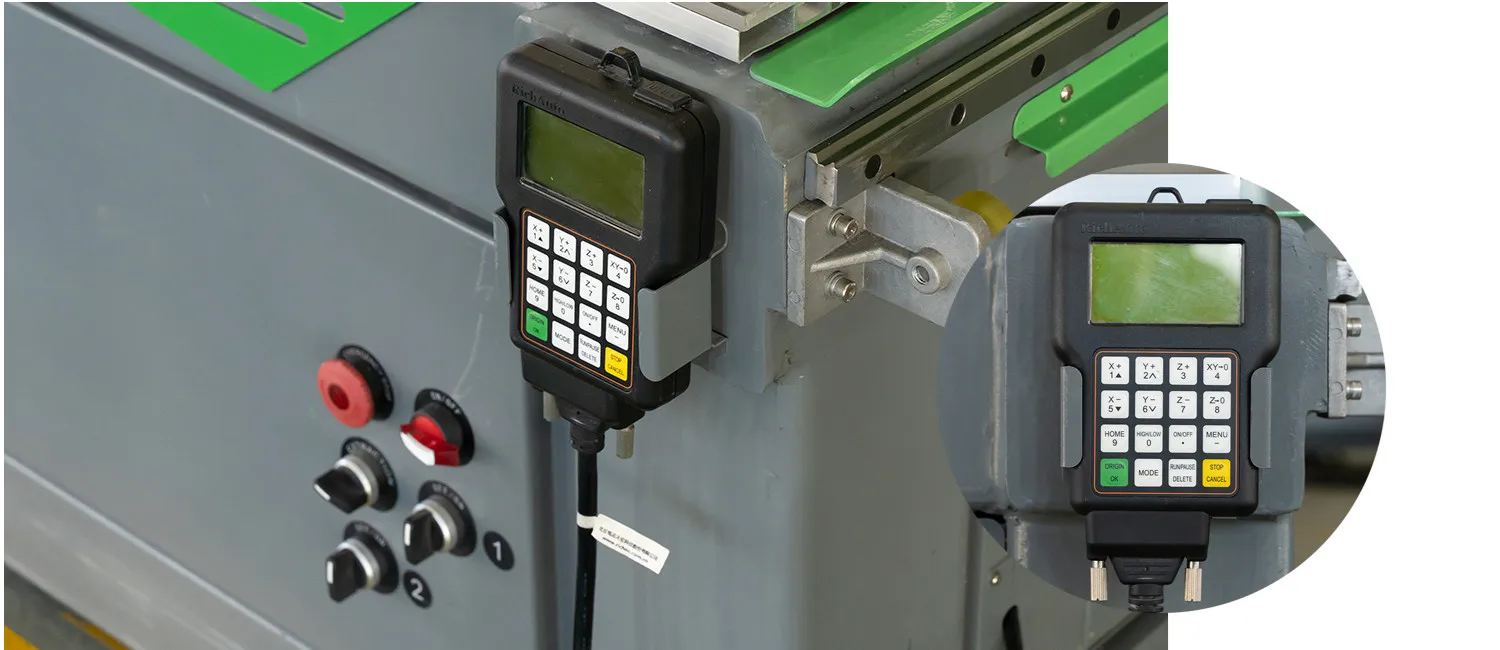

Control system
Adopting RichAuto A11 DSP control system, support 3 axis cnc router machine, easy learn and operate, very suitable for beginners.

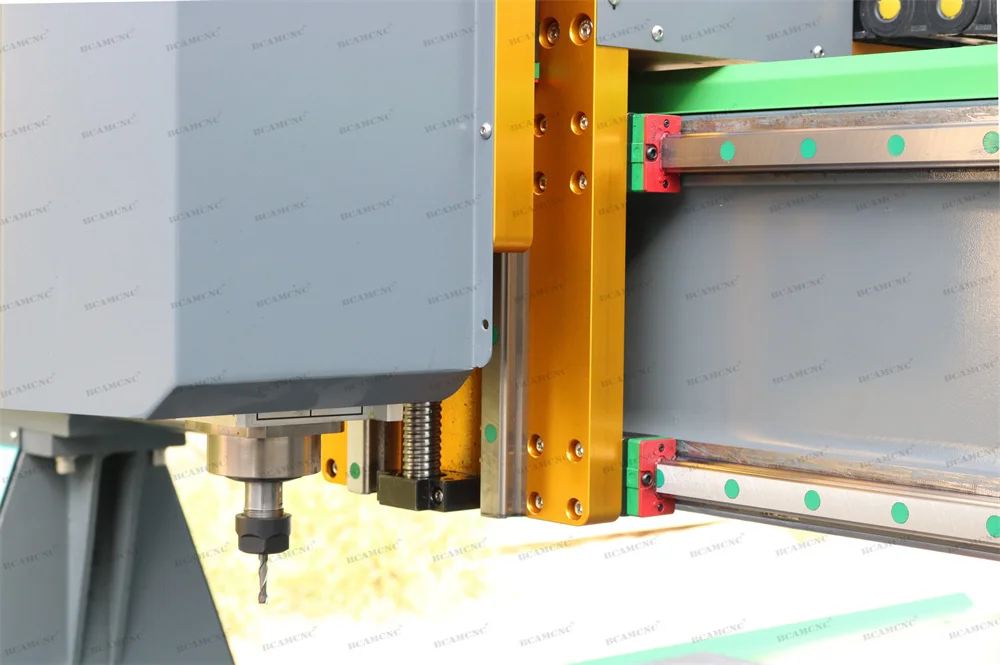

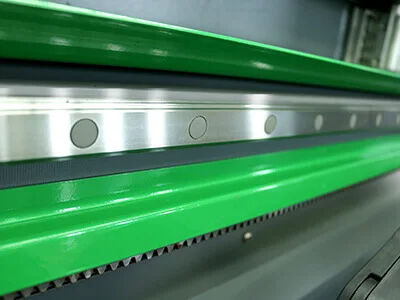

Guide Rails
Application
This is an entry-level 3 Axis manual cnc router machine, Its controller adopts DSP control system, easy learn and operate, very suitable for beginners. This woodworking cnc router machine can complete the cutting and engraving of wood, solid wood, acrylic, plywood,MDF, foam,PVC, plastic board, aluminum board, aluminum-plastic board, plasterboard and other materials, widely used in furniture production, advertising production, decoration industry.
1.Advertisement industry: Acrylic,PVC,ABS plate, aluminum plate, 3d advertising,brand, etc.
2.General wood working industry: Furniture decoration,instrument manufacturing,wooden craft,solid wood furniture,MBF,wood router, etc.
3.Decoration industry: Art model, mural,screen,gift packing, etc.
4.Stone industry: Tombstone, marble, granite, etc.
2.General wood working industry: Furniture decoration,instrument manufacturing,wooden craft,solid wood furniture,MBF,wood router, etc.
3.Decoration industry: Art model, mural,screen,gift packing, etc.
4.Stone industry: Tombstone, marble, granite, etc.
Related Product
Support two/three /four / six /seven/ eight /nine/ ten etc spindles. The working efficiency of the multi-head cnc router machine is faster than the single head manual cnc router.
Equipped with a linear tool magazine, which machine can change tools automatically, so can improve working efficiency greatly.
Equipped with a disc tool magazine, install on the side of gantry, could change tools faster. And all parts uses famous brand to ensure machine quality.
