Product Overview

Description

JCL10S Solar Airfield Light



Product Description:

    The solar powered JCL10S is a field proven aviation light that offers enormous benefits over traditional battery and hard-wired aviation lights including low maintenance and no underground wiring.



    These completely self-contained LED lights are designed to suit a range of aviation and general applications including emergency airstrip, caution, taxiway, and threshold lighting. The unit has two high-performance solar modules mounted within the lens, which maximize solar collection and provide reliable operation in a range of environmental conditions. The focal plane of the light is designed to provide a vertical divergency of between 0 and +7 degrees, and the user-replaceable battery ensures a service life of up to 12 years.

   The JCL10S is made from tough, durable UV stabilized LEXAN polycarbonate, and incorporates an internal photodiode for automatic night activation once the ambient light threshold drops sufficiently.

   Completely self-contained and able to be installed in minutes, the JCL10S is the preferred choice of remote airfields throughout China-where the units mark indigenous and regional council’s airstrips, and mining strips around the country.



JCL10S-HI

The JCL10S-HI is a high intensity version of the popular JCL10S and is ideal for use in high sunlight areas that receive a minimum of 3.5 hours of sun per day.



Features & Benefits:

•  Integrated solar battery system

• Dual Internal high-performance solar modules angled to maximize solar collection

•  Fast&easy to deploy-no programming

•  IP67 waterproof rating

•  User-replaceable battery

•  Ultra-high intensity LEDs(no changing globes ever)



Specifications:

	JCL10S	JCL10S-HI
Light source	ultra-high intensity LEDs	ultra-high intensity LEDs
Available colors	Red, Green, White, Yellow, Amber, Blue	Red, Green, White, Yellow, Amber, Blue
Peak Intensity(cd)	Steady-on: Blue-2.8  Red-6   Green-8.0  White-7.0 Yellow-6.5 Flashing: Blue-5.5  Red-10  Green-15 White-16.1  Yellow-14	Steady-on: Blue-10  Red-12.1  Green-16.9  White-14.2 Yellow-11.6 Flashing:  Blue-29  Red-32.5   Green-34 White-35.1  Yellow-31.1
Horizental Output(degree)	360	360
Vertical Divergence	0 to +7	0 to +7
Reflector Type	Omnidirectional 360 LED Reflector	Omnidirectional 360 LED Reflector
Available Flash Characteristics	>250 including steady-on (user-adjustable)	>250 including steady-on (user-adjustable)
Led life Expectancy(hours)	>100,000	>100,000
Operating Voltage(V)	3.6	3.6
Temperature Range	-40 to 80℃	-40 to 80℃
Solar module Type	Multicrystalline	Multicrystalline
Output(watts)	1.8(watt)	1.8(watt)
Charging rogulation	17	17
Power supply	Microprocessor controlled	Microprocessor controlled
Battery type	High grade NiMH- Environmentally Friendly	High grade NiMH- Environmentally Friendly
Battery Capacity(Ah)	8	16
Nominal Voltage(V)	3.6	3.6
Autonomy(nights)	Steady-on: >4 Flashing: 10(14 hours darkness, 12.5% duty cycle)	Steady-on: >10  Flashing: 32.5
Body material	Polycarbonate	Polycarbonate
Lens Material	Polycarbonate (UV stabilized)	Polycarbonate (UV stabilized)
Lens Design	External optics with interior flute design	External optics with interior flute design
Humidity	0 to 100%	0 to 100%
Product life Expectancy	Up to 8 years	Up to 8 years
Warrany	5 years on the light, and 2 years on the battery	5 years on the light, and 2 years on the battery



Typical Applications:

•  Solar Barricade Light

•  Solar Caution Light

•  Solar Taxiway Light

•  Solar Threshold Light

•  Solar Obstruction Light

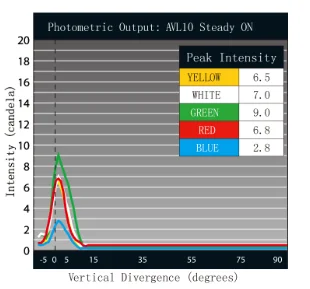

Light Distribution Curve:

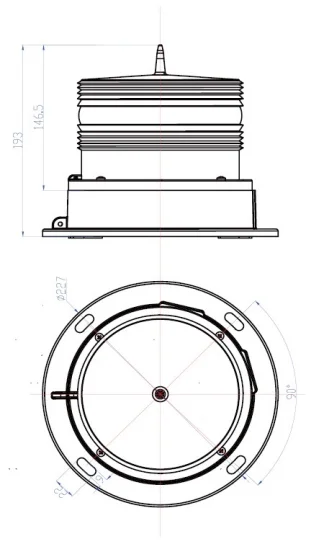

Mounting Dimension:

Light Distribution Curve
