Good quality dell gaming desktop 3080mt i5 cpu workstation computer optiplex 3080mt
- Category: Desktops >>>
- Supplier: Beijing,Xinqidian,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Specification
OPTIPLEX 3080 MT Tower FORM FACTOR
Business desktops with streamlined performance and essential manageability options to drive maximum value.
Specification
OptiPlex 3080 Technical Specifications | OptiPlex 3080 Technical Specifications | |
CPU | 10th Generation Intel® Core™ i5-10500T, 12 MB Cache, 6 Cores, 12 Threads, 2.3 GHz to 3.8 GHz, 35 W | |
Video Card | Intel® UHD Graphics 630 | |
Memory | 8 GB, 1 x 8 GB, DDR4, 2666 MHz | |
Port | 1 RJ-45 port 10/100/1000 Mbps (rear) 2 USB 2.0 Type-A ports (front) 2 USB 3.2 Gen 1 Type-A port (front) 2 USB 2.0 ports with Smart Power on (rear) 2 USB 3.2 Gen 1 Type-A ports (rear) 1 Universal Audio Jack (front) 1 Line-out audio port (rear, retaksable) 1 DisplayPort 1.4 (rear) 1 HDMI 1.4b port (rear) 1 Serial /PS2 slot (optional) 1 Optional 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) | |
Slots | 1 full-height PCIe x16 Gen 3 slot 2 full-height PCIe x1 Gen 3 slot 1 M.2 2230 slot for wireless 1 M.2 2230/2280 slot for storage 3 SATA slots | |
Primary Hard Drive | 3.5-inch, 500 GB, 7200 RPM, SATA HDD (Tower and Small Form Factor only) 3.5-inch, 1 TB, 7200 RPM, SATA HDD (Tower and Small Form Factor only) 3.5-inch, 2 TB, 7200 RPM, SATA HDD (Tower and Small Form Factor only) 3.5-inch, 4 TB, 5400 RPM, SATA HDD (Tower and Small Form Factor only) 2.5-inch, 500 GB, 5400 RPM, SATA HDD (Micro only) 2.5-inch, 500 GB, 7200 RPM, SATA HDD (All form factors) 2.5-inch, 500 GB, 7200 RPM, Opal Self-Encrypting FIPS HDD (All form factors) 2.5-inch, 1 TB, 5400 RPM, SATA HDD (All form factors) 2.5-inch, 1 TB, 7200 RPM, SATA HDD (All form factors) 2.5-inch, 2 TB, 5400 RPM, SATA HDD (All form factors) M.2 2230, 128 GB, Gen 3 PCIe x4 NVMe, Class 35 SSD (All form factors) M.2 2230, 256 GB, Gen 3 PCIe x4 NVMe, Class 35 SSD (All form factors) M.2 2230, 512 GB, Gen 3 PCIe x4 NVMe, Class 35 SSD (All form factors) M.2 2280, 256 GB, Gen 3 PCIe x4 NVMe, Class 40 SSD (All form factors) M.2 2280, 256 GB, Gen 3 PCIe x4 NVMe, Opal Self-Encrypting Class 40 SSD (All form factors) M.2 2280, 512 GB, Gen 3 PCIe x4 NVMe, Class 40 SSD (All form factors) M.2 2280, 512 GB, Gen 3 PCIe x4 NVMe, Opal Self-Encrypting Class 40 SSD (All form factors) M.2 2280, 1 TB, Gen 3 PCIe x4 NVMe, Class 40 SSD (All form factors) | |
Chasis | Front Height: 12.77 in. (324.30 mm) Rear Height: 12.77 in. (324.30 mm) Width: 6.06 in. (154.00 mm) Depth: 11.50 in. (292.20 mm) | |
Power | 260 W typical 85% Efficient PSU (80 PLUS Bronze) | |
Details Images

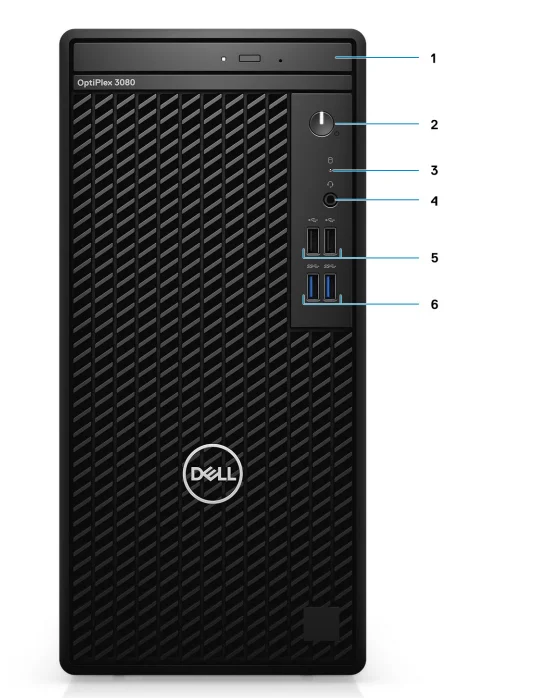

Front view | ||||
1. Optical Disk Drive (optional) | 2. Power button with diagnostic LED | 3. Hard-disk drive activity light | ||
4. Universal audio jack port | 5. Two USB 2.0 ports | 6. Two USB 3.2 Gen 1 Type-A ports | ||

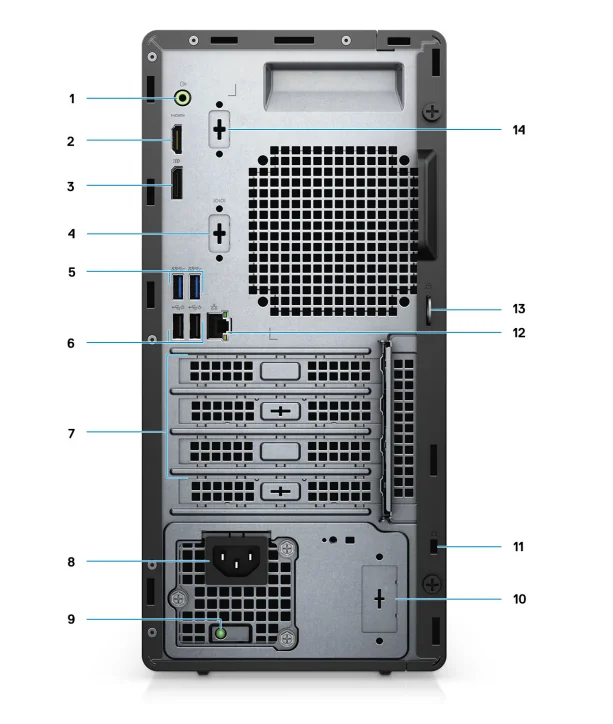

Back view | ||||||
1. Line-out re-tasking Line-in audio port | 2. HDMI 1.4b port | 3. DisplayPort 1.4 | 4. Serial/PS2 slot | |||
5. Two USB 3.2 Gen 1 Type-A ports | 6. Two USB 2.0 ports with Smart Power on | 7. Three expansion card slots NOTE: Supports only Slot 1, Slot 2, Slot 3 | 8. Power connector port | |||
9. Power supply diagnostic light | 10. Knock out slot (optional SMA connector) | 11. Kensington security-cable slot | 12. RJ-45 port 10/100/1000 Mbps | |||
13. Padlock loop | 14. 3rd Video Port (VGA/DP 1.4/HDMI 2.0b) (optional) | |||||

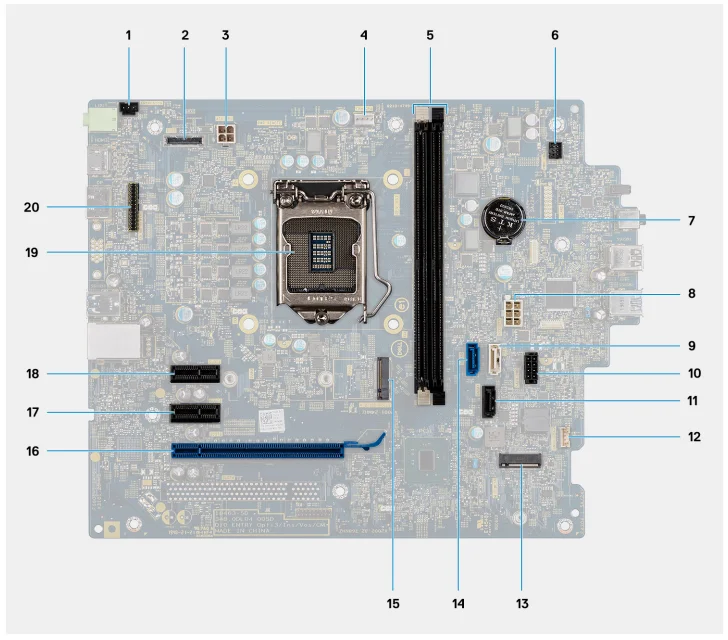

System board Layout | ||||||
1. Intrusion switch connector | 2. Video connector | 3. ATX CPU power connector | 4. Processor fan connector | |||
5. Memory module connector | 6. Power button connector | 7. Coin-cell battery | 8. ATX system power connector | |||
9. SATA3 connector (white) | 10. SATA power cable connector | 11. SATA1 connector (black) | 12. Intrusion speaker cable connector | |||
13. M.2 WLAN connector | 14. SATA0 connector (blue) | 15. M.2 SSD PCIe connector | 16. PCIe x16 (Slot3) | |||
17. PCIe x1 (Slot2) | 18. PCIe x1 (Slot1) | 19. Processor socket | 20. Keyboard and mouse serial connector | |||
