Металл Бонд Алмазный Стеклорез закруглённый край шлифовального круга для прямолинейной скругленной кромки стекла
- Category: Abrasive Tools >>>
- Supplier: Henan,Qe,Diamond,Die,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Product Parameter

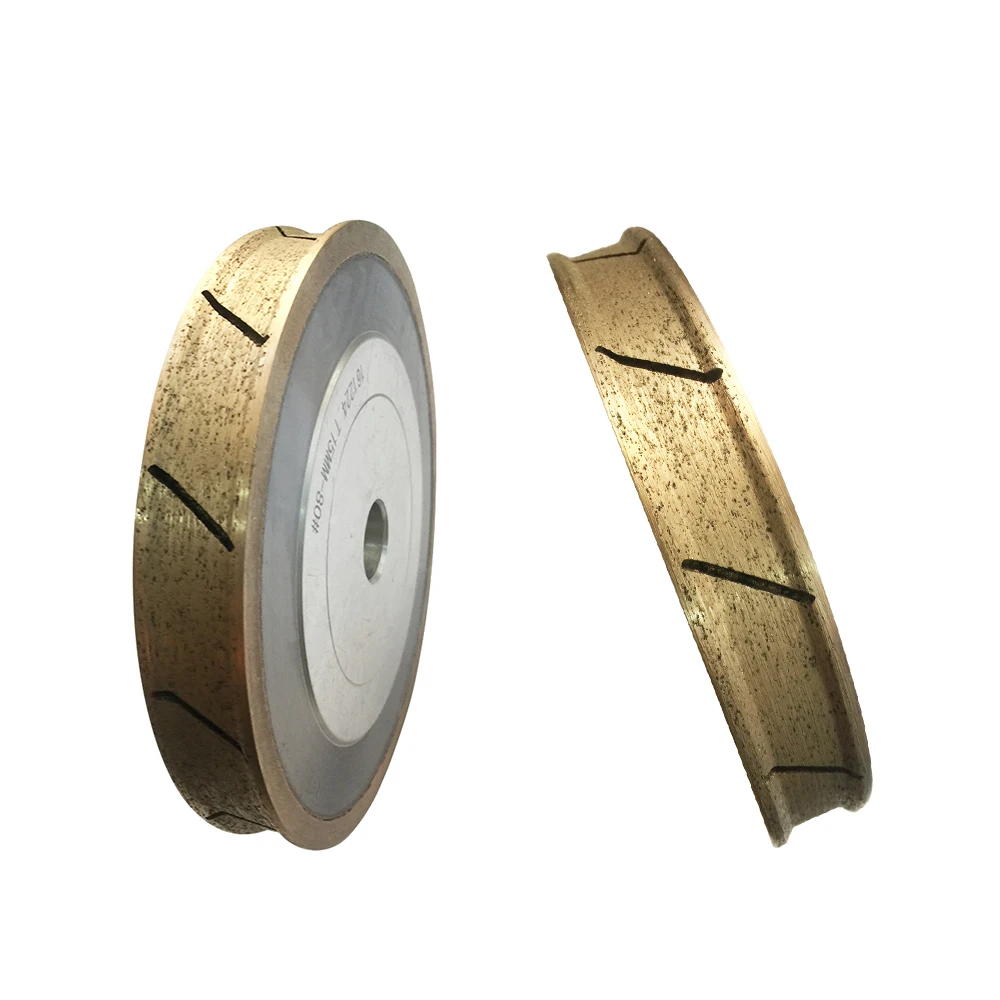

Product Name | PE Diamond Grinding Wheel |
Process | Hot press sintering |
Aperture | 22mm/50mm |
Granularity | 80#/140#/180#/240# |
Diameter(D) | 80mm/100mm/150mm/175mm/200mm |
Thickness (T) | 3mm/4mm/5mm/6mm/8mm/10mm/12mm /15mm/19mm |
Specification | A variety of specifications can be customized |
Configuration | 35mm-100mm, suitable for manual edging machine, used to process small glass. 100mm-150mm, suitable for special-shaped machines, processing small and medium glass, such as doors and windows, tables, etc. CNC machines mostly use 100mm diameter grinding wheels and contain additional water holes. 175m and 200mm, used for processing automotive glass |
Product Advantages
Applications
If you need other size, contact me.
Products Show
Why Choose Us
Recommended By Seller
Product Praise

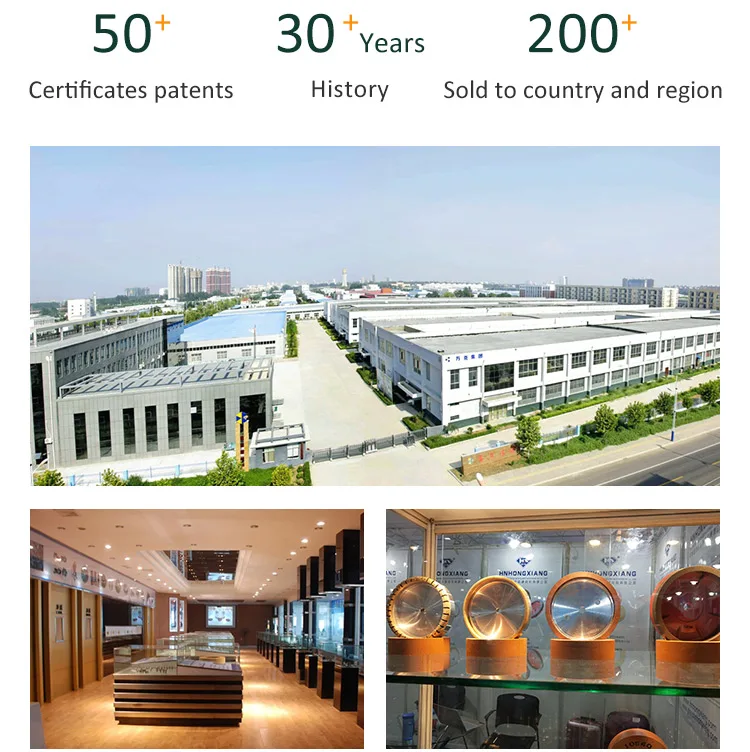

Company Profile
Our company has three brands: HNHONGXIANG, DIAMONDWK, QEDIAMONDDIE
DIAMONDWK was established in 2000, And the main products are PDC cutter, PCD blanks, PCD cutting tools, PCBN insert, etc.
QEDIAMONDDIE began to produce wire drawing dies in 1983. And main products are shaped drawing dies, PCD wire drawing dies, natural diamond wire drawing dies, mono diamond wire drawing dies, and tungsten carbide wire drawing dies, nano coated diamond dies, etc.
