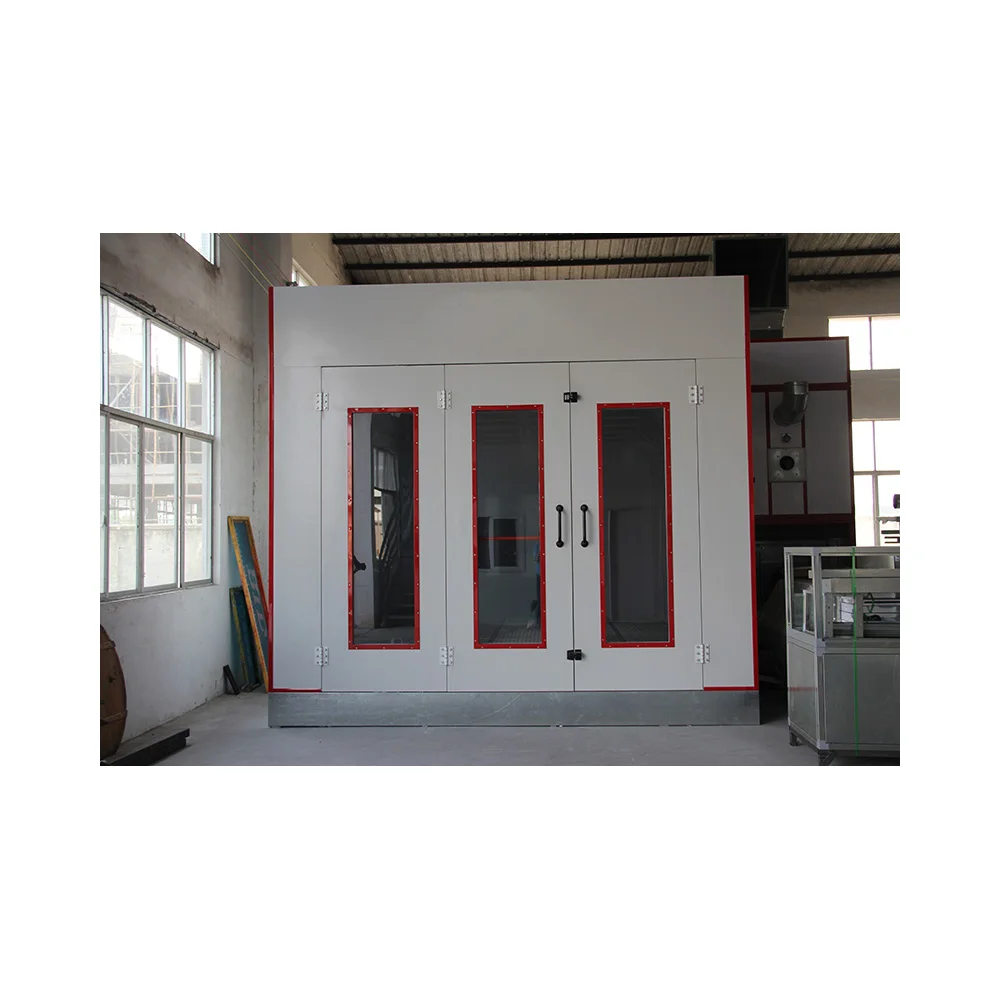

Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking
Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking
Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking
Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking
Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking
Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking

Hot Sale Different Color 15KW Eps Or Rock Wool Wall Panel Diesel Heating Spray Booth For Car Repair for Baking

Share on (1600243783152):


Price:

Quantity:


Product Overview

Description









SPECIFICATION
MODEL
STANDARD SPRAY BOOTH BWD-65-1
BOOTH DIMENSIONS
EXTEMAL SIZE (L*B*H)
7110*5570*3810 mm
INTERAL SIZE(L*B*H)
7000*4000*2700 mm
FOUNDTION AND FLOOR
FOUNDTION
FULL METAL FOUNDATION, TWO ROWS FLAT STEEL GRIDS AND THREE ROWS METAL NON-SLIP DIAMOND PLATES
SURFACE AREA OF FOUNDATION
10M2(AREA OF GRIDS)
DRIVE- IN RAMPS
3 UITS, EACH SIZE:2000*1030 mm, DIAMOND PLATE CONSTRUCTION
METAL BASEMENT
350mm HEIGHT, THE VENTILATION EFFECT IS BETTER THAN TRADITIONAL SPRAY BOOTH
WALL AND DOOR
WALLBOARD AND ROOF PANEL
SIDE WALL PANELS ADOPT HIGHT QUALITY DOUBLE CONSTRUCTION FIREPROOF EPS INSULATION METERIALS,THICKNESS IS 50MM,
ROOF PANEL
ROOF PANELS ADOPT GALVANIZED STEEL PLATE BENDING FORMING

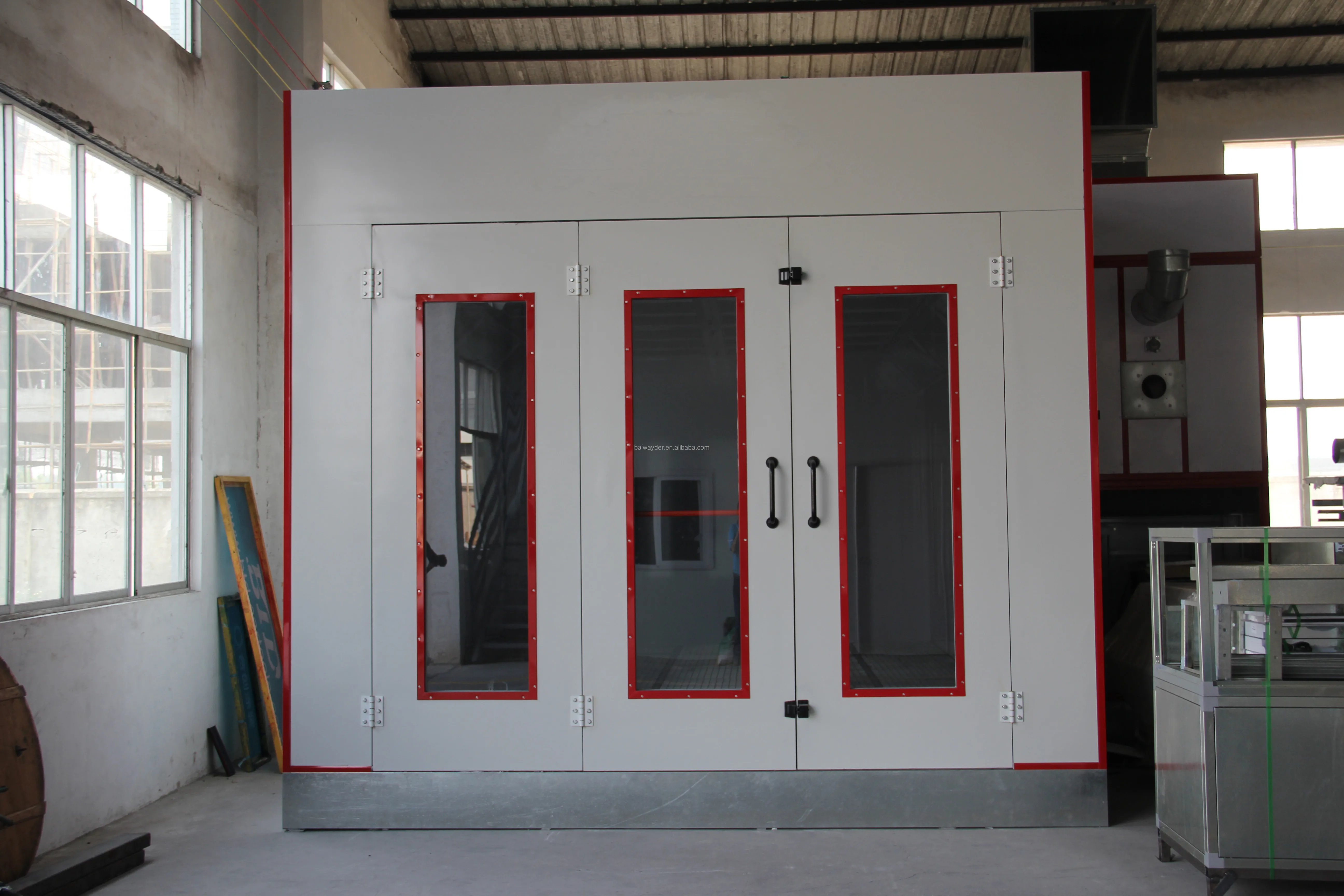

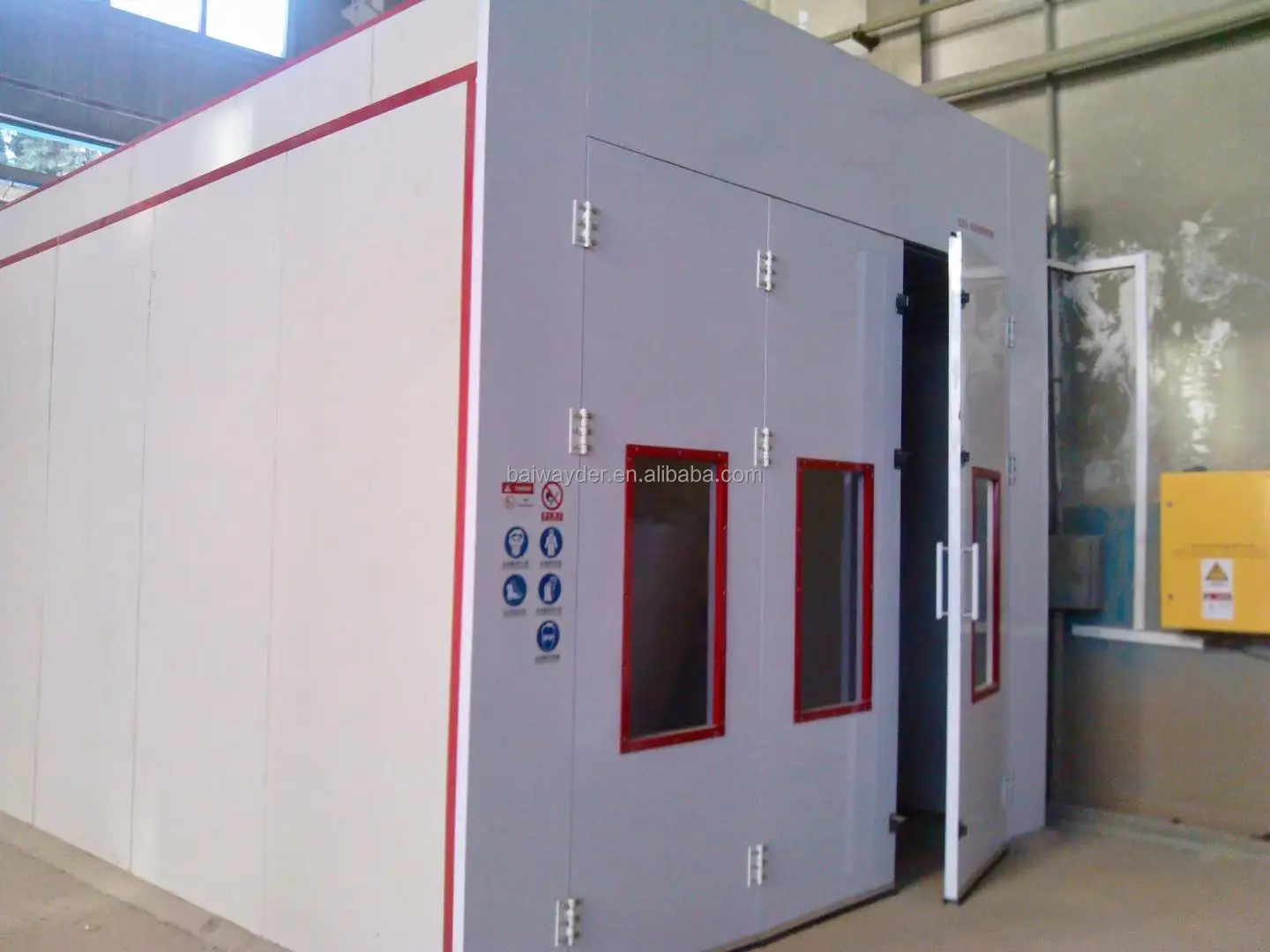

3-FOLDED ENTRANCE DOOR WITH SAFETY GLASS WINDOW
1 SET,SIZE:3200*2700 mm (B * H),SIZE IS BIGGER THAN TRADITIONAL SPRAY BOOTH
OPERATOR'S DOOR WITH SAFETY GLASS WINDOWS
ONE SET,700*2000 mm (B*H),HAND-MADE,TEMPERING GLASS OBSERVATION WINDOW
LIGHTING
CEILING LIGHTINGS
8 SSETS , EACH SET 4 * 36W,TOTAL 1152W , GRADE OF LIGHTING BOX'S DUSTPROOF AND WATERPROOF REACH IP54 GRADE.
SIDE LIGHTING
8 UNITS, EACH SET 2*36W,TATAL 576W, GRADE OF LIGHTING BOX'S DUSTPROOF AND WATERPROOF REACH IP54 GRADE.
BRIGHTNESS
≥1000 LUX
FILTRATION SYSTEM
PRE-FILTERS
GRADE EU3 PLATE TYPE FIBR GLASS FILTER
CEILING FILTERS
EU5 GRADE HIGH EFFICIENT FILTER
EXHAUST FILTEERS & BOTTOM FILTER
FIBREGLASS PAINT-STOP FILTER
VENTILATION SYSTEM
DIRECT DRIVE MOTOR(INLET FAN)
ADOPT BIG IMPELLER TURBO FAN,7.5KW
OUTLET FAN
ADOPT BIG IMPELLER TURBO FAN,7.5KW
FAN FOR WATER-BASED PAINTS
ON TOP OF CABIN INSTALLS 2 SETS OF 1.5KW CENTIFUGAL FANS, INCREASE SYSTEM AIR SUPPLY CAPACITY TO DRY QUICKER
PAINTING NOZZLES
INSTALL TWO ROWS OF NOZZLES ON POSITION OF CEILING LIGHTING BOX
PAINTING AND BAKING EXCHANGE SYSTEM
SOLENOID VALVE + PRESSURE REGULATOR TO CONTROL THE CYLINDER DRIVE DAMPER EXCHANGE
FAN CAPACITY
32000 m3/H
AIR FLOW SPEED
0.3m/s IN EMPTY BOOTH,0.3-0.45m/s IN LOADED BOOTH
HEATING SYSTEM
HEATING EXCHANGER
ADOPT HIGH EFFICIENT HEAT-RESISTANT STAINLESS STEEL AS CYCLING HEAT EXCHANGER
HEATING TIME
4-6 MINUTES(FROM 20 TO 60OC)UNDER BAKING STATUS,MAX BAKING TEMPERATURE IS 80OC
BURNER MODEL
ADOPT ITALY RIELLO DIESEL BURNER RG5S (260000 KCAL/H)
CONTROL BOX
STANDARD Y/∆ STEP-DOWN START CONTROL SYSTEM
PLC CONTROLLER
PLC CONTROL , MORE RELIABLE AND LOWER BREAKDOWN CABIN
PRESSURE TESTING
THE PRESSURE GAUGE INDICATE THE PRESSURE INSIDE CABIN
CONTROL SYSTEM
PAINTING ,WARM PAINTING,BAKING,LIGHTING, EMERGENCY STOP SWITCH, FAILURE INDICATION,OVER-TEMPERATURE ALARM INDICATION BAKING DELAY
STOP PROTECTION
