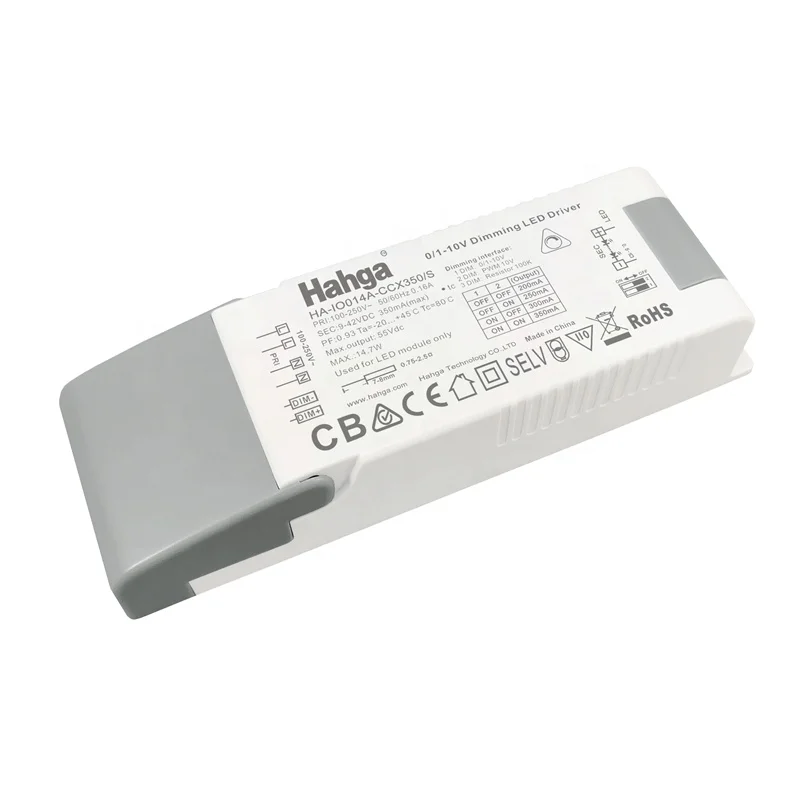

High Quality 0/1 10V Dimmable LED Driver Constant Current 700Ma Adjustable LED Power Supply
High Quality 0/1-10V Dimmable LED Driver Constant Current 700Ma Adjustable LED Power Supply
High Quality 0/1-10V Dimmable LED Driver Constant Current 700Ma Adjustable LED Power Supply

High Quality 0/1 10V Dimmable LED Driver Constant Current 700Ma Adjustable LED Power Supply

Share on (1600244018955):


Price:$15.00 - $16.10

Quantity:


Product Overview

Description



Hahga




Products Description






Model
HA-IO014A-CCX350/S
HA-IO040BF-CCX1000/S
HA-IO045A-CCX1050/S



Input
Voltage Range
AC100-250V
Limited Voltage
265VAC
Power Factor
>0.9
T.H.D
<10%
Efficiency
83%
85%
87%



Output
Rate Power
14W
40W
45W
Rate Current
350mA
1000mA
1050mA
DC Voltage
DC9-42V
DC9-42V
DC9-42V
Current Accuracy
±3%
Power-on Time
<0.5s

Protection
Short Circuit
constant voltage mode, recover automatically after fault condition is removed
Over Loading
≤120% constant voltage limiting, recover automatically after fault condition is removed
Over Temperature
100℃±10℃
Shut down o/p voltage, recovers automatically after temperature goes down


Others
Ta
45℃
Tc
80℃
IP rating
IP20
Life span
50000hours
Warranty
5years
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.


Company information


About Hahga
Hahga is specialized in R&D and manufacturing dimmable LED driver,non-dimmable LED driver and LED emergency driver.
Hahga focus on indoor and waterproof IP67 dimmable LED driver,which includes Triac/Phase-cut dimming,0/1 10V,dimming,DALI,dimming,Push dimming,Bluetooth dimming,ZigBee dimming, Wifi Dimming,etc.
Hahga products have been exported to numerous oversea markets with UL,ETL,FCC,ENEC,TUV-CE,CB,SAA,DALI-2,RoHS and other certificates.




PROFESSIONAL R&D and PRODUCTION
With advanced production equipment and standardized production management,the production capacity of 200,000 pieces per month can be guaranteed.


DALI Testing
Wave Soldering


Plug-in Components assembling
Reflow soldering


QUALITY ASSURANCE
Multi professional testing process and testing equipment to ensure product quality.


Safety Test
Aging Test


EMI Tester
In-Circuit Test System


Packaging & Delivery


DELIVERY ASSURANCE
Reasonable inventory plan and Official logistics cooperation to ensure fast shipping.


Warehouse
Delivery




Certifications




Related Products




FAQ


1. How about your goods’ quality?
All products provided by Hahga with 100% burn-in tests, full round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL ENEC certificates.

2. What is your warranty? And if I got wrong ones, how will you do with it?
    5 years. If any failure caused by quality issue, we send replacement with next order, or refund.

3. What is your minimum order quantity?
   The MOQ is 1pcs.

4. Which payment terms you can accept?
    We accept T/T, Western Union, Money Gram, Paypal, etc.

5. What are the shipping ways you can offer?
    By air/sea/land, from Zhongshan port,Shenzhen,Hongkong, Guangzhou.

6. How about your delivery time?
    3-7 working days according the order quantity.

7. Can you provided OEM Service?
Definitely, OEM ODM provided. More information, please feel free to contact Hahga team.
