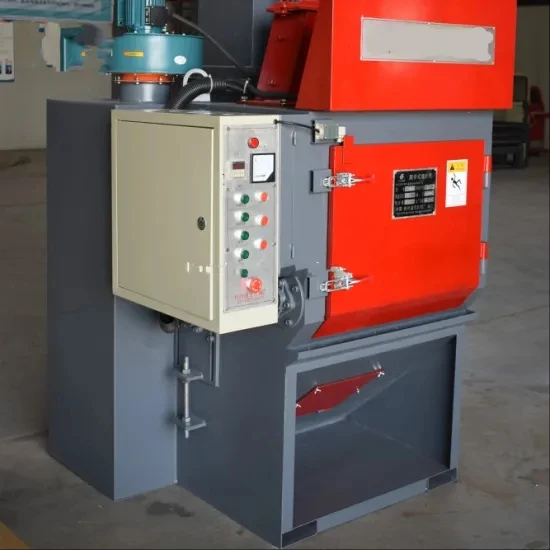

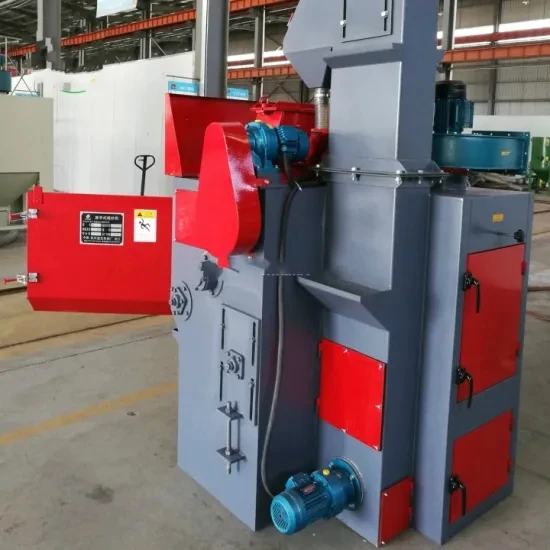

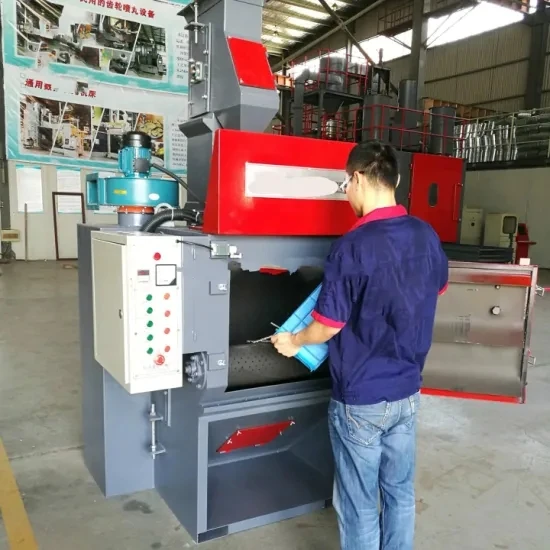

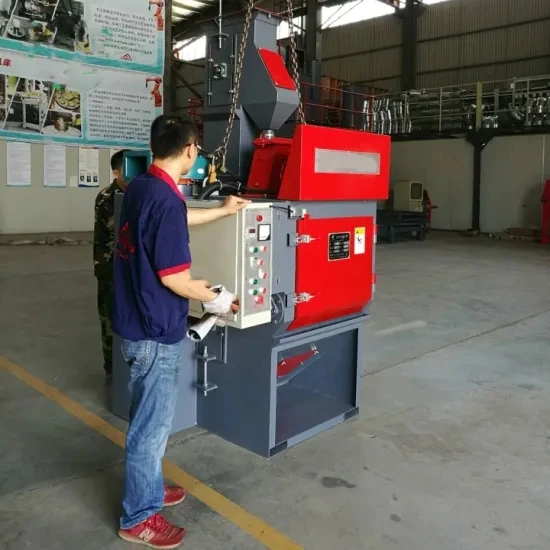

Tumble Rubber Belt Q324 Rotary Drum Shot Blaster Cleaning Machine

Product Overview

Description

Tumble Rubber Belt Q324 Rotary Drum Shot Blaster Cleaning Machine

Product Description

Name, model and method of the machine

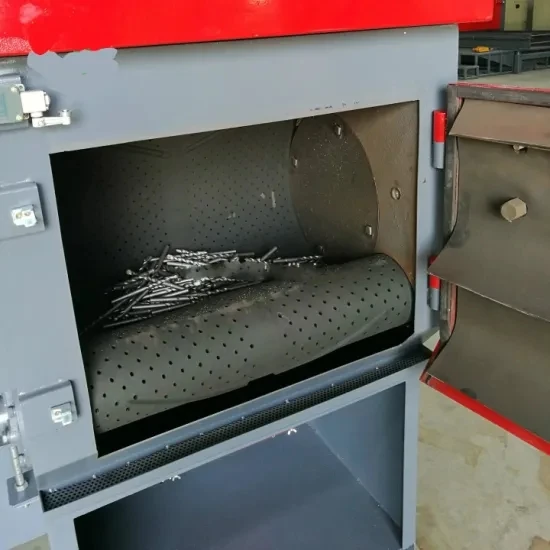

1. Name of machine: rubber belt track type shot blasting machine

2. Machine model and its representation

Example: Q 324-- -- shot blasting machine

End plate diameter (40 cm)

Ii. Application scope and characteristics of the machine:

Model Q324 shot blasting machine is suitable for cleaning the surface of various parts.

All kinds of metal casting surface cleaning, surface rust removal of ferrous metal parts, stamping parts surface burr and burr blunt, forging and heat treatment of the surface of the workpiece, as well as spring surface oxidation skin removal and surface refinement can be achieved through the series of equipment shot blasting technology. It is widely used in foundry, heat treatment plant, electric machinery factory, machine tool parts factory, bicycle parts factory, power machine, automobile parts, motorcycle parts, non-ferrous metal die casting factory and so on.

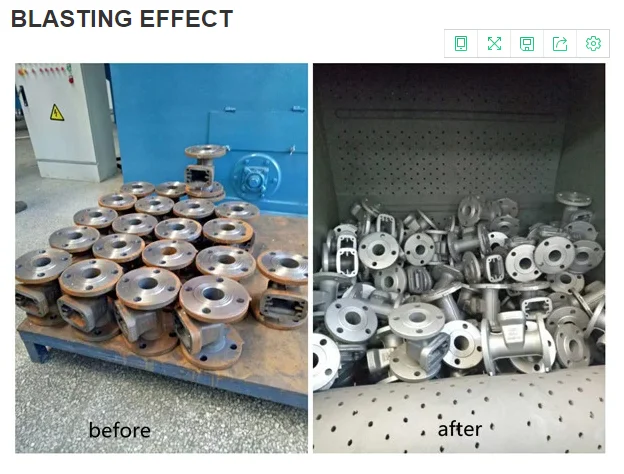

After the shot blasting treatment, the workpiece can obtain a good quality of the material, but also can become the metal parts surface black, blue, passivation and other processes before the process, and can provide a good base surface for electroplating, paint finishing. After shot blasting, the workpiece can reduce the tensile stress, refine the surface grain, strengthen the workpiece surface and increase its service life.

Crawler type shot blasting machine has the advantages of low noise, less dust and high production efficiency. At the same time, the shot can be recycled automatically with less material consumption and low cost. It is an ideal surface treatment equipment for modern enterprises.

Specifications and main technical parameters of the machine

Item/Model	Q324
Diameter of end disk(mm)	400
Rubber belt size(mm)	750
Rotating speed of end disk(r/min)	3.6
Max weight of single workpiece(kg)	5
Max load of barrel(kg)	100
Productivity(kg/h)	400~1200
Abrasive circulation system processing capacity(kg/min)	100
Ventilation capacity of the dust collector(mm)	2200
Power(kw)	7
Outline dimension L*W*H	1300*1500*2450
