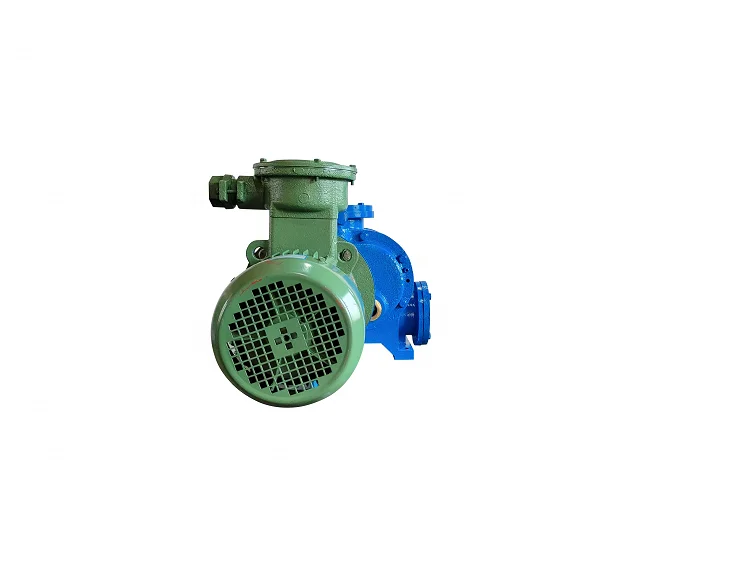

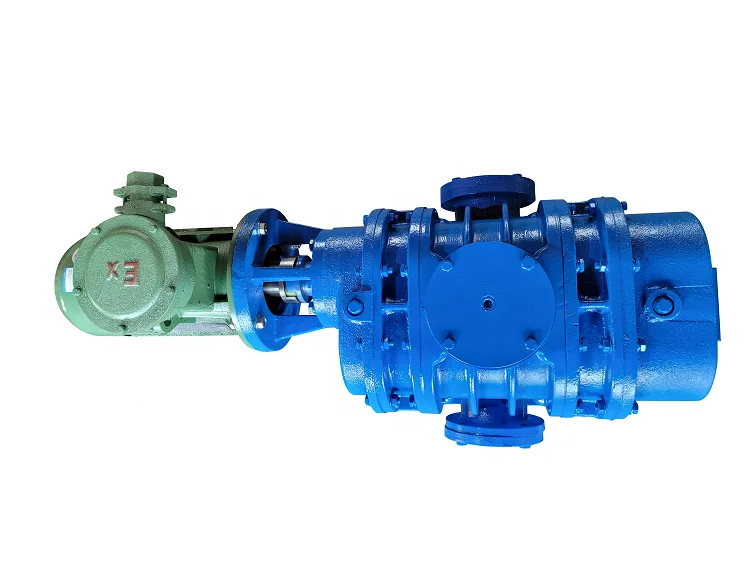

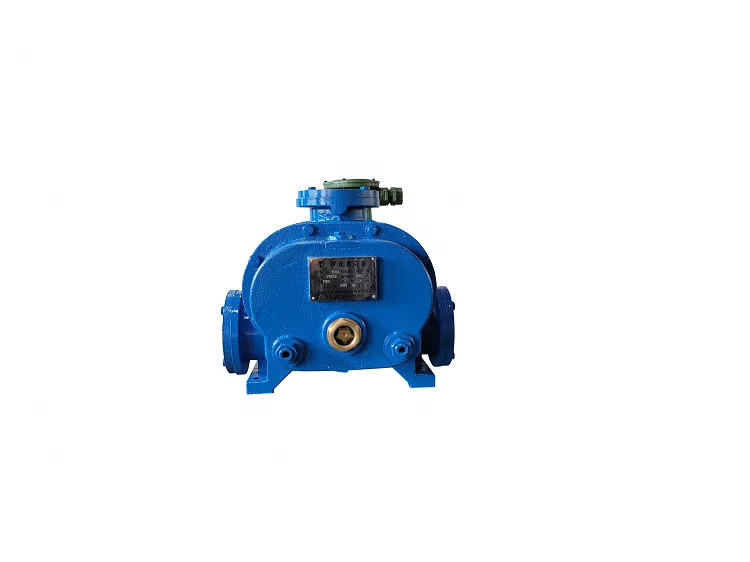

High Vacuum Pressure System With ZJ 150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump
High Vacuum Pressure System With ZJ-150 High Vacuum Roots Vacuum Pump

High Vacuum Pressure System With ZJ 150 High Vacuum Roots Vacuum Pump

Share on (1600244442829):


Price:$1,210.00 - $1,230.00

Quantity:


Product Overview

Description



Products Description


Summarize

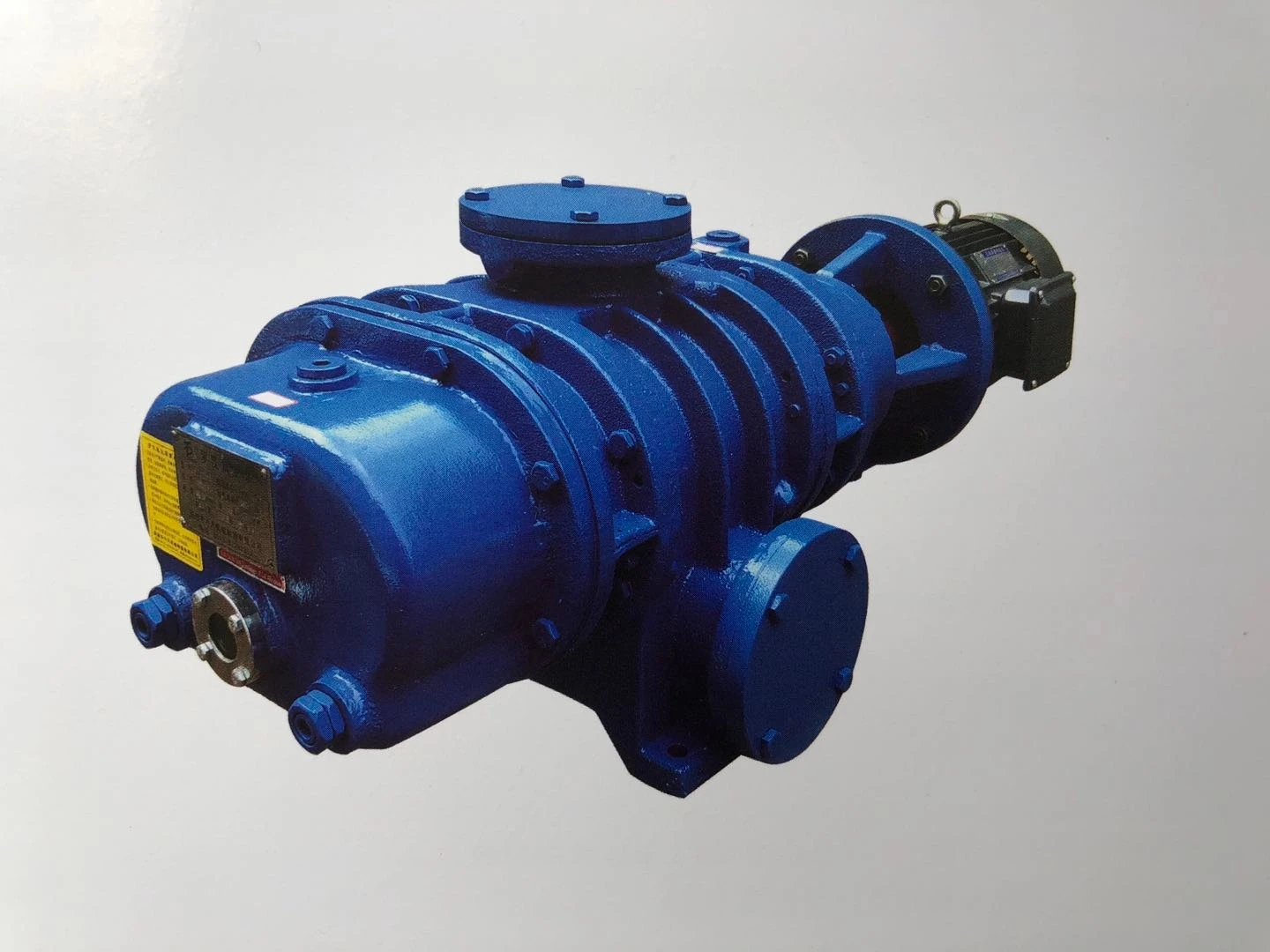

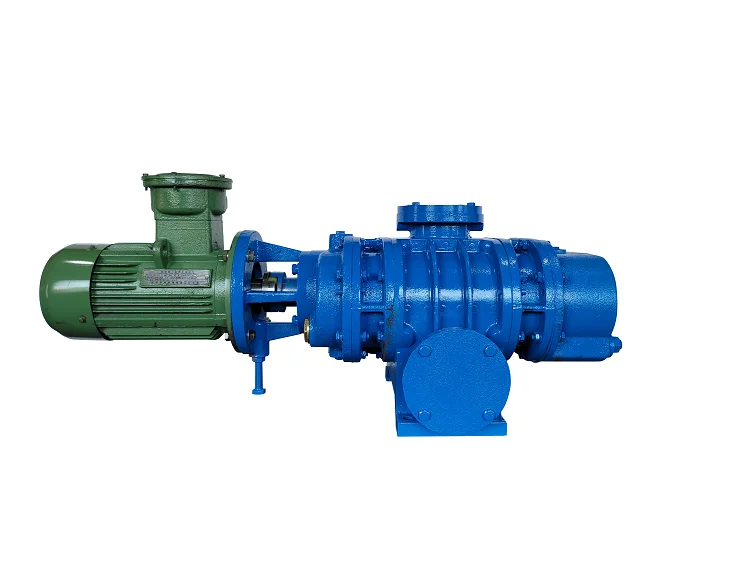

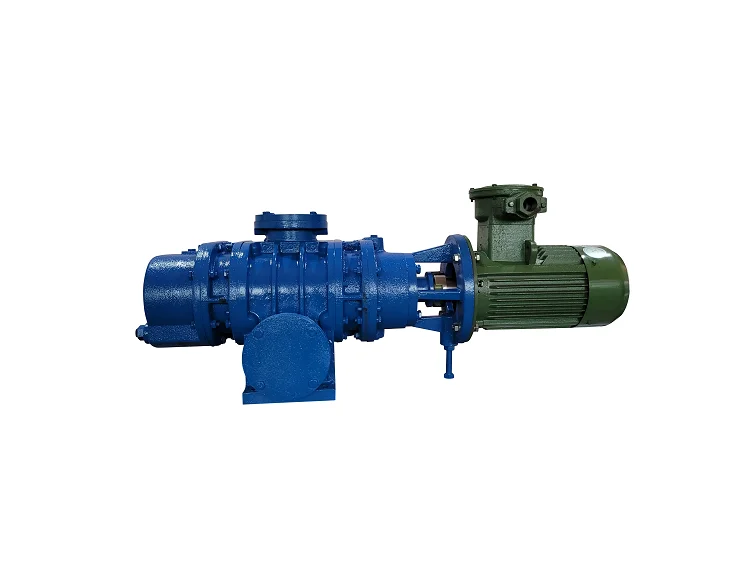

  ZJ,ZJB Roots vacuum pump is a rotary variable displacement vacuum pump,also known as mechanical booster pump. It is currently one of the main pumping equipments for obtaining medium and high vacuum. Its working principle is similar to roots blower, which is used Two＂8"-shaped rotors rotate synchronously in the pump casing to complete suction and exhaust.The difference between ZJB type with relief valve Roots vacuum pump and ZJ Roots vacuum pump is that the inlet and outlet is connected. The self-weight valve was loaded vertically in the channel. Its role is to make that the pressure difference between the exhaust port and the air inlet is always maintained within a controllable value which is the maximum pressure differential allowed for the pump to operate reliably. Therefore, this kind of valve is actually an overload automatic protection valve.
Features
1.Can have a large pumping speed in a wide range of pressure (1~1.3 x 102Pa).

2.The pump chamber is oil-free,avoiding the oil vapour pollute the vacuum system.

3. Small vibration, low noise.

4. The mechanical friction loss is small, so the driving power is small.

5. Easy to maintain and repair, low cost and long working life.

6.Suitable for sudden deflation of vacuum system.

7. Can remove condensable gases.

8.Can not be used alone, you must configure the fore-stage pump. It is not allowed to start under atmospheric pressure. It can only start when the fore-stage pump pumps the inlet pressure of the Roots pump to the allowable starting pressure. Fore-stage pumps are generally oil-sealed mechanical pumps and liquid ring vacuum pumps such as water ring pumps and oil ring pumps.

9.The use of unique processing technology,good interchangeability of parts.
Use
1. coaxial pump with straight joint design, saving space,easy installation convenient repair.

2.the use of mechanical seals standard configuration,the working fluid with ensure leakage to ensure clean the work site.

3.unique flexible exhaust structure design, does not cause the pump to compress orcompressed,v improve the work efficiency of the pump, and the pump in the limit pressure generated when the noise to a minimum, generally not more than70 dB.

4.impeller and pump body of external design, not only makes the pump has the advantages of beautiful appearance but,but also let the pump cleaning work become simple and easy.

5.a wide range of material selection,the LDF series of vacuum pumps can be in by harsh conditions by using.


Type/Performance parameters
Pumping speed(L/S)
Pressure Limit(Pa)
Motor Power(Kw)
Revolution(r/min)
Weight(KG)
Caliber of air inlet or outlet(mm)
ZJ-15
15
5x10^-2
0.55
1390
50
50
ZJ-30
30
5x10^-2
0.75
2770
60
50
ZJ-70
70
5x10^-2
1.5
2780
80
80
ZJ-150
150
5x10^-2
3
2900
185
100
ZJ-300
300
5x10^-2
4
1450
415
150
ZJ-600
600
5x10^-2
5.5
2900
435
150
ZJ-1200
1200
5x10^-2
11
1450
1430
300
ZJ-2500
2500
5x10^-2
30
1470
2150
400
ZJ-5000
5000
5x10^-2
37
1480
4350
400
ZJ-10000
10000
5x10^-2
55
1480
6160
400


















Company Profile

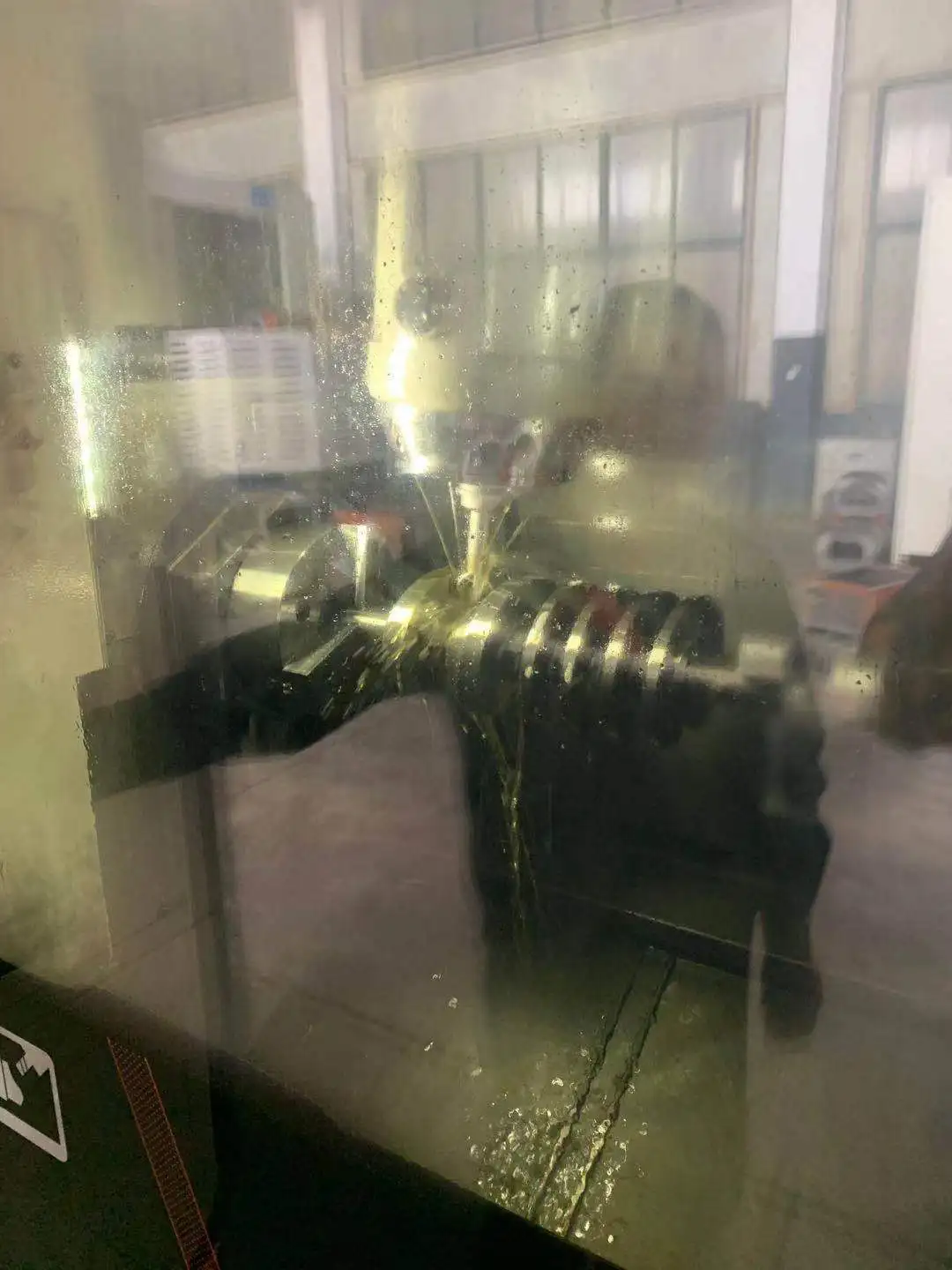

Our company was established in 2002. We are a Satrt-up company which specializing in the production of vacuum and application equipment. We have several imported horizontal machining centers, CNC lathes and imported measuring instruments.These ensure that the quality of our products is stable and reliable.At the same time we have a number of long-term engaged in the industry of professional and technical personnel, can provide you with a wealth of pre-sales and after-sales guidance. Our products are widely
used in medical, vacuum drying, pharmaceutical, petrochemical, food, textile and other industries and fields.For a long time, we rely on exquisite technology, excellent products, humanized service for the company to win the trust of domestic and foreign customers. The brand influence is increasing year by year. Our company adhering to the " Attention to the details, the pursuit of quality". We will continue to provide you with high quality products and perfect service.We sincerely welcome customers to negotiate business with us and develop fruitful cooperation.


Marketing Campaign




Our main suppliers
We have famous suppliers from all over the world. They provide us with stable and efficient products to ensure the quality of our products




Product packaging








Why Choose Us




FAQ


Q1.How long for production?
A1.10 working days.

Q2.What color available?
A2.Colour is option. Change color no need to additional charges.

Q3.What's the minium quantity(MOQ)?
A3.Less than 5 sets.

Q4. What is the payment term?
A4.Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card

Q5.How long can I expect to get the sample?
A5.3-5 working days for preparing samples.

Q6.How long shipping time?
A6.Depending on your desired arrival place.

Q7.How can i know more detail about you produce?
A7.Welcome to inquire us!
