Dexinda Automatic Plastic Courier Bag Packaging Pla Material Making Machine For Express
- Category: >>>
- Supplier: Jiangxi DeXinDa Intelligent Machine Co. Ltd
Share on (1600244498596):
Product Overview
Description
Product Overview

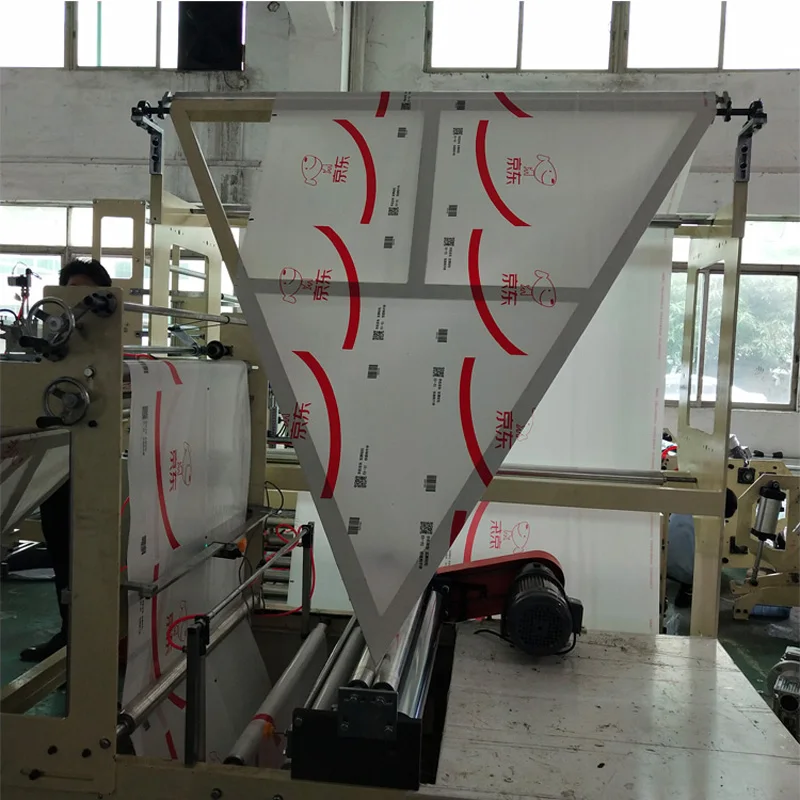

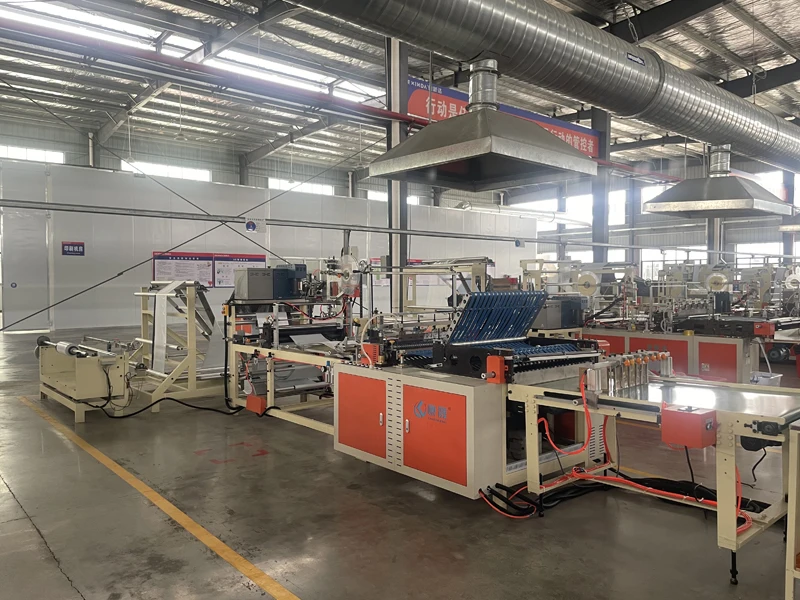

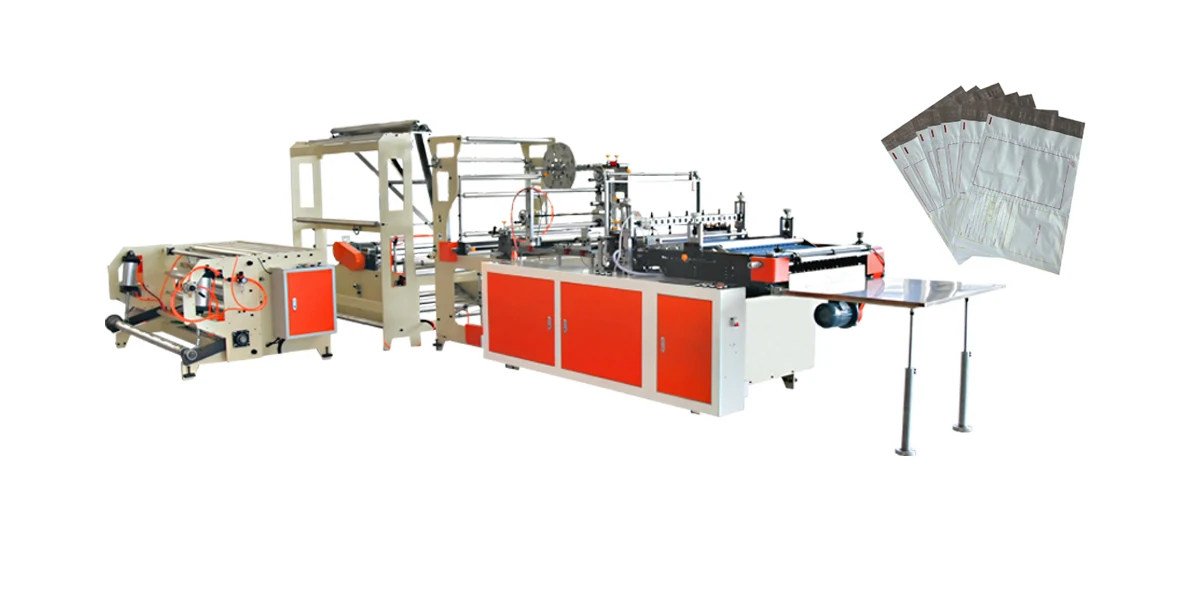

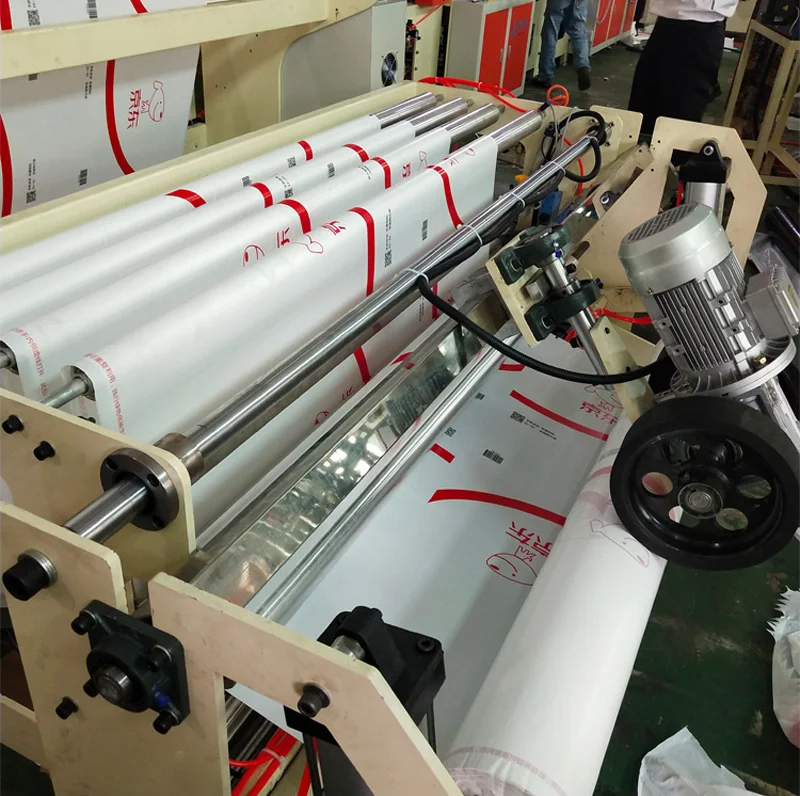

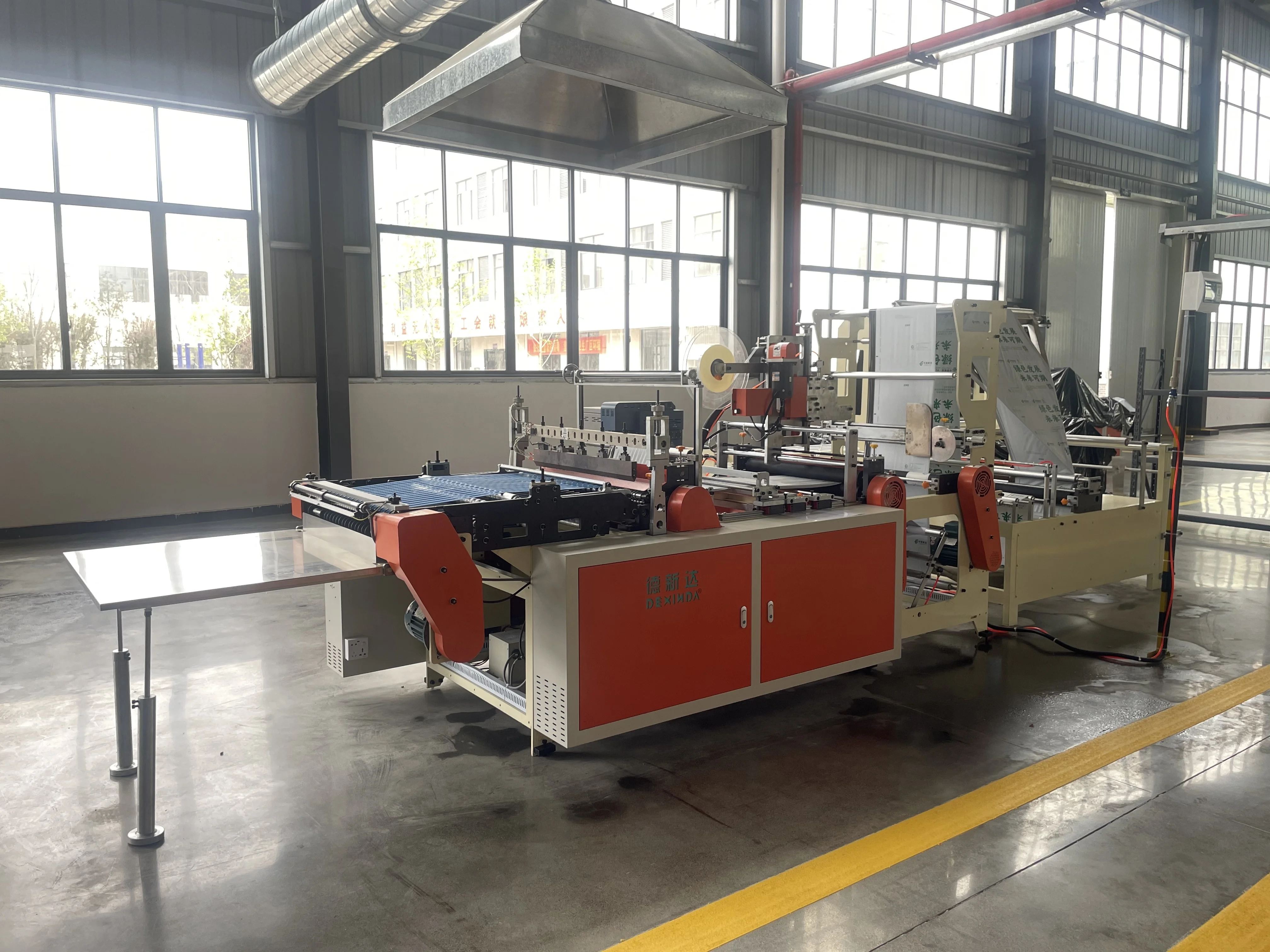

Dexinda full automatic all in one courier bag making machine
Performance and Features:
This courier bag making machine has been shown 6 times in Chinaplas. We keep breakthrough in technology and performance and had developed it. It’s recognized among the domestic and foreign buyer in the professional courier bag making industry. Now we had updated to All-in-one machine, with the function of auto-loading, film folding,bill pocket sealing, hot melt glue spraying, sealing &cutting,etc, all process will be finished in one machine to production efficiency rapidly.
In terms of hardware, the machine adopts Taiwan computer servo control system, programmable custom PLC. Using sensitive electric eye from Europe, with automatic alarming when colors code disappears, effectively reduce operating loss. With function such as up-down rolls changing deice to adhere the service concept of customer demands.
This courier bag making machine has been shown 6 times in Chinaplas. We keep breakthrough in technology and performance and had developed it. It’s recognized among the domestic and foreign buyer in the professional courier bag making industry. Now we had updated to All-in-one machine, with the function of auto-loading, film folding,bill pocket sealing, hot melt glue spraying, sealing &cutting,etc, all process will be finished in one machine to production efficiency rapidly.
In terms of hardware, the machine adopts Taiwan computer servo control system, programmable custom PLC. Using sensitive electric eye from Europe, with automatic alarming when colors code disappears, effectively reduce operating loss. With function such as up-down rolls changing deice to adhere the service concept of customer demands.
FEATURES AT A GLANCE
Bag width: 100-700 mm
Bag length: 100-700 mm
Supply material: HDPE LDPE LLDPE/Biodegradable
Total power:5 KW
Bag forming speed:100-2500 pcs/min
Machine size:5800*1300*1400 mm
Weight:3,000 kg
PRODUCT SPECIFICATIONS
Product name | All in One Courier Bag Making Machine |
Model number | KDYT-30 |
Brand | Dexinda |
Power supply | 3Phase 380V 50Hz |
Touch screen operation interface(Taiwan Weinview) | 1 set; 7 inch |
1.5 KW servo drive- DELTA | Yes |
1.5 KW Servo motor- DELTA | Yes |
Main motor | 2.2 KW |
Main inverter- DELTA | 2.2 KW |
Bag size | 100-700mm |
Bag forming speed | 100-200 pcs/min |
Bag thickness | 0.03-0.15 mm |
PLC -YONGHONG-Taiwan | FATEK brand |
Reducer & inverter for folding device | 0.75 KW |
Heat sealing copper knife | 30 Inch (1 side) |
Film folding device | 1 set |
Wlue auto-pause funtion (with print) | Yes |
With glue auto-pause funtion (without print) | Yes |
With full automatic tension control | Yes |
Shenshi color tracking electric senser-Yatai | 2 pieces |
1400mm width heavy duty Auto Edge-bias correcting device | With pneumatic-material-loading, air shaft feeding device |
Auto loading | Yes |
One rack 2 positions punching device,excluding punch die | Yes |
With 4-pole mechanical transmission back pocket sealing device | Yes |
10KG Hot melt glue applicator | 1 set |
Vertical roller back pocket sealing device | Can be choosed |
Complete machine with steel plate structure | Yes |
Products Description
Company Profile
RAQ
A) Are you a manufacturer or trading company?
We are manufacturer, with own employees and factory
B)How long has your factory been in this filed?
Since 2003 up to now. In China, as one of earliest and leading technology manufacturers in courier bag making machine,we have more than 19 years professional experiences.
C)How long is the warranty period?
All of our product give 12 months warranty.
D)What is your delivery time?
Normally,It need 15-30 days, depend on machine model.
E)Can i get some samples? How can i get it?
Yes, will free give some samples for you, you need to bear the courier costs by DHL,FedEx etc.
We are manufacturer, with own employees and factory
B)How long has your factory been in this filed?
Since 2003 up to now. In China, as one of earliest and leading technology manufacturers in courier bag making machine,we have more than 19 years professional experiences.
C)How long is the warranty period?
All of our product give 12 months warranty.
D)What is your delivery time?
Normally,It need 15-30 days, depend on machine model.
E)Can i get some samples? How can i get it?
Yes, will free give some samples for you, you need to bear the courier costs by DHL,FedEx etc.
Sincerely welcome all clients to visit us!
