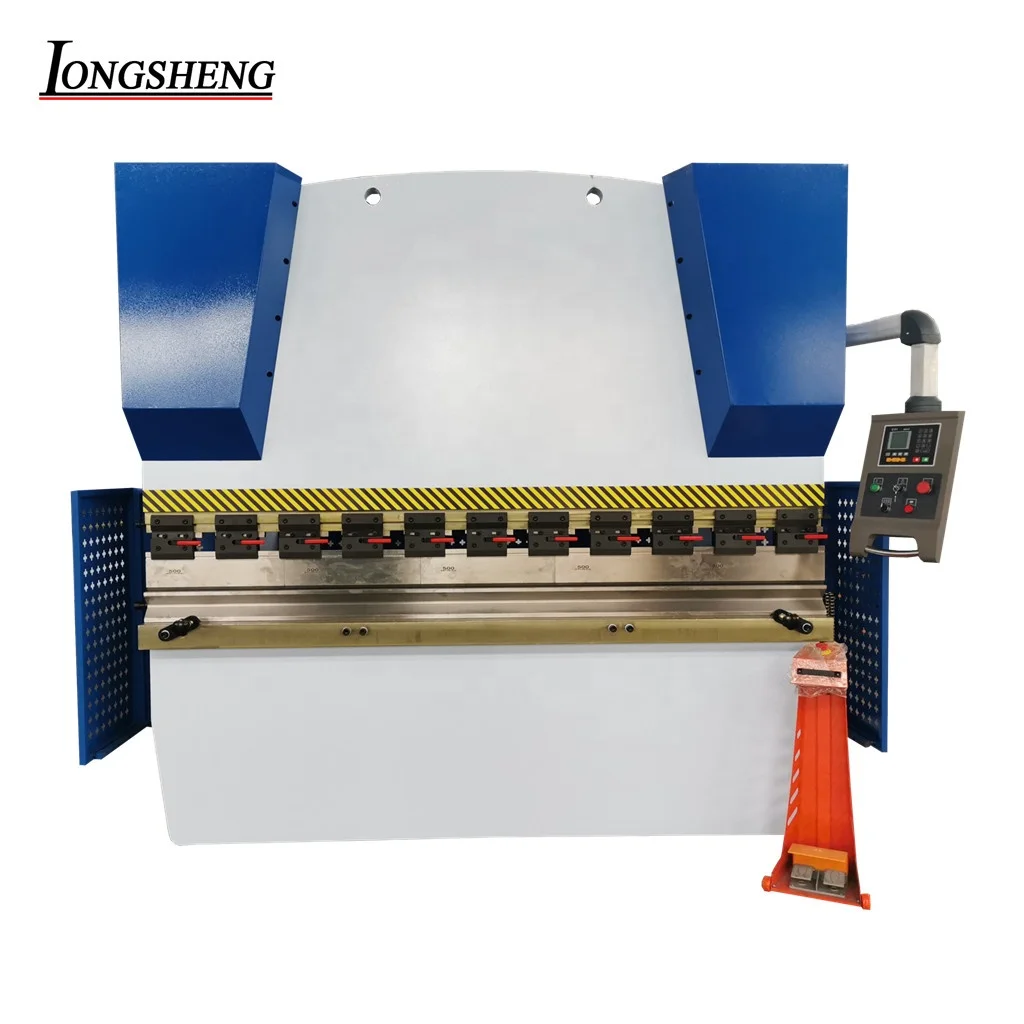

WC67Y 200T6000 Auto NC Control Press Brake Machine Bending
- Category: >>>
- Supplier: Jiangsu Longsheng Machine Manufacturing Co. Ltd.
Share on (1600244704447):
Product Overview
Description
Product Description
Standard Equipment
-ESTUN E21 NC control System
-Powered Depth Y-axis&Back gauge X-axis
-DELTA Inverter controlled back gauge
-HIWIN Ball screws & Polished rod with 0,05mm accuracy.
-Plate Support Arms
-Germany Bosch-Rexroth Hydraulic
-Germany EMB Tubing connector
-Germany Siemens Main Motor
-Tele mecanique/Schneider Electrics
-Hydraulic &Electrical overload protection
-Top and Bottom Tooling(86°,R0.6mm)
-Safety Standards(2006/42/EC) ALL EQUIPMENTS CAN BE CUSTOMIZED
SPECIFICATIONS FOR WC67Y-200T/6000 HYDRAULIC PRESS BRAKE | ||||||
1 | Max.working length | 6000mm | ||||
2 | Max.bending thickness | 5mm | ||||
3 | Distance between columns | 4800mm | ||||
4 | Stroke(Y-axis) | 200mm | ||||
5 | Throat Depth | 400mm | ||||
6 | Motor Power | 15KW | ||||
7 | Open height | 470mm | ||||
8 | Length x Width x Height | / | ||||
9 | Weight | 19T | ||||
Main Features
1.Totally EU streamlined design. Monobloc by welding robots & apparatus and stress relief process by annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch Rexroth, Germany.3.Travel limit protection, full machine guarding with safety interlocker.
4.Hydraulic synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
5.The stroke and distance of the back gauge is adjusted by the motor.
6.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
8.Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
9. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T, DA58T.(optional)
WC67Y 200T6000 Auto NC Control Press Brake Machine Bending.
Certifications
Detailed Images
Machine Main Features

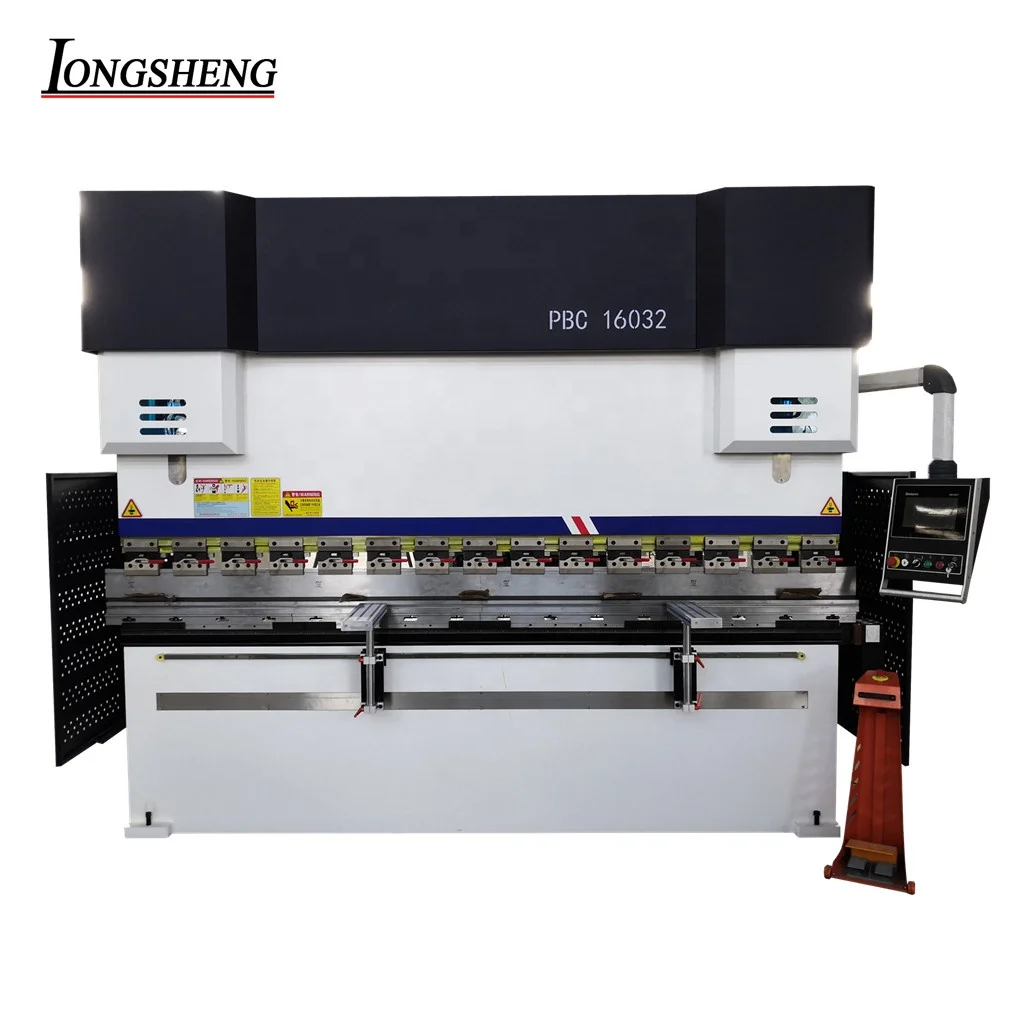

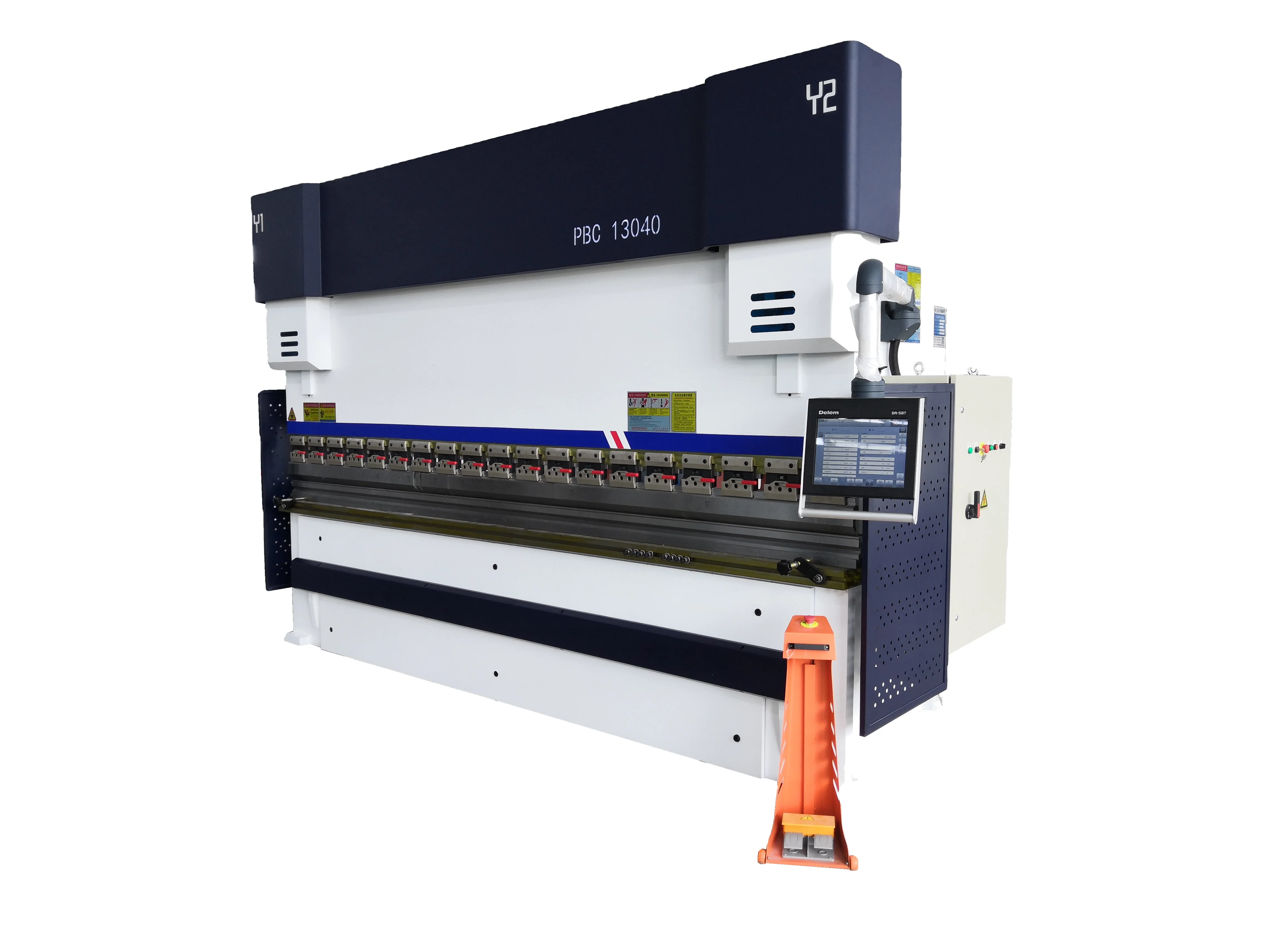

Name: Longsheng Servo Hydraulic Press Brake
Brand: Longsheng
Original: China
This is servo hydraulic press brake with DELEM DA58T control system, it's CNC. You can input the drawing on the controller by yourself. The machine can work according to the drawing automaticlly. Customers can choose other controllers according to their own requirements.
Machine Part: DELEM DA58T Control System
Controller cantilever device, referring to man-machine engineering design, easy operation of CNC controller interface, higher accuracy and more comfortable. And this DELEM DA58T controller is from Netherlands.
Machine Part: France Schneider Electrics
Adopting France Schneider electric to ensure the machine stability, using Estun servo drive and control X-axis and axis, and the speed of X-axis and R-axis are adjustable.
Machine Part: Germany EMB Tube
Using Germany EMB casing tube and connectors to reduce the odds against welding slag jamming the valves or affect oil flowing.
Machine Part: NOK Sealing Ring
Using Japan NOK sealing ring, improving the service life of oil cylinder, guaranteeing long-term use without leakage.
Machine Part: Servo Motor
Precisely control the positioning of the back gauge to ensure the accuracy of the back gauge.
Machine Part: Quick Clamp
Using mechanical quick clamps, improving the clamping accuracy.
Machine Part: Front Arm
Front arm with features of simple structure, powerful functions, can be adjusted up and down, or moved along the workbench from side to side.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Workshop and others
Packing & Delivery
Packaging | ||
Size | / | |
Weight | 19T | |
Packaging Details | The normal package is plastic film(Size: L*W*H). If you need wooden packaging, we can also provide it, but at an extra charge. And if export to european countries, the wooden box will be fumigated. Besides, if container is too tigher, we still recommend that the customer use a pe film package. | |
