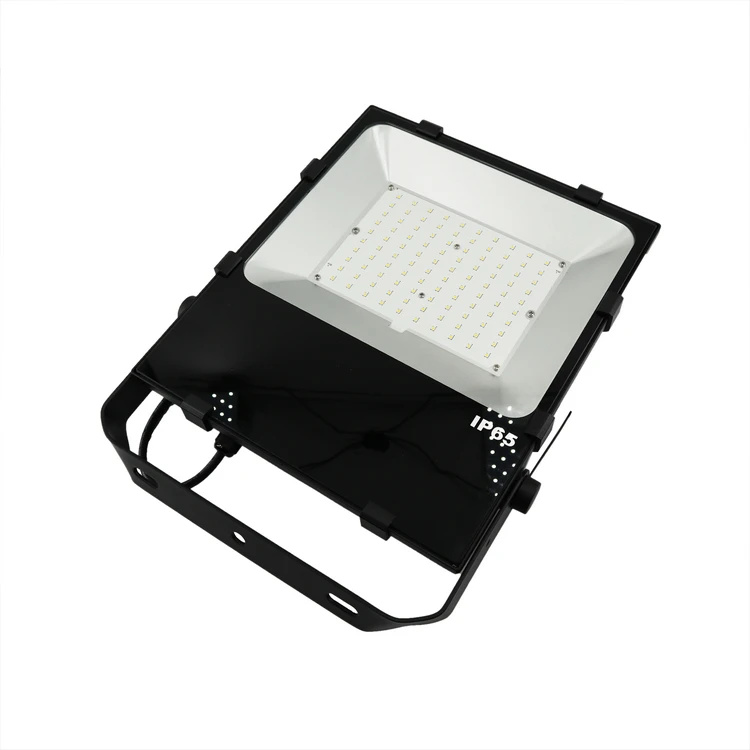

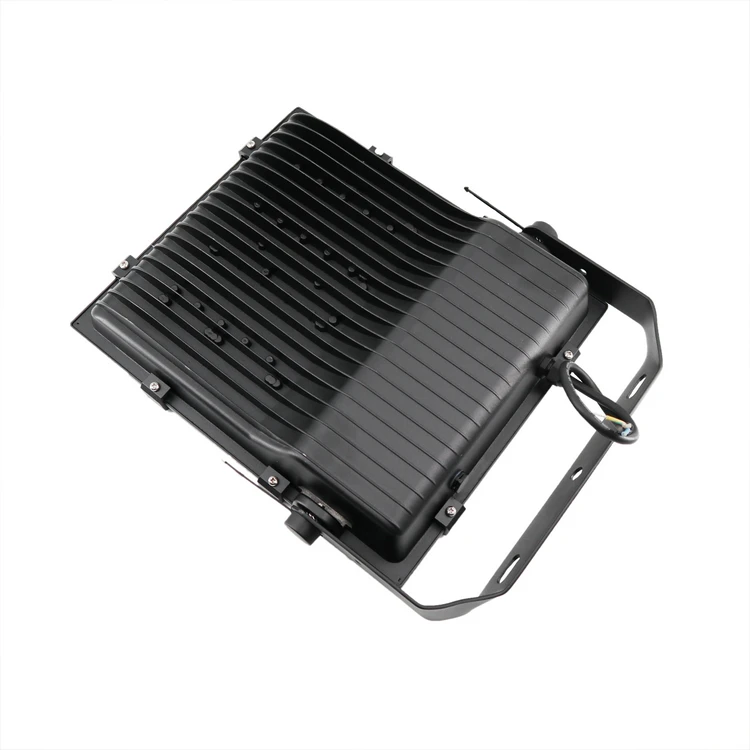

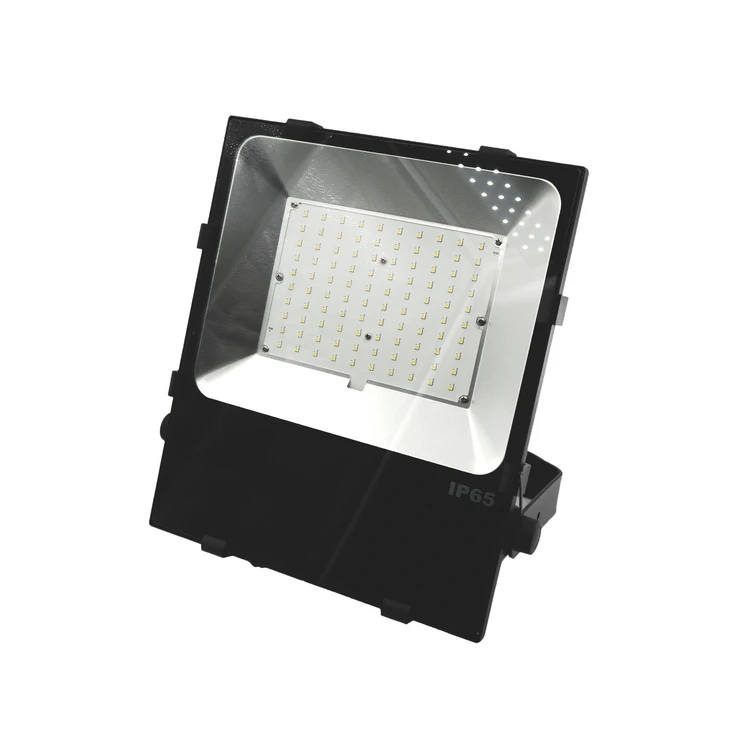

50w 70w 80w 100w 120w 150w solar power DC12V 24V AC85 300V led flood light
- Category: Flood Lights >>>
- Supplier: Kunshan,Yaolighting,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Complete lamp parameter list: | ||||||||||||
Art.No. | FL007-50 | FL007-80 | FL007-100 | FL007-120 | FL007-150 | FL007-200 | ||||||
Power | 50W | 80W | 100W | 120W | 150W | 200W | ||||||
Operating temperature | -40-50°C | -40-50°C | -40-50°C | -40-50°C | -40-50°C | -40-50°C | ||||||
Input Voltage | 200-240Vac/110-277Vac | |||||||||||
LED Chip | Lumileds 3030 2D | |||||||||||
Optical Effect | 130 Lm/W | |||||||||||

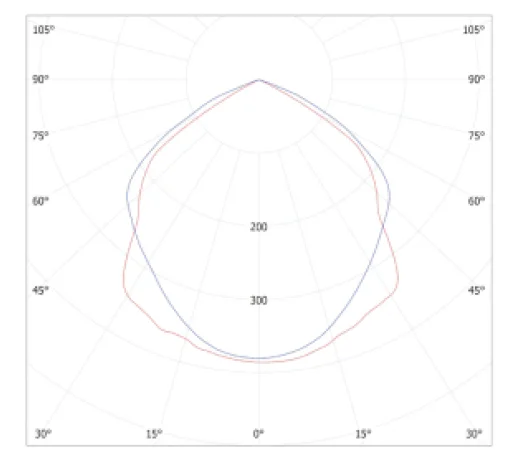

Beam Angle | 70-140°C | |||||||||||
IP Class | 65 | |||||||||||
Salt Spray Class | 720Hrs | |||||||||||
CCT | 4000/5000/5700/6500 K | |||||||||||
Ra | 70+/80+ | |||||||||||
LM90 | ＞36000 Hrs | |||||||||||
Life Span | ＞60000 Hrs | |||||||||||
Warranty life | 5years | |||||||||||
Place of Origin | Kunshan,China | |||||||||||
Features:
*3030 LEDs Mould，with high luminous efficiency,low heat,no mercury and other harmful elements,belonging to green light;
* The client can choose lumen brightness,CRI and CCT,the maximum luminous efficiency of up to 130lm/W;
* LED source conform LM80,the actual test ambient temperature after aging 9000h at 105℃，can maintain the luminous flux rate
remained at 96%;
* Uses high thermal conductivity aluminum plate, reducing the temperature difference between light source and radiator, improve
reliability;
* Using convection radiator and temperature is less than75℃;
* Meet CE C-Tick CCC standard LED driver;
* No mercury or toxic gas;
* RoHS compliant;
* The client can choose lumen brightness,CRI and CCT,the maximum luminous efficiency of up to 130lm/W;
* LED source conform LM80,the actual test ambient temperature after aging 9000h at 105℃，can maintain the luminous flux rate
remained at 96%;
* Uses high thermal conductivity aluminum plate, reducing the temperature difference between light source and radiator, improve
reliability;
* Using convection radiator and temperature is less than75℃;
* Meet CE C-Tick CCC standard LED driver;
* No mercury or toxic gas;
* RoHS compliant;
Reliability

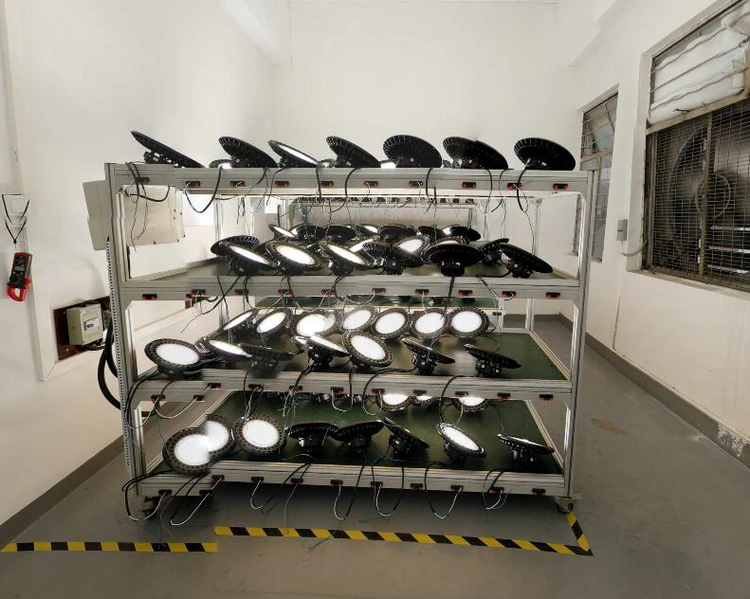

BURN- IN TESE
Input voltage applied to the led driver with 230Vac(50Hz);Output full load. 40°C±5°C degrees environment; 4 hours Burn- in- test.
MTBF

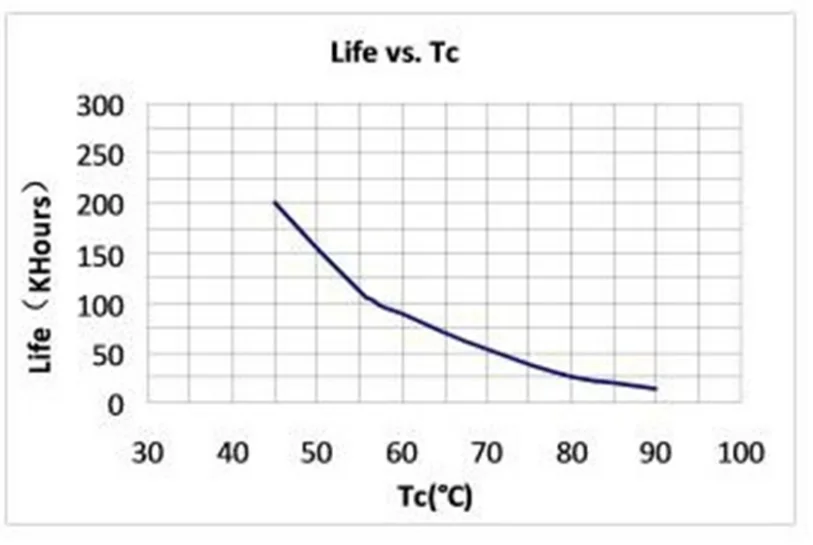

Mean time between failures: not less than 60000 hours in the case of shell temperature less than 70 degrees C ,230Vac input and rated power.(reference life -Case temperature).
Input voltage applied to the led driver with 230Vac(50Hz);Output full load. 40°C±5°C degrees environment; 4 hours Burn- in- test.
MTBF
Mean time between failures: not less than 60000 hours in the case of shell temperature less than 70 degrees C ,230Vac input and rated power.(reference life -Case temperature).

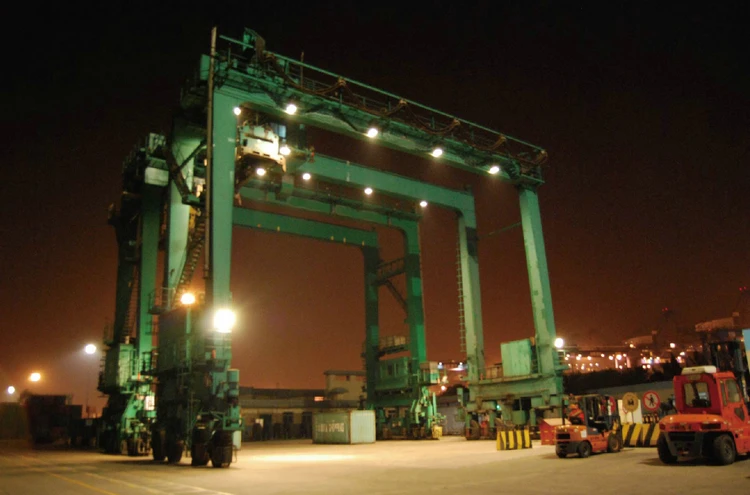

Applications:

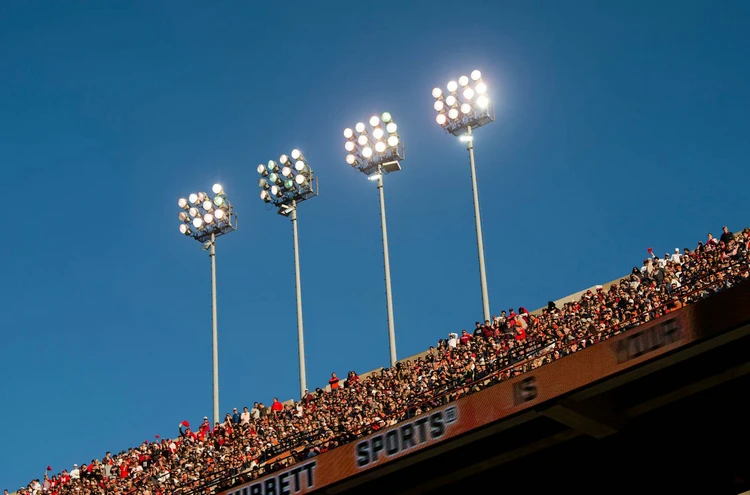

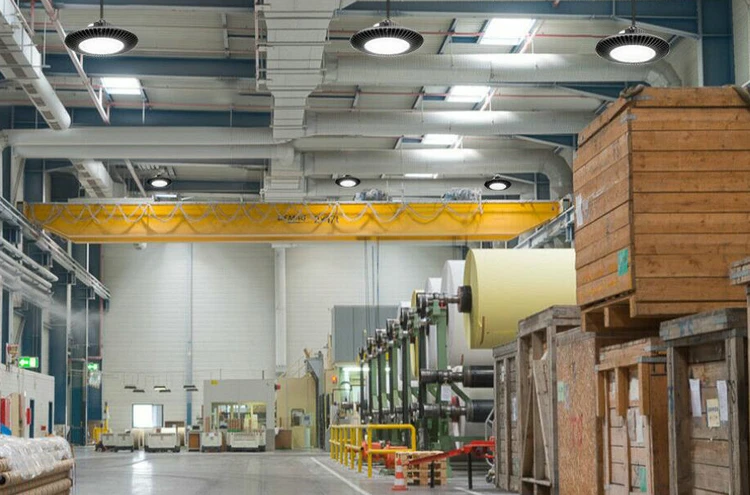

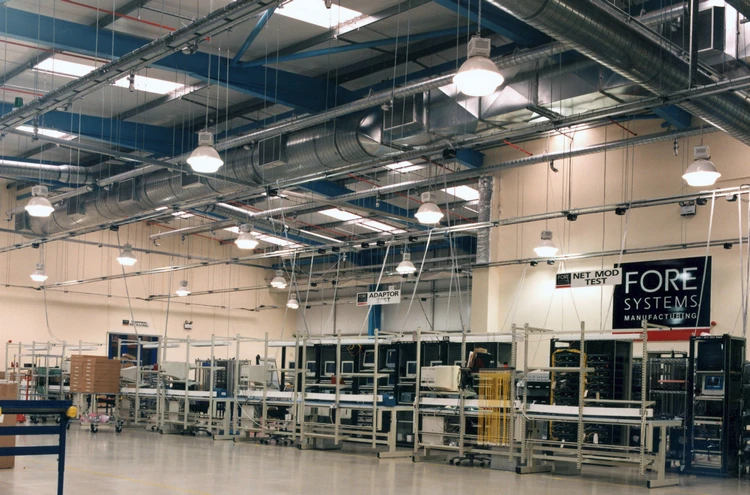

Stadium, Workshop, Warehouse, Airport, Railway Station
Company Introduction

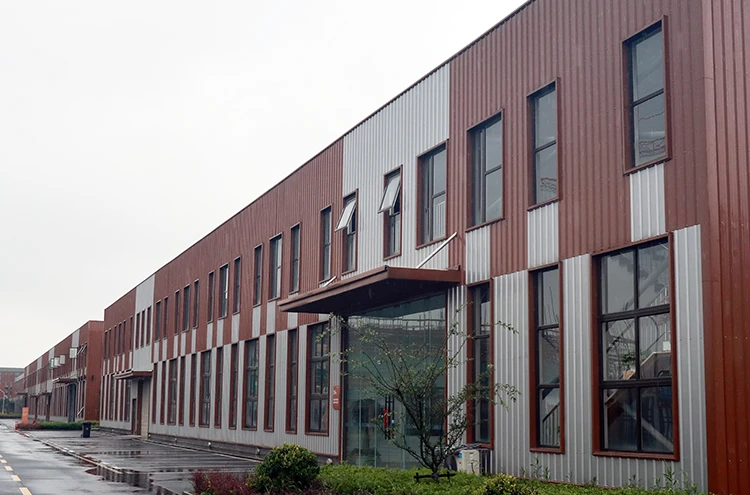

Kunshan Yaolighting Co., Ltd.
Kunshan Yaolighting Co., Ltd. is a high-tech enterprise specialized in LED lighting products R&D,providing overall LED lighting engineering solution,combination with production,sale and after sales service,with a mission "light the word”.

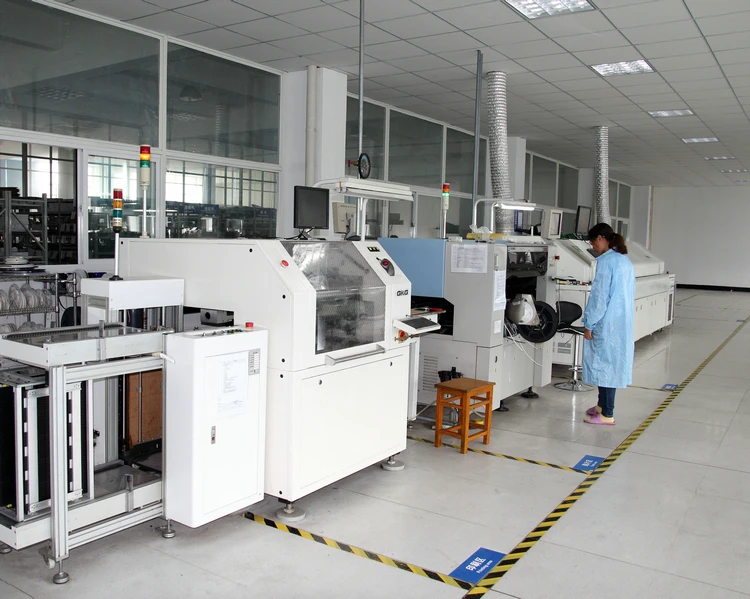

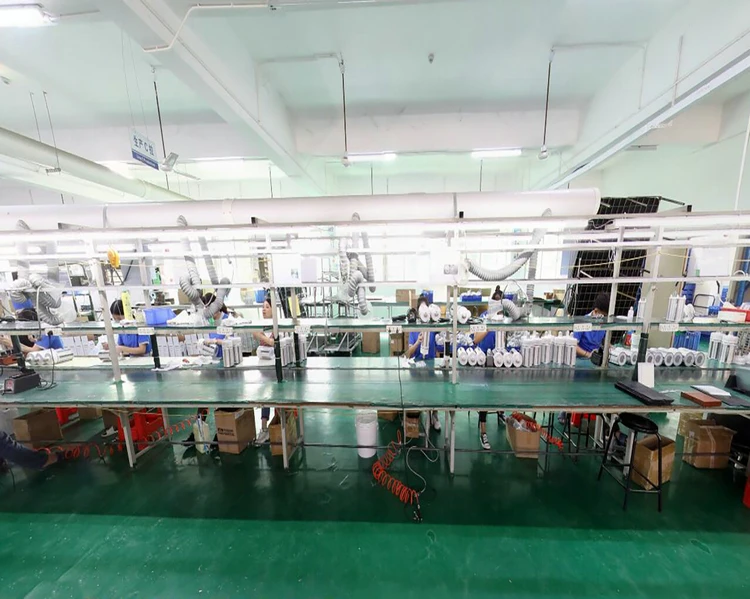

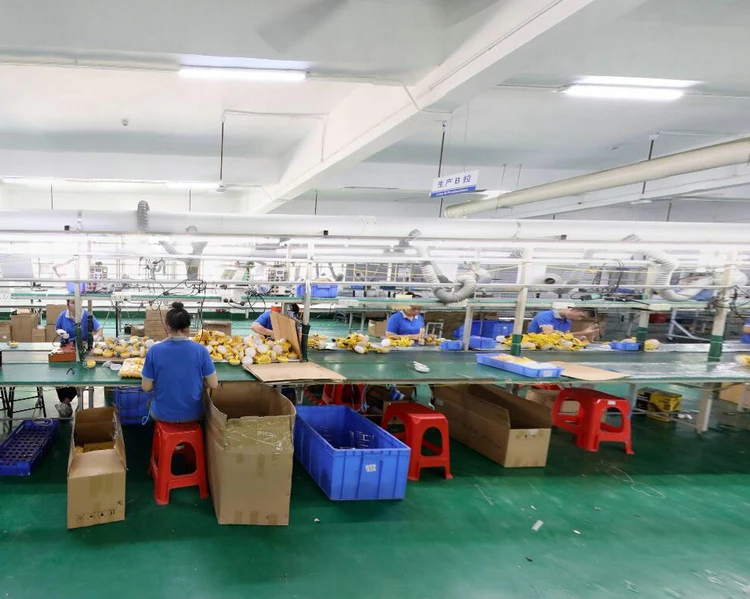

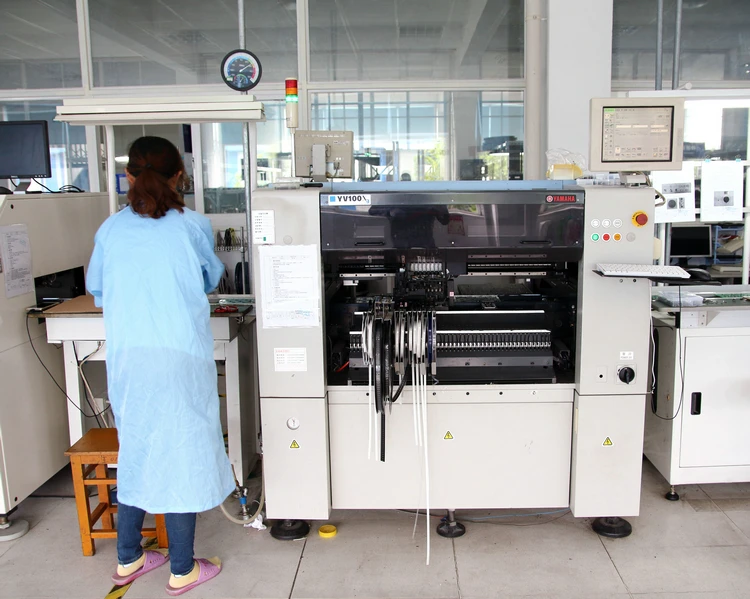

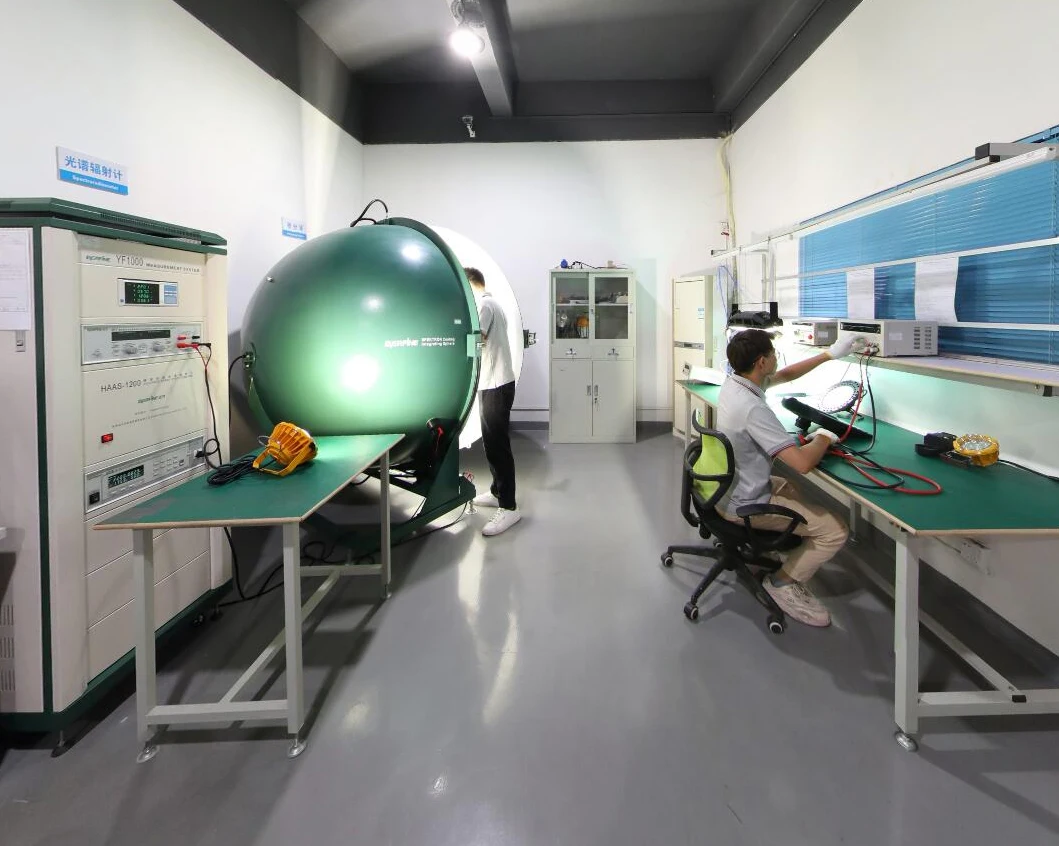

We own highly qualified and professional staff teams, advanced productions and test equipment.
All our products have obtained CE and RoHS certification. At the same time, we assist distributors through TUV certification. Our products are in full compliance with the standard in exporting to Europe, America, Australia, Japan, Korea and other countries. They have been expanded to more than 64 countries around the world.
We self-developed LED solar lights and LED torch lights make full use of the light direct effect and the maximum range of using effective light. They had been widely used in municipal engineering, garden, park, development zone, square, villa and other places, highly praised by customers.
We insist on walking high quality line and provides low carbon, energy conservation and environmental protection in high-end LED lighting products. We are wholeheartedly keen with cooperating with LED lighting business people hand in hand for win-win and human light business and contribute for the fourth lighting revolution strength.
We own highly qualified and professional staff teams, advanced productions and test equipment.
All our products have obtained CE and RoHS certification. At the same time, we assist distributors through TUV certification. Our products are in full compliance with the standard in exporting to Europe, America, Australia, Japan, Korea and other countries. They have been expanded to more than 64 countries around the world.
We self-developed LED solar lights and LED torch lights make full use of the light direct effect and the maximum range of using effective light. They had been widely used in municipal engineering, garden, park, development zone, square, villa and other places, highly praised by customers.
We insist on walking high quality line and provides low carbon, energy conservation and environmental protection in high-end LED lighting products. We are wholeheartedly keen with cooperating with LED lighting business people hand in hand for win-win and human light business and contribute for the fourth lighting revolution strength.

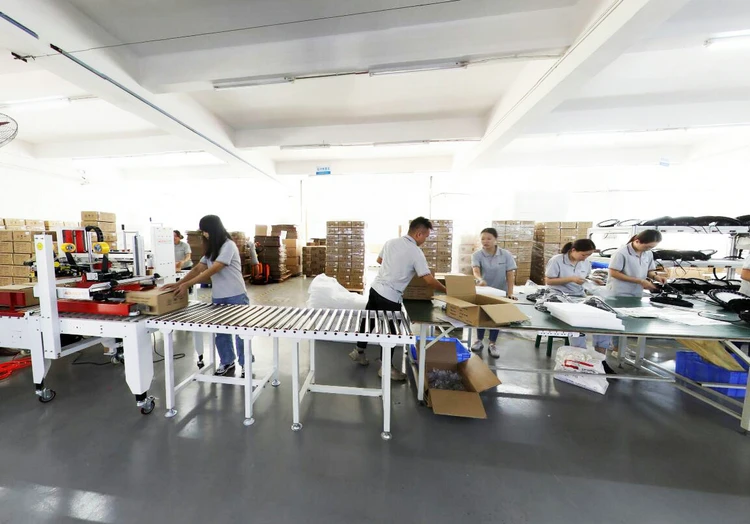

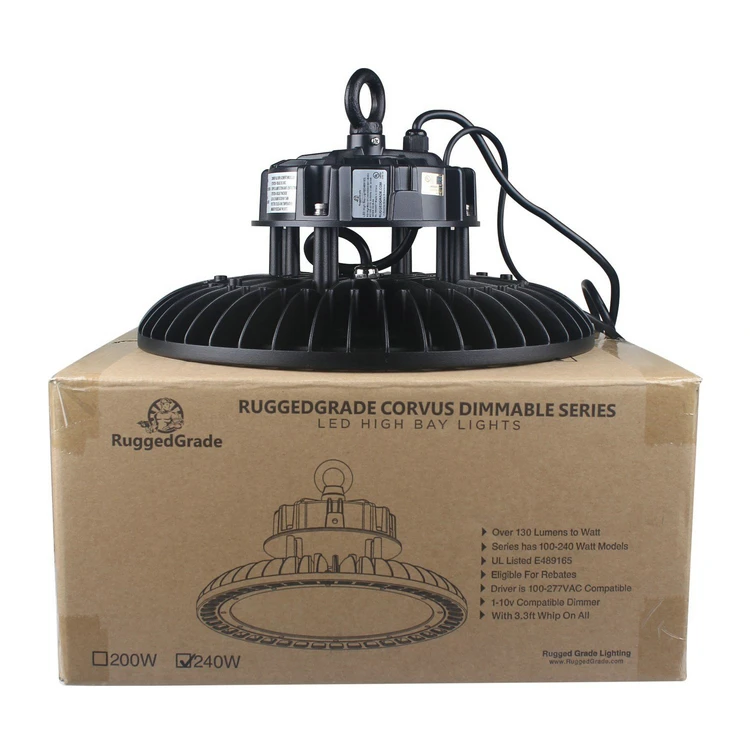

Packing&Shipping
Certifications
FAQ
Q1: Are you a manufacturer ?
A: We are a direct manufacturer.
Q2. Can I have a sample order ?
A: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
Q3. How about the lead time ?
A: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.
Q4: How do you ship the finished production ?
A: By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc).
Q5: Is it OK to make a customized lights
A: We provide OEM service to our customers,not only simple logo/label added,but also
Q6: How to proceed an order for the lights?
A: 1, please let us know your detail requirement and application environment. 2, we will recommend some suitable products and solutions to you according to your request. After all the details confirmed, we will issue invoice with all details,after payment arranged,we start for the production and arrange the shipment.
Q7: How to deal with the defective?
A: All of our products is produced in strict quality control system, the defective rate is less than 0.1% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
A: We are a direct manufacturer.
Q2. Can I have a sample order ?
A: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.
Q3. How about the lead time ?
A: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.
Q4: How do you ship the finished production ?
A: By SEA, AIR or Express(DHL,UPS,Fedex,TNT,etc).
Q5: Is it OK to make a customized lights
A: We provide OEM service to our customers,not only simple logo/label added,but also
Q6: How to proceed an order for the lights?
A: 1, please let us know your detail requirement and application environment. 2, we will recommend some suitable products and solutions to you according to your request. After all the details confirmed, we will issue invoice with all details,after payment arranged,we start for the production and arrange the shipment.
Q7: How to deal with the defective?
A: All of our products is produced in strict quality control system, the defective rate is less than 0.1% according to our shipment records. We offer 5 years warranty for this product, if there is any defective during the warranty, please provide the picture or video for the working situation of the defective lights, we will ship the new lights to you within a few days or send it together with your next order.
