600W Solar Grid Tie Inverter MPPT Pure Sine Wave 10.5 28V or 22 60VDC to 110V or 230VAC Inverters for Solar Panel

Product Overview

Description

Please let me know which one you want 110V or 220V, we have two kinds for your choose!!!



600W Solar Grid Tie Inverter MPPT Pure Sine Wave 10.5-28V or 22-60VDC to 110V or 230VAC Inverters for Solar Panel







1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.

4. Adopting high-frequency isolation transformer type, high efficiency, and high security.

5. Perfect electrical protection function.

6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

7. Getting electronic circuit design, appearance design and other core technology patents.

8. Wide input voltage (15-60VDC), classification processing for different input voltages. It can work with different DC power supplies.



Rated Power: 600W

Solar Panels: ≥600W

DC Input Range: 22-60VDC

MPPT Voltage: 18-48V

DC MAX. Current :50A

AC Output Range :120VAC(90-140VAC) or 230VAC(190-260VAC)

Frequency Range :50Hz/60Hz(Auto control)

Power Factor: >97.5%

THD: <5%

Phase Shift: <2%

Efficiency :120VAC(90-140VAC)

Peak Efficiency:>85%

Stable Efficiency: >83%

Efficiency 230VAC(190-260VAC)

Peak Efficiency:>85%

Stable Efficiency: >84%



Islanding; Short-circuit; Converse Connection; Low

Voltage; Over Voltage; Over Temperature Protection

Work Temperature  -25°C-65  °C

Work Humidity 0%~90%RH non-condensing

Grade of

Waterproof

Indoor Design

Show Luminous Diode (LED)

Cooling Fan

Stand-by Power<2W

EMC EN61000-6-3:2007 EN61000-6-1:2007

Grid Disturbance EN 50178+EN 62109-1+VDE0126-1-12

Grid Detection DIN VDE 1026 UL1741

Certificate CE

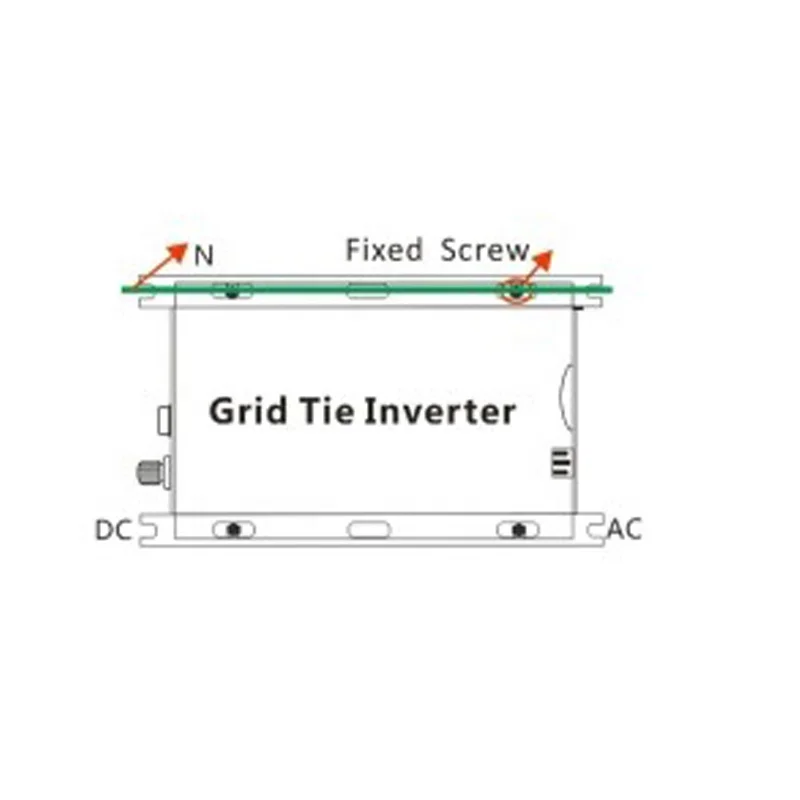

Mounting dimension 16 x 13CM
