Product Overview

Description

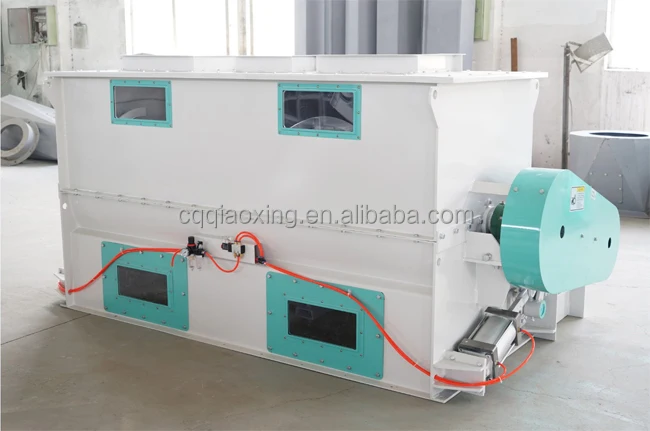

SLHY series single shaft ribbon mixer machine

• Capacity: 500-4000kg/batch


• Application: mix animal feed powder


• Mix one batch time: 3-6 min


• Power: 11/18.5/30/37/45kw


• Product description: Single shaft ribbon mixer machine , works very well to make premix feed mixing .also can mix any powder products .

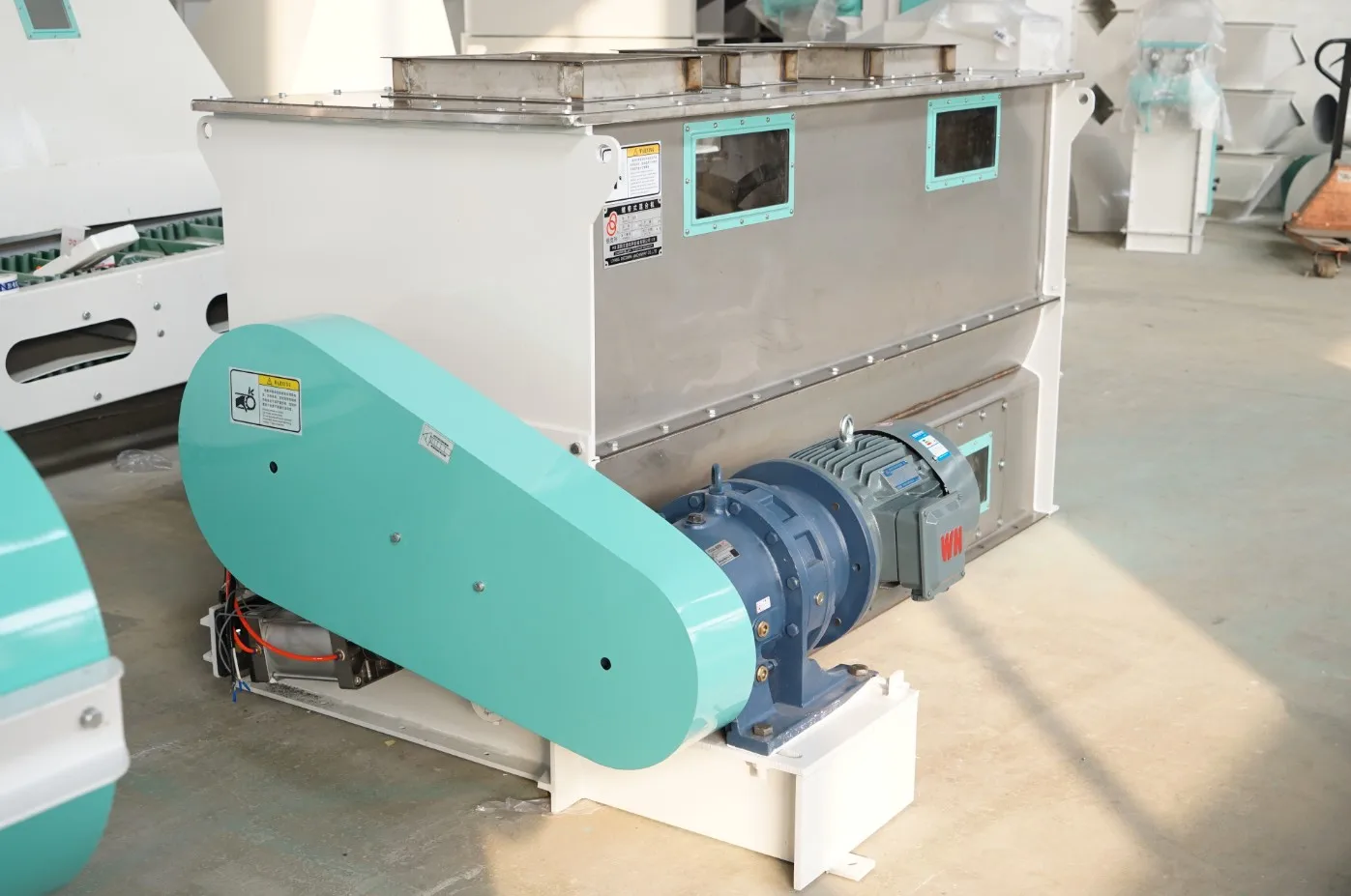

SLHY series single shaft ribbon mixer machine :

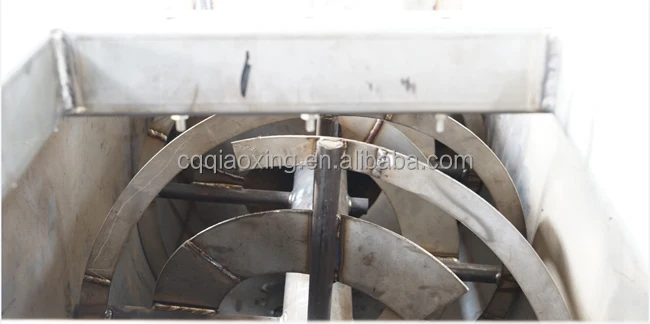

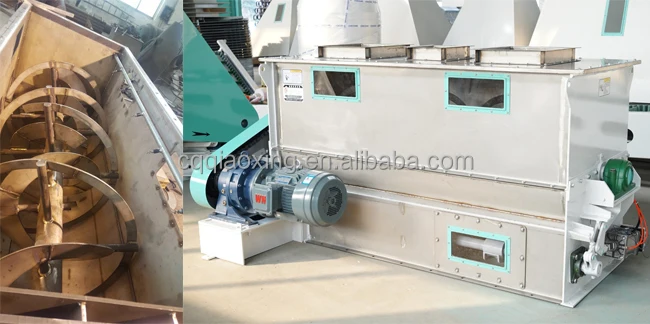

inner photo:

Main product character :

1. It is a mature type machine widely used in feed plant for mixing powder materials. Which can ensure the quality of compound feed.

2. The design of two-way ribbon rotor is an optimization design, the mixing process is gentle and homogeneous. CV is less than 7% without segregation .

3. Mixing period is short. 3-6mins/batch . large discharging door system can assure fast material discharging and less residue.

4. Stable transmission and little abrasion. Various machine types including carbon steel. Stainless steel, composite materials and others for your choice.

5. Multi spraying atomizers can be furnished to add various liquids.

6. Easy and convenient maintenance .

Product technical parameters :

	Effective volume	Each batch loading	Each batch mixing time	Uniformity	Power
Model	M3	KG	Min	CV%≤	KW
SLHY1	1	500	3-6	7	11
SLHY2	2	1000	3-6	7	18.5
SLHY4	4	2000	3-6	7	30
SLHY6	6	3000	3-6	7	37
SLHY8	8	4000	3-6	7	45

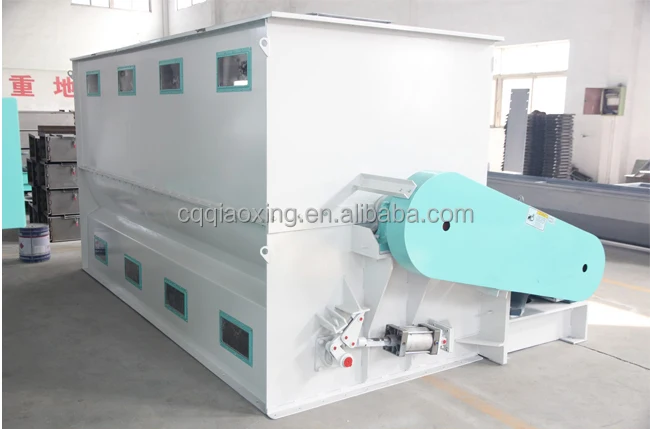

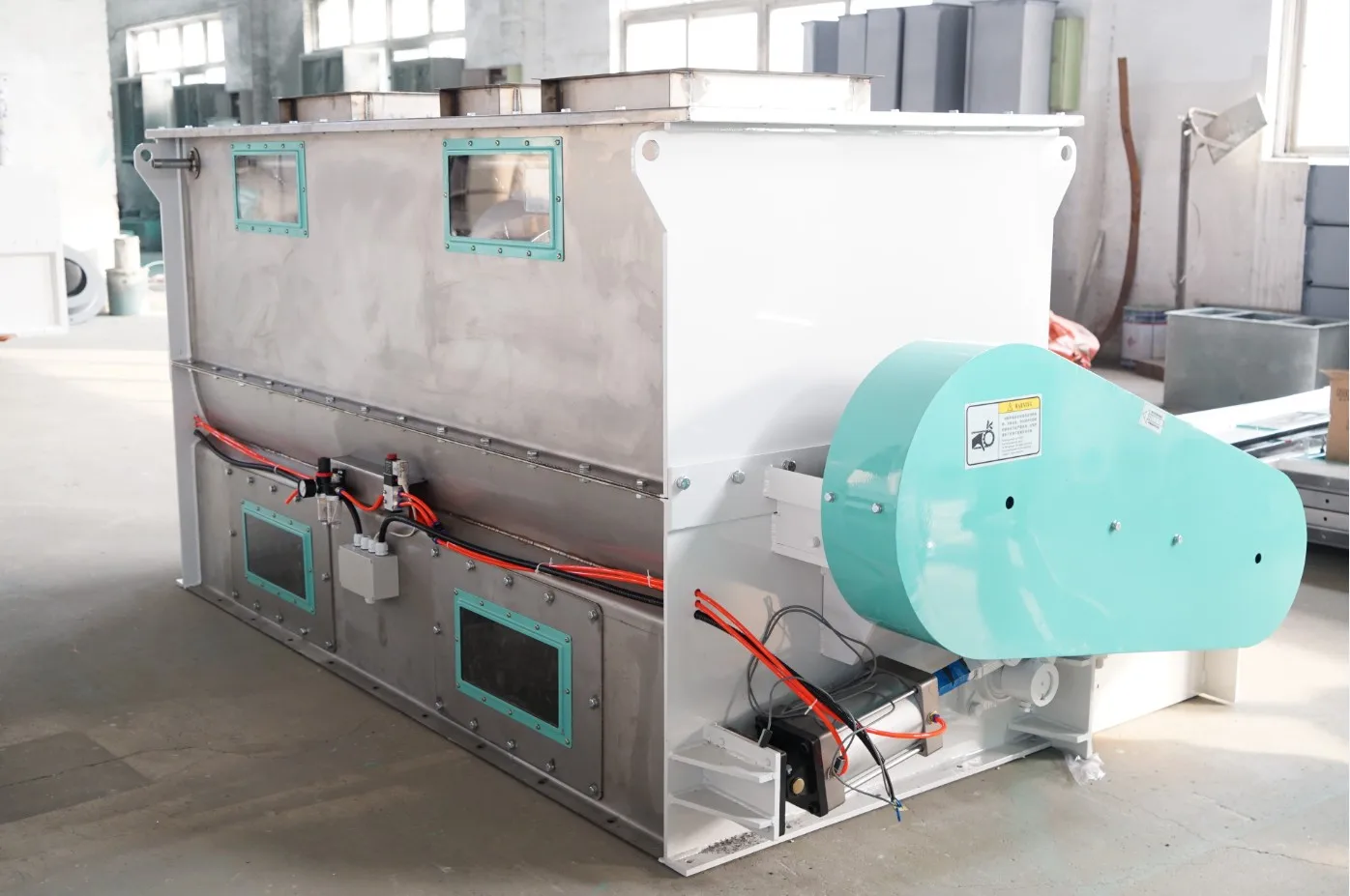

SLHY1 single shaft ribbon mixer photo:



To know more SLHY Series Single Shaft Ribbon Mixer Machine, pls contact with us freely.

Cell/Whatsapp: 008615178920906
