SNS SC Series Double Piston Adjustable Pneumatic Double Acting Aluminum Alloy Standard compressed Air Cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: China SNS Pneumatic Co. Ltd.
Share on (1600245240310):
Product Overview
Description

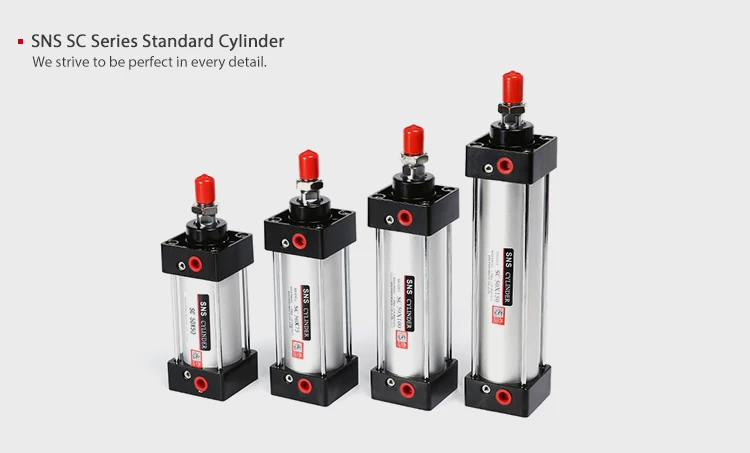

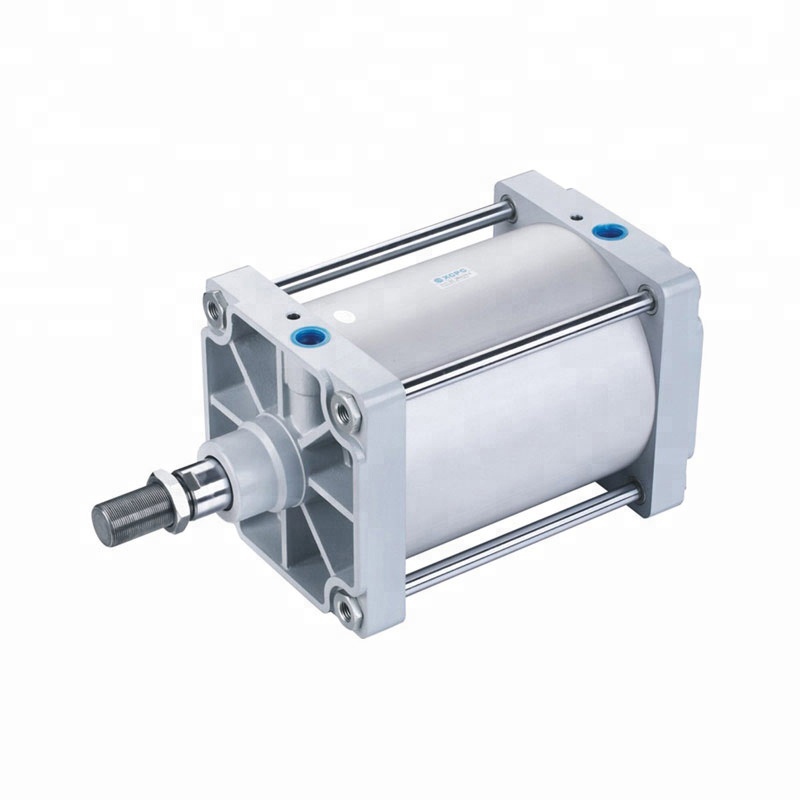

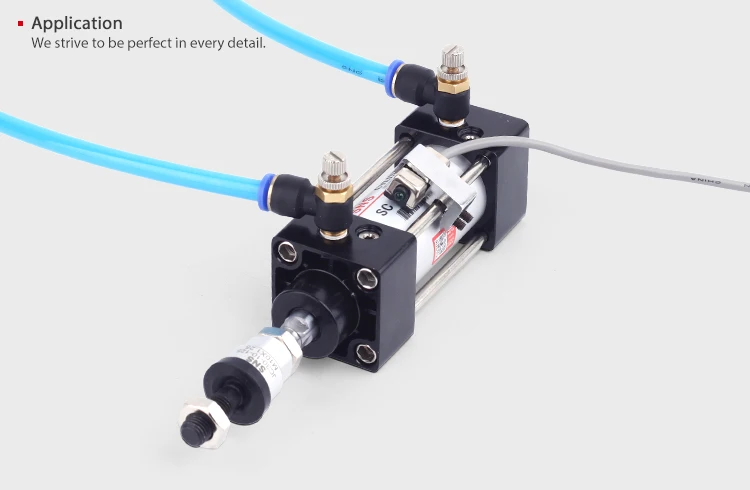

SNS SC Series Double Piston Adjustable Pneumatic Double Acting Aluminum Alloy Standard compressed Air Cylinder
Banner
Product Description
| Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting | |||||
| Working Media | Cleaned Air | |||||
| Working Pressure | 0.1~0.9Mpa(1~9kgf/cm2) | |||||
| Proof Pressure | 1.35MPa(13.5kgf/cm2) | |||||
| Working Temperature Range | -5~70℃ | |||||
| Buffering Mode | Adjustable | |||||
| Buffering distance(mm) | 24 | 32 | ||||
| Port Size | 1/8 | 1/4 | 3/8 | 1/2 | ||
| Body Material | Aluminum Alloy | |||||
Stroke Of Cylinder
| Bore Size(mm) | Standard Stroke(mm) | Max. Stroke(mm) | Allowable Stroke(mm) | |||||||||
| 32 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1000 | 2000 |
| 40 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1200 | 2000 |
| 50 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1200 | 2000 |
| 63 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |
| 80 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |
| 100 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |
| 125 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |
| 160 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |
| 200 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1000 | 2000 |
| 250 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1200 | 2000 |
| 320 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1200 | 2000 |
| 400 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 1500 | 2000 |

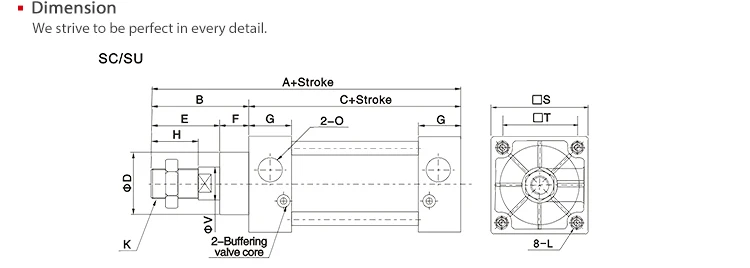

| Bore Size(mm) | A | A1 | A2 | B | C | D | E | F | G | H | K | L | O | S | T | V |
| 32 | 140 | 187 | 182 | 47 | 93 | 28 | 32 | 15 | 27.5 | 22 | M10x1.25 | M6x1 | G1/8 | 45 | 33 | 12 |
| 40 | 142 | 191 | 185 | 49 | 93 | 32 | 34 | 15 | 27.5 | 24 | M12x1.25 | M6x1 | G1/4 | 50 | 37 | 16 |
| 50 | 150 | 207 | 196 | 57 | 93 | 38 | 42 | 15 | 27.5 | 32 | M16x1.5 | M6x1 | G1/4 | 62 | 47 | 20 |
| 63 | 153 | 210 | 199 | 57 | 96 | 38 | 42 | 15 | 27.5 | 32 | M16x1.5 | M8x1.25 | G3/8 | 75 | 56 | 20 |
| 80 | 183 | 258 | 243 | 75 | 108 | 47 | 54 | 21 | 33 | 40 | M20x1.5 | M10x1.5 | G3/8 | 94 | 70 | 25 |
| 100 | 189 | 264 | 249 | 75 | 114 | 47 | 54 | 21 | 33 | 40 | M20x1.5 | M10x1.5 | G1/2 | 112 | 84 | 25 |
| 125 | 242 | 339 | 314 | 100 | 146 | 60 | 68 | 32 | 40 | 54 | M27x2 | M12 | G1/2 | 140 | 110 | 32 |
| 160 | 323 | 480 | 441 | 152 | 171 | 70 | 99 | 53 | 45 | 72 | M36x2 | M16 | G1/2 | 180 | 145 | 40 |
| 200 | 338 | - | - | 154 | 184 | 75 | 99 | 55 | 50 | 72 | M36x2 | M16 | G1/2 | 220 | 180 | 40 |
| 250 | 384 | - | - | 189 | 195 | 92 | 119 | 70 | 50 | 84 | M42x2 | M20 | G3/4 | 280 | 225 | 50 |
| 320 | 431 | - | - | 221 | 210 | 110 | 136 | 85 | 55 | 96 | M48x2 | M24 | G3/4 | 350 | 280 | 60 |
| 400 | 516 | - | - | 261 | 255 | 150 | 136 | 125 | 55 | 100 | M56x4 | M27 | G1 | 435 | 350 | 90 |
Certificate

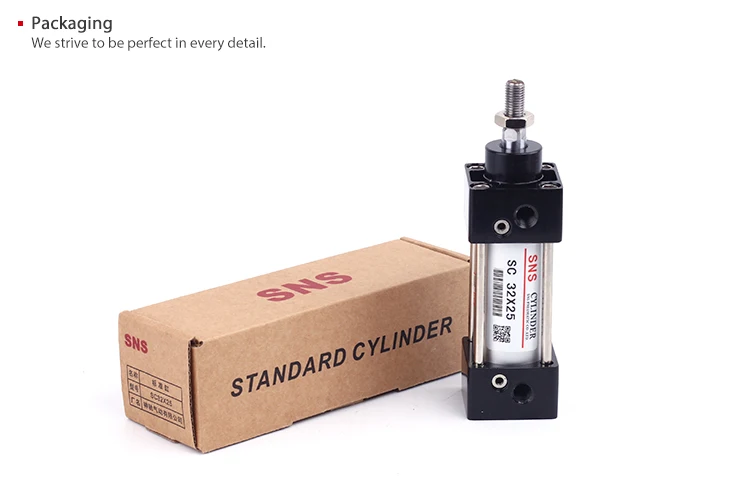

Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
