CKT100LD RLC Meter ESR Tester Digital LCR Meter for Resistance Capacitance Inductance
- Category: >>>
- Supplier: Changzhou Chuangkai Electronic Co. Ltd.
Share on (1600246242599):
Product Overview
Description
Product Description

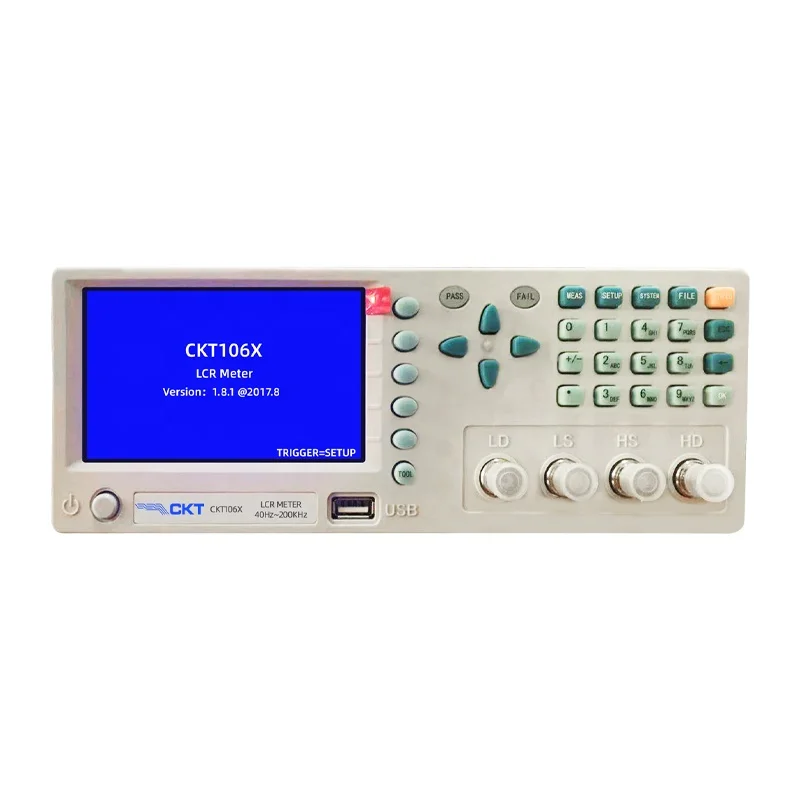

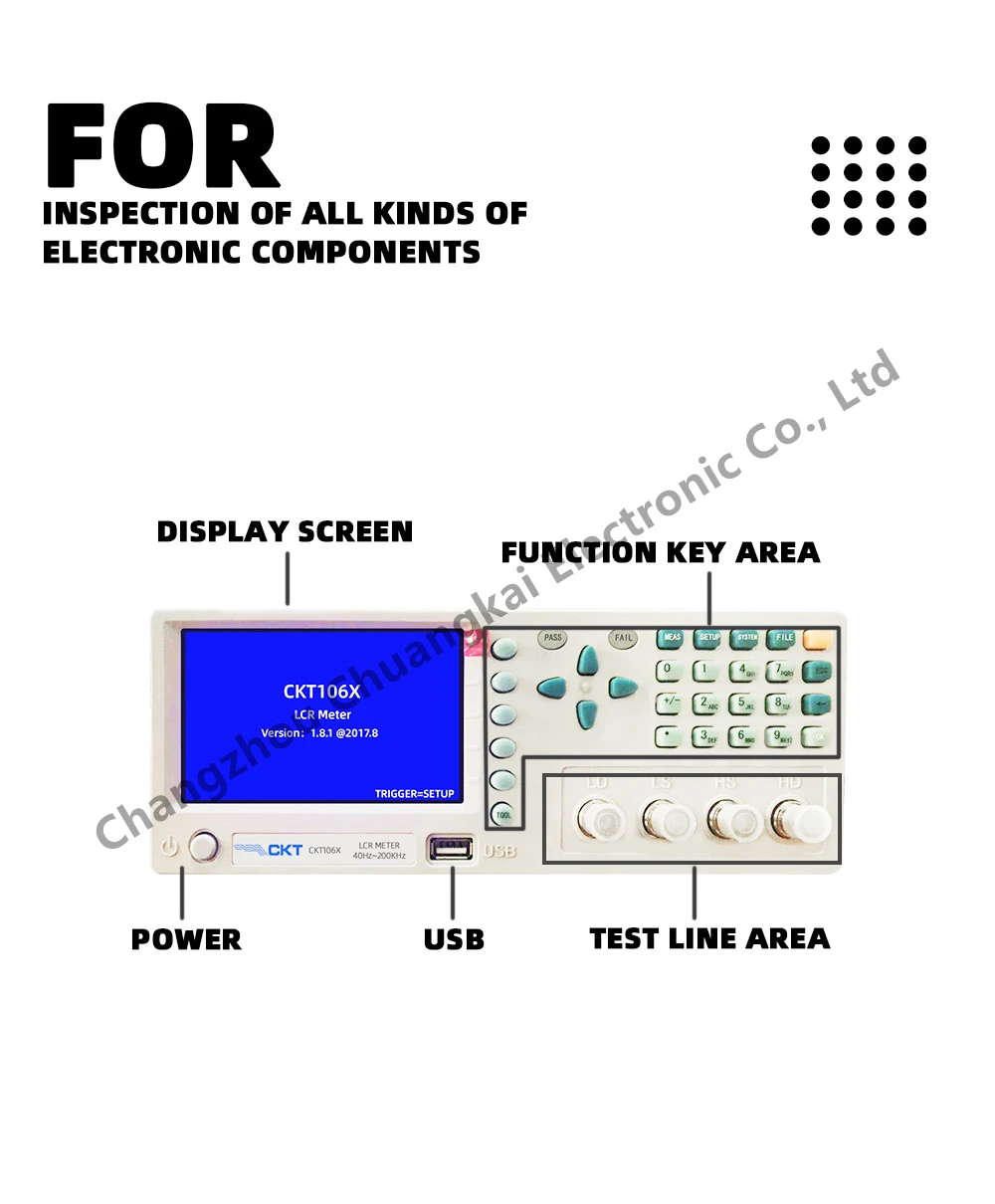

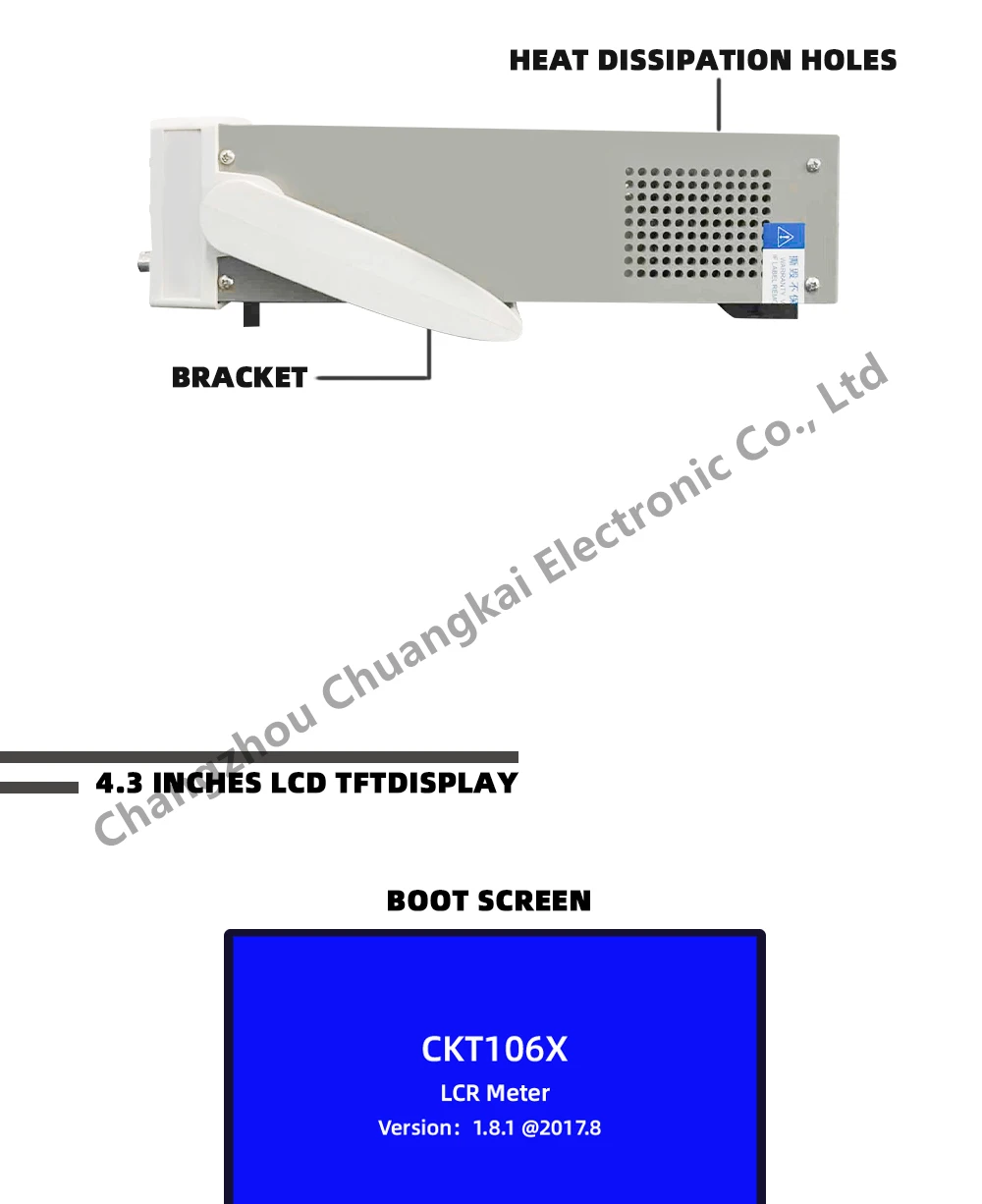

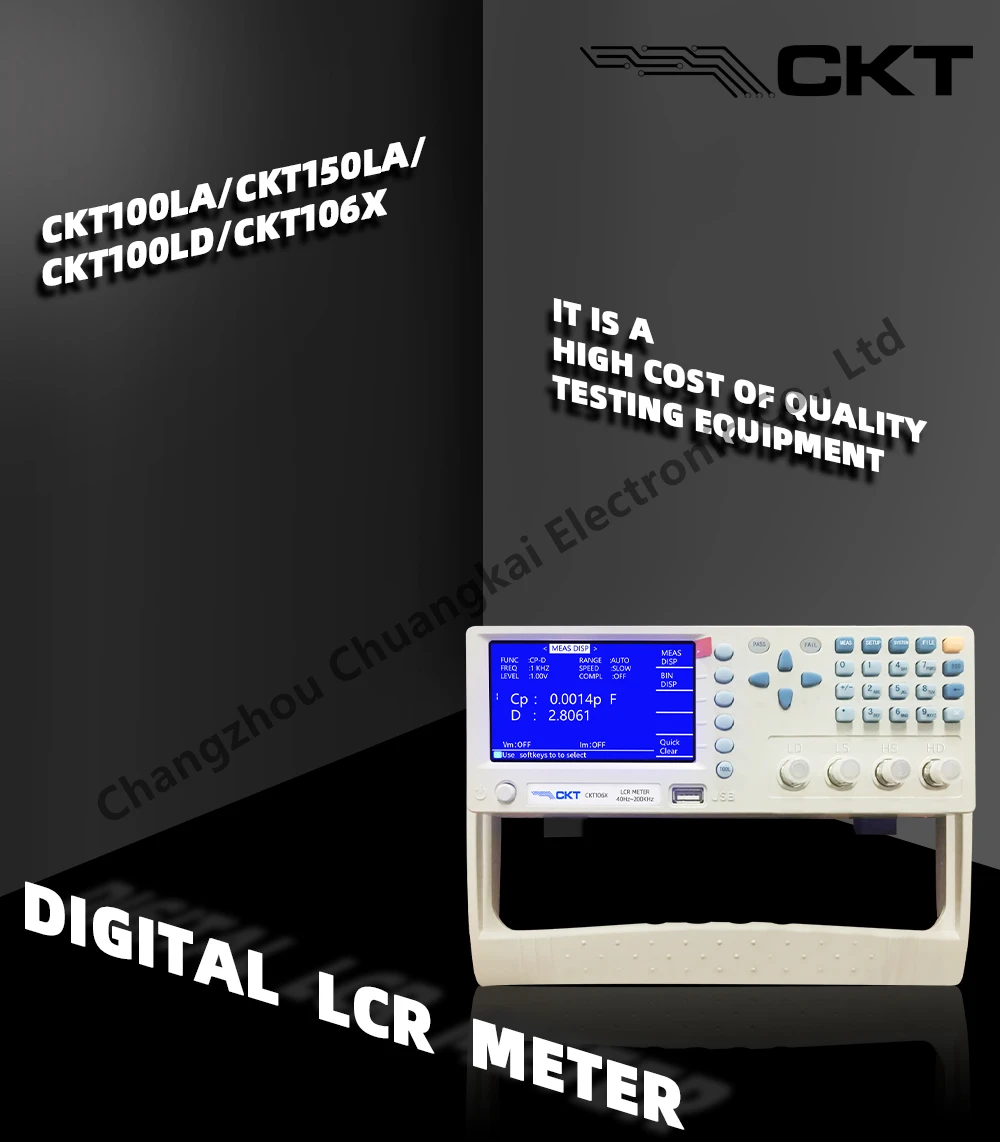

CKT100LA/CKT150LA/CKT100LD/CKT106Xis digital LCR meter for inspection of all kinds of electronic components. Using 4.3 inches LCD TFT display. It is a high-speed and 6-bit test resolution of the impedance measuring instrument, multi frequency points and 0.1% accuracy can meet the requirements of various occasions’ component parameters detection. It is a high cost of quality testing equipment.

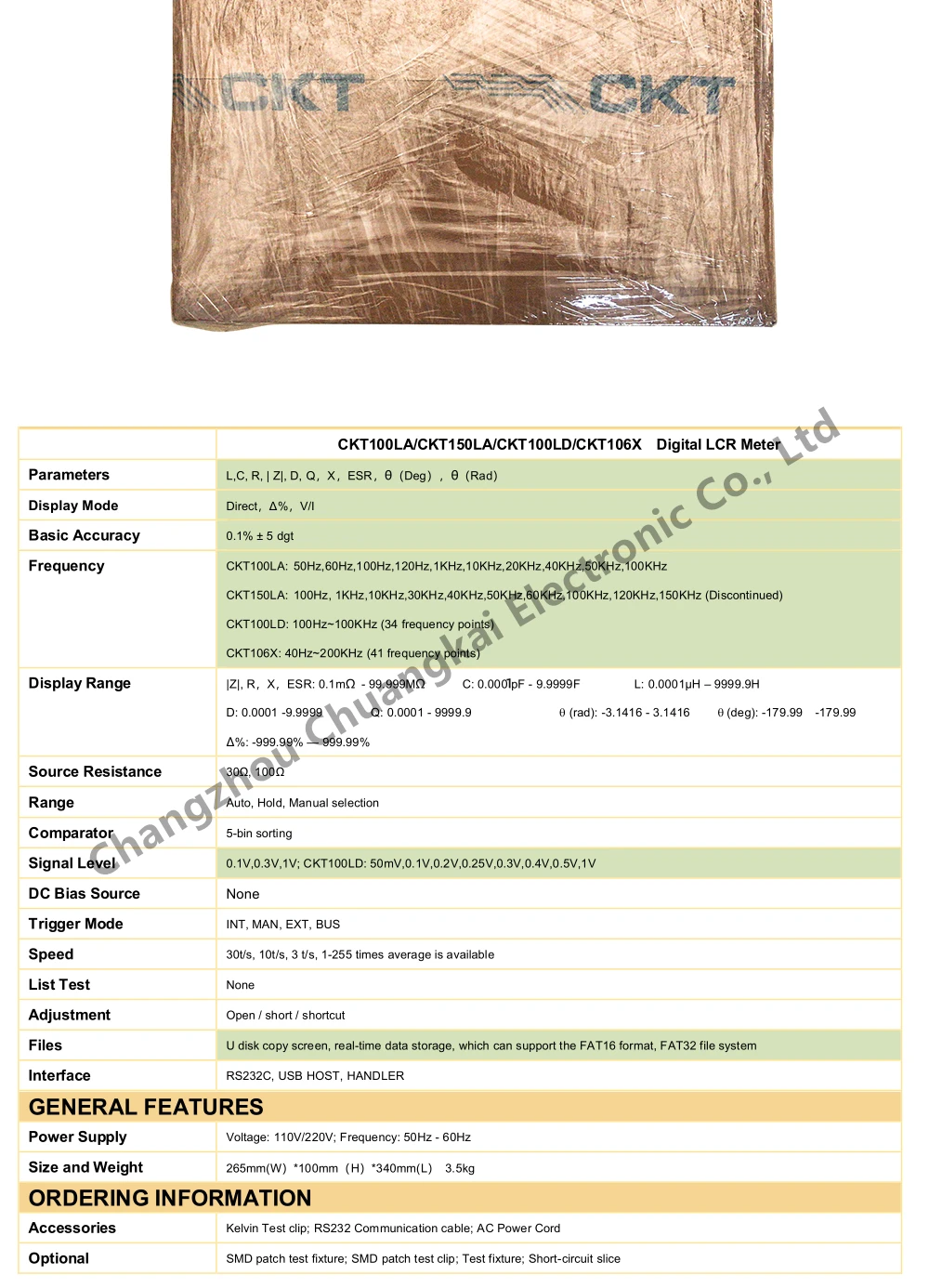

SPECIFICATIONS | |
| CKT100LA/CKT150LA/CKT100LD/CKT106X DigitalLCR Meter |
Parameters | L,C, R, | Z|, D, Q,X,ESR,θ(Deg),θ(Rad) |
Display Mode | Direct,Δ%,V/I |
Basic Accuracy | 0.1% ± 5 dgt |
Frequency | CKT100LA:50Hz,60Hz,100Hz,120Hz,1KHz,10KHz,20KHz,40KHz,50KHz,100KHz CKT150LA:100Hz,1KHz,10KHz,30KHz,40KHz,50KHz,60KHz,100KHz,120KHz,150KHz (Discontinued) CKT100LD: 100Hz~100KHz (34 frequency points) CKT106X:40Hz~200KHz(41 frequency points) |

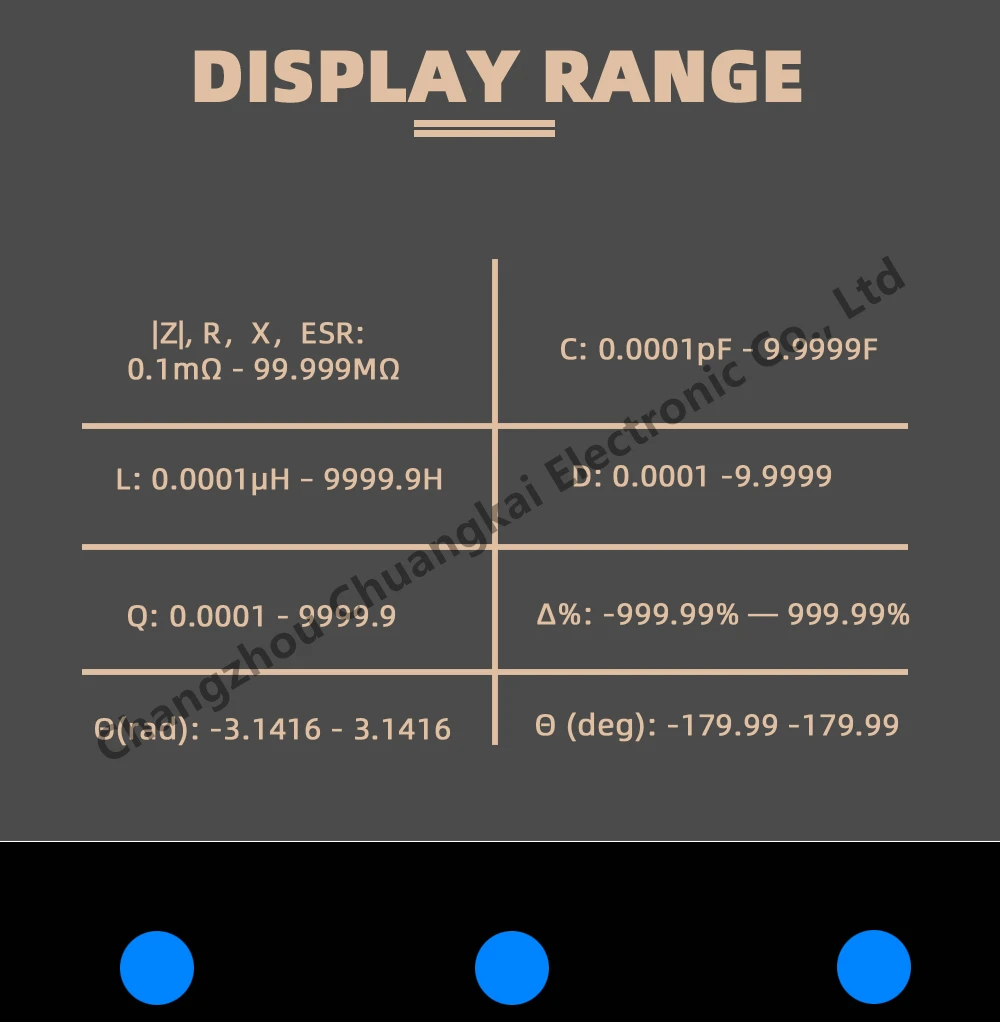

Display Range | |Z|, R,X,ESR: 0.1mΩ - 99.999MΩ C: 0.000 pF - 9.9999F L: 0.0001µH – 9999.9H D: 0.0001 -9.9999 Q: 0.0001 - 9999.9 q (rad): -3.1416 - 3.1416 q (deg): -179.99 -179.99 Δ%: -999.99% — 999.99% |
Source Resistance | 30Ω, 100Ω |
Range | Auto, Hold, Manual selection |
Comparator | 5-bin sorting |
Signal Level | 0.1V,0.3V,1V; CKT100LD: 50mV,0.1V,0.2V,0.25V,0.3V,0.4V,0.5V,1V |
DC Bias Source | None |
Trigger Mode | INT, MAN, EXT, BUS |
Speed | 30t/s, 10t/s, 3 t/s, 1-255 times average is available |
List Test | None |
Adjustment | Open / short / shortcut |
Files | U disk copy screen, real-time data storage, which cansupport the FAT16 format, FAT32 file system |

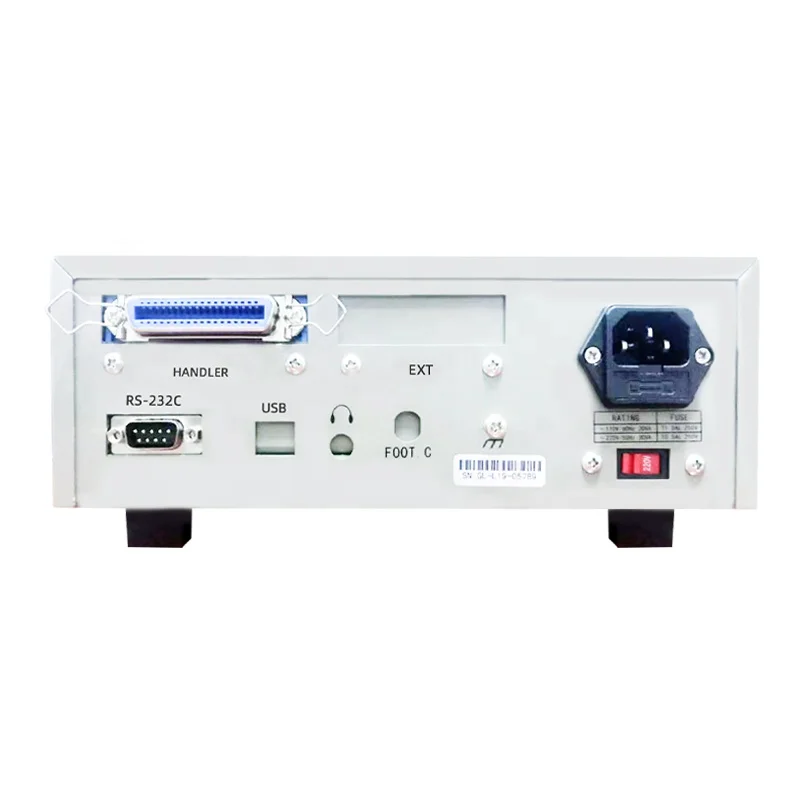

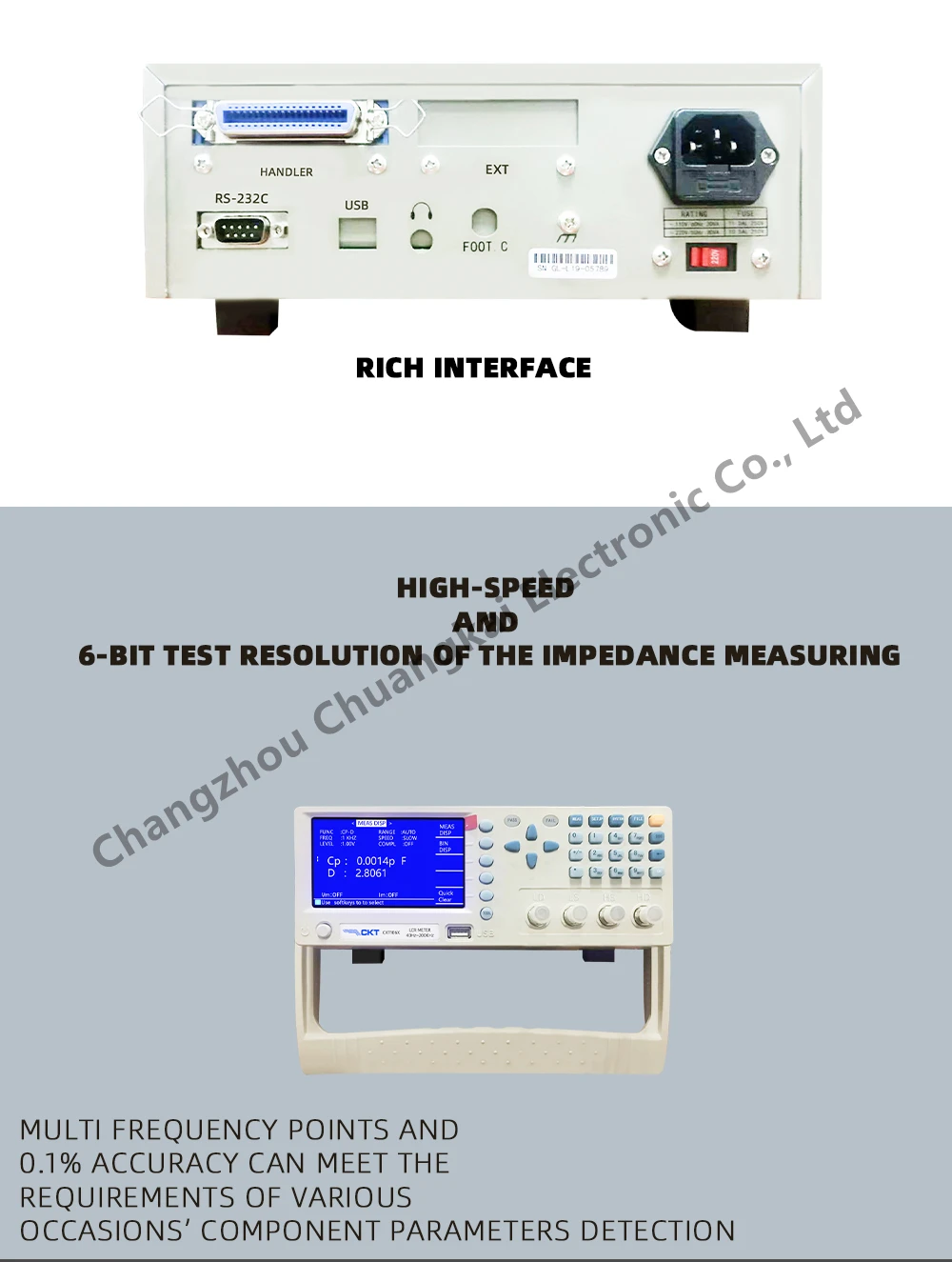

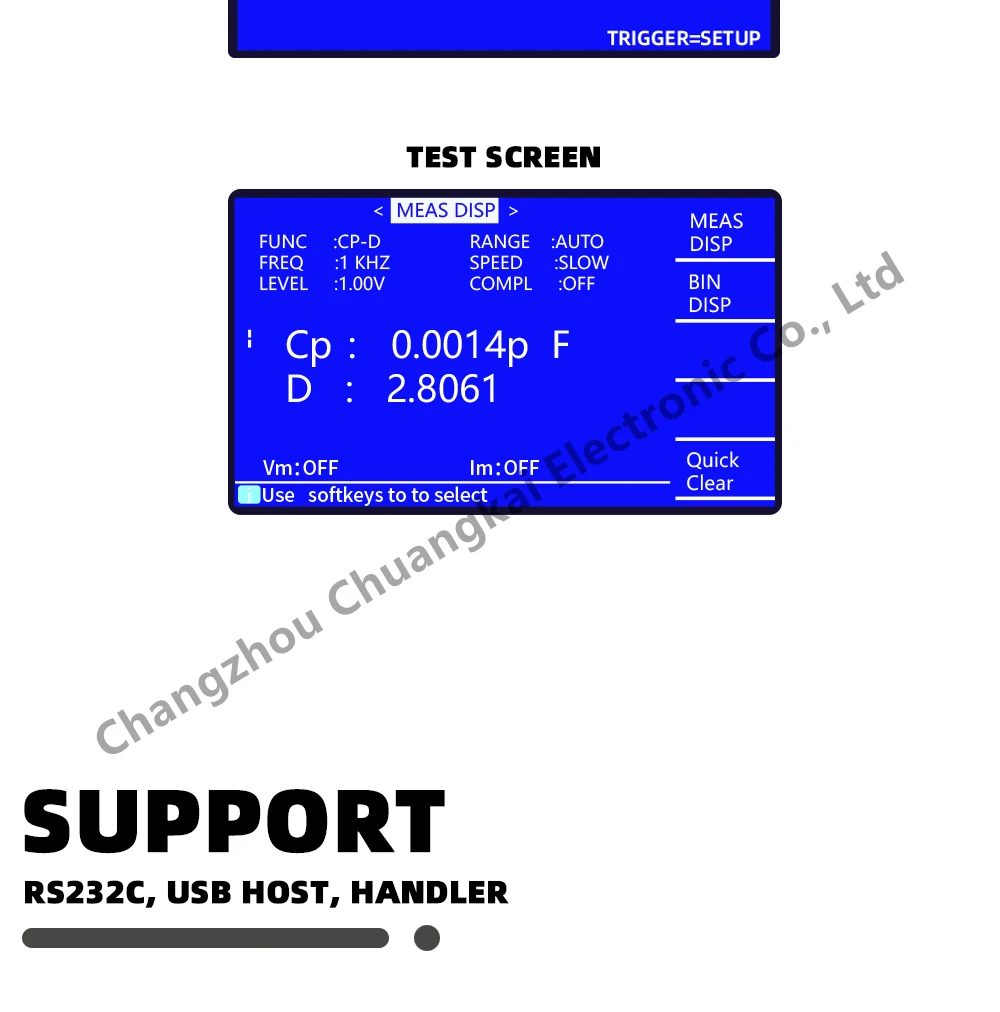

Interface | RS232C, USB HOST, HANDLER |
GENERAL FEATURES | |
Power Supply | Voltage: 110V/220V; Frequency: 50Hz - 60Hz |
Size and Weight | 265mm(W)*100mm(H)*340mm(L)3.5kg |
ORDERING INFORMATION | |
Accessories | Kelvin Test clip;RS232 Communication cable; AC Power Cord |
Optional | SMD patch test fixture; SMD patch test clip; Test fixture; Short-circuit slice |
Company Information
Changzhou Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), insulation resistance tester, digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, hipot tester, impulse winding tester, transformer test system, cable tester, DC bias source, digital multimeter, thermal imager, infrared thermometer, oscilloscope, digital pressure gauge, pressure pump, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
Over the years Chuangkai has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing customers with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to product assembly, for each aspect and processes are rigorously tested and control.
Over the past few years of production and management and exploration, Chuangkai always implements the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions and technical problems.
Chuangkai has cooperated with many clients both from domestic and overseas, and has obtained consistently high praise from our customers since it was set up. We hold managerial idea that 'Quality Proves Strength, Details Reach to Success', and try our best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing and shipment. We insist on the principle of development of 'High quality, Efficiency, Sincerity and Down-to-earth working approach' to provide clients with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation!
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
Packaging & Shipping
FAQ
FAQ
Q: How long is the delivery date?
A: Inventory products will be delivered within 5-7 days after receipt of deposit; products
requiring new production of common materials, usually within 15-20 days; products requiring new production of special and rare materials, usually within 30-40 days.
Q: Can you customize it?
A: There are many models in our company, which can support customization.
Q: Are there any after-sales guarantees?
A: Were one-to-one after-sales It's absolutely satisfying to you.
Q: How many years have you guaranteed it?
A: Instrument quality guarantee for 1-2 years(different products), lifelong maintenance.
Q: Do you provide invoices?
A: Invoices are issued free of charge.
