Hydraulic Tool (Pressing)
- Category: >>>
- Supplier: Yuhuan Modern Tools Co. Ltd.Yuhuan Ltd.
Share on (1600246253311):
Product Overview
Description
Product Description

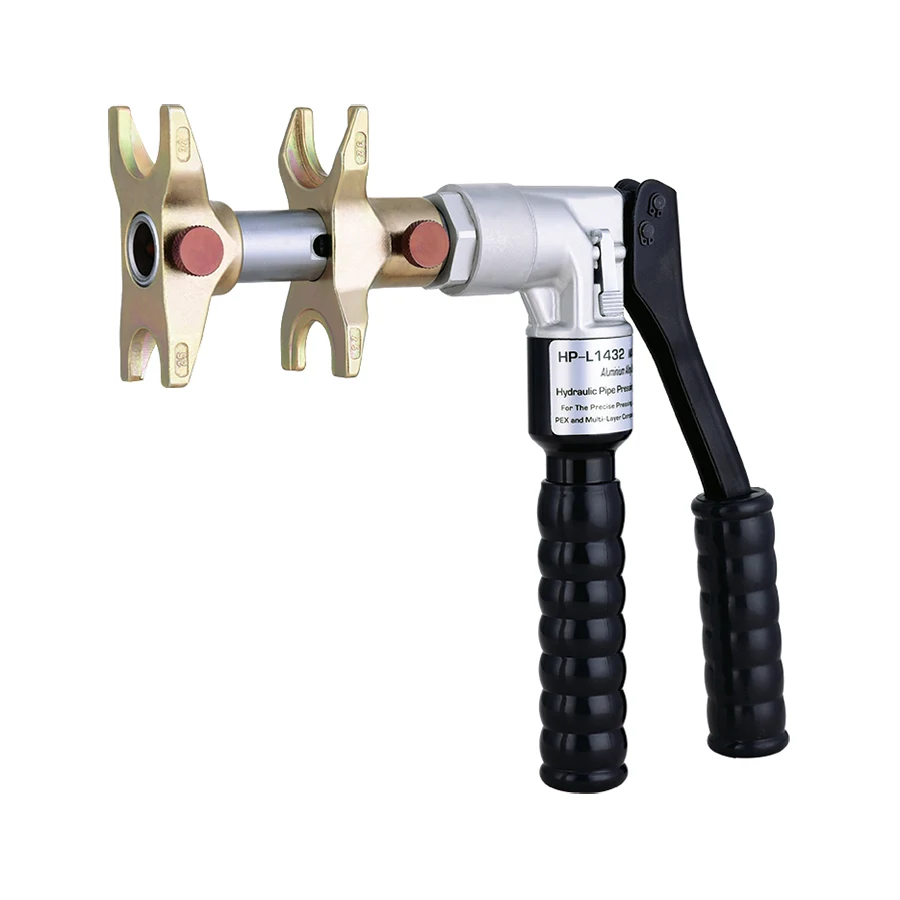

HP-L1432N is a self-contained hydraulic tool,with aluminium-alloy design,safety valve,automatic return function,pressure release lever,intended to be used to mount fitting on PEX pipe and Multi-layer composite pipe (by axial sliding sleeve joint) The new locking-free pressing fork also simplify the installation,ensure quick and easy operation.
Tool Specification:
| 1.ideal hydraulic assembly tool for PEX and MLCP up to 32mm |
| 2.the locking-free style pressing fork eliminate locking bolt,only need to slide onto the adapter,simplify the installation,change and removal of pressing fork |
| 3.aluminium-alloy pump body design make tool durable and light-weight |
| 4.rotatable guiding cylinder ensure flexible operation in narrow place |
| 5.with hydraulic power,pressing operation become easy by hand |
| 6.automatically retract ram and make pressing fork move back once complete pressing |
| 7.safety valve automatically release pressure for safe operation,protect fitting,sleeve from damage due to over-high pressure |
| 8.in case of need,press release lever,manually release pressure,return pressing fork |
| 9.plastic case package for the storage of tool and accessories |
Technical Data:
Output force: 1.2T
Weight:1.9kgs
Size:290*250mm
Optional pressing fork (locking-free style)
16 20 25 32
(special pressing fork can be customized for different system)
Standard accessories:
1.plastic case 1pc
