Angel SG-606 High Quality Mounting Brackets Carbon Steel Solar Grounding Steel Structures
- Category: Solar Mounting System >>>
- Supplier: Xiamen,Angels,Solar,Energy,Co.,Ltd.
Share on:
Product Overview
Description
Specification
Angel SG-606 High Quality Mounting Brackets Carbon Steel Solar Grounding Steel Structures
Angel SG-606 High Quality Mounting Brackets Carbon Steel Solar Grounding Steel Structures

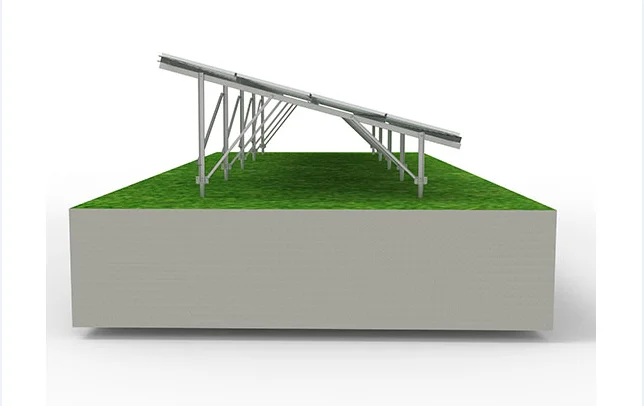

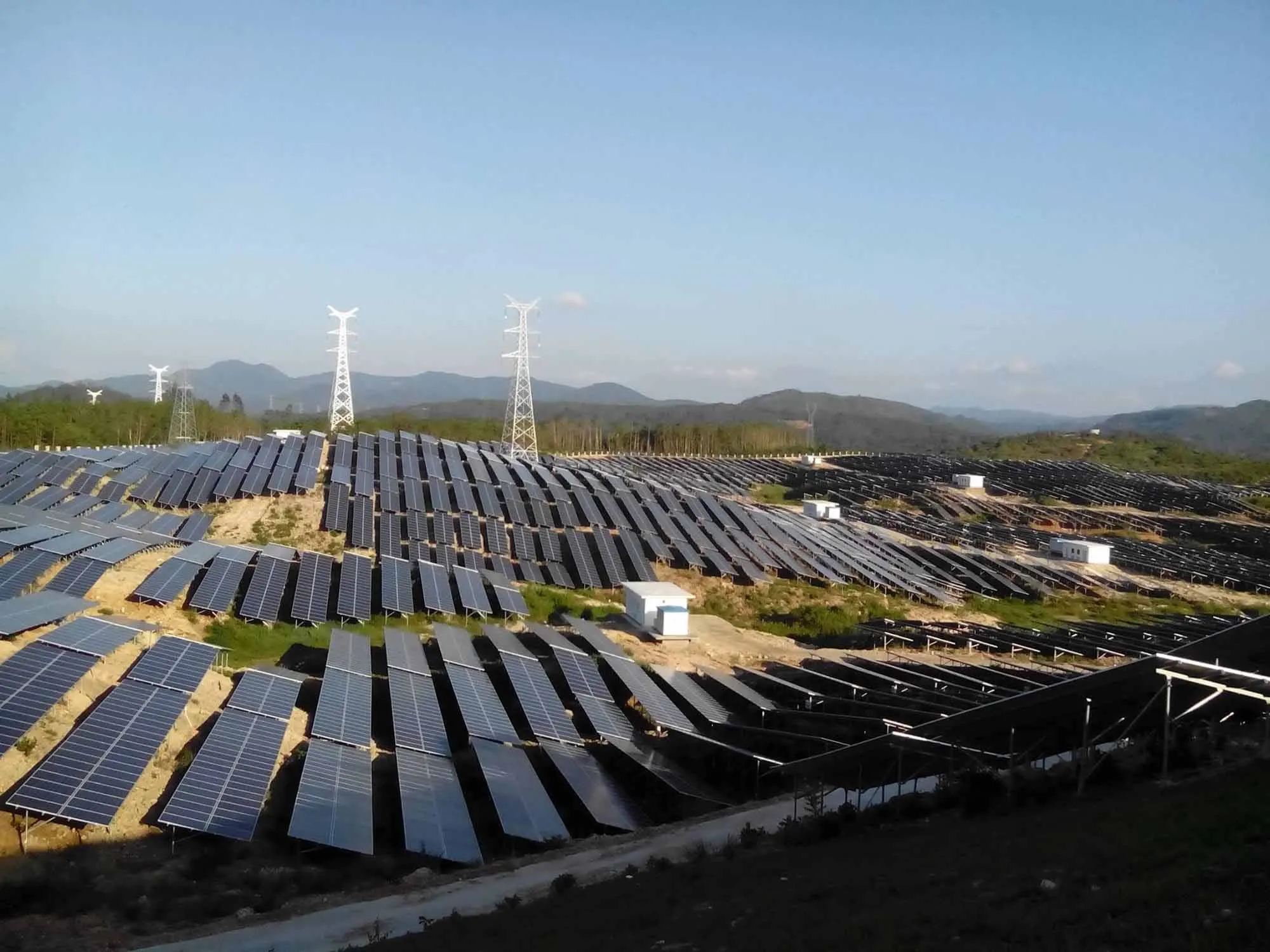

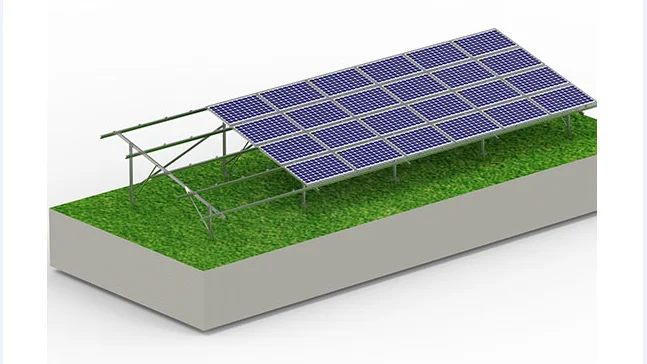

AS Double-pole Steel Solar Ground Mounting System (Large C-type) uses cost-effective section steel structure, it is applicable for large-scale solar plant installation. The hot-dip galvanized surface treatment ensures anti-corrosion and and durability of the system. Flexiblity in height adjustment makes the system applicable for different types of landforms.
Product Name | High Quality Mounting Brackets | ||||||
Foundation | Concrete Base, Ground Screw, C/H Steel | ||||||
Tilt Angle | 0~60° | ||||||
Wind Speed | ≤60 m/s | ||||||
Snow Load | ≤1.4 KN/㎡ | ||||||
Solar Panel | Framed or Frameless | ||||||
Panel Layout | Portrait or Landscape | ||||||
Design Standard | AS/NZS 1170,DIN 1055,JIS C8955:2017, International Building Code lBC 2009 | ||||||
Material | Hot-dip Galvanized Steel / Mac Steel | ||||||
Warranty | 10 year | ||||||

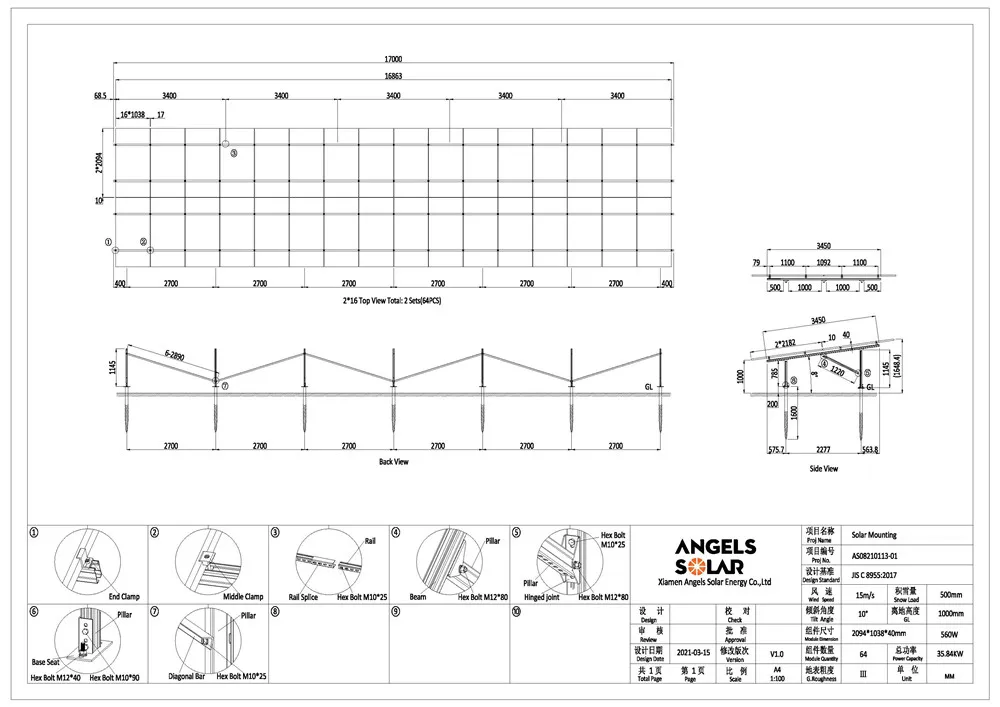

Details Images
Components：
Rail
Beam Rail
Diagonal Brace
Connector
Middle Clamp Kit
End Clamp Kit
Advantages： | ||||||||
* Cost-effective thanks to its section steel structure. | ||||||||
* Flexible height adjustment, applicable for different types of landforms. | ||||||||
* Flexible for horizontal or vertical installation. | ||||||||
* Pre-assembled before shipment, saving on-site installation time and labor cost. | ||||||||
Recommend Products
Fully Customizable
Necessary for Us to Design and Quote | ||||||||
* What is your pv panels dimension? | _____mm Length x_____mm Width x_____mm Thickness | |||||||
* how many panels will be mounted for the the project？ | _____Nos. | |||||||
* What is your planned panel layout? (OPTIONAL/RECOMMEND please advise place image and size) | _____Nos. in a row ×_____Nos. in a column | |||||||
* What is the tilt angle you need?(OR E°/W° ) | _____degree | |||||||
* How is weather there,such as wind speed and snow load? | _____m/s wind speed and_____KN/m2 snow load | |||||||
* Do you have any special requirement on ground clearance? | ||||||||
