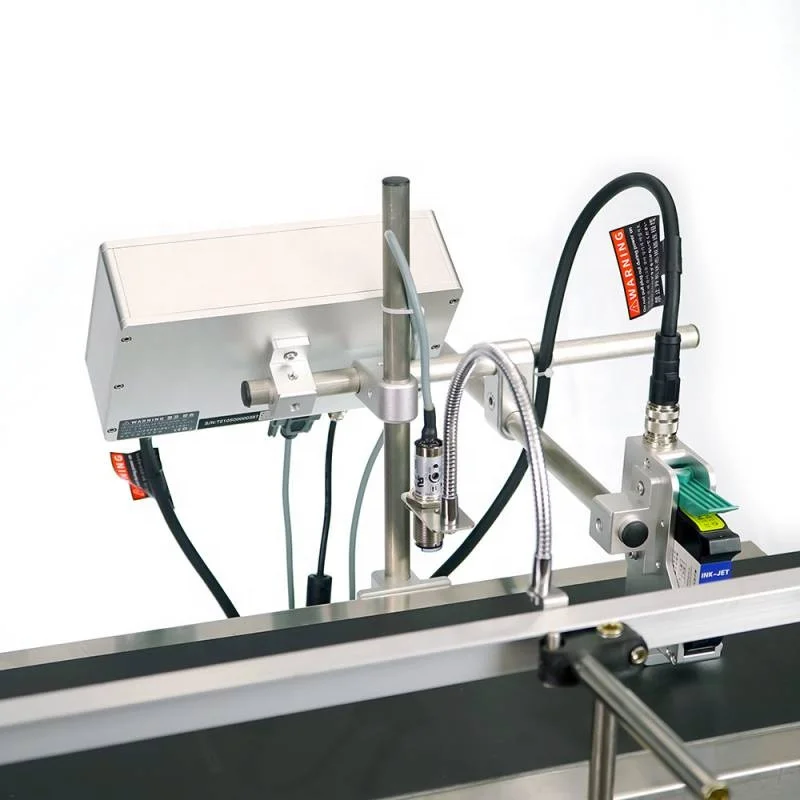

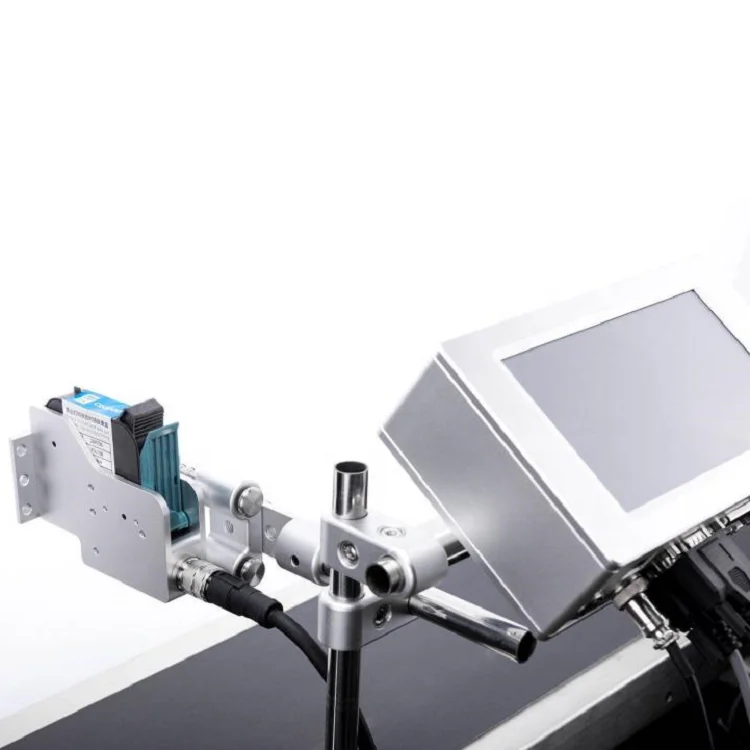

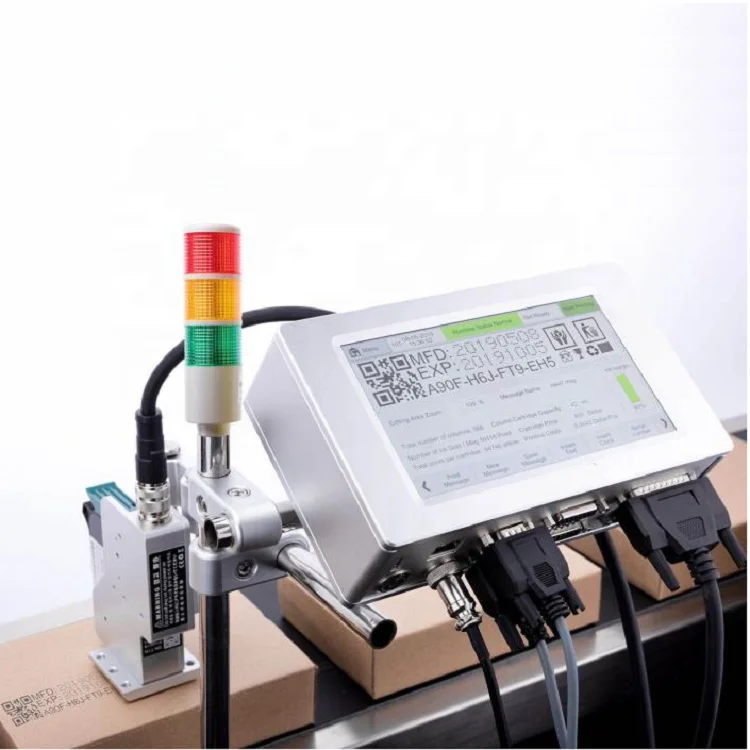

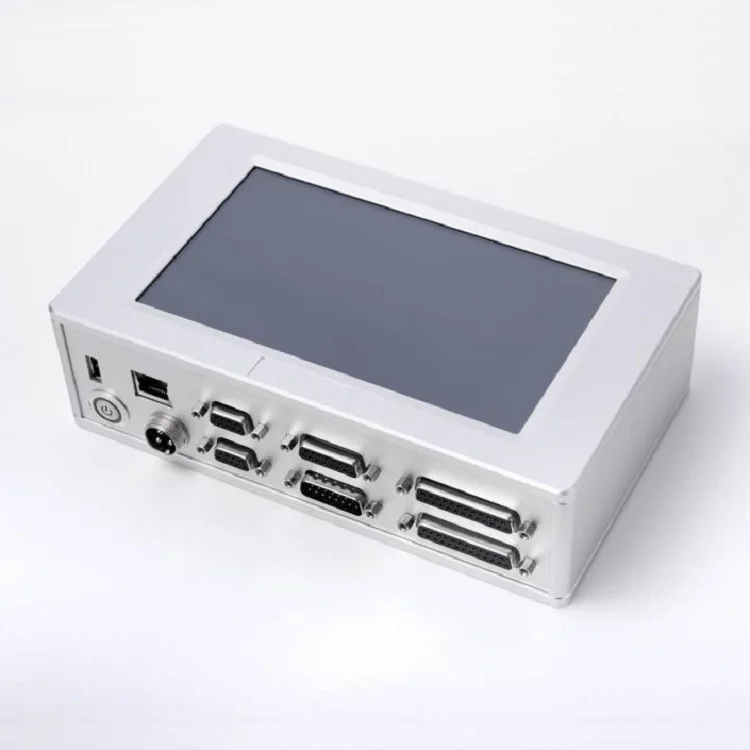

TIJ digital logo date batch number printing machine twin jet nozzle 25.4mm print height online inkjet printer

Printing Head

Nozzle Type

Thermally Foamable Head TIJ2.5

Print Accuracy

150DPI / 300DPI / 600DPI

Print Height

Minimum 1mm / Maximum 25,4mm

Print Speed

120mt/min at 300DPI

Print Distance

2mm to 5mm

Print Contents

Multi language Characters, 2DCode, Barcodes, Images, Serial Numbers, Date, Counters, Variable Database, RS232 to receive real data to print

Printable Substrates

Cardboard, Plastic, Metal, Cables, Electronic components, Auto Parts, Industrial Chemical packaging, Pharmaceuticals and more.

Ink Type

Aqueous or Solvent based 42ml Cartridges CIS S

Ink Color

Black, White, Red, Yellow, Blue, Green, Stealth, UV readable

Cartridge Chip

Contactless RFID tags for automatic identification and recording ink parameters and consumptions

Machine

Operating System

Embedded Operating System

Main Hardware

American TI A M3358 industrial grade CPU/USA Xilinx Spant6 industrial grade FPGA / TIJ dedicated ASIC chip

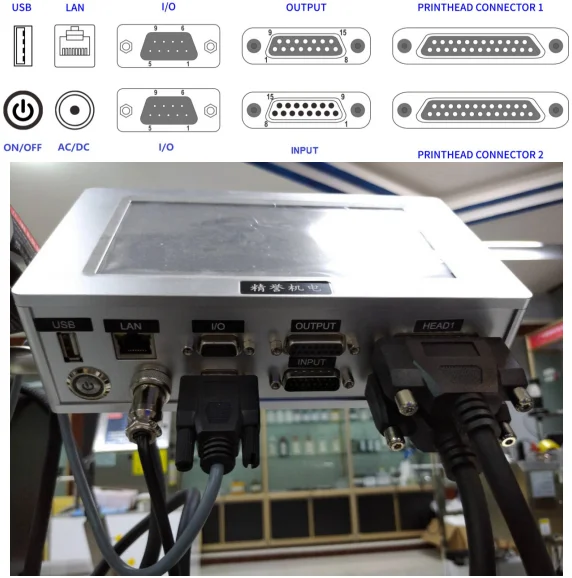

Communication Interface

Network Interface USB/RJ45 to RS-232

External Interface

Photocell, Encoder, External Reverse/Inverse control, Alarm outputs, Serial Number external Reset, External data Selection.

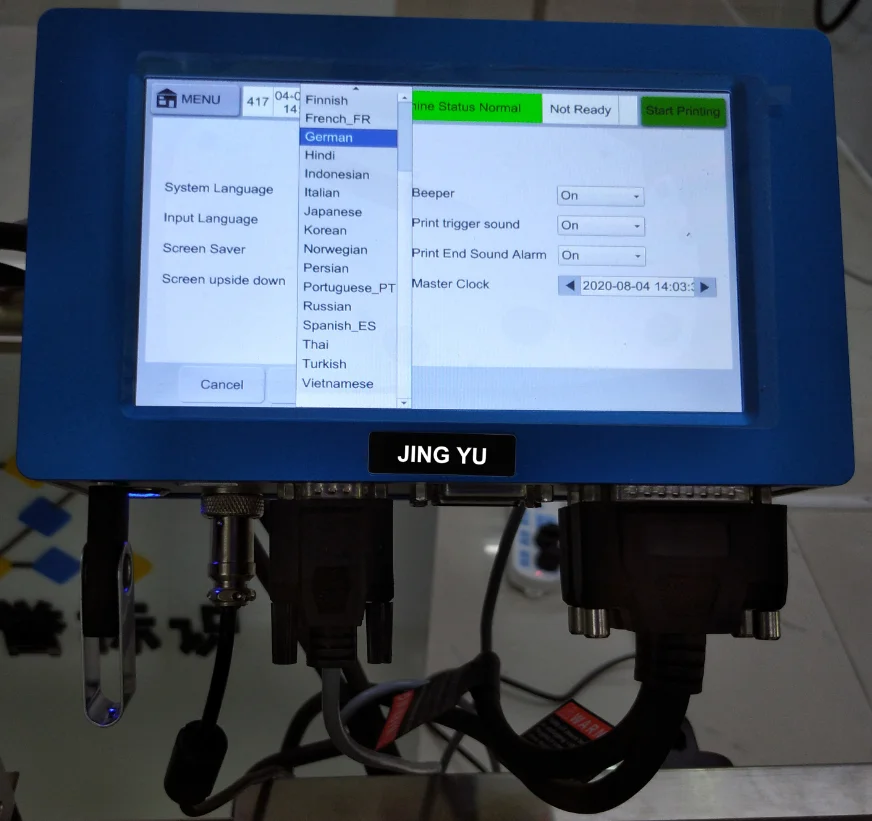

Supported Languages

Italian, English, French, Finnish, Arabic, Danish, German, Russian, Norwegian, Portuguese, Spanish, Japanese.

Power Supply

100 – 240 Volts AC 50-60Hz input / 30Volts 4Amps DC output

Body Material

Industrial Stainless steel

Dimension

Controller 202mm x 119mm x 61.2mm / Head Holster 112mm x 79mm x 103mm

Working Environment

Max Temp 55C Degrees / Humidity 30 to 70% RH

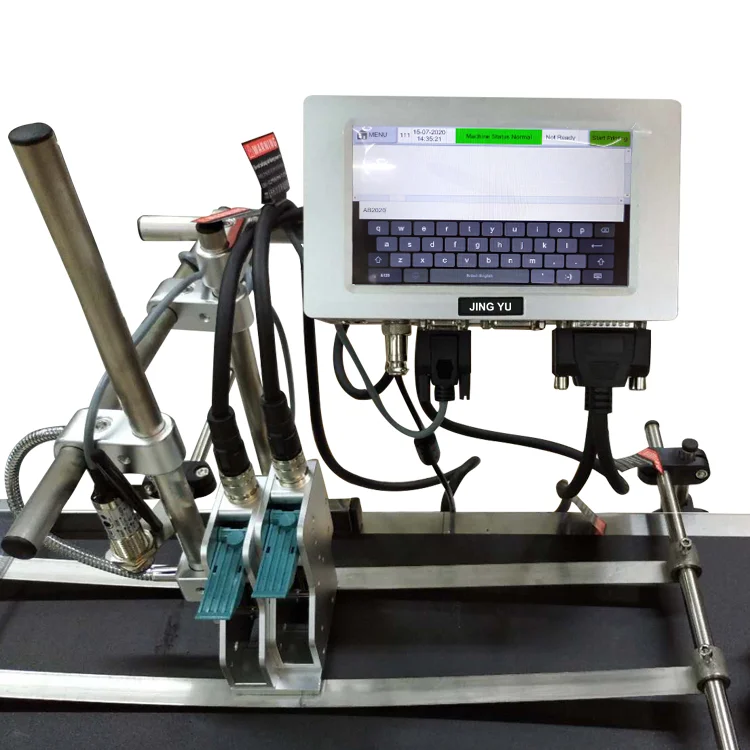

  ·7 inches Color industrial touch screen

  ·20 Supported operational languages

  ·120metres/min/300DPI printing speed

  ·Industrial Stainless Steel body

  ·Onboard instant cost per print calculator

  ·Supported by a WYSIWYG editing information for easier       operation

  The print engine uses TIJ dedicated ASIC chip, a perfect

  match for a variety of original and licensed HP Inks.

Professional Cartridge preheat algorithm to ensure

optimum print quality at high and low temperatures

and environments.

  Powerful variable functions of the 2D Code to meet the     customers' new demand. Efficient and flexible variable

 database functions to meet various applications requi-

rements for product traceability.

  Use of the American TI's AM3358 Industrial Grade CPU,

Xilinx Spant6 Industrial Grade FPGA. More stable,

reliable and anti-interference in various conditions

rendering the printing a unique experience.

  Intelligent embedded Linux operating system provides a     professional and more user friendly interface. Embedded   powerful drop consumption algorithm that allow instant   calculation of cost per print.

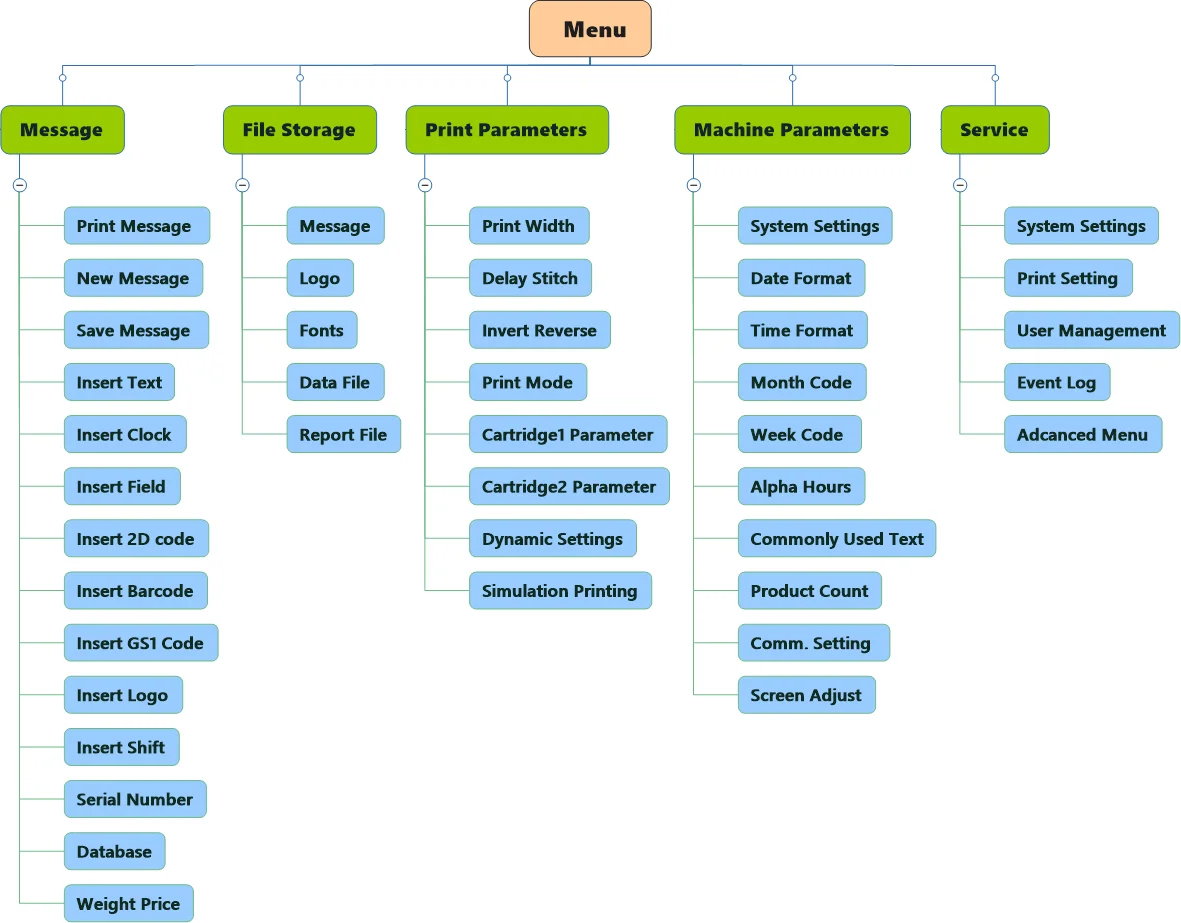

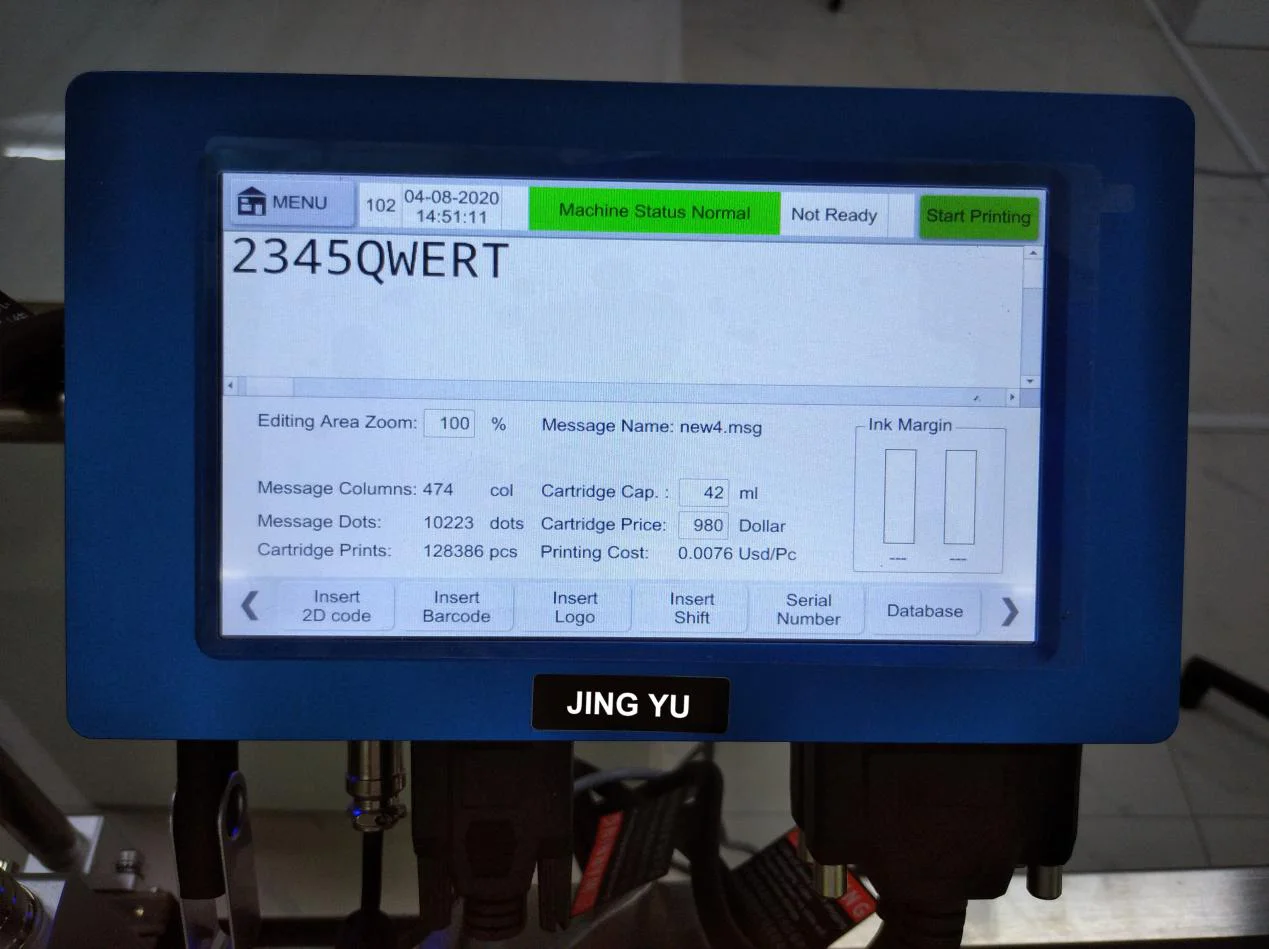

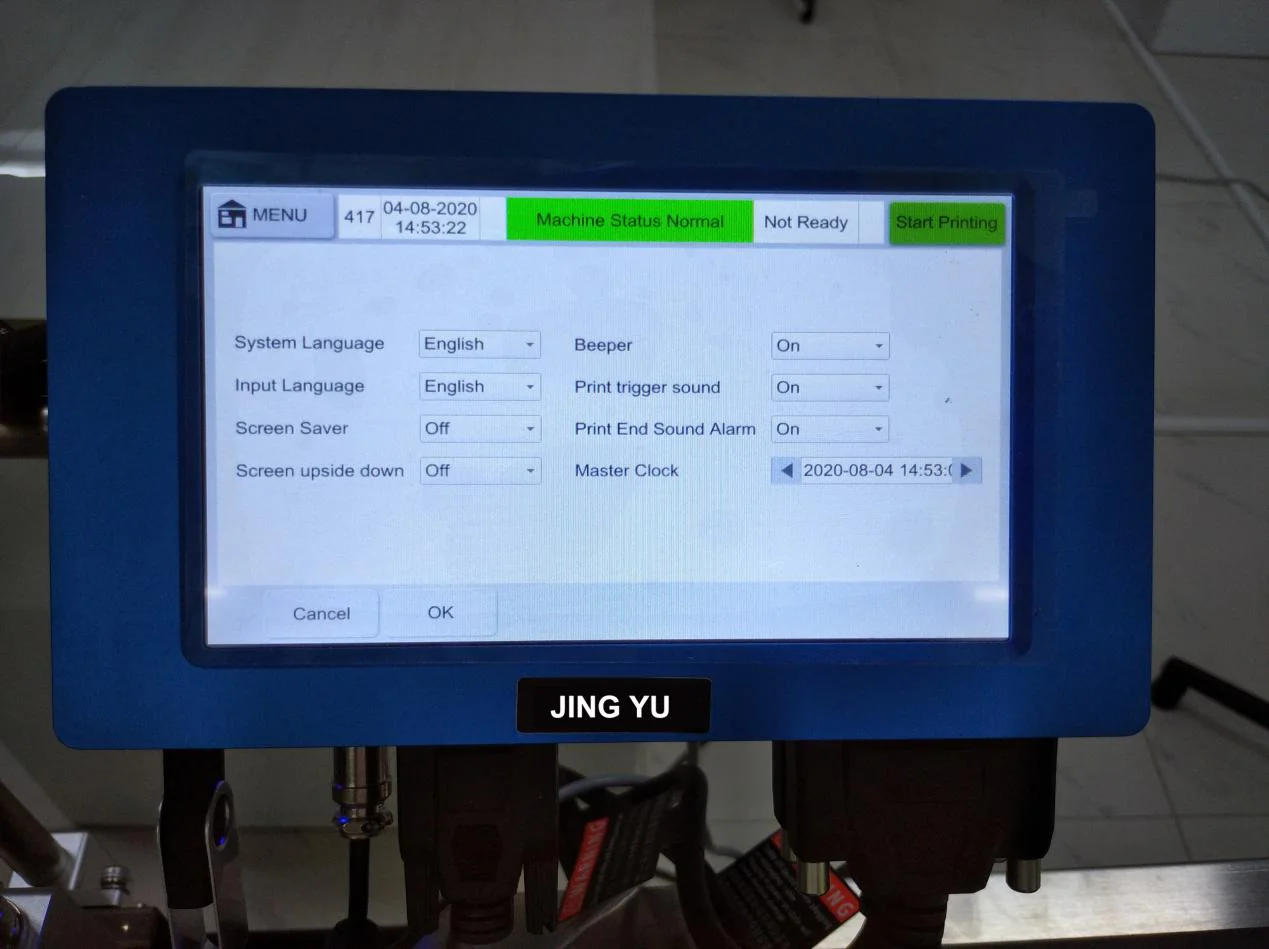

Printer Menu

Online switch and interface indicator
