New Reliable Qulity Metal Sheet Deep Drawing Four Column Wood Hydraulic Press Hydraulic Oil Press Machine for Embossing
- Category: >>>
- Supplier: Nantong Pacific CNC Machine Tool Co. Ltd.
Share on (1600246948657):
Product Overview
Description

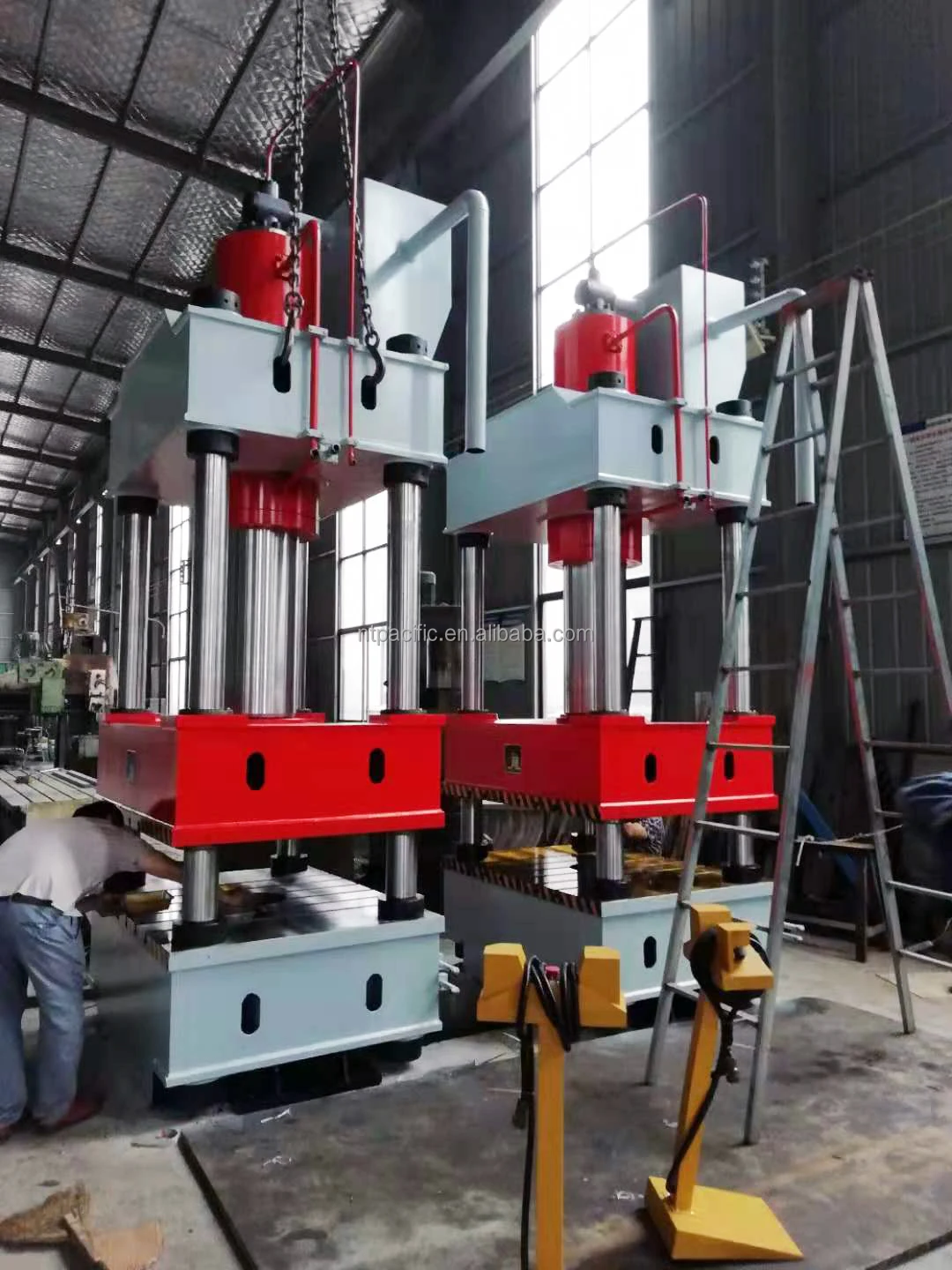

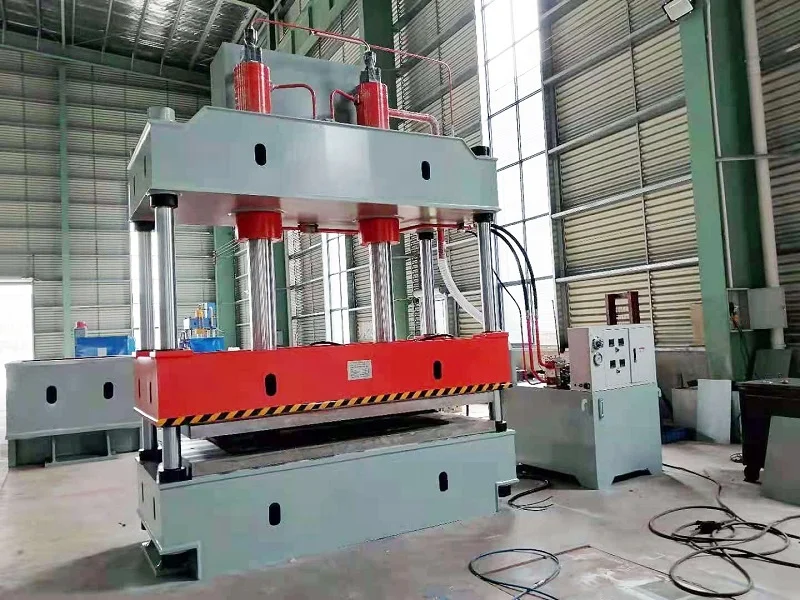

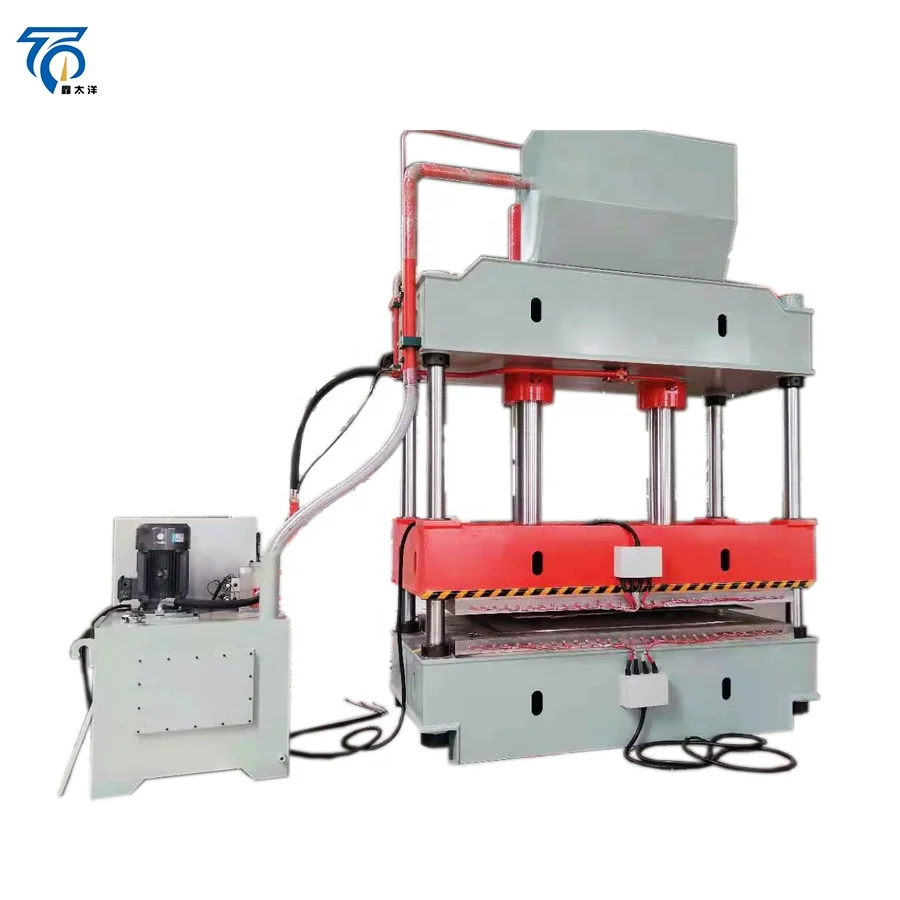

HYDRAULIC PRESS MACHINE
FunctionsThis equipment is a special stretching machine for the formation of small trolleys. It is used for the stretch forming of small
trolleys. This equipment is mainly used for the production of large-scale stamping parts, which can be used for stretching,
bending and flanging of metal sheets. Forming, blanking and other processes, also suitable for the correction, press-fit, press
molding of powder products and abrasive products, and plastic products, compression molding of insulating materials. And has a low
noise punching buffer function. Can meet the needs of mass production.
Technical Performance
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the
character of pressure-keeping and time-delaying.
Application
1. Auto parts, brake pads, fuel tanks, chassis, bumpers;
2. Household appliances: washing machines, rice cookers, televisions, refrigerators, air conditioners and other parts;
3. Kitchen appliances: washing tanks, pots, stainless steel cutlery, and other various containers;
4. Others: tractors, motorcycles, aviation, and aerospace.
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the
character of pressure-keeping and time-delaying.
Application
1. Auto parts, brake pads, fuel tanks, chassis, bumpers;
2. Household appliances: washing machines, rice cookers, televisions, refrigerators, air conditioners and other parts;
3. Kitchen appliances: washing tanks, pots, stainless steel cutlery, and other various containers;
4. Others: tractors, motorcycles, aviation, and aerospace.
Item Y32 | Nominal Force (KN) | Ejecting force (KN) | Max. working pressure (Mpa) | Ram stroke (MM) | Ejecting stroke (MM) | Max open high (MM) | Slider speed(MM/S) | ||||
No-load working | pressing | return | |||||||||
40T | 400 | 120 | 25 | 450 | 150 | 700 | 20 | 14 | 45 | ||
63T | 630 | 190 | 25 | 500 | 200 | 750 | 20 | 14 | 120 | ||
100T | 1000 | 190 | 25 | 600 | 220 | 880 | 22 | 14 | 47 | ||
100BT | 1000 | 190 | 25 | 600 | 200 | 880 | 120 | 14 | 120 | ||
160T | 1600 | 400 | 25 | 700 | 200 | 900 | 100 | 12 | 70 | ||
160BT | 1600 | 400 | 25 | 700 | 200 | 1000 | 100 | 12 | 70 | ||
200T | 2000 | 400 | 25 | 700 | 250 | 1100 | 100 | 8 | 52 | ||
315T | 3150 | 630 | 25 | 800 | 300 | 1250 | 100 | 8 | 60 | ||
400T | 4000 | 630 | 25 | 800 | 300 | 1250 | 100 | 7 | 45 | ||
500T | 5000 | 1000 | 25 | 900 | 350 | 1500 | 100 | 5 | 70 | ||
500CT | 5000 | 1000 | 25 | 900 | 350 | 1500 | 100 | 6 | 70 | ||
Cylinder
Polished and chromed with high rigidity treatment.
Main Motor
Siemens brand fromGermany.

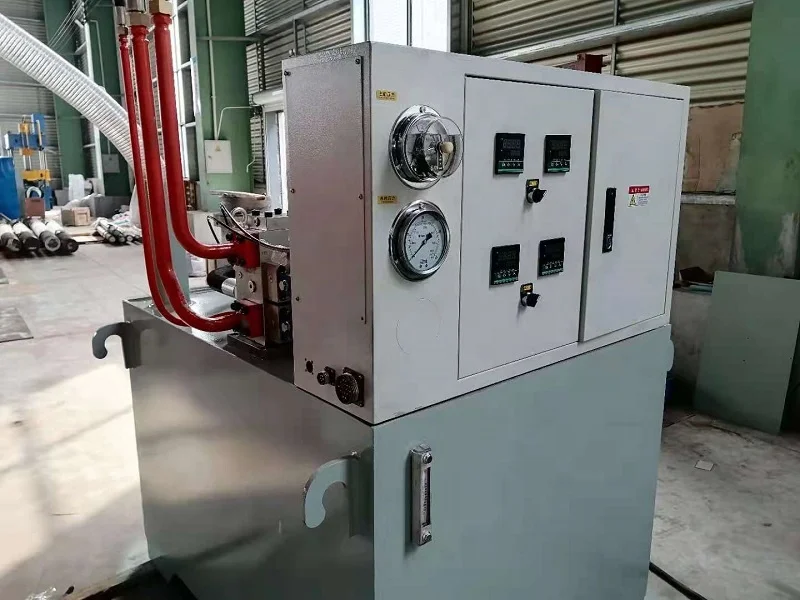

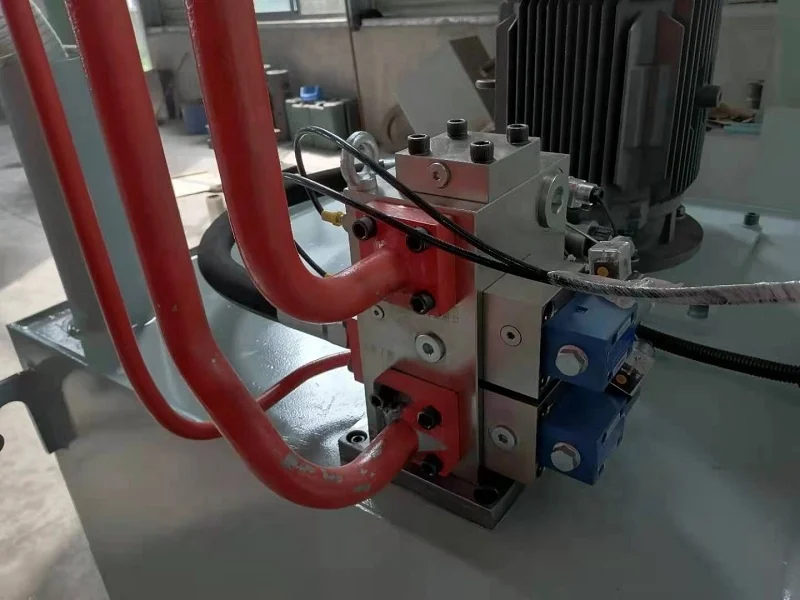

Hydraulic valve
Cartridge valve equipped for hydraulic control system,reliable,durable and less hydraulic shock,shorter connection pipeline and fewer release points.
Electric parts
Schneider brand fromFrance.
Workbench
The below platform has equipped with T type slot to make the mold stable.

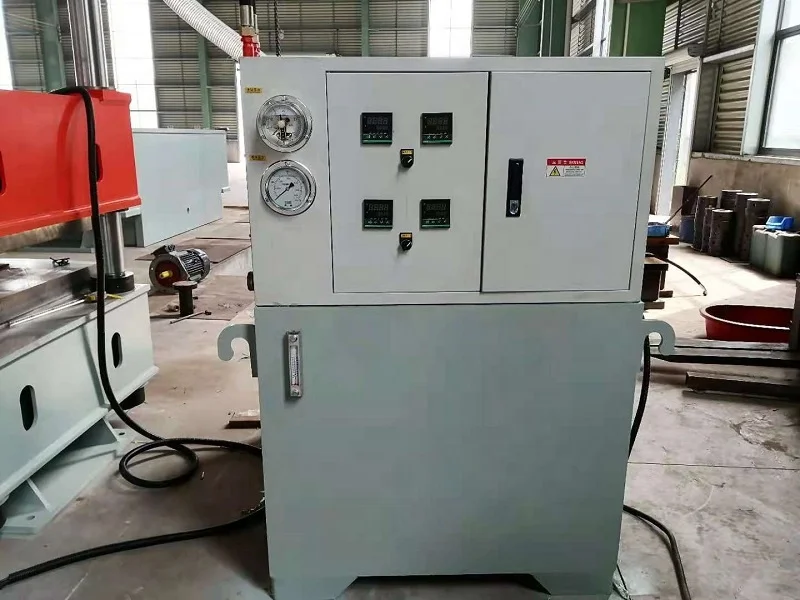

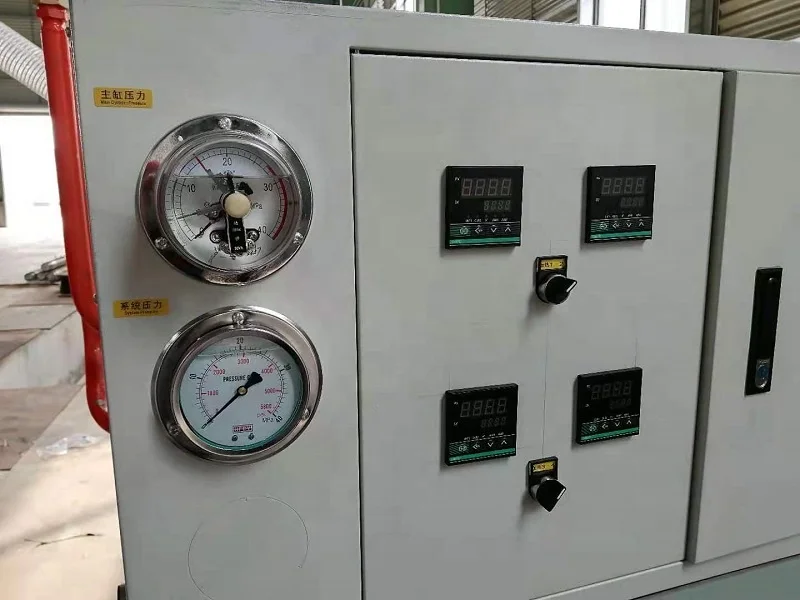

Pressure gauge
Detect main cylinder and ejection cylinder pressure,adjust system hydraulic pressure
Q1. How about the quality of your machines?
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
Our company is the key backbone enterprise of the national machinery industry, with a group of experienced professional engineering and technical personnel, production and testing equipment, with 20 years of product manufacturing experience.We are committed to customer satisfaction is our pursuit, quality must make customers satisfied.
Q2. Can you give me a better price for the machine?
1.The quality of the company's products is always good, and we know that the overseas market is more important and difficult than the domestic market.Due to the time cost of after-sales communication, our machines are always of higher quality to ensure that they can work beyond the true warranty period.
2.We will definitely provide quality = price, price = quality, and the matching price is acceptable to the customer.We welcome you to negotiate with us and obtain good satisfaction.
3.As a factory, we have an advantage in price.
Q3. How can we provide you efficient services (metal processing solution)?
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional
recommendations ;reg. non-standard products, we can offer professional designing.
