Automatic Hydraulic Integrated Lifting Column Lifting Roadblock Road Pile
- Category: >>>
- Supplier: Shandong Weixin Import & Export Co. Ltd.
Share on (1600246973909):
Product Overview
Description
Products Description
Elector-hydraulic bollard
The elector-hydraulic bollard is an automatic lifting road pile with a motor and a hydraulic cylinder as a power unit.
The bollard integrates the motor and the hydraulic cylinder to form a hydraulic driving system, and drives the hydraulic cylinder to rise and fall by the motor running to control the lifting and lowering of the column. Through the restrictions on passing vehicles, the traffic order and the safety of major facilities and places are effectively guaranteed.
Scope of application:* Science and education units: schools, machine room,research institutes, libraries, etc.;
* Leisure and entertainment places: parks, scenic spots, pedestrian streets,municipal square playgrounds, etc.;
* Transportation points: bus stations, railway stations, subway stations, airports, etc.;
* Commercial service places: hospitals, banks,hotel, Commercial building clubs, etc.;
◆ Office space: office buildings, public inspection law units, hydro power oil and gas units, etc.;
Product Paramenters
power supply | 220V/380V | frequency | 50HZ |
power | 5W-350W | Rated speed | 2800rpm |
Current | 1.3A--1.6A | Crosscurrent and over voltage protection | have |
Rise Time | ≤4s | Fall time | ≤2s |
Stroke height | 600mm±10mm, customize 750mmor800mm | Lifting force | 200kg |
diameter | φ168mm/φ219mm/φ273mm,±1mm/customize | Thickness of the cylinder | 6mm/8mm/10mm/12mm/15mm/20mm,±1mm |
Cylinder material | Cylinder 304 stainless steel | Buried outer cylinder | Q235material，Paint |
Emergency treatment | Electromagnetic pressure relief, backup、DC12V | working frequency | 1---2times/minute |
Limit mode | Mechanically adjustable limit | Service life | 3 million times |
Manual Assembly | Detachable | Minimum traffic pressure | 80 tons container truck |
Leading speed | ≥120mm/s | Compression speed | ≥220mm/s |
power | 65% | Motor wiring | 1.5M |
Sealing method | One-piece seal | Drainage method | Natural drainage + external drainage system |
Operating temperature | -45℃--+75℃ | Use altitude | Not more than 2000m |
Protection level | IP68 | Use humidity | 100% |

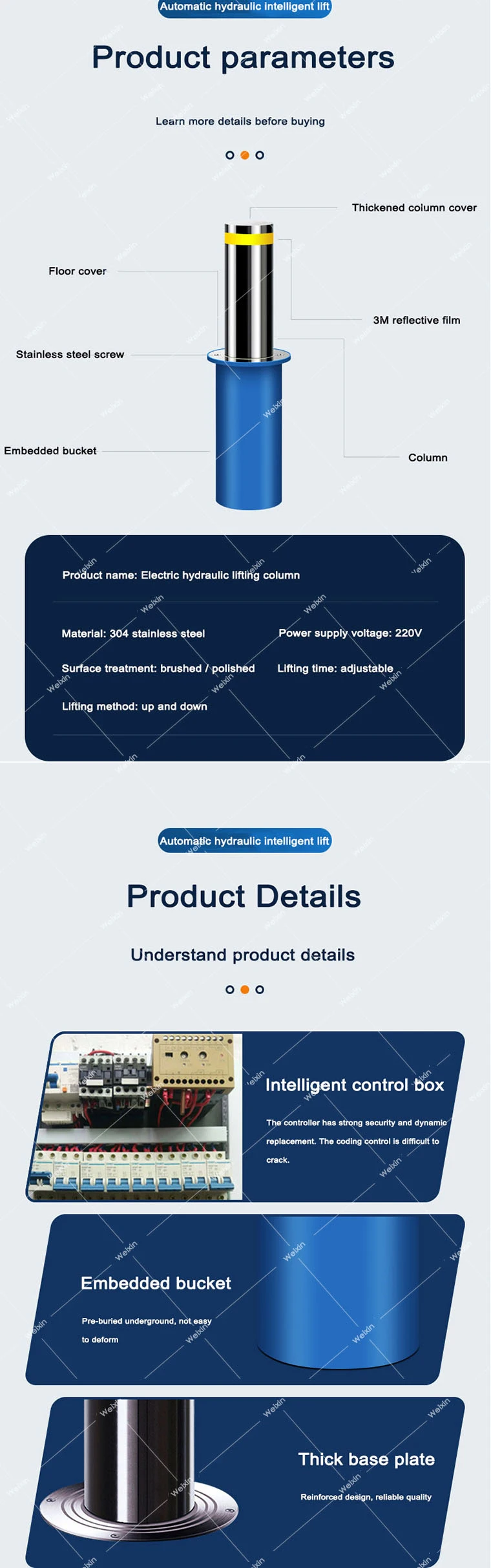

Details Images
Our Advantages
Products Description
Elector-hydraulic bollard
The elector-hydraulic bollard is an automatic lifting road pile with a motor and a hydraulic cylinder as a power unit.
The bollard integrates the motor and the hydraulic cylinder to form a hydraulic driving system, and drives the hydraulic cylinder to rise and fall by the motor running to control the lifting and lowering of the column. Through the restrictions on passing vehicles, the traffic order and the safety of major facilities and places are effectively guaranteed.
Scope of application:* Science and education units: schools, machine room,research institutes, libraries, etc.;
* Leisure and entertainment places: parks, scenic spots, pedestrian streets,municipal square playgrounds, etc.;
* Transportation points: bus stations, railway stations, subway stations, airports, etc.;
* Commercial service places: hospitals, banks,hotel, Commercial building clubs, etc.;
◆ Office space: office buildings, public inspection law units, hydro power oil and gas units, etc.;
Product Paramenters
power supply | 220V/380V | frequency | 50HZ |
power | 5W-350W | Rated speed | 2800rpm |
Current | 1.3A--1.6A | Crosscurrent and over voltage protection | have |
Rise Time | ≤4s | Fall time | ≤2s |
Stroke height | 600mm±10mm, customize 750mmor800mm | Lifting force | 200kg |
diameter | φ168mm/φ219mm/φ273mm,±1mm/customize | Thickness of the cylinder | 6mm/8mm/10mm/12mm/15mm/20mm,±1mm |
Cylinder material | Cylinder 304 stainless steel | Buried outer cylinder | Q235material，Paint |
Emergency treatment | Electromagnetic pressure relief, backup、DC12V | working frequency | 1---2times/minute |
Limit mode | Mechanically adjustable limit | Service life | 3 million times |
Manual Assembly | Detachable | Minimum traffic pressure | 80 tons container truck |
Leading speed | ≥120mm/s | Compression speed | ≥220mm/s |
power | 65% | Motor wiring | 1.5M |
Sealing method | One-piece seal | Drainage method | Natural drainage + external drainage system |
Operating temperature | -45℃--+75℃ | Use altitude | Not more than 2000m |
Protection level | IP68 | Use humidity | 100% |
