smart home 2 gang switch ac smart switch controller for water pump and ac 250v 220v 3km Wireless Smart remote control switches
- Category: Remote Control Switches >>>
- Supplier: Shenzhen Geili Technology Co. Ltd.
Share on (1600247226895):
Product Overview
Description
Product features:
1. Wide-voltage 90V-264V universal, effectively solve the problem of voltage instability
2. 2. Load power≤3000W
3. Transformer isolation makes it safer to use
3. Working mode support: self-locking and interlocking manual switch
4. One receiver can pair 32 remote controls without interfering with each other
5. Simple wiring, no need to open the shell, with safety cover
6. Support the combination of various working modes and remote control distances
2. 2. Load power≤3000W
3. Transformer isolation makes it safer to use
3. Working mode support: self-locking and interlocking manual switch
4. One receiver can pair 32 remote controls without interfering with each other
5. Simple wiring, no need to open the shell, with safety cover
6. Support the combination of various working modes and remote control distances
7.It comes in black and white
8. The remote control range is 3km-5km

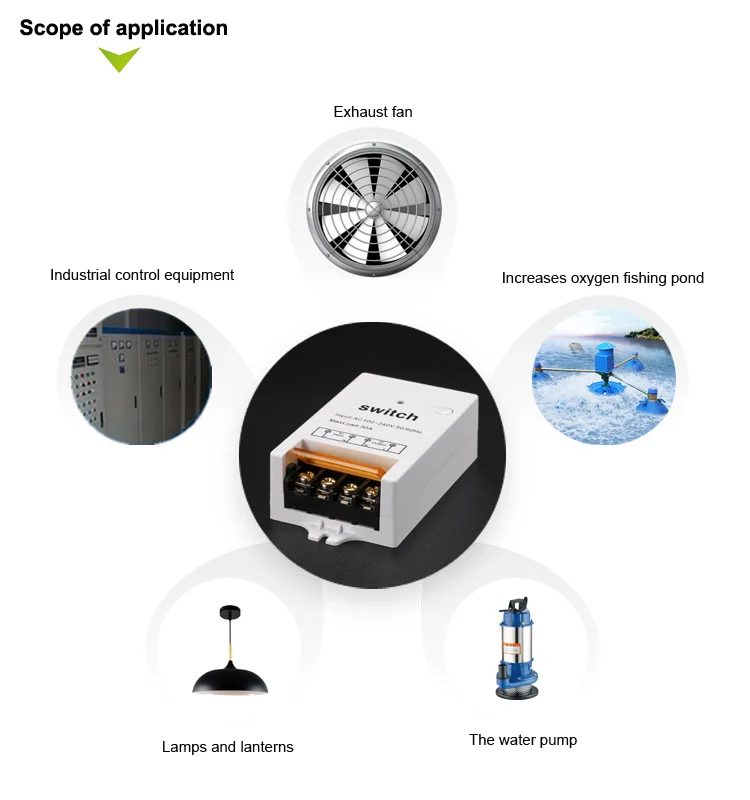

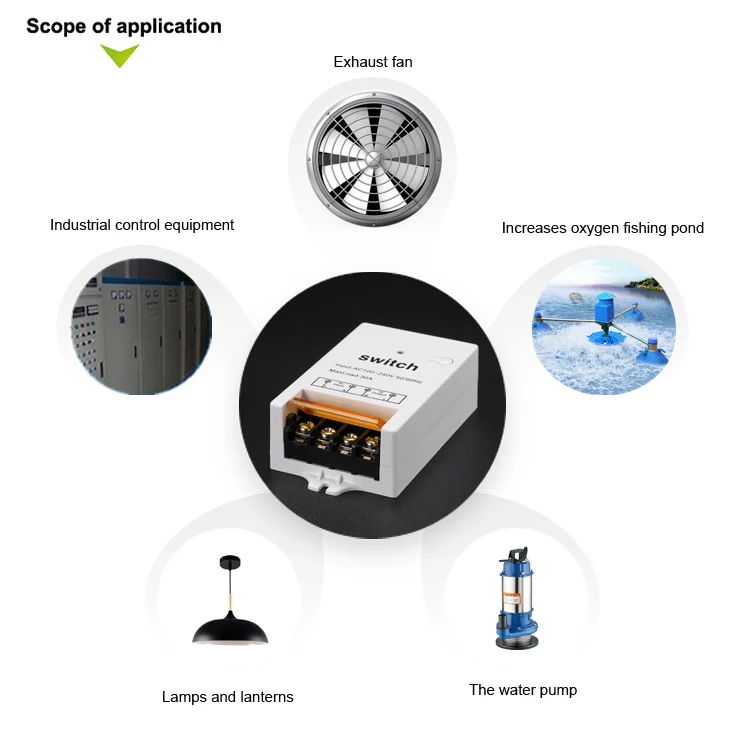

Scope of application: water pump, motor, lamps,fan ,industrial control equipment etc
8. The remote control range is 3km-5km
Scope of application: water pump, motor, lamps,fan ,industrial control equipment etc
Product Paramenters
Key word | remote control switch | Working voltage | AC90V-264V | ||||

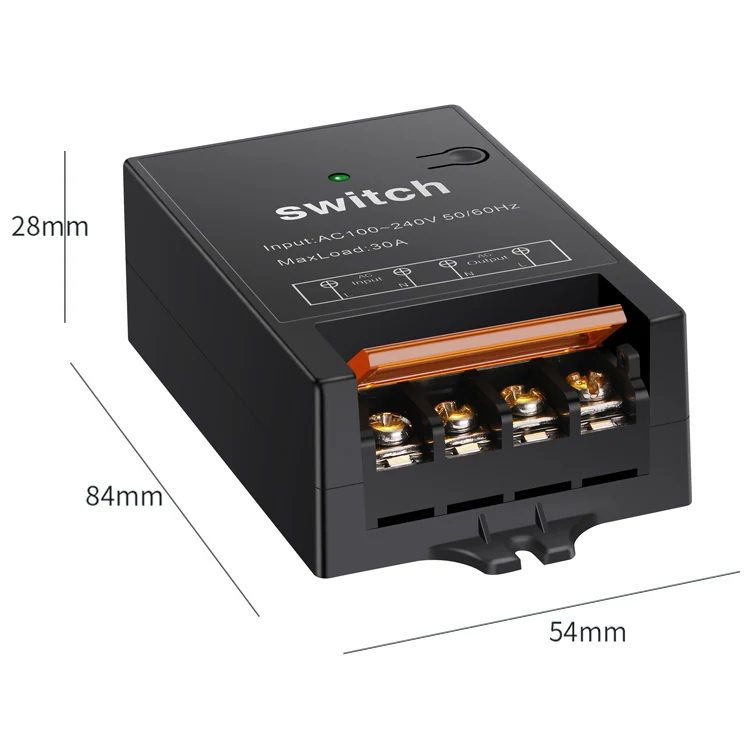

Product Size | 54*84*28mm | Working frequency | 433.932 MHz | ||||
Emission current | ≤0.01 uA | Remote distance | 3000m~5000m | ||||

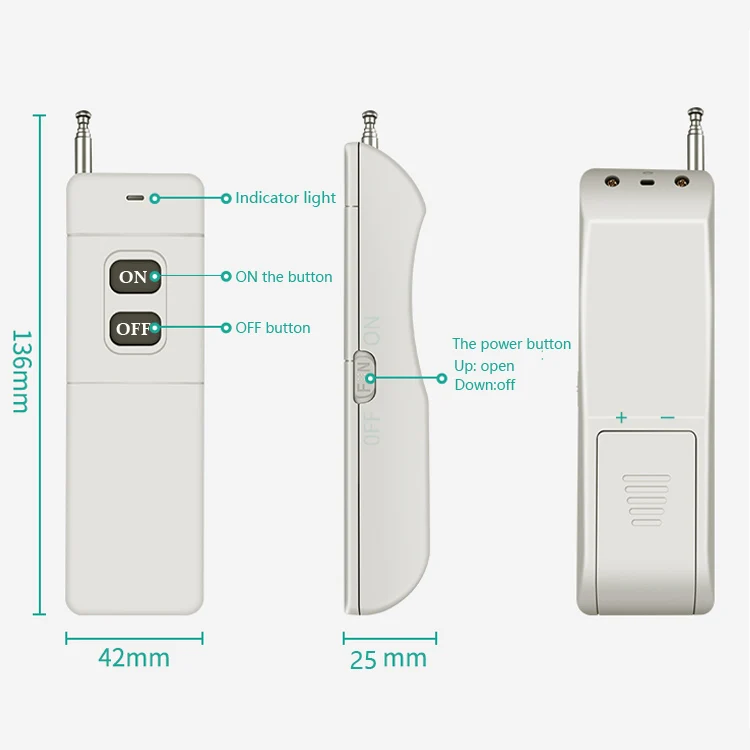

Remote control size | 42*25*136mm | Remote control battery | 6F22 9V | ||||
Current | 40A | ||||||
Working mode | Since the lock interlock Manual on and off | ||||||
Details Images
Learn Matching Instructions
Introduction to the working mode
Self-locking mode: with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Learning methods
Self-lock: the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual switch: the learning button on the controller can control the output on and off, press that open, then press that off

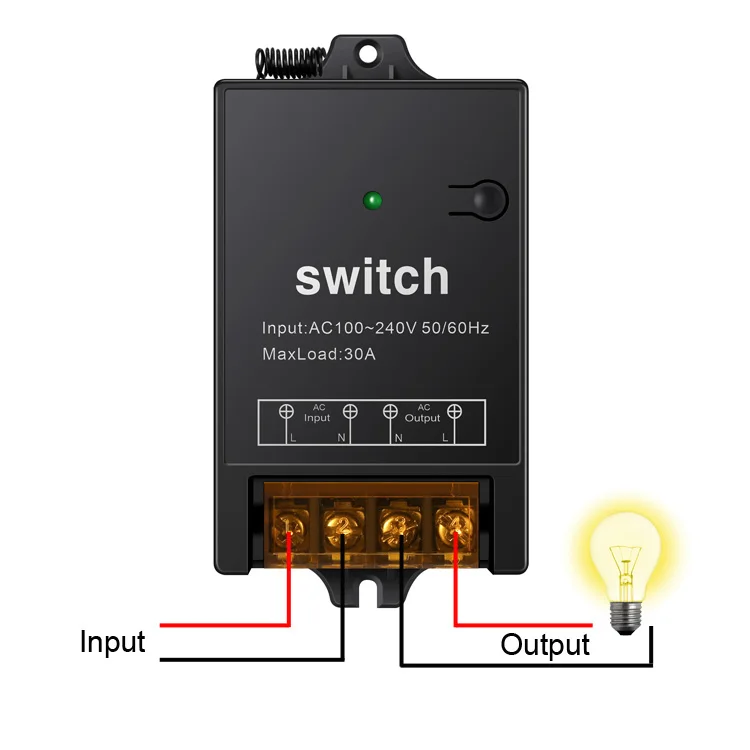

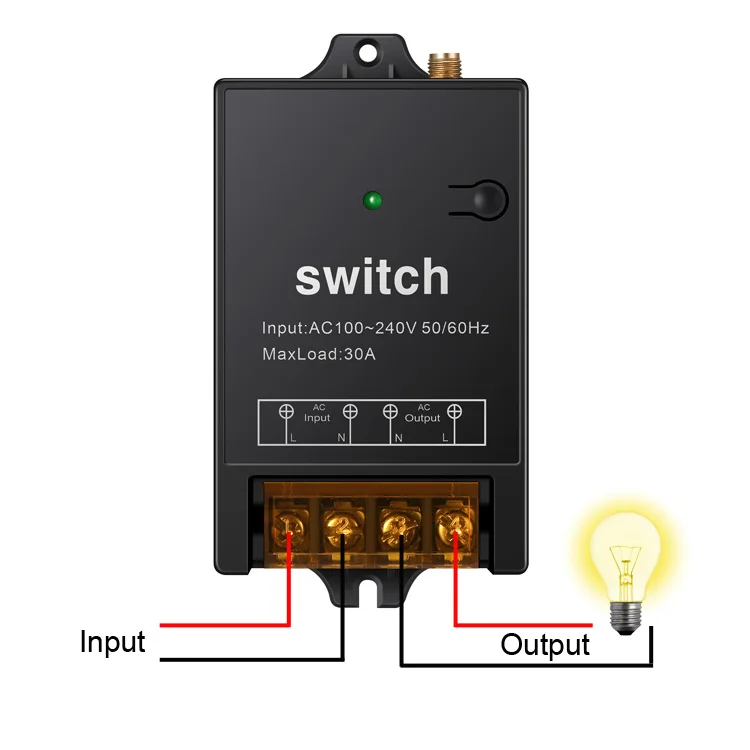

Installation Instructions

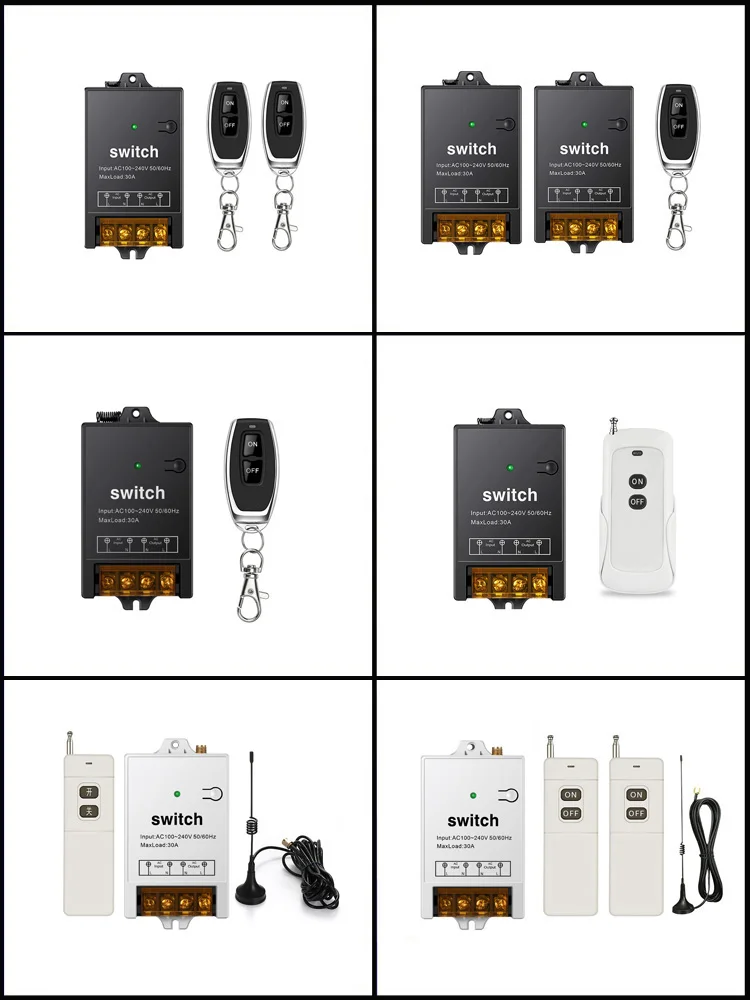

product assortment
Certifications
FAQ
Q1 Are you a factory or a trading company
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
