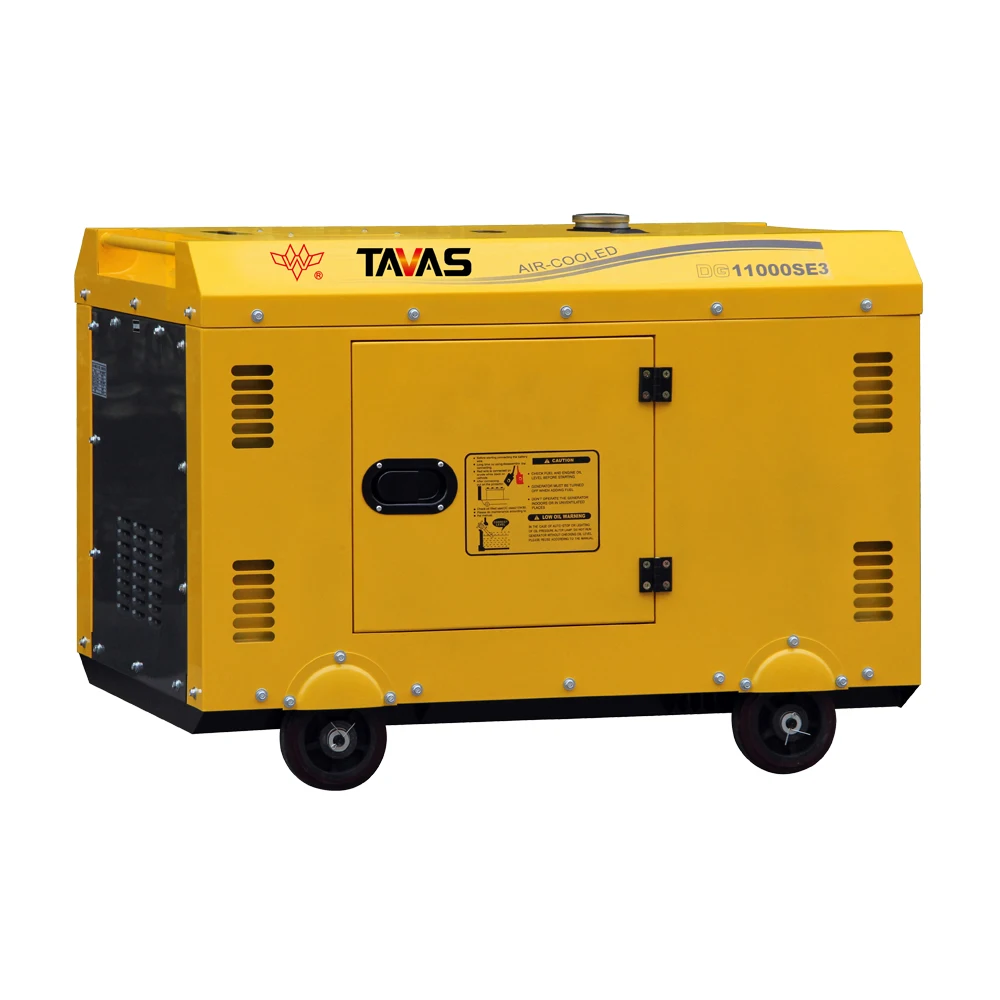

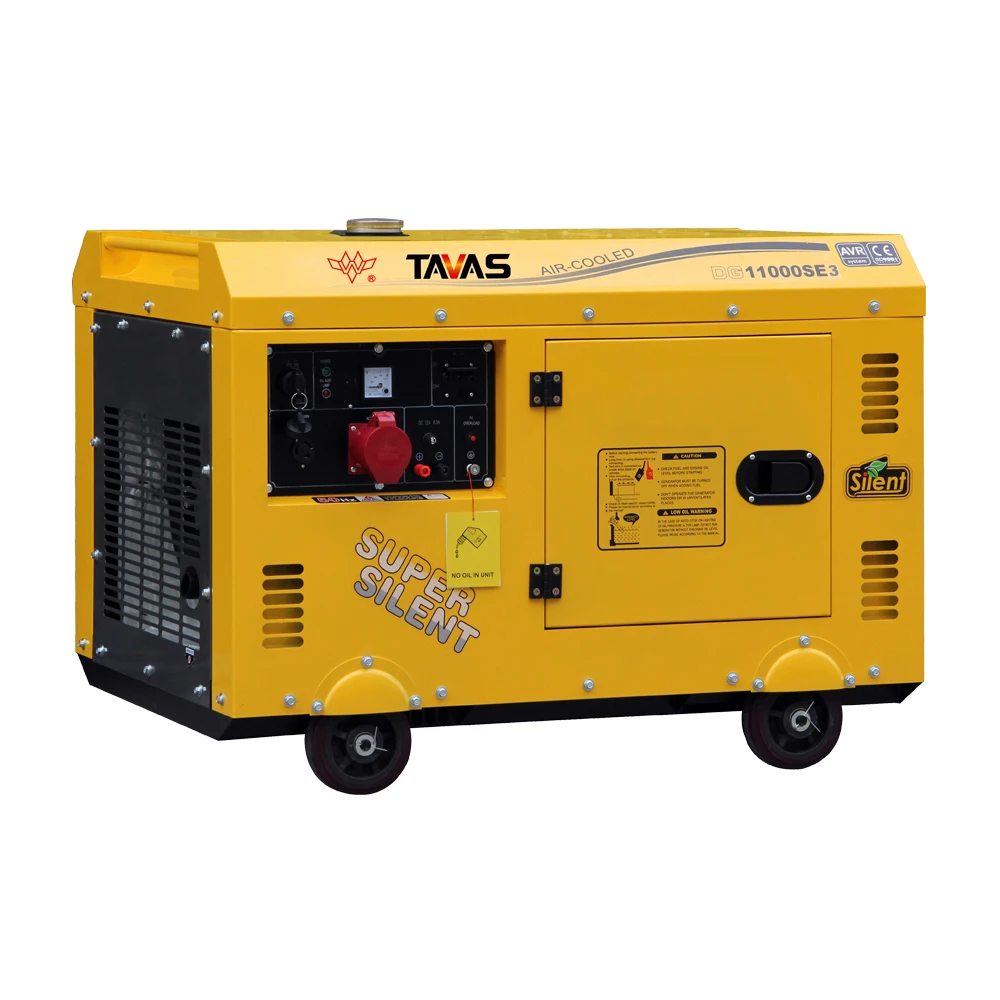

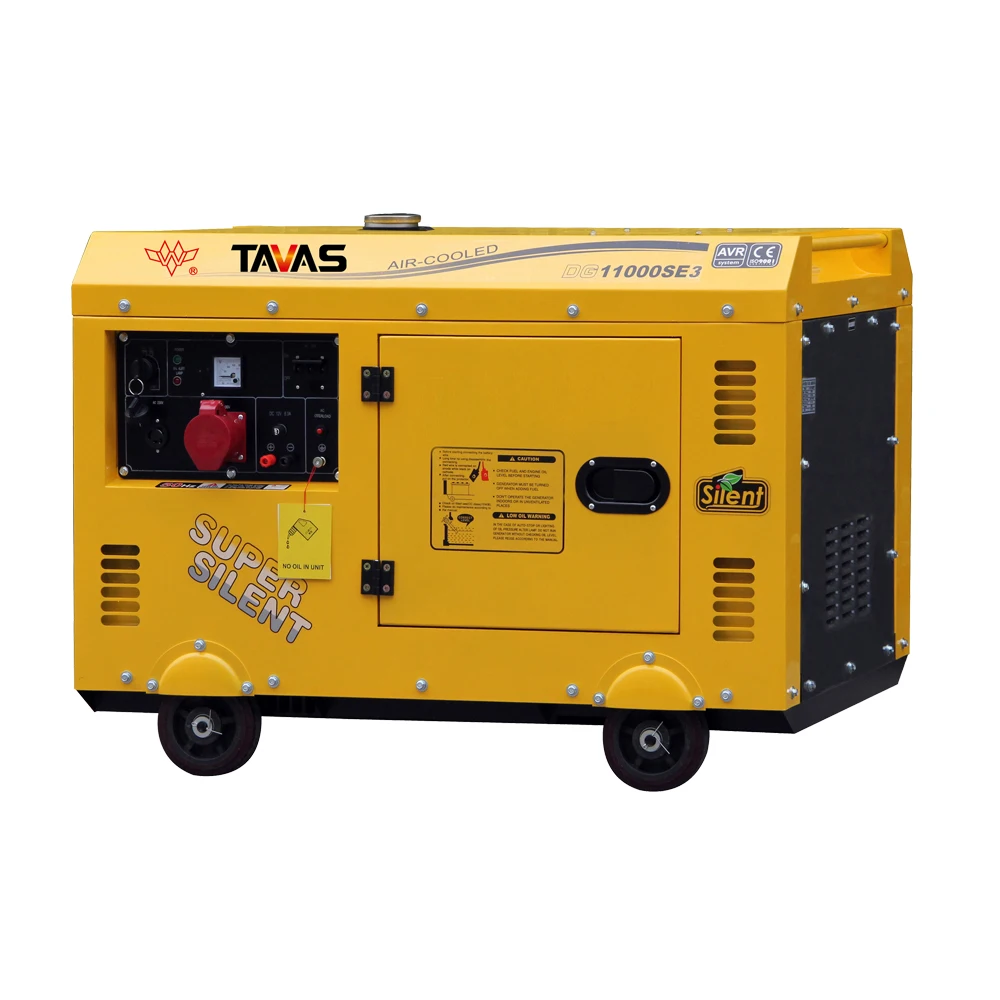

small 10kva silent diesel power generator with wheels

Product Overview

Description



Model		DG11000SE
GENERATOR	Frequency (HZ)	50	60
	Max.output (KW)	8
	Rated output (KW)	7.5
	Rated AC voltage (V)	120, 220, 230, 240, 220/380, 230/400, 240/415
	Power factor	1
	DC output (V)	12V/8.3A
	Phase	Single phase or Three phase
	Alternator type	Self-excited, 2-pole alternator
	Starting system	Electric
	Noise level (Dba/7m)	70-75
	Fuel tank capacity (L)	30
	Continuous running time (hr)	12
ENGINE	Engine model	HR198FA
	Engine type	Single-cylinder, 4-stroke air-cooled diesel engine
	Bore×Stroke (mm)	98×84
	Fuel consumption rate (g/kw.h)	≤230
	Fuel	0# or -10#  light diesel oil
	Lubrication oil volume (L)	1.65
	Combustion system	Direct Injection
STANDARD FEATURES	Voltmeter	YES
	AC output socket	2
	AC circuit breaker	YES
	Oil warning light	YES
	Oil alert	YES

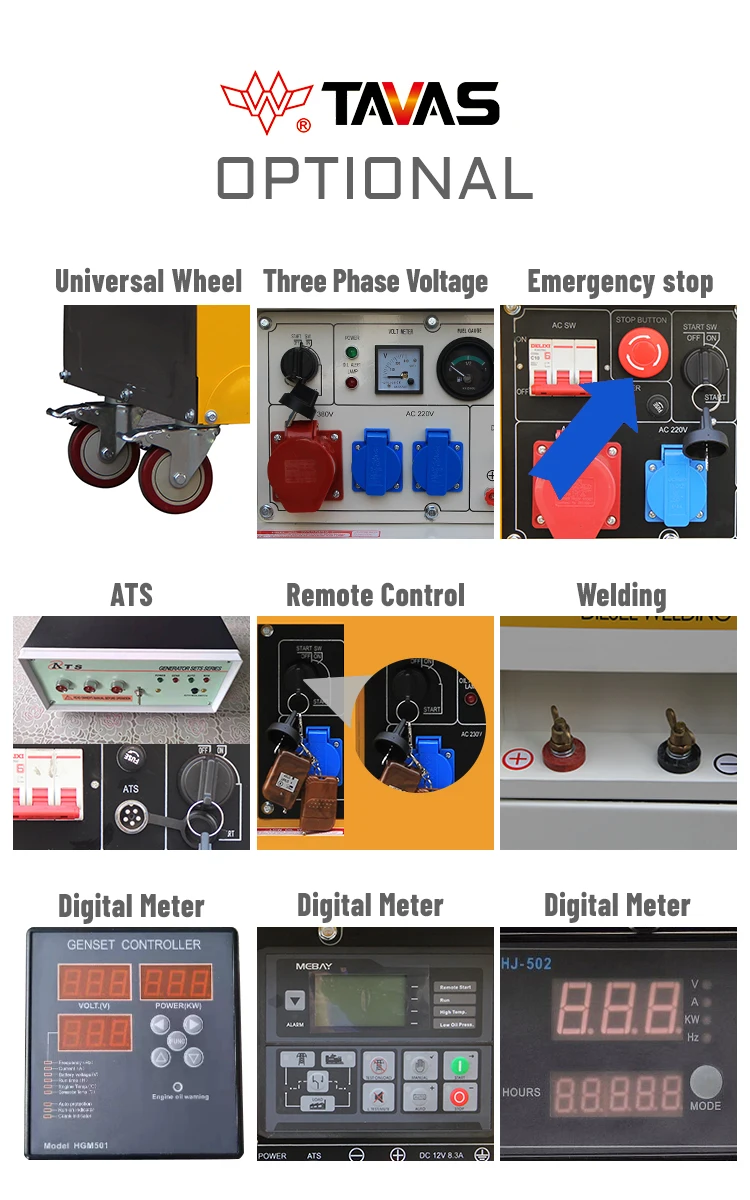

OPTIONAL FEATURES	DC circuit breaker	OPTIONAL
	Calculagraph	OPTIONAL
	Big wheel	OPTIONAL
	Three phase voltage	OPTIONAL
	Current meter	OPTIONAL
	ATS	OPTIONAL
	Remote control	OPTIONAL

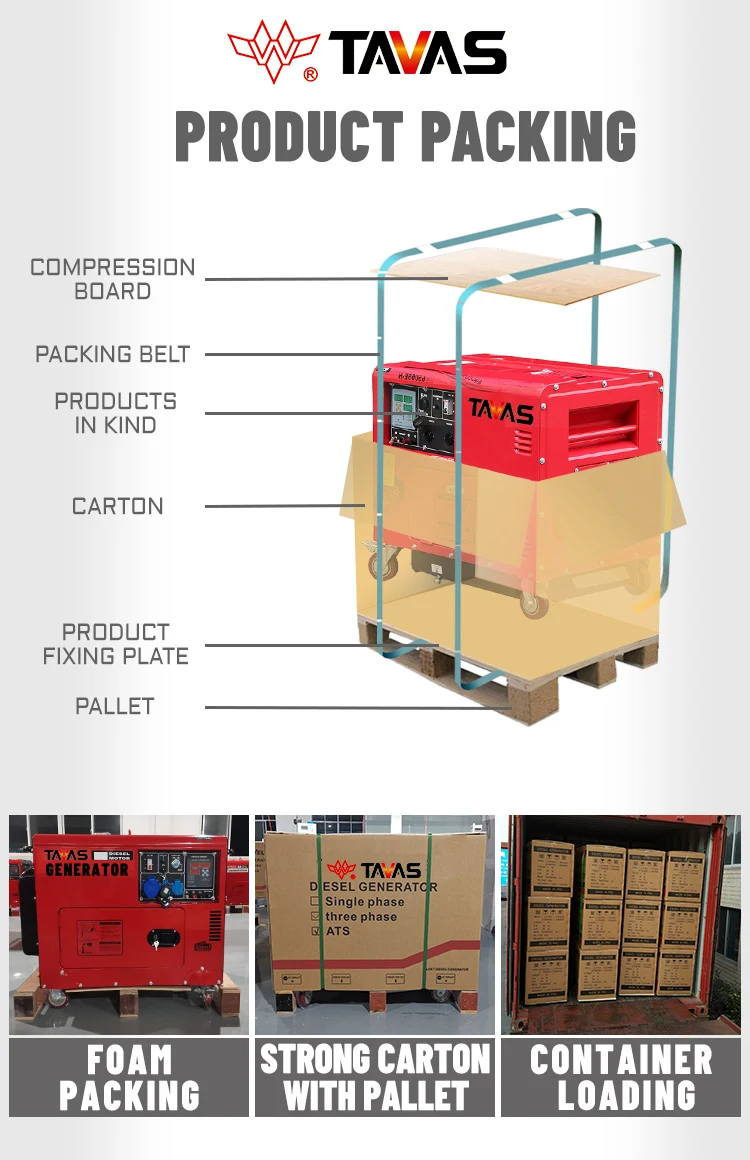

DIMENSIONS	Packing dimention (LxWxH) (cm)	113*78*86
	Gross weight (kgs)	221
	20FT loading pcs	30
	40HQ loading pcs	96
