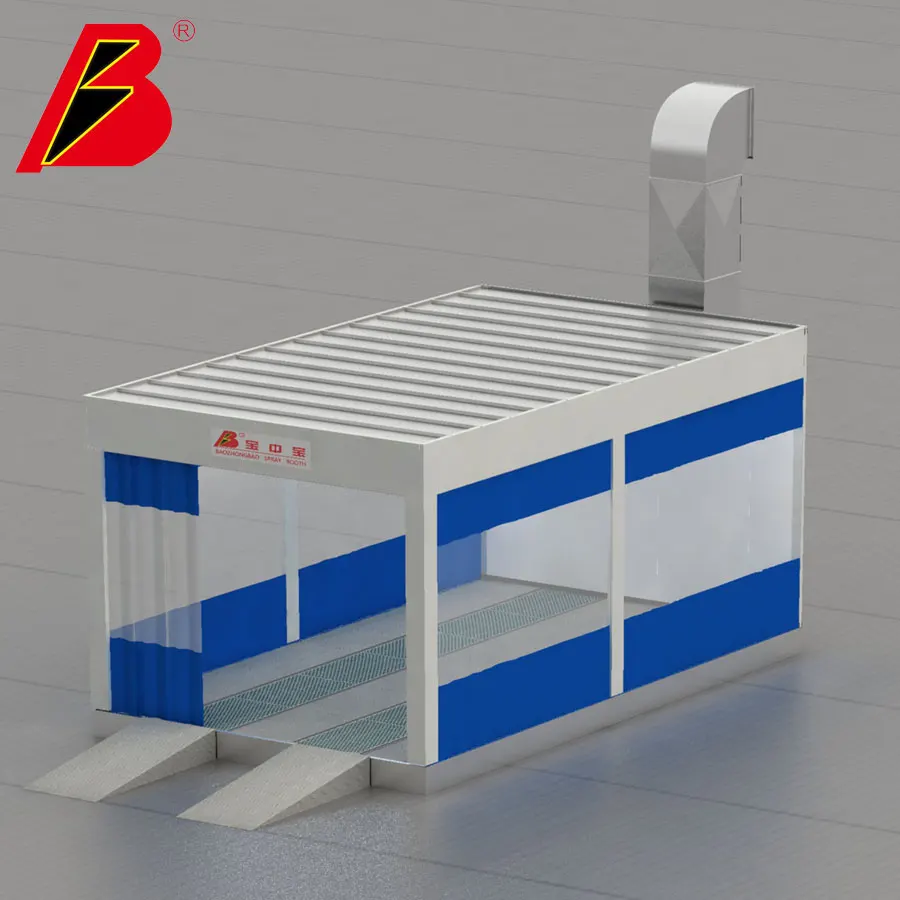

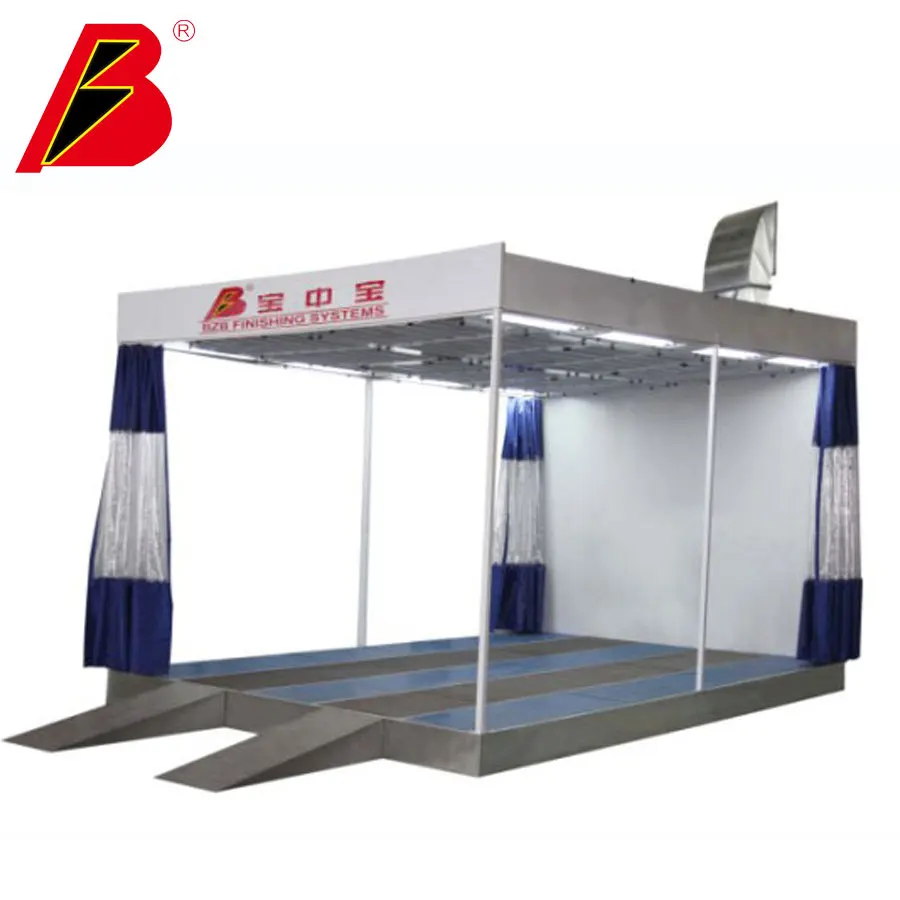

Prep station for car with CE preparation for car Sanding Room

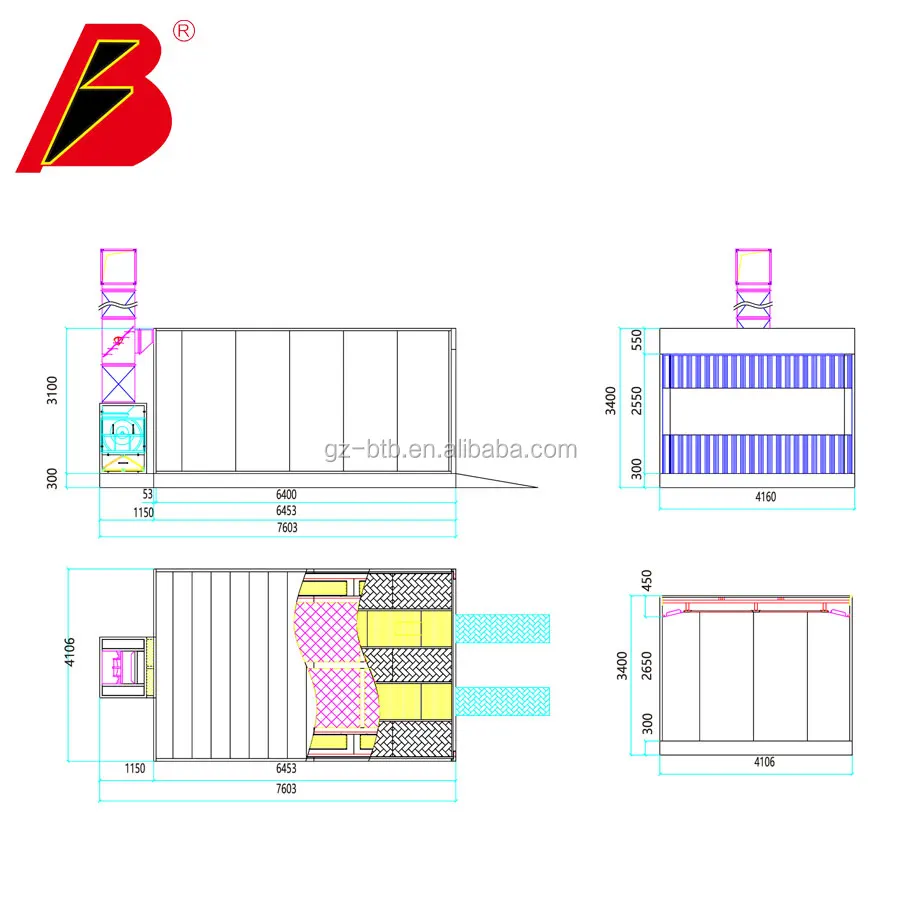

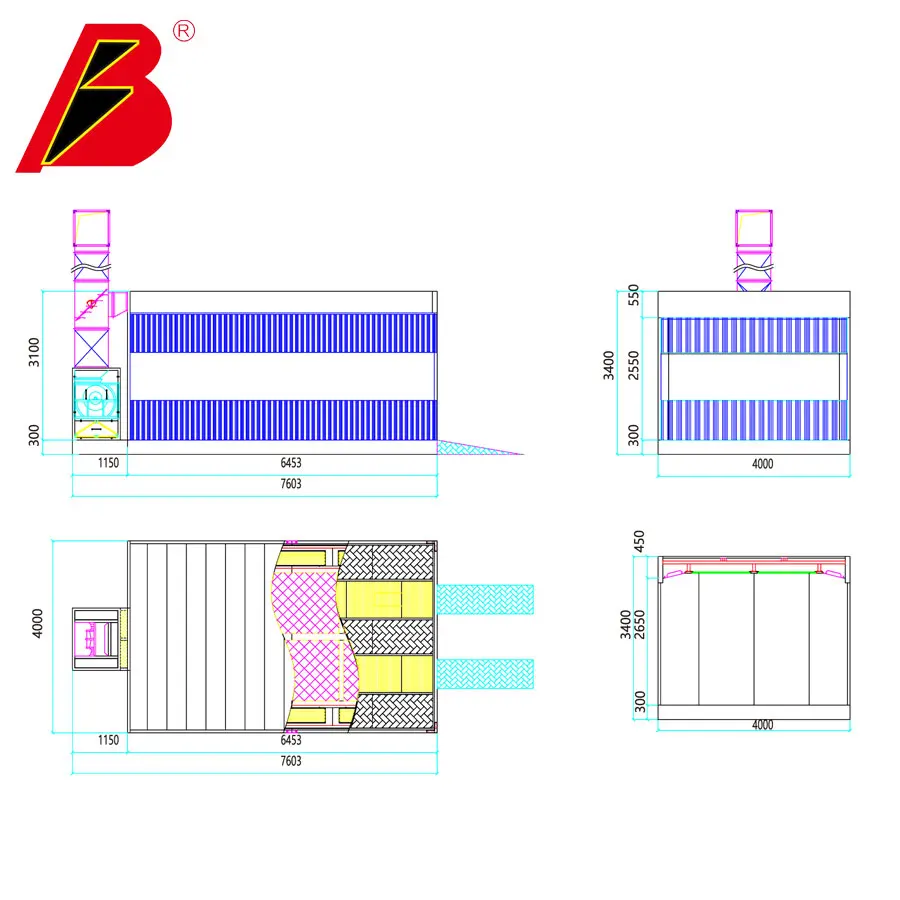

Outside Size (mm)

7603×4106×3400

Total Power (kw)

Inside Size  (mm)

6400×4000×2650

6.5

Cabin System

1.Roof construction: cold rolling plate: galvanized steel

2.Front and Side: PVC soft slipping on aluminum guide, manual control

3.Back wallboard: EPS steel skin board, 50mm Thick

Circulation System

Model:YD-5.6s; Capacity:15000m³/h; Pressure: 800Pa; Speed: 900rpm, 1 set, Power: 5.5 kw

Fan Cabin:Profile framework, Assembly of steel plate cabin; durable, beautiful and easy for Maintenance

Purification System

Multi-layer filtering Structure, the ceiling filters capture granules bigger than 5μm. The whole purification system has capacity of large volume of dust.

Environmental System

Dual filtering structure, the first filter, under the grids,captures bigger granules.

The second filter,the fiber glasses filter,under the exhaust cabin capture the rest granules.

Lighting System

Ceiling light:24 pcs 16W LED Lamp; light can make the room bright and uniform.

Ballast is professional and durable.

Controlling System

It is assembled by good electronic components. Main circuit has multi-protection.

Working switch, light switch, emergency stop, breakdown alarm.

Total Power

6.5 (kw)
