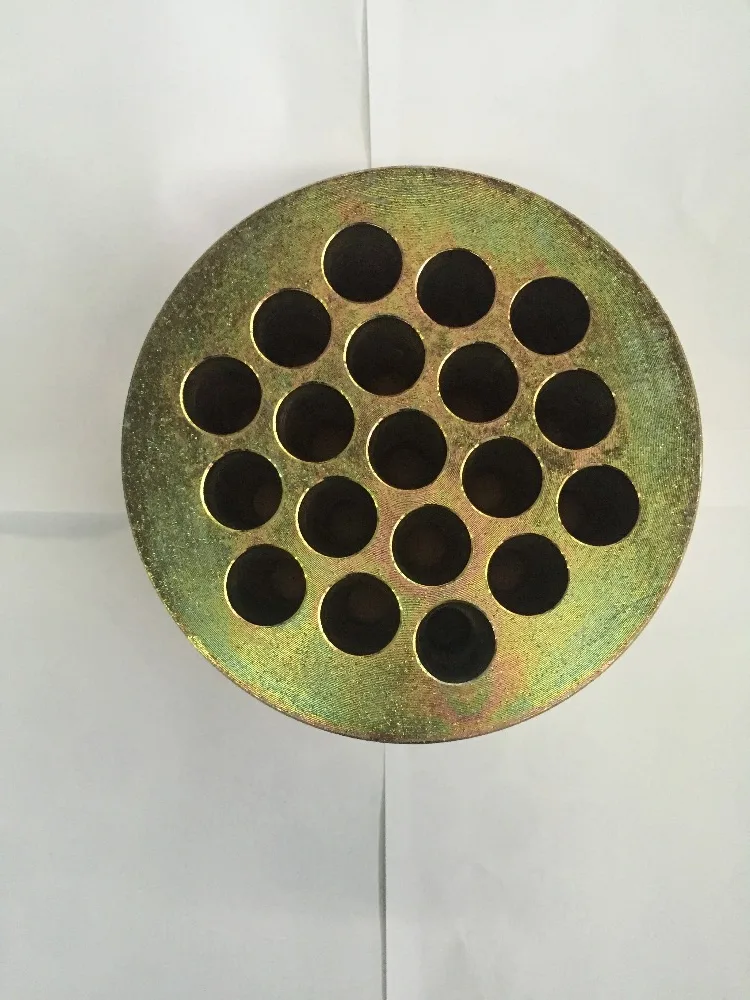

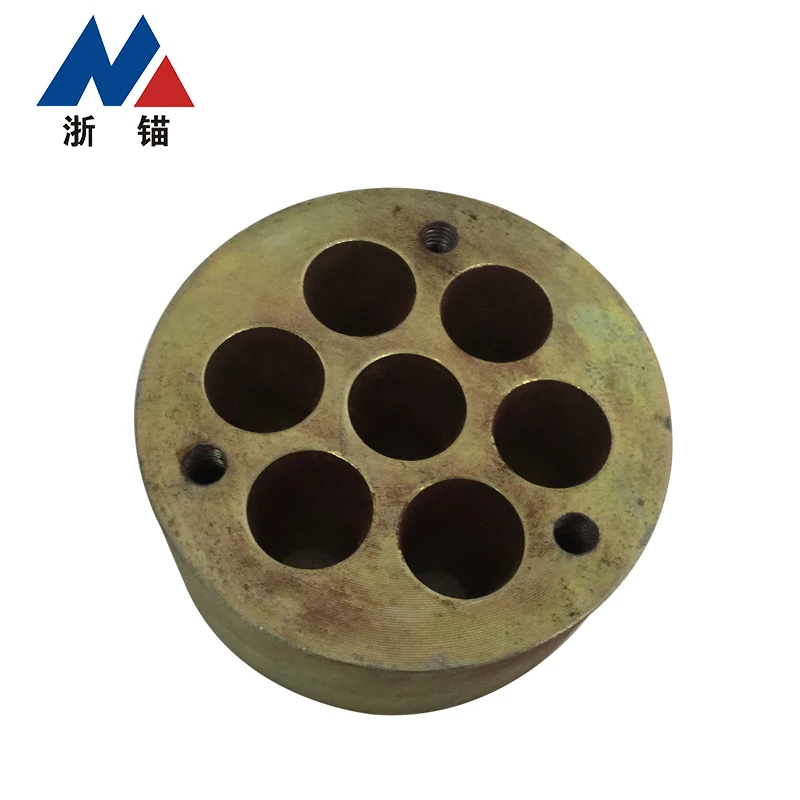

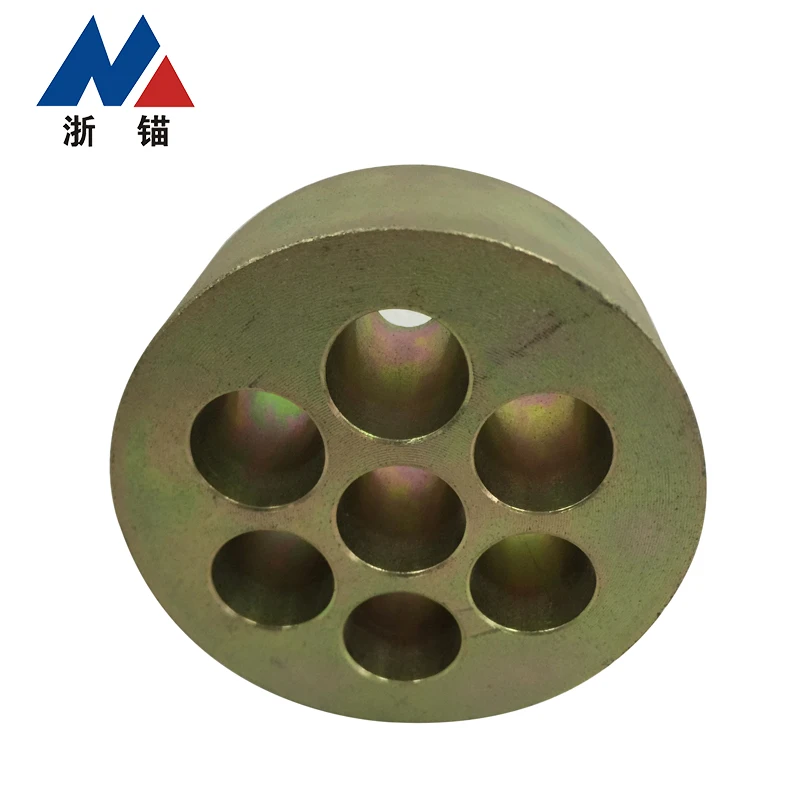

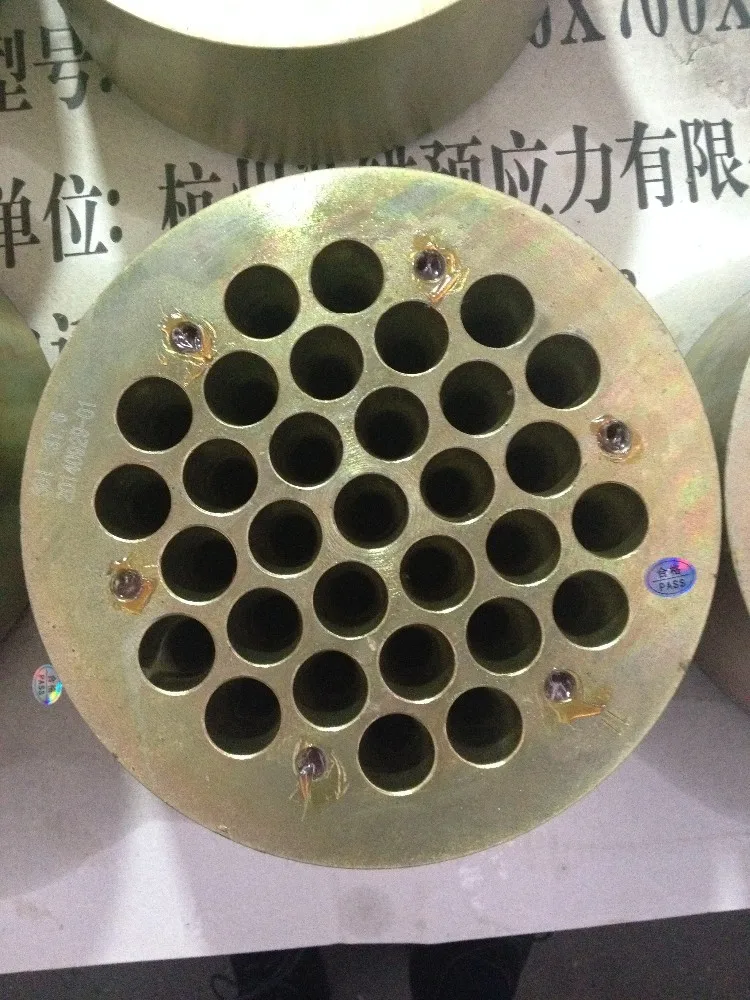

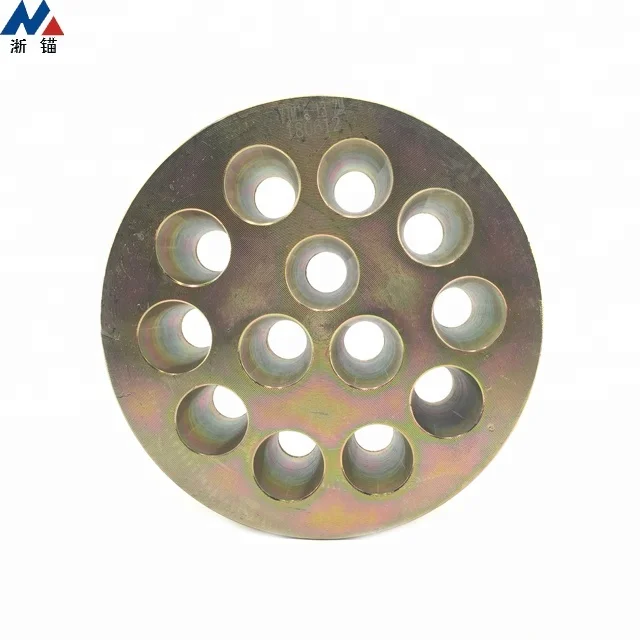

Flexibility steel strand ring prestressed anchorage prestressing casting anchorage block
- Category: Anchors >>>
- Supplier: Zhemao Science & Technology Co. Ltd.
Share on (1600247828587):
Product Overview
Description
Flexibility steel strand ring prestressed anchorage prestressing casting
Product details
| Type | Strand | Trumpet | Anchor head | Reinforcement | Type of jack(KN) | ||||||
| C | D | I | A | B | F | G | H | N | |||
QVM.M15-1 | 1 | / | / | / | 48 | 48 | / | / | / | / | YCW100B |
QVM.M15-2 | 2 | 130 | 116 | 63 | 86 | 50 | 115 | 10 | 50 | 5 | YCW100B |
| QVM.M15-3 | 3 | 130 | 116 | 63 | 88 | 50 | 115 | 10 | 50 | 5 | YCW100B |
| QVM.M15-4 | 4 | 147 | 123 | 63 | 102 | 50 | 115 | 10 | 50 | 5 | YCW100B/YCW150B |
| QVM.M15-5 | 5 | 162 | 130 | 77 | 112 | 50 | 127 | 12 | 50 | 5 | YCW150B |
| QVM.M15-6 | 6 | 175 | 152 | 80 | 126 | 52 | 142 | 12 | 50 | 5 | YCW150B/YCB200B |
| QVM.M15-7 | 7 | 175 | 152 | 80 | 126 | 53 | 142 | 12 | 50 | 5 | YCW250B |
| QVM.M15-8 | 8 | 185 | 160 | 90 | 136 | 55 | 175 | 14 | 50 | 5 | YCW250B |
| QVM.M15-9 | 9 | 200 | 163 | 90 | 146 | 55 | 175 | 14 | 50 | 5 | YCW250B |
| QVM.M15-10 | 10 | 200 | 163 | 95 | 156 | 58 | 175 | 14 | 50 | 5 | YCW250B |
| QVM.M15-11 | 11 | 240 | 188 | 100 | 166 | 58 | 205 | 14 | 50 | 6 | YCW350B |
| QVM.M15-12 | 12 | 240 | 188 | 100 | 166 | 60 | 205 | 14 | 50 | 6 | YCW350B |
| QVM.M15-13 | 13 | 240 | 188 | 100 | 170 | 63 | 205 | 14 | 50 | 6 | YCW350B |
| QVM.M15-14 | 14 | 250 | 215 | 110 | 176 | 65 | 205 | 14 | 50 | 6 | YCW350B |
| QVM.M15-15 | 15 | 250 | 215 | 110 | 186 | 68 | 205 | 14 | 60 | 6 | YCW350B/YCW400B |
| QVM.M15-16 | 16 | 270 | 255 | 110 | 196 | 70 | 235 | 16 | 60 | 6 | YCW350B/YCW400B |
