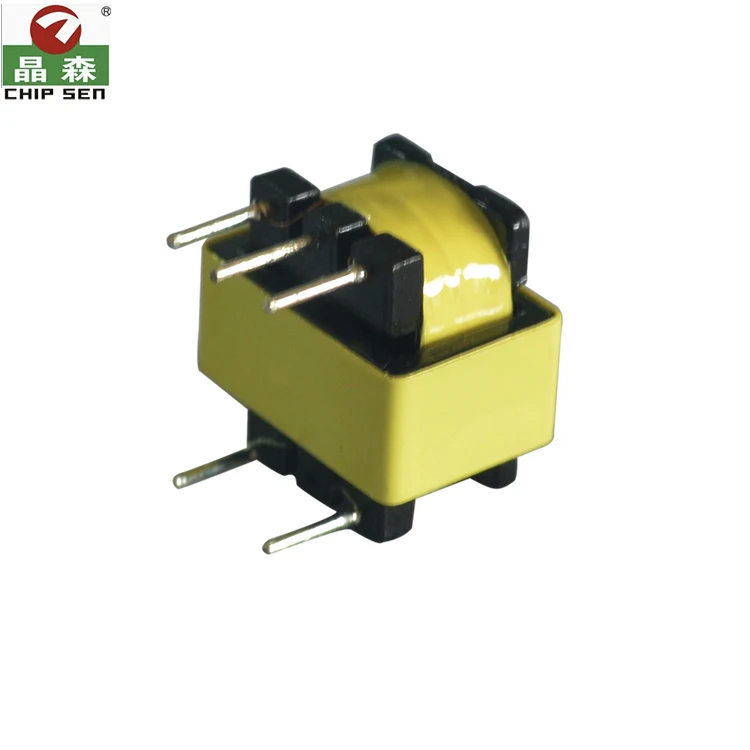

HFT149 Hot sale EE13 Transformer Bobbin voltage converter step up 5 pin pcb transformer
- Category: Transformers >>>
- Supplier: Dongguan,Chipsen,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Components | bobbin, ferrite core, silicon steel sheet, copper wire, copper foil, insulation tape, margin tape, TFL tube, expoy |
| Bobbin Material | bakelite/ phenolic/ plastics |
| Shape Type | horizontal / vertical / SMD |
| Inductance Range | 1uH-100H |
| Working Frequency Range | 50Hz --300KHZ |
| Output Power | 0.1W-3000W |
| Output Voltage | 0.1V-10000V |
| Output Current | 0.01A-100A |
| Operating Temperature | -15℃~+80℃ |
| Storage Temperature | -25℃~+85℃ |
| Storage Humidity | 30% ~ 90% |
| Test Items | Ø Turns ratio |
| Ø Inductance | |
| Ø Phase test | |
| Ø Inductance leakage | |
| Ø DC resistance test | |
| Ø Withstand voltage | |
| Ø Insulation resistance | |
| Certification | ISO9001:2015, ISO14001:2015, UL, ROHS, CQC |
| MOQ | 1000 pcs |
| OEM/ODM | acceptable |
| Sample | free |
| Sample Time | 3-5 working days |
| Package | EPE foam + export carton, or plastic tray+export carton |
| Delivery time | 15-18 working days against deposit |
| Features | Large transmission power |
| Low loss | |
| Low temperature rise | |
| Stable performance | |
| Applications | 1. switching power supply |
| 2. electrical home appliance | |
| 3. medical equipments | |
| 4. communication device | |
| 5. solar energy and inverter | |
| 6. car charging pile and car charger | |
7. security products and smart home |
Application
Production Process
Certifications
Company Information
Dongguan Chipsen Electronics Technology Co., Ltd. was founded in 2000 and is a high-tech company which integrates production, design, R&D, and sale. We passed ISO 9001 certification and the UL Insulation systems certification.
Our main products are Chipsen electronic transformers, SMD power, inductors coils, fixed inductors, toroidal coils, common mode chokes, and adapters.
Our products are used in Car Electronics, digital productor, LED/OLED appiance, TFT,Medical device,Household appliance,Industrial and mechanical product, computers' VGA cards, ADSL/VDSL modems,and so on.
